KHH 170 HS

ESAB KHH 170 HS Instruction manual / Spare parts list (Replacement parts)

Download

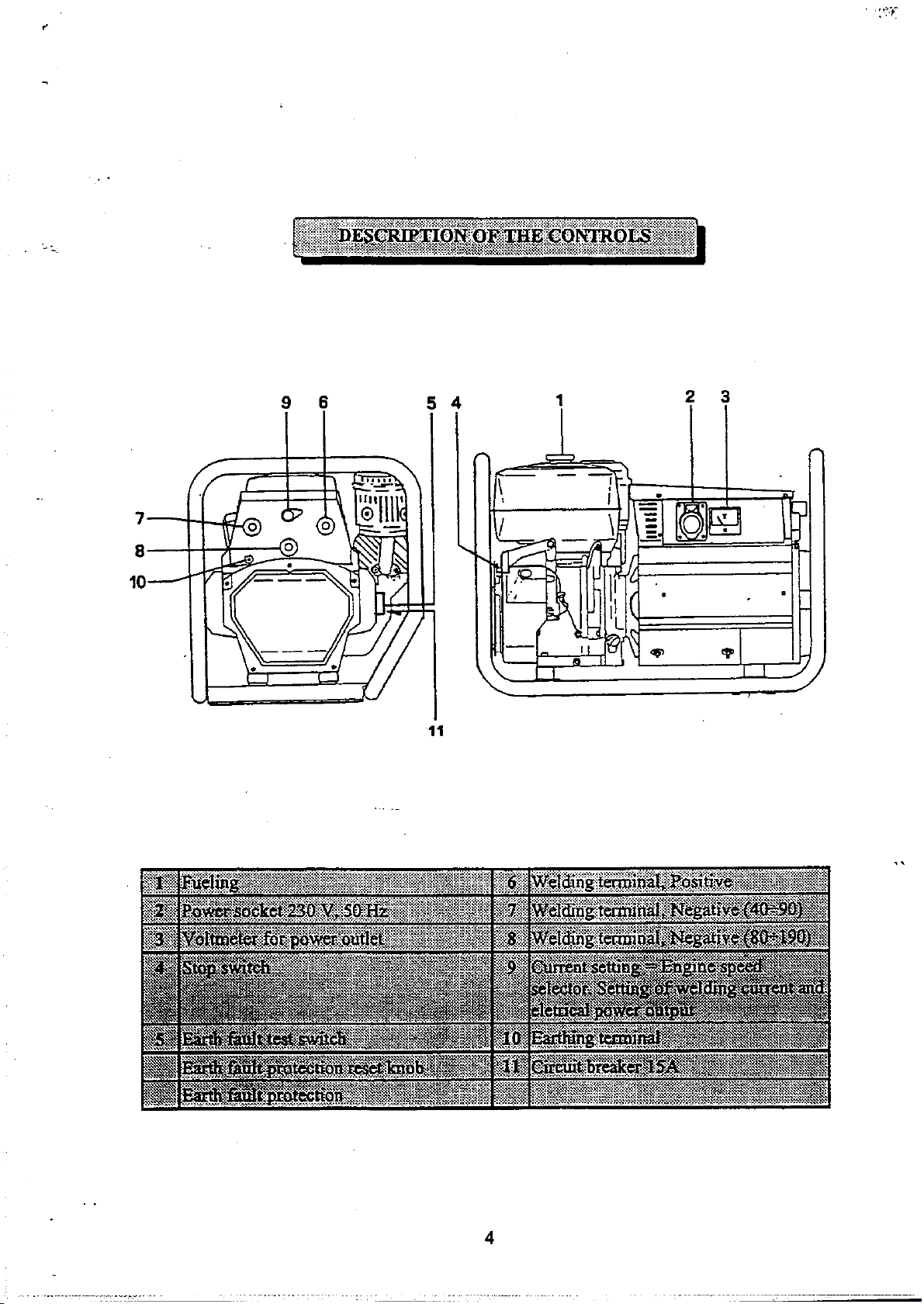

KHH 170 HS
Engine driven welding machine

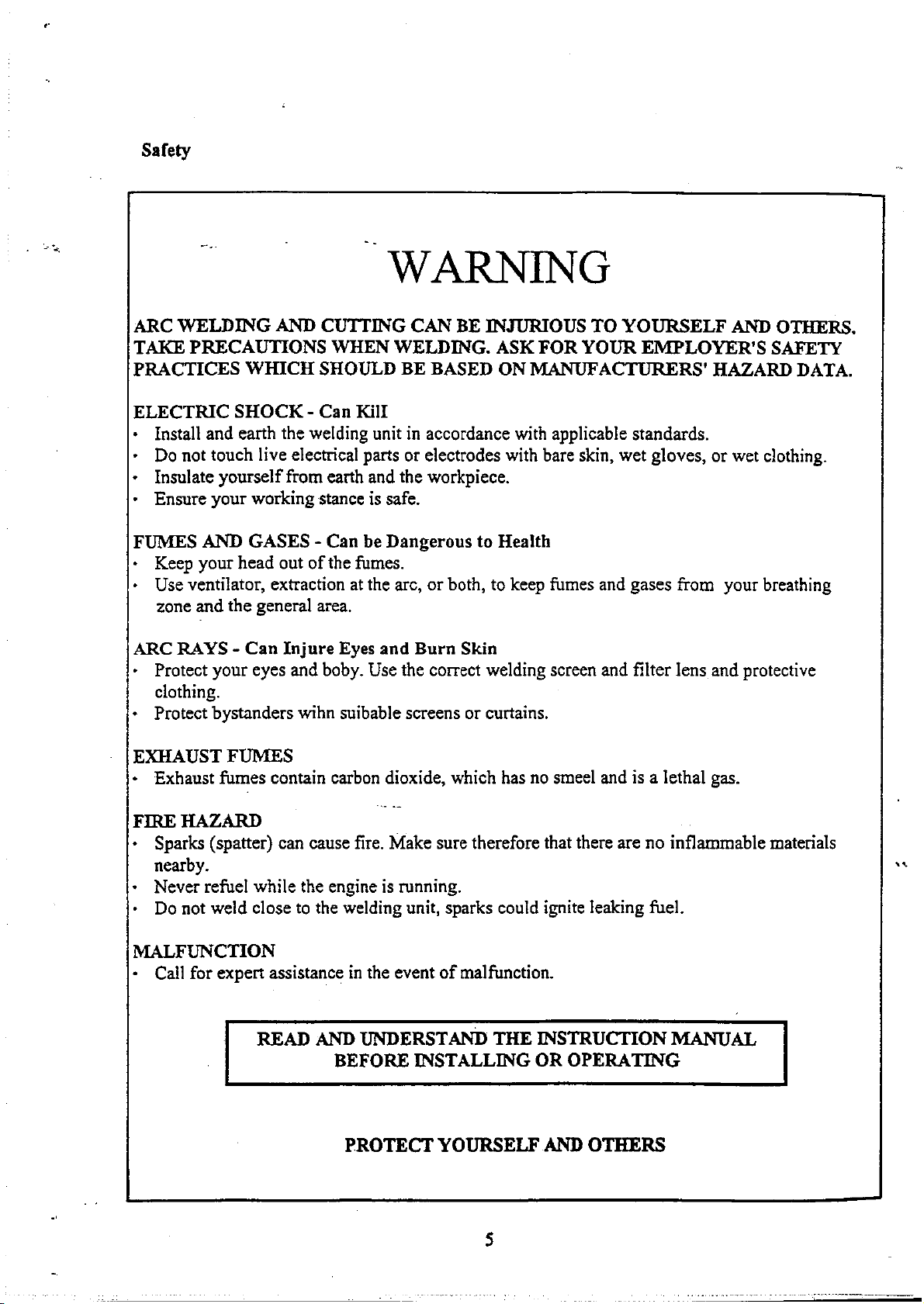

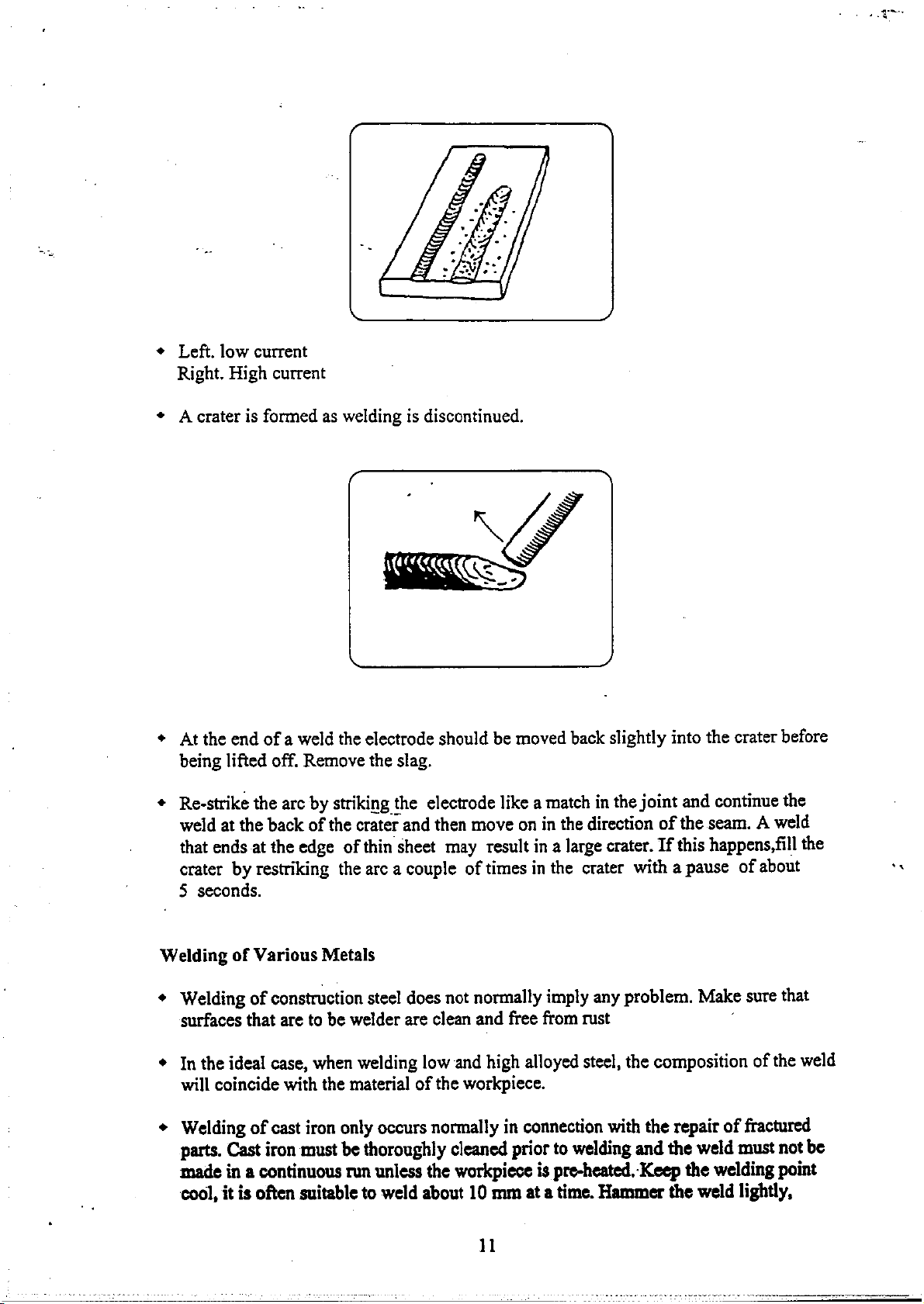

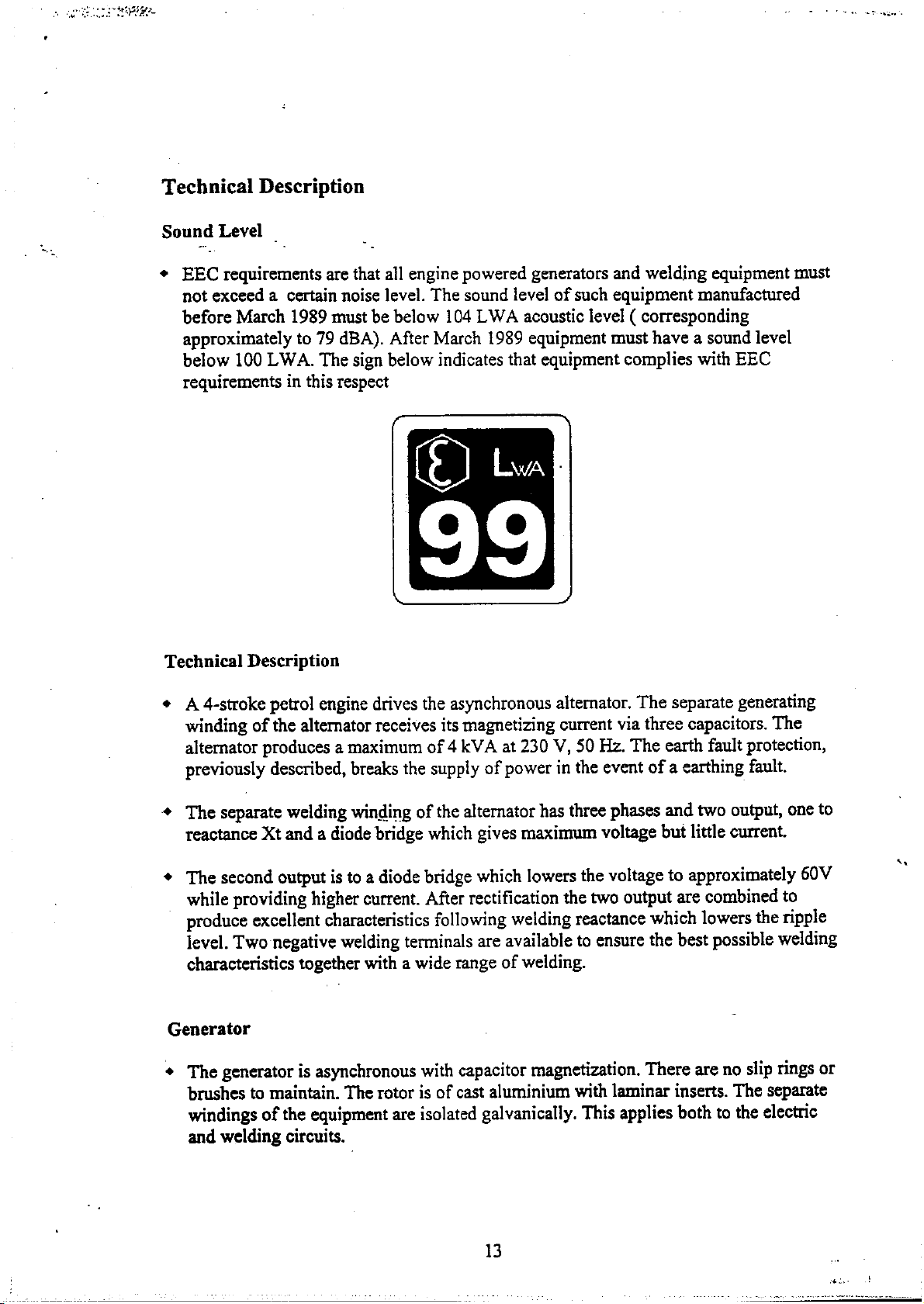

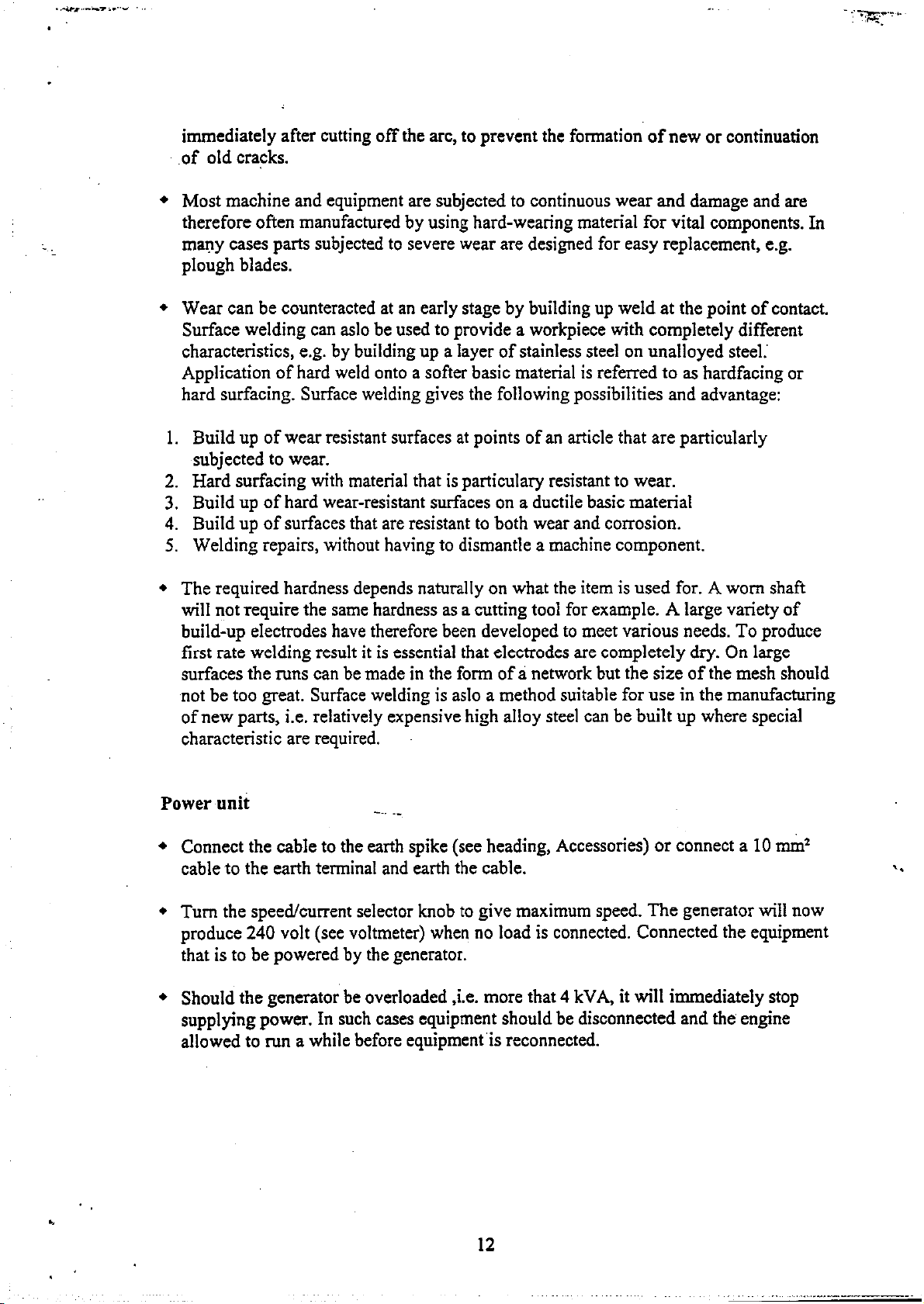

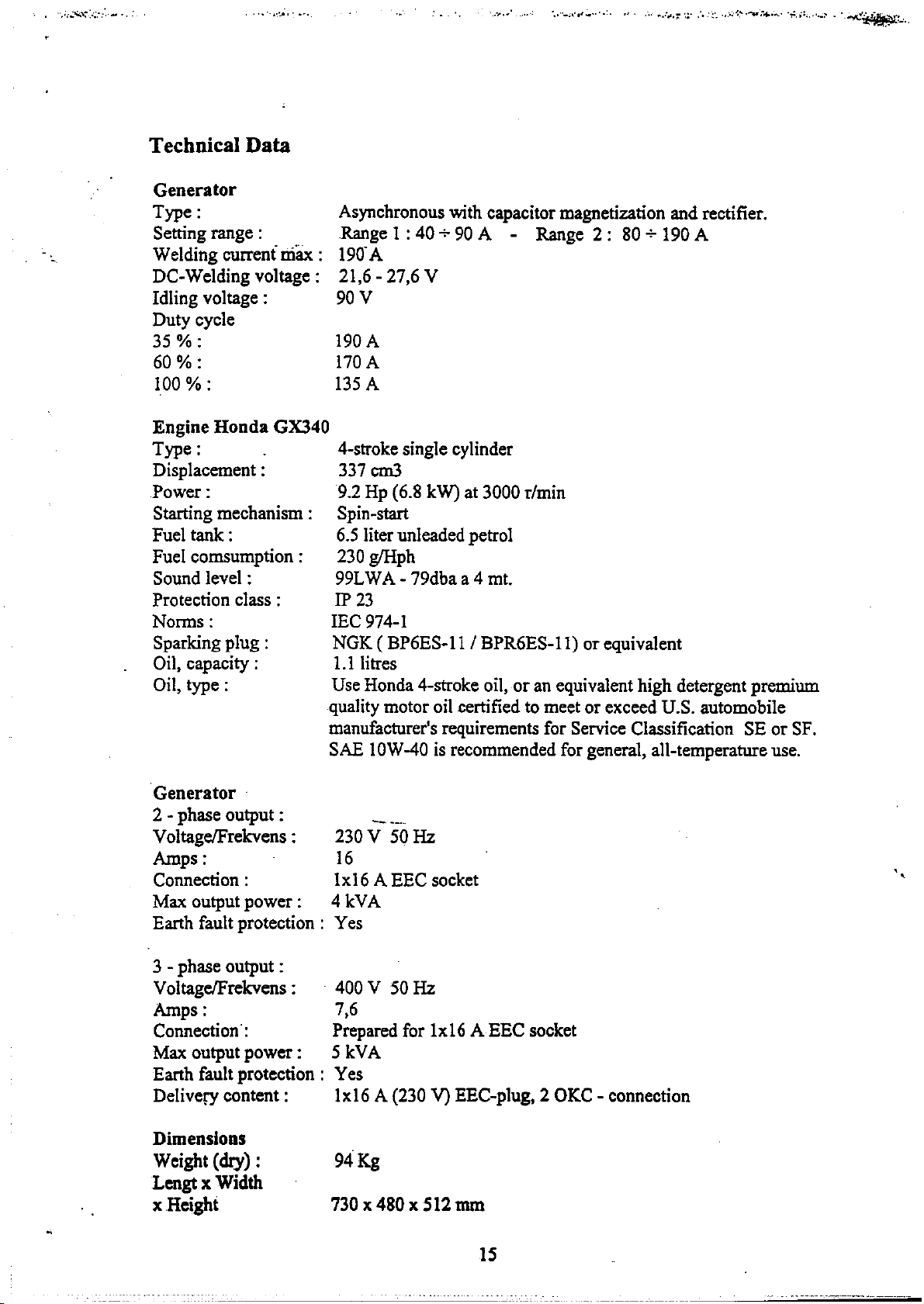

Instruction manual
0XXX XXX XXX
KHH 170 HS
Spare parts list
Spare parts are to be ordered through the nearest ESAB agency as per the list on the back of the cover. Kindly indicate type of unit, serial number, denominations and ordering numbers according to the spare parts list.
Maintenance and repair work should be performed by an experienced person, and electrical work only by a trained electrician. Use only recommended spare parts.
Item Qty Ordering no. Denomination
1 1 0304 000 019 Resistor
2 1 0304 000 035 Thermal switch
3 1 0304 000 010 Left protection grille
4 1 0304 000 045 Resistor support
5 2 0369 411 002 Resistor terminal
6 2 0160 036 881 Welding outlet plug (OKC)
7 6 0369 411 006 Insulationg washer dia. 12
8 6 0369 411 004 Insulating washer dia. 7
9 2 0369 411 040 Spacer 20mm
10 1 0369 411 011 Volt meter
11 1 0369 411 009 230V EEC socket
12 1 0304 000 051 Protection cover
13 1 0304 000 047 Instrument panel
14 1 0304 000 293 Top cover
15 1 0304 000 026 Closing panel
16 1 0304 000 027 Side cover, right
17 3 0369 411 005 Insulator
18 1 0304 000 009 Capacitor bracket
19 2 0304 000 015 Shock absorber dia. 40x40
20 1 0369 412 045 Earth--leakage circuit breaker
21 1 0304 000 048 Bracket for earth--leakage circuit breaker
22 3 0160 362 881 OKC socket
23 1 0304 000 007 Reactance support, left
24 1 0304 000 013 Instrument casing
25 1 0304 000 014 Reactance
26 1 0304 000 020 Accelerator unit
27 1 0304 000 294 Front panel
28 1 0304 000 022 Bearing flange
29 1 0304 000 034 Accelerator knob
30 1 0304 000 024 Ground terminal
31 1 0369 411 034 Fan
32 1 0304 000 052 Bracket
33 1 0369 411 047 Fan ring
-- 2 3 --partdo2a
KHH 170 HS
Item DenominationOrdering no.Qty
34 1 0369 411 051 Casing lid
35 1 0304 000 295 Power rectifier bridge
36 1 0304 000 003 Resistor support
37 1 0304 000 002 Terminal protection panel
38 1 0369 411 043 Bearing
39 1 0369 411 044 Ring
40 1 0369 411 046 Lock ring
41 1 0304 000 031 Lower protection cover
42 1 0304 000 049 Stator
43 1 0304 000 029 Rotor
44 1 0304 000 004 Frame
45 1 0304 000 044 Rubber cap
46 1 0304 000 017 Reactance
47 1 0304 000 021 Rod
48 1 0304 060 008 Side cover, left
49 1 0304 000 011 Screw M8x37
50 1 0304 000 001 Engine support
51 2 0304 000 028 Spacer 70mm
52 1 0304 000 023 Engine flange
53 3 0369 411 015 Capacitor 60mF
54 1 0304 000 006 Reactance support, right
55 5 0304 000 046 Screw M5x27
56 2 0369 411 049 Shock absorber dia. 30x30
57 2 0304 000 012 Shock absorber dia. 15x30
58 2 0369 411 019 Shock absorber dia. 15x30
59 1 0369 411 045 Spring ring
60 1 0304 000 039 Terminal board
61 1 0304 000 041 Capacitor bracket
62 1 0369 411 031 Cap for knob
-- 2 4 --partdo2a
