INSTRUCTIONS for
CUT WATER PUMP
Part Numbers 36942 (Hi-Flow) and 33262 (1/2 GPM)
INTRODUCTION
0558005138
August, 2004
The Cut Water Pump is intended to supply cut water to the PT-15XL water injection torch. It may be used in other applications where water requirements do not exceed the pump capacity of 0.5 gpm @ 200 psig maximum delivery.
This manual also covers the Hi-Flow Pump Assembly used on the 1000 AMP water injection system.
DESCRIPTION
The pump assembly consists of a base plate on which are mounted the motor and relay. The pump is mounted to the motor with a carbonator clamp. The relay Is prewired with a 25-ft. power cable with a 115 VAC plug. A 25-ft. control cable and plug assembly with an amphenol plug is provided for connection to the Smart Flow 2.5 (and higher) Flow Control. These pump assemblies are also used for replacement and retro fitting to earlier version flow controls such as the ESP Flow Control.
A positive displacement rotary vane pump is mounted to the motor. The 1/2 Hp, 115/230 VAC, 50/60 Hz motor is drip-proof and thermally protected. The motor is supplied wired for 115 VAC.
1
CAUTION
CUT WATER PUMP
2.50
1.94
2.06
2.75
P/N 951216
P/N 952607

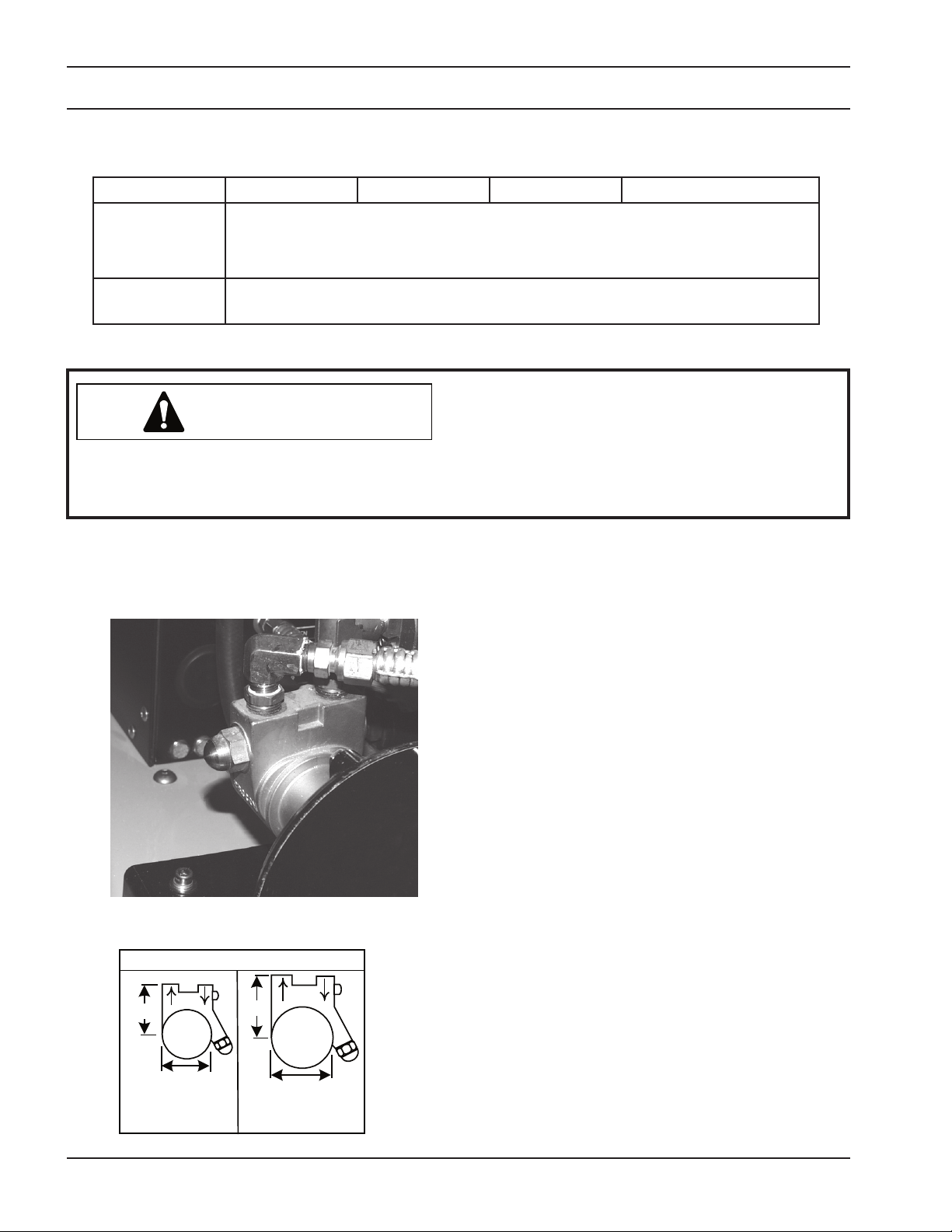

Pump Sizes
Standard Hi-Flow
Specification
Motor - 115 V/230 V 50/60 Hz 1725/1425 RPM 7.5A/3.6A
Pump Capacity
- Standard
Pump Capacity
- Hi-Flow
0.75 gpm @ 250 psi max. delivery pressure
Note: Water Injection systems that use this pump require a minimum of 0.50 gpm at the flow control. 0.75 gpm at the pump provides a safety margin.
2.26 gpm @ 250 psi max. delivery pressure
Do NOT operate with delivery pressure set to more than 220 psig. Do NOT operate for more than 2 minutes with no flow (with the pump dead-ended). Do NOT operate for extended periods of time with less then 0.2 gpm flow.
Adjusting Delivery Pressure
Pump Identification
Procedure
Remove acorn nut on pump.
1.
2.
Turn screw in to increase pressure.
3.
Turn screw out to reduce pressure.
Replace acorn nut.
4.
The pump type can be easily identified by the physical size. Hi-flow pump is bigger than the standard cut water pump. See dimensions at left.
2
CUT WATER PUMP
Changing motor to 230 volt input
Motor Terminal Board, Wiring for 115vac and 230vac
Change wiring on motor terminal board as shown.
NOTE: Relay must be supplied with 115 VAC through
cable and plug assembly.
BRN
RED
BLK
6
5
1
MOTOR WIRING
1
230 VAC
MOTOR WIRING
4
4
GND
GND
230
VAC
WHT
MOTOR WIRING
1
5
4
GND
115
VAC
3
2
WHT
RED
BRN
3
2
BLK
6
115 VAC
3
2
5
6
TO
FLOW
CONTROL
115
VAC
VAC
Wiring Diagram
115
WHT
WHT
BLK
BLK
WHT
GRN
4
2
6
8
7
1
3
5
BLK
GRN
GND STUD (LOCATED ON RELAY BOX)
3-3
Replacement Parts
5
22211918
6273437
36 32 25 7
14
273337
4
1
43
13
35 31 24 2
15
41
3
42
13
11
16
20
19
21
22
43
41
Parts included only on
assembly P/N 33262
REF
42
Assembly P/N 33262
Assembly P/N 36942 Hi-Flow
CUT WATER PUMP
1 33264 Base Cut Water Pump
2 951269 Motor Carb. 1/2 HP 115/230
VAC
3 951216 Pump Carb 1/2 GPM 190 PSI
3A 952607** Pump Carb Hi Flow
4 951068 V-Clamp
5 994027 Assy Cable & Plug 16 GA Cond
6 97W48 Relay DPDT 120 VAC 25A
7 598480 Cover Relay
9 33127 Hose, Cut water 25Ft.
11 461107 Tee Street 1/4-18 NPT
12 11N16 Connection B-Size LH
13 10Z30 Connection Air/Water
14 951283 Conn Strain Relief 1/2” Nylon
15 978153 Gauge 2” 0-400PSI
16 681400126 Bushing 3/8 X 1/4
16A 950178** Bushing 1/2 X 1/4 Hi Flow
18 2017587 Plug 2 Con w/Grnd
19 73635891 Cable 16GA 3 COND 300V
C-SJO
20 634986 Term Flag .250 X 22-16AWG
**Note Items 3A and 16A are used on the HI-Flow Pump P/N 36942
Items 41, 42,and 43 are used only on the standard .5 GPM pump
21 93W77 Term Spade #8 SS 14-18AWG
22 84W11 Term Ring
24 61341361 SCR HH 5/16 X 3/4
25 613079023 SCR PH 10-24 X 1/2
27 61325881 SCR TFPH 8-32 X 5/8
31 64302110 WSR LK 5/16
32 64302920 WSR LK #10
33 64303164 WSR Int LK #8
34 64302887 WSR LK #8
35 63300121 Nut 5/16-18
36 63300916 Nut 10-24
37 63300886 Nut 8-32
39 73185070 Loctite Pipe Sealant
40 3266 Cloth Bag
ONLY Standard Pump Assembly for the following
41 182W82 Elbow 1/4 NPTF X 1/4 NPTM
42 639501 Adapt 1/4 NPTM X 1/4 NPTM
Hex
43 21124 Check Valve
assembly P/N 33262
