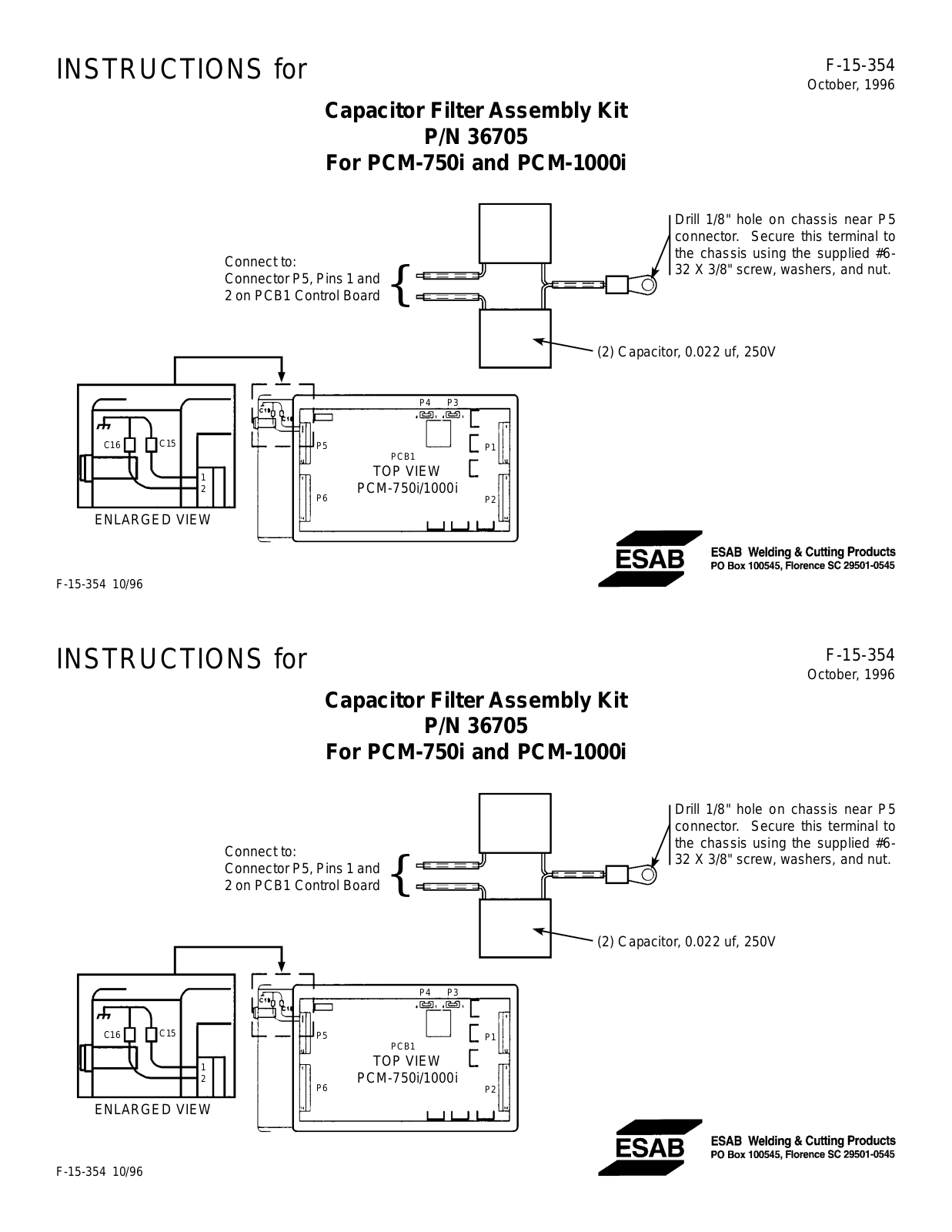

INSTRUCTIONS for
Connect to:
Connector P5, Pins 1 and
2 on PCB1 Control Board
Capacitor Filter Assembly Kit
P/N 36705
For PCM-750i and PCM-1000i
{
(2) Capacitor, 0.022 uf, 250V
P4
P3
F-15-354
October, 1996
Drill 1/8" hole on chassis near P5
connector. Secure this terminal to
the chassis using the supplied #632 X 3/8" screw, washers, and nut.
C16
ENLARGED VIEW
F-15-354 10/96
C15
1
2
INSTRUCTIONS for
Connect to:
Connector P5, Pins 1 and
2 on PCB1 Control Board
P5
PCM-750i/1000i
P6
PCB1
TOP VIEW
P1
P2
Capacitor Filter Assembly Kit
P/N 36705
For PCM-750i and PCM-1000i
{
F-15-354
October, 1996
Drill 1/8" hole on chassis near P5
connector. Secure this terminal to
the chassis using the supplied #632 X 3/8" screw, washers, and nut.
C16
ENLARGED VIEW
F-15-354 10/96
C15
(2) Capacitor, 0.022 uf, 250V
P4
P3
P5
1
2
P6
PCB1
TOP VIEW
PCM-750i/1000i
P1
P2
