1 SAFETY

Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment
observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding
equipment. The following recommendations should be observed in addition to the standard regulations that apply to the work
place.

All work must be carried out by trained personnel well-acquainted with the operation of the welding equipment. Incorrect oper
ation of the equipment may lead to hazardous situations which can result in injury to the operator and damage to the equipment.

1. Anyone who uses the welding equipment must be familiar with:

 its operation
 location of emergency stops
 its function
 relevant safety precautions
 welding

2. The operator must ensure that:

 no unauthorized person is stationed within the working area of the equipment when it is started up.
 no-one is unprotected when the arc is struck

3. The workplace must:

 be suitable for the purpose
 be free from drafts

4. Personal safety equipment

 Always wear recommended personal safety equipment, such as safety glasses, flame-proof clothing, safety gloves.
 Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which could become trapped or cause burns.

5. General precautions

 Make sure the return cable is connected securely.
 Work on high voltage equipment may only be carried out by a qualified electrician.
 Appropriate fire extinquishing equipment must be clearly marked and close at hand.

CAUTION

This product is solely intended for arc welding.

WARNING

Do not use the power source for thawing frozen pipes.

GB

© ESAB AB 2008

- 5 -

bh32d1e

WARNING

Read and understand the instruction manual before installing or operating.

Arc welding and cutting can be injurious to yourself and others. Take precausions when welding and
cutting. Ask for your employer's safety practices which should be based on manufacturers' hazard
data.

ELECTRIC SHOCK - Can kill

 Install and earth the unit in accordance with applicable standards.
 Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
 Insulate yourself from earth and the workpiece.
 Ensure your working stance is safe.

FUMES AND GASES - Can be dangerous to health

 Keep your head out of the fumes.
 Use ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone

and the general area.

ARC RAYS - Can injure eyes and burn skin.

 Protect your eyes and body. Use the correct welding screen and filter lens and wear protective

clothing.

 Protect bystanders with suitable screens or curtains.

FIRE HAZARD

 Sparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.

NOISE - Excessive noise can damage hearing

 Protect your ears. Use earmuffs or other hearing protection.
 Warn bystanders of the risk.

MALFUNCTION - Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

CAUTION

Read and understand the instruction manual before
installing or operating.

CAUTION

Class A equipment is not intended for use in residential locations where
the electrical power is provided by the public low-voltage supply system.
There may be potential difficulties in ensuring electromagnetic
compatibility of class A equipment in those locations, due to conducted
as well as radiated disturbances.

ESAB can provide you with all necessary welding protection and accessories.

2 INTRODUCTION

Arc 151i, Arc 201iis a welding current power source intended for use with coated

electrodes (MMA welding) and TIG welding.

ESAB's accessories for the product can be found on page 19.

GB

© ESAB AB 2008

- 6 -

bh32d1e

2.1 Equipment

Arc 151i, Arc 201i is supplied with a 3 m welding cable, return cable, 3 m mains

cable and an instruction manual for power source and control panel.

Instruction manuals in other languages can be downloaded from the website,
www.esab.com.

2.2 Control panel

Control panel A31

 Knob for setting the current

 Mains voltage LED (green)

 Thermal overload trip indicator

(yellow)

Control panel A33

Welding process parameters are controlled via the control panel.

NOTE! See the separate instruction manual for a detailed description of the control
panel.

GB

© ESAB AB 2008

- 7 -

bh32d1e

3 TECHNICAL DATA

Arc 151i Arc 201i

Mains voltage 230 V, 1  50/60 Hz 230 V, 1  50/60 Hz

Primary current

I

max

TIG

I

max

MMA

13.8 A

21.3 A

24.1 A

24.9 A

Mains supply Z

max

0.35 ohm Z

max

0.30 ohm

No-load power 30 W 30 W
Voltage/current range, MMA

A31

8 A /20 V - 150 A /26 V -

A33 4 A /20 V - 150 A /26 V 4 A /20 V - 170 A /26.8 V

Voltage/current range TIG 3 - 150 A 3 - 220 A
Permissible load at MMA

25% duty cycle
60% duty cycle
100% duty cycle

150 A / 26.0 V
100 A / 24.0 V
90 A / 23.6 V

170 A / 26.8 V
130 A / 25.2 V
110 A / 24.4 V

Permissible load at TIG

20% duty cycle
25% duty cycle
60% duty cycle
100% duty cycle

­150 A / 16.0 V
120 A / 14.8 V
110 A / 14.4 V

220 A / 18.8 V

­150 A / 16.0 V
140 A / 15.6 V

Power factor at maximum current 0.99 0.99

Efficiency at maximum current 80% 81%
Open-circuit voltage

A31 without VRD function

1)

A33 VRD function deactivated

2)

VRD function activated

2)

58 - 72 V
55 - 60 V
< 35 V

­55 - 60 V
< 35 V

Operating temperature -10° C - +40° C -10° C - +40° C
Transportation temperature -20° C - +55° C -20° C - +55° C
Constant A-weighted sound pressure < 70 dB < 70 dB
Dimensions, l x b x h 418 x 188 x 208 mm 418 x 188 x 208 mm
Weight

with A31
with A33

7.9 kg

8.1 kg

-

8.3 kg

Enclosure class IP 23 IP 23
Application class

1) Valid for power sources without VRD specification on the rating plate.

2) Valid for power sources with VRD specification on the rating plate. The VRD function is explained in

the instruction manual for the control panel.

Mains supply, Z

max

Maximum permissible line impedance of the network in accordance with IEC 61000-3-11.

Duty cycle

The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at
a certain load without overloading. The duty cycle is valid for 40° C.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.

Application class

The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.

GB

© ESAB AB 2008

- 8 -

bh32d1e

4 INSTALLATION

The installation must be executed by a professional.

Note

Mains supply requirements

High power equipment may, due to the primary current drawn from the mains supply, influence the
power quality of the grid. Therefore connection restrictions or requirements regarding the
maximum permissible mains impedance or the required minimum supply capacity at the interface
point to the public grid may apply for some types of equipment (see technical data). In this case it
is the responsibility of the installer or user of the equipment to ensure, by consultation with the
distrubution network operator if necessary, that the equipment may be connected.

4.1 Location

Position the power source such that its cooling air inlets and outlets are not
obstructed.

4.2 Mains power supply

Check that the welding power source is connected
to the correct voltage and that the correct fuse size
is used. A protective earth connection must be
made in accordance with regulations

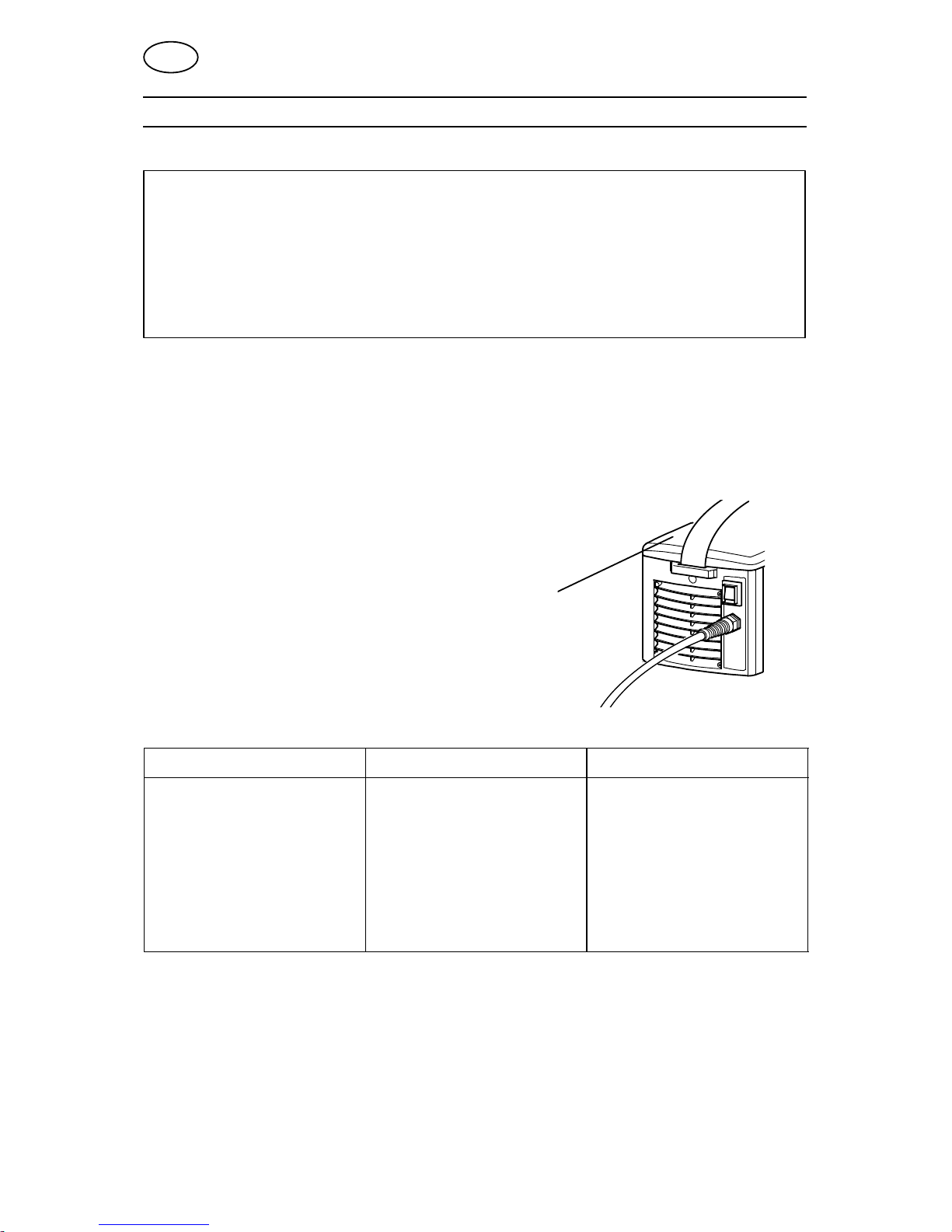

Location of rating plate

4.2.1 Recommended fuse sizes and minimum cable area

Arc 151i Arc 201i

Mains voltage 230 V 10 %, 1-phase 230 V 10 %, 1-phase

Mains frequency 50-60 Hz 50-60 Hz

Mains cable, area 3G2.5 mm

2

3G2.5 mm

2

Phase current I

1eff

11.5 A 13.4 A

Welding cable, area 16 mm

2

16 mm

2

Fuse

anti-surge
type C MCB

16 A
13 A

16 A
16 A

NOTE!
The cable area and fuse rating above comply with Swedish regulations. Use the
welding power source in accordance with the relevant national regulations.
