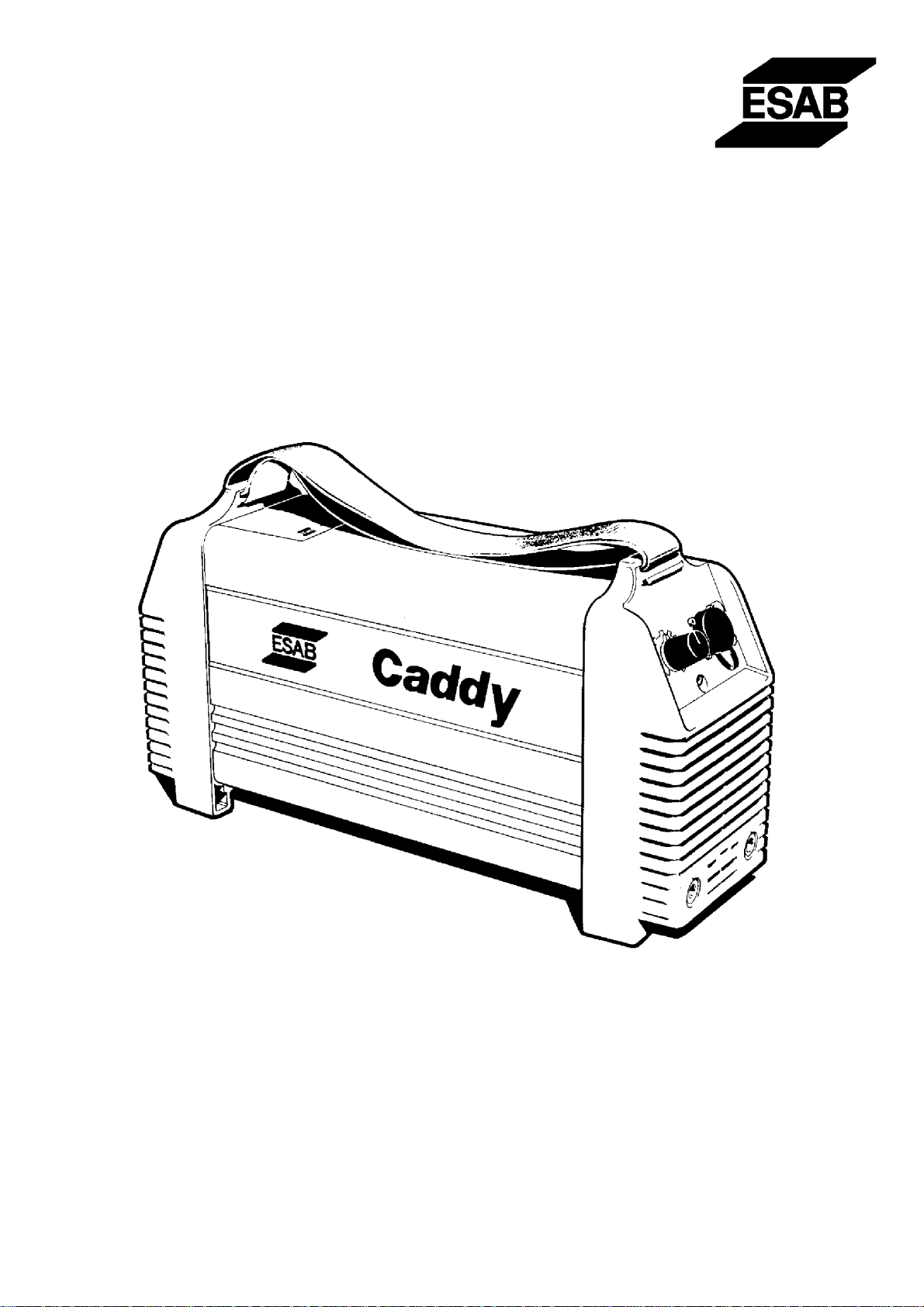

ESAB Caddy 250 Instruction manual

Caddy 250
LHN 250
112101103105107109111102021110025108024042106023061104022041100020040060001
Bruksanvisning Brugsanvisning Bruksanvisning Käyttöohjeet Instruction manual Betriebsanweisung Manuel d’instructions
0457 552 001 98.02.01
cmha2p00
Gebruiksaanwijzing Instrucciones de uso Istruzioni per l’uso Manual de instruções
ПузгЯет чсЮуещт
Instrukcja obs³ugi
V alid from Serial NO 747 XXX--XXXX
SVENSKA 3..............................................
DANSK 9................................................
NORSK 15................................................
SUOMI 21................................................
ENGLISH 27..............................................
DEUTSCH 33.............................................
FRANÇAIS 39.............................................
NEDERLANDS 45.........................................
ESPAÑOL 51..............................................
ITALIANO 57..............................................
PORTUGUÊS 63..........................................
ЕЛЛЗНЙКБ 69.............................................
POLSKI 75.................................................
Rätt till ändring av specifikationer utan avisering förbehålles. Ret til ændring af specifikationer uden varsel forbeholdes. Rett til å endre spesifikasjoner uten varsel forbeholdes. Oikeudet muutoksiin pidätetään. Rights reserved to alter specifications without notice. Änderungen vorbehalten. Sous réserve de modifications sans avis préalable. Recht op wijzigingen zonder voorafgaande mededeling voorbehouden. Reservado el derecho de cambiar las especificaciones sin previo aviso. Ci riserviamo il diritto di variare le specifiche senza preavviso. Reservamo--nos o direito de alterar as especificações sem aviso prévio.
ДйбфзсеЯфбй фп дйкбЯщмб фспрпрпЯзузт рспдйбгсбцюн ЧщсЯт рспейдпрпЯзуз.
Zastrzegamy sobie prawo do wprowadzenia zmian.
-- 2 --
ENGLISH
1 DIRECTIVE 28........................................................
2SAFETY 28...........................................................
3 INTRODUCTION 29...................................................
3.1 Technical data 29............................................................
3.2 Equipment 30................................................................
3.3 Field of application 30.........................................................
4 INSTALLATION 30....................................................
4.1 Placing 30...................................................................
4.2 Connection 30...............................................................
5 OPERATION 31.......................................................
5.1 Start--up 31..................................................................
5.2 Overload protection 31........................................................
6 MAINTENANCE 31....................................................
6.1 Cleaning 31.................................................................
7 FAULT TRACING 32...................................................
7.1 Possible faults and measures to take 32.........................................
8 ORDERING OF SPARE PARTS 32......................................
9 EXTRA ACCESSORIES 32.............................................
DIAGRAM 81............................................................
SPARE PARTS LIST 82...................................................
TOCe
-- 2 7 --
1 DIRECTIVE
DECLARATION OF CONFORMITY
Esab Welding Equipment AB, 695 81 Laxå, Sweden, gives its unreserved guarantee that welding power source LHN 250 from serial number 747 complies with standard EN 60974--1, in accordance with the requirements of directive (73/23/EEA) and ad­dendum (93/68/EEA), and standard EN 50199 in accordance with the requirements of directive (89/336/EEA) and addendum (93/68/EEA).
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -------­Laxå 97--11--10
Paul Karlsson Managing Director Esab Welding Equipment AB 695 81 LAXÅ SWEDEN Tel: + 46 584 81000 Fax: + 46 584 12336
2SAFETY
WARNING
ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU­TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANUFACTURERS’ HAZARD DATA.
ELECTRIC SHOCK -- Can kill
S Install and earth the welding unit in accordance with applicable standards. S Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing. S Insulate yourself from earth and the workpiece. S Ensure your working stance is safe.
FUMES AND GASES -- Can be dangerous to health
S Keep your head out of the fumes. S Use ventilation, extraction at the arc, or both, to keep fumes and gases from your breathing zone and
the general area.
ARC RAYS -- Can injure eyes and burn skin.
S Protect your eyes and body. Use the correct welding screen and filter lens and wear protective
clothing.
S Protect bystanders with suitable screens or curtains.
FIRE HAZARD
S Sparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE -- Excessive noise can damage hearing
S Protect your ears. Use ear defenders or other hearing protection. S Warn bystanders of the risk.
MALFUNCTION -- Call for expert assistance in the event of malfunction.
READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING.
bh20d12e
PROTECT YOURSELF AND OTHERS!
-- 2 8 --
3 INTRODUCTION
Note!
This product is solely intended for arc welding.
The LHN 250 are one transistor controlled welding power source designed for welding with coated electrodes and for TIG welding (touch start).
The advanced electronics provide rapid control response, low power demand and excellent welding characteristics. Inverter technology contributes to low weight and compact dimensions of the units. The rounded slimline shape of the unit makes it comfortable to carry. The strap can be folded to serve as a carrying handle, or fully extended to serve as a shoulder strap.
3.1 Technical data
Performance:
at 35% duty cycle at 60% duty cycle at 100% duty cycle
Setting range continuously variable 4--250 A
250 A/30 V 180 A/27 V
140 A/26 V
Open circuit voltage 50--80 V Mains supply:
voltage frequency fuse mains cable, area
Enclosure class IP 23
Application class Dimensions L x W x H 472x142x256 Weight 11 kg
*When welding below 100 A a 10 A slow fuse is adequate.. **Power cable ratings complies with Swedish regulations..
Duty cycle
The duty cycle refers to the time in per cent of a ten--minute period that you can weld at a certain load without overloading the welding power source.
Enclosure class
400 V AC
50/60 Hz
16 A*
3x1,5 mm2**
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid objects or water. Equipment marked IP 23 is designed for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas where there is an increased electrical hazard.
bh20d12e
-- 2 9 --
3.2 Equipment
LHN 250 is equipped with a remote control socket which activates automatically when a remote control device is connected. NOTE! The contact pins L and M m ust be strapped in the remote device’s connection cable for automatic activation to function.Theinverterissuppliedwitha3meterlongmainscable.
LHN 250 is delivered with 5 meter long welding and return cables. T hese are attached to cable connectors allowing quick change of polarity.
The manufacturer’s serial number is stamped on the rating plate.
3.3 Field of application
LHN 250 supply direct current, which allows you to weld most alloyed and non--alloyed steels, stainless steels and cast iron.
With the LHN 250 you can use coated electrodes from 1.6 to 5 mm.
Tig-- welding
TIG welding is particularly useful when high quality standards are required and when welding thin sheet. Before using the LHN 250 for TIG welding it must be equipped with a TIG torch and gas valve, a cylinder of argon, an argon regulator, tungsten electrodes and, if necessary, suitable filler metal. The best method to use is the touch start, where you gently stroke the tungsten electrode against the workpiece to establish the arc.
4 INSTALLATION
WARNING
This product is intended for repair and maintenance welding In domestic or office environment this product may cause radio interference. It is the responsibility of the user to take adequate precautions.
4.1 Placing
Place the machine so that there is nothing to prevent the cooling air from passing through it.
4.2 Connection
To get maximum performance from the LHN 250 it must be fitted with a 16A slow fuse.
The LHN 250 have mains voltage compensation, which m eans that ¦10% fluctuation in the supply voltage produces only ¦0.2% variation in the welding voltage.
LHN 250 is intended for 400V, 3 phase supplies. It can be used with 50 Hz or 60 Hz supplies.
bh20d12e
-- 3 0 --
5OPERATION
5.1 Start--up
The power switch is at the rear of the LHN 250. The white lamp on the front will glow when the power is on.
1. Yellow lamp
2. Welding current control 4--250 A
3. White lamp
4. Remote control socket
The current is adjusted using the knob on the front.
Important! Only use the accompanying welding cab le and return cable, with a cross--sectional area of 35 mm@.
(See list of spare parts for order number).
bh11d001
5.2 Overload protection
To save you worrying about overloading the LHN 250 it has a thermal cut--out that will trip before the temperature becomes too high. You can tell when the rectifier has been overloaded because the yellow light comes on and it will no longer be possible to weld.
6 MAINTENANCE
6.1 Cleaning
Normally it is sufficient to blow the welding power source clean regularly using dry compressed air (reduced pressure), and to clean the filter in the front regularly.
In dusty and dirty environment the welding power source should be cleaned at shorter intervals.
bh20d12e
-- 3 1 --
7 F AULT TRACING
7.1 Possible faults and measures to take
Type of fault Measure
No arc is generated by the welding power source.
The welding current is interrupted in the course of welding.
The thermal cut--out trips frequently. S Check that the filter is not packed with dust.
Poor welding result. S Check that the welding and return cables
S Make sure the mains switch is on. S Check that the welding and return cables
are properly connected.
S Make sure the welding current set is correct. S Check if the thermal cut--out has tripped (the
orange indicating lamp on the front panel is on).
S Check the mains fuse.
S Check that the ratings of the welding power
source have not been exceeded (overload of the power source).
are properly connected.
S Make sure the welding current set is correct. S Check that there is nothing wrong with the
electrodes.
8 ORDERING OF SPARE PARTS
When ordering a spare part, please state the type and serial number of the m achine as well as number of the spare part, according to the spare parts list. This will simplify dispatch and ensure you get the right part.
9 EXTRA ACCESSORIES
Remote control device PHA1 25 m 0367 657 880 Remote control device PHA1 10 m 0367 657 881 Remote control device PHA2 Hotstart 0367 601 880 Remote control device PHB1 0367 317 880 Remote control device PHB2 0367 318 880 Remote control device PHC2 0367 620 880 Remote control device PHA5 0367 970 880 Connecting cable 5 m 0367 144 881 Connecting cable 10 m 0367 144 882 Connecting cable 1.5 m 0367 144 883
bh20d12e
-- 3 2 --
