Rights reserved to alter specifications without notice.
Bracketkit Yaskawa
AR1730/2010
0908 977 880
For contact information visit esab.com
ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00
http://manuals.esab.com
Assembly instruction
0446 689 001 GB 20220323
Item Qty Ordering no. Denomination Notes
1 0902 330 880 Feeder bracket kit Includes 101-105
101 1 0902 314 001 Motoman feeder bracket
102 1 0902 315 001 Feeder bracket spacer
103 1 0465 322 001 Clamp bracket motoman
104 1 0417 699 015 Clamp rubber
105 1 0902 331 880 Motoman feeder bracket
screw kit
1 0902 331 880 Motoman feeder bracket
screw kit
151 4 0192 238 374 Screw MC6S M6×30
152 1 0192 238 370 Screw MC6S M6×20
153 2 0192 238 366 Screw MC6S M6×12
154 4 0212 101 534 Screw MC6S M6×25
155 8 0215 100 013 Washer TBRSB M6
156 1 0190 735 316 Nut nylon lock M6
157 4 0192 544 116 Collar nut M6
Includes 151-157
Item Qty Ordering no. Denomination Notes
1 0902 323 880 Control unit bracket kit Includes 201-204
201 1 0465 269 001 Control unit bracket
202 1 0465 109 001 Angled bracket for hose
holder
203 1 0461 154 882 House frame and ball joint
204 1 0902 324 880 Control unit bracket screw
kit
1 0902 324 880 Control unit bracket
screw kit
251 6 0192 238 493 Screw MC6S M10×25
252 8 0215 100 023 Washer TBRSB M10
253 2 0190 735 320 Nut nylon lock M10
254 2 0192 238 449 Screw MC6S M8×16
255 2 0190 735 318 Nut nylon lock M8
Includes 251-255

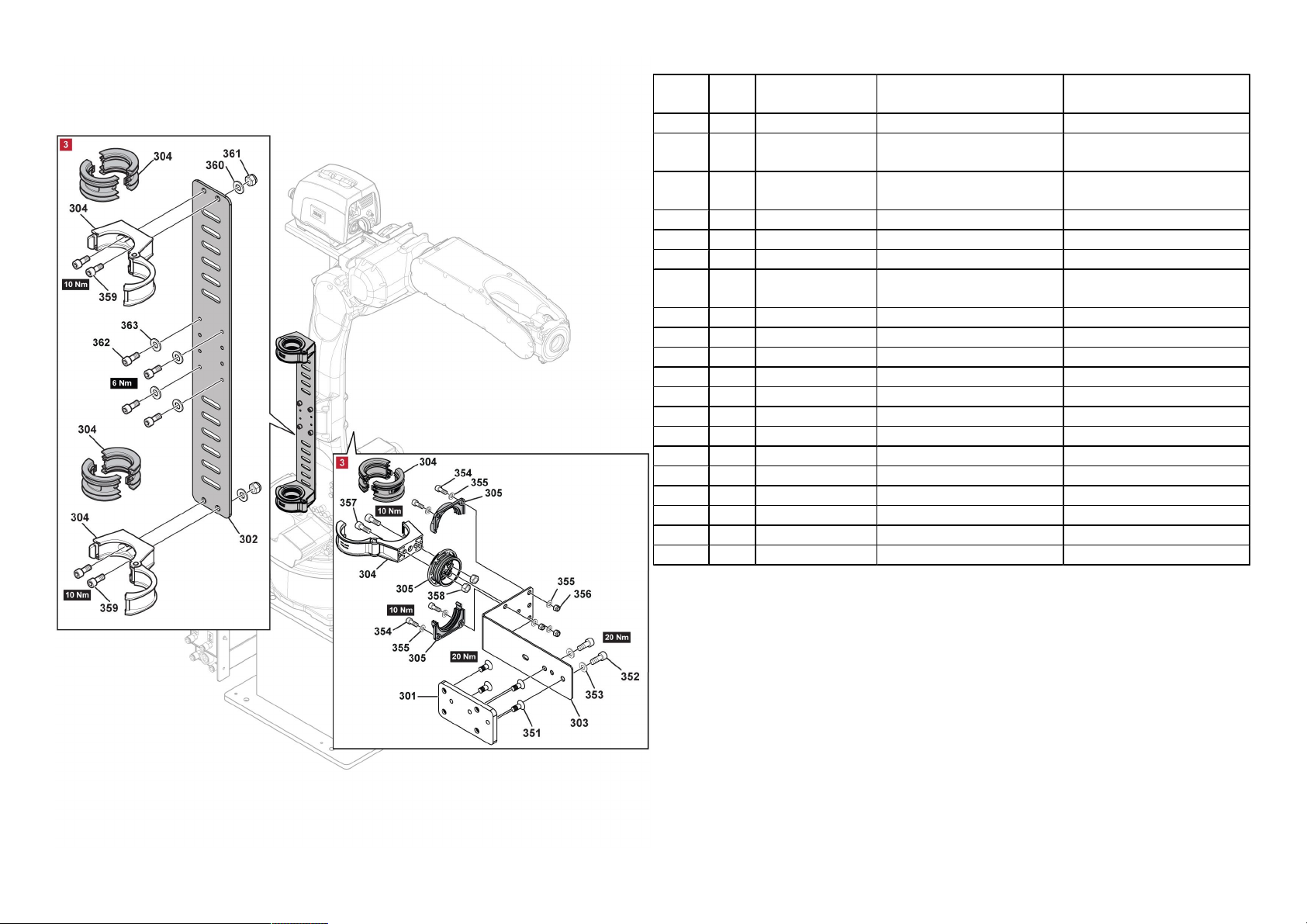

Item Qty Ordering no. Denomination Notes
1 0908 978 881 Support bracket kit
AR1730 & AR2010
301 1 0902 316 001 Bobbin support bracket
302 1 0908 981 880 Lower arm connection
plate
303 1 0465 109 001 Angled bracket for hose
holder
304 3 0461 154 881 Hose holder and insert
305 1 0465 114 001 Rotary flange
306 1 0908 980 880 Support bracket screw kit
1 0908 980 880 Support bracket screw
kit
351 4 0190 684 493 Screw F6S M10×25
352 2 0192 238 489 Screw MC6S M10×16
353 2 0215 100 023 Washer TBRSB M10
354 4 0192 238 370 Screw MC6S M6×20
355 8 0215 100 013 Washer TBRSB M6
356 4 0190 735 316 Nut nylon lock M6
357 2 0192 238 449 Screw MC6S M8×16
358 2 0212 601 109 Hexagon nut M8
359 4 0192 238 451 Screw MC6S M8×20
360 4 0215 100 018 Washer TBRSB M8
361 4 0190 735 318 Nut nylon lock M8
362 4 0192 238 329 Screw MC6S M5×16
363 4 0215 100 011 Washer TBRSB M5
Includes 301-306
Includes 351-363

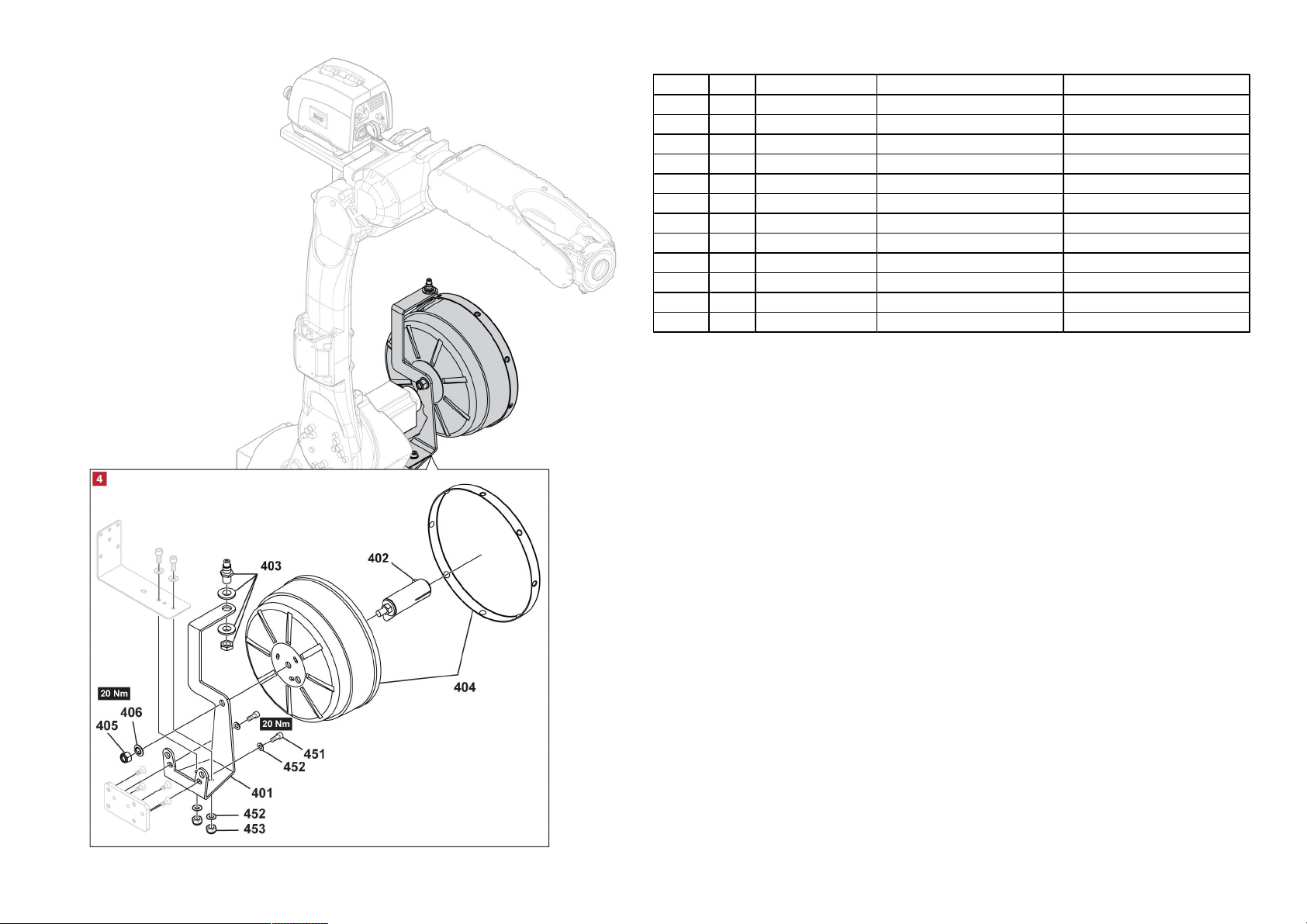

Item Qty Ordering no. Denomination Notes
1 0902 327 880 Bobbin kit Includes 401-408
401 1 0465 272 001 Bobbin bracket
402 1 0146 967 881 Breaking hub
403 1 F102 442 881 Quick conn bobbin holder
404 1 0157 482 880 Bobbin enclosure MLC
405 1 0212 601 113 Hexagon nut M16
406 1 0349 481 055 Washer M16
407 3m 0192 799 112 Hose PEH D6 / 2,4
408 1 0902 328 880 Bobbin screw kit
1 0902 328 880 Bobbin screw kit Includes 451-453
451 2 0192 238 493 Screw MC6S M10×25
452 4 0215 100 023 Washer TBRSB M10
453 2 0190 735 320 Nut nylon lock M10
