A6 VEC

ESAB A6 VEC Spare parts list (Replacement parts)

Download
Page 1
A6 VEC
Bruksanvisning Brugsanvisning Bruksanvisning Käyttöohjeet Instruction manual Betriebsanweisung
Manuel d'instructions Gebruiksaanwijzing Instrucciones de uso Istruzioni per l'uso Manual de instruções
Οδηγίες χρήσεως
Valid for serial no. 0916-xxx-xxxx0443 393 101 2012-09-27
Page 2
SVENSKA 3..............................................
DANSK 17................................................
NORSK 31................................................
SUOMI 45................................................
ENGLISH 59..............................................
DEUTSCH 73.............................................
FRANÇAIS 87.............................................
NEDERLANDS 101.........................................
ESPAÑOL 115..............................................
ITALIANO 129..............................................
PORTUGUÊS 143..........................................
ΕΛΛΗΝΙΚΑ 157.............................................
Rätt till ändring av specifikationer utan avisering förbehålles. Ret til ændring af specifikationer uden varsel forbeholdes. Rett til å endre spesifikasjoner uten varsel forbeholdes. Oikeudet muutoksiin pidätetään. Rights reserved to alter specifications without notice. Änderungen vorbehalten. Sous réserve de modifications sans avis préalable. Recht op wijzigingen zonder voorafgaande mededeling voorbehouden. Reservado el derecho de cambiar las especificaciones sin previo aviso. Ci riserviamo il diritto di variare le specifiche senza preavviso. Reservamo-nos o direito de alterar as especificações sem aviso prévio. ∆ιατηρείται το δικαίωμα τροποπίησης προδιαγραφών Χωρίς προειδοποίηση.
-- 2 --
Page 3
Sida
- 171 -
Page 4
MÅTTSKISS MÅLSKITSE MÅLSKISSE MITTAPIIRUSTUS DIMENSION DRAWING MASSBILD COTES D'ENCOMBREMENT MAATSCHETS CRO­QUIS ACOTADO DIMENSIONI ESBOÇO COM DIMENSÕES
ΣΧΕ∆ΙΑΡΑΜΜΑ ΜΕΓΕΘΩΝ
Standard version
Freewheeling with pneumatic operation
hga3m11a
- 172 -
Page 5
Freewheeling with m anual operation
Square stub Taper stub
dgb3m005
Cylindrical stub
dgb3m006
hga3m11a
dgb3m007
- 173 -
Page 6
SLITDELAR SLIDDELE SLITEDELER KULUTUSOSAT WEAR COMPONENTS VERSCHLEISSTEILE PIÈCES D'USURE SLIJTAGEONDERDELEN PIEZAS DE DESGASTE PARTI DI USURA PEÇAS EXPOSTAS A DESGASTE ΑΝΣΛΞΣΙΜΑ ΑΝΤΑΓΓΑΚΤΙΚΌ
dgb3s001
Ordering no.
0439 501 701 Brush
Denomination Notes
hga3s11a
- 174 -
Page 7
RESERVDELSFÖRTECKNING RESERVDELSFORTEGNELSE RESERVDELSLISTE VARAOSALUETTELO SPARE PARTS LIST ERSATZ­TEILLISTE LISTE DE PIÈCES DÉTACHEES RESERVEONDERDELENLIJST LISTA DE REPUESTOS ELENCO RICAMBI LISTA DE PEÇAS SOBRESSA­LENTES ΠΙΠΑΚΑΣ ΑΝΤΑΛΛΑΚΤΙΚΩΝ ΜΕΡΩΝ
Edition 2009-04-30
hga3r11a
- 175 -
Page 8
Item
Qty Ordering no. Denomination Notes
no.
0443 393 001 VEC-motor with gear
7 0147 576 002 Worm wheel 36 coggs 74:1
0147 577 002 Worm wheel 38 coggs 156:1 0155 041 002 Worm wheel 0147 578 002 Worm wheel 38 coggs 312:1
0147 579 002 Worm wheel 82 coggs 672:1 10 1 2213 020-06 Ball bearing SKF 6005 11 1 0145 732 001 Bearing housing 12 1 2216 010-08 Sealing ring 13 1 2213 019-05 Ball bearing 14 1 0145 730 001 Shaft square neck
0146 501 001 Shaft conical neck 15 1 0145 731 001 Ring 18 1 2154 012-06 Locking washer 19 1 2154 013-06 Nut 20 1 0190 788 101 Tube end plug 22 1 0145 784 001 Cover plate 23 2 2152 013-32 O-ring 24 1 0145 243 001 Gear housing 25 1 2216 009-44 Sealing ring 26 1 0190 531 202 Ball bearing 27 1 2213 077-13 Needle bearing 28 0147 576 001 Worm screw 4 input 74:1
0147 577 001 Worm screw 2 input 156:1
0147 578 001 Worm screw 1 input 312:1
0147 579 001 Worm screw 1 input 672:1 29 1 0147 423 001 Woodruff key 30 1 0144 703 001 Ring 31 1 0147 020 002 Gear wheel
35 1 0812123001 Adapter 36 1 0812122001 Intermediate plate
37 0818 426 880
0818 426 881
0818 426 882
0818 426 883 53 1 2157 015-63 Key
Pulse transducer with rotor Pulse transducer with rotor Pulse transducer with rotor Pulse transducer with rotor
42 V 1000 rpm, 75 V 2000 rpm 42 V 2000 rpm, 75 V 4000 rpm 42 V 4000 rpm, 75 V 8000 rpm 42 V 8000 rpm
hga3r11a
- 176 -
Page 9
hga3r11a
- 177 -
Page 10
Item
Qty Ordering no. Denomination Notes
no.
0145 063,
0147 018
1 0145 730 001 Shaft square end
0146 501 001 Shaft taper end
7 0147 576 002 Worm wheel 36 coggs 74:1
0147 577 002 Worm wheel 38 coggs 156:1
0155 041 002 Worm wheel
0147 578 002 Worm wheel 38 coggs 312:1
0147 579 002 Worm wheel 82 coggs 672:1 10 2 2213 020-06 Ball bearing SKF 6005 11 2 0145 732 001 Bearing housing 12 2 2216 010-08 Sealing ring 13 2 2213 019-05 Ball bearing 14 2 0145 730 001 Shaft square neck
0146 501 001 Shaft conical neck 15 2 0145 731 001 Ring 18 1 2154 012-06 Locking washer 19 1 2154 013-06 Nut 20 1 0190 788 101 Tube end plug 23 2 2152 013-32 O-ring 24 1 0145 243 001 Gear housing 25 1 2216 009-44 Sealing ring 26 1 0190 531 202 Ball bearing 27 1 2213 077-13 Needle bearing 28 0147 576 001 Worm screw 4 input 74:1
0147 577 001 Worm screw 2 input 156:1
0147 578 001 Worm screw 1 input 312:1
0147 579 001 Worm screw 1 input 672:1 29 1 0147 423 001 Woodruff key 30 1 0144 703 001 Ring 31 1 0147 020 002 Gear wheel 32 1 0145 729 001 Shaft square end
0144 704 001 Shaft taper end 33 1 0191 251 109 Belleville washer
35 1 0812123001 Adapter 36 1 0812122001 Intermediate plate
37 0818 426 880
0818 426 881
0818 426 882
0818 426 883 53 1 2157 015-63 Key
VEC-motor with gear
Pulse transducer with rotor Pulse transducer with rotor Pulse transducer with rotor Pulse transducer with rotor
42 V 1000 rpm, 75 V 2000 rpm 42 V 2000 rpm, 75 V 4000 rpm 42 V 4000 rpm, 75 V 8000 rpm 42 V 8000 rpm
hga3r11a
- 178 -
Page 11
hga3r11a
- 179 -
Page 12
Item
Qty Ordering no. Denomination Notes
no.
VEC-motor with gear
37 0818 426 880
0818 426 881
0818 426 882
0818 426 883 39 1 0147 020 001 Field coil 40 2 4395 017-01 Carbon brush 41 1 0147 020 003 Brush carrier 42 1 2195 047-07 Washer 45 1 0190 455 481 Screw 48 1 0145 186 001 Motor housing 49 1 0146 866 001 Insulating plate 50 1 0146 869 001 Cover plate 51 1 0148 213 001 Terminal block 52 1 0148 561 001 Plug 54 1 0146 867 001 Cover plate
Pulse transducer with rotor Pulse transducer with rotor Pulse transducer with rotor Pulse transducer with rotor
42 V 1000 rpm, 75 V 2000 rpm 42 V 2000 rpm, 75 V 4000 rpm 42 V 4000 rpm, 75 V 8000 rpm 42 V 8000 rpm
hga3r11a
- 180 -
Page 13
51
hga3r11a
- 181 -
Page 14
Item
Qty Ordering no. Denomination Notes
no.
VEC-motor with disengageable gear
2 1 0154 127 001 Cover plate 3 1 0111 185-07 Hose nipple 4 1 0154 126 001 Flange 5 2 0155 035 001 Diaphragm 6 1 0155 033 001 Washer 7 1 0155 090 001 Eccentric 8 1 0190 240 104 Bearing bushing
9 1 0155 089 001 Plunger 10 1 0155 091 001 Lever 12 1 0155 093 001 Cover plate 13 1 2188 110-03 Ball handle 14 1 0155 029 001 Cover plate 15 1 0192 546 807 Ball bearing 16 1 0155 036 001 Clutch 17 1 0155 032 001 Washer 18 1 0155 030 001 Clutch wheel 19 0155 040 002 Worm wheel 36 coggs 74:1
0155 042 002 Worm wheel 38 coggs 156:1
0155 043 002 Worm wheel 82 coggs 672:1 20 1 0155 028 001 Sleeve 21 1 0155 034 001 Nut 22 1 2213 020-08 Ball bearing 23 1 0155 038 001 Shaft
0155 039 001 Shaft 24 1 0192 190 023 Compression spring 25 1 0190 463 105 Ball bearing 26 1 0155 031 001 Nut 27 1 0155 037 001 Bearing housing
hga3r11a
- 182 -
Page 15
hga3r11a
- 183 -
Page 16
Item
Qty Ordering no. Denomination Notes
no.
0457 881 880 AC-tachometer Kit
1 1 0457 882 880 Cable AC-tachometer, A6
2 10 0040 953 602 Conduit clip
3 1 0457 295 001 Cover
4 1 0457 336 001 Inlet
5 1 0457 215 001 Tachometer
6 1 0334 477 003 Axle
7 1 0334 473 003 Plate
8 1 0193 045 001 Connection block 2-pol
17 1 0457 966 001 Bracket A6-VEC
hga3r11a
- 184 -
Page 17
Item
Qty Ordering no. Denomination Notes
no.

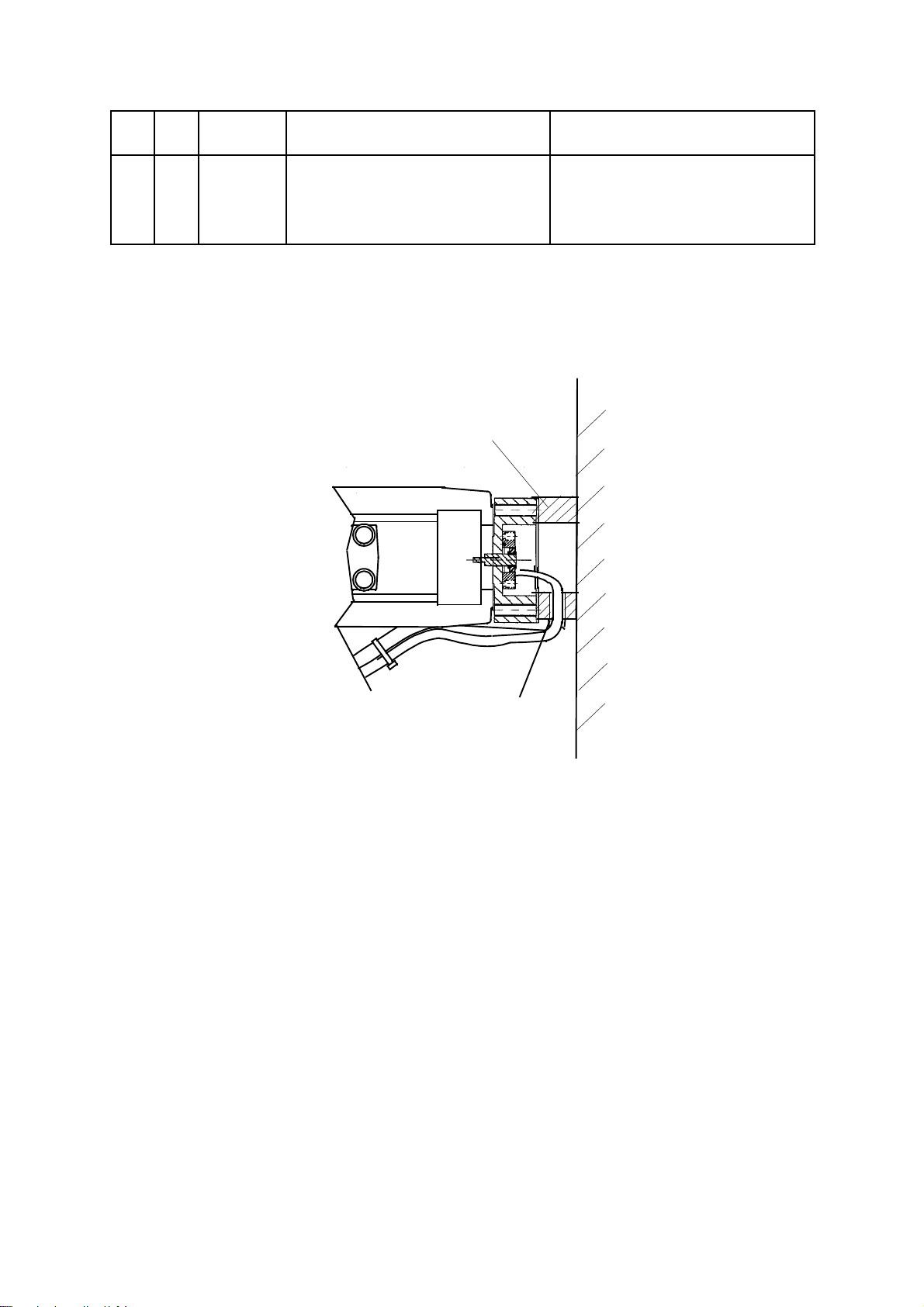

0457 967 880 Kit for wallmounting of VEC-motor with
AC-tachometer
1 1 0457 965 001 Sleeve
2 1 0193 307 104 Cable discharging
1
2
hga3r11a
- 185 -
Page 18
Item
Qty Ordering no. Denomination Notes
no.
0457 294 880 Optical Encoder kit
1 1 0457 295 001 Cover
2 1 0334 473 002 Plate
3 1 0334 477 002 Axle
4 1 0457 336 001 Inlet
5 1 0148 213 001 Connection block
7 1 0457 296 001 Optical encoder
10 1 0040 953 601 Panduit strip MEC30/
11 1 0457 648 001 Cable encoder
13 4 0190 504 491 Screw steel 5.8 M10x20
hga3r11a
- 186 -
Page 19
Item
Qty Ordering no. Denomination Notes
no.
0393 464 881 Pulse Aid Unit
1 1 0393 395 001 Bracket
3 1 0393 397 001 Shaft
4 1 0393 398 001 Shaft coupling
5 2 0192 238 499 Screw IN6 8.8
8 1 0801 027 001 Pulse generator, incremental
hga3r11a
- 187 -
Page 20
Man
Pneum
Pneum Man
Pneum
Pneum
ORDERING DATA
Ordering number
Non disengageable gears Disengageable gears
8000
of the motor
Rated rot. speed
75 V DC 42 V DC
Ratio
r/min r/min 0145 063 0145 063 0145 063 0147 018 0147 018 0147 018 0155 801 0155 801 0155 801 0155 801 0155 801 0155 801
672:1 2000 1000 900 890 880 900 890 880 914 906 907 909
3000 1500
4000 2000 901 891 881 901 891 881 900 919 901 918
6000 3000
8000 4000 902 892 882 902 892 882 921 922 920 916
312:1 2000 1000 903 893 883 903 893 883
3000 1500 908 898
4000 2000 904 894 884 904 894 884 924 925 923 904
6000 3000
8000 4000 905 895 885 905 895 885 926 927 898 899
8000
156:1 2000 1000
8000
3000 1500 911
4000 2000 909 899
6000 3000
8000 4000 906 896 886 906 896 886 917 915
74:1 2000 1000 915 910
3000 1500
4000 2000 908 898 888 916 912 913 912
6000 3000
8000 909 899 889
8000 4000 907 897 887 907 897 887 908 911 905 910
