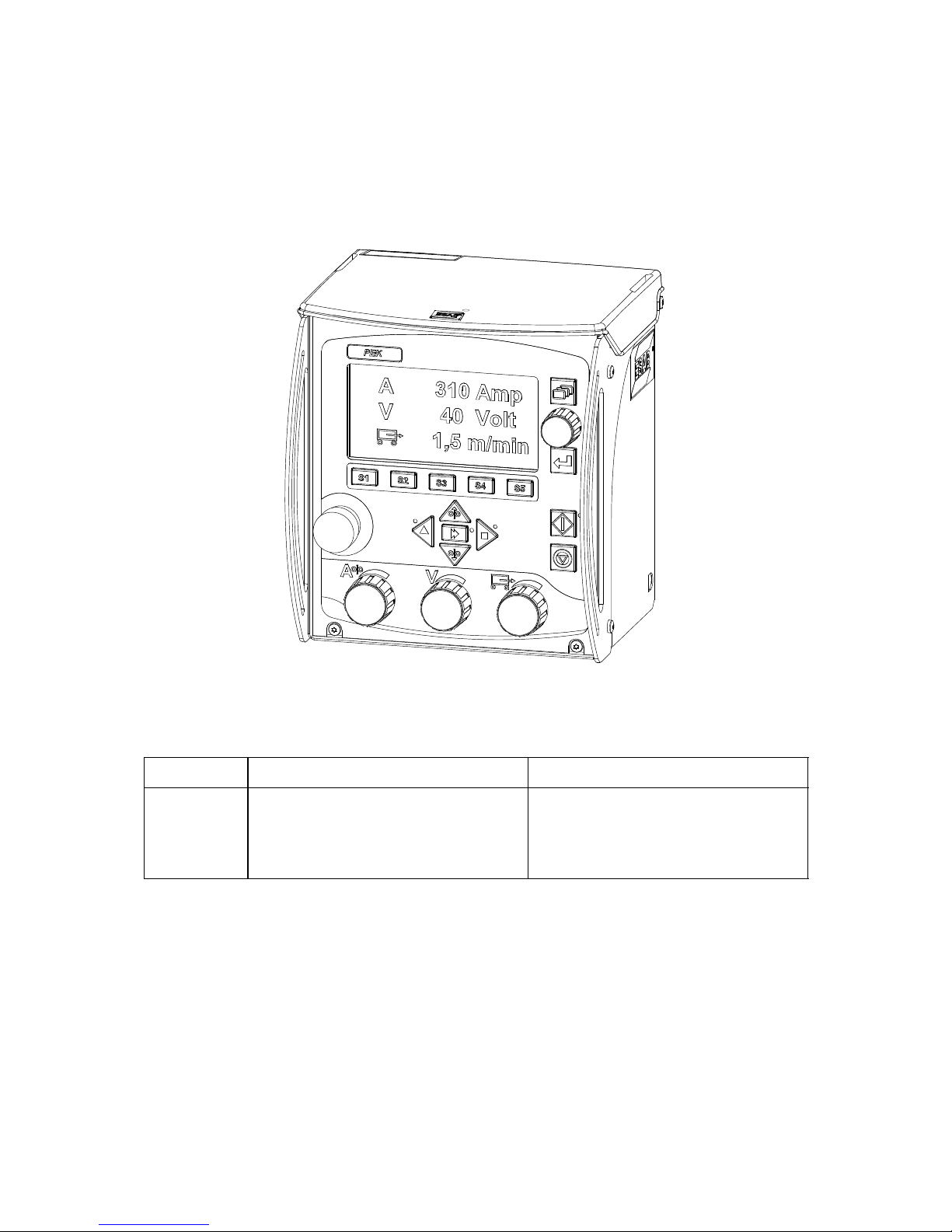

PEK Control unit
Instruction manual
Page 2
DECLARATION OF CONFORMITY
according to the Low Voltage Directive 2006/95/EC, according to the EMC Directive 2004/108/EC
FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
enligt Lågspänningsdirektivet 2006/95/EG, enligt EMC−Direktivet 2004/108/EG
Type of equipment Materialslag
Control box
Brand name or trade mark Fabrikatnamn eller varumärke
ESAB
Type designation etc. Typbeteckning etc.
PEK Control box is used with A2 and A6, from serial number 921 xxx xxxx (2009 w. 21)
Manufacturer or his authorised representative established within the EEA
Name, address, telephone No, telefax No: Tillverkarens namn, adress, telefon, telefax:
ESAB AB, Welding Equipment
Esabvägen, SE−695 81 LAXÅ, Sweden
Phone: +46 584 81 000, Fax: +46 584 411 924
The following harmonised standard in force within the EEA has been used in the design:
Följande harmoniserande standarder har använts i konstruktionen:
EN 60974−1, Arc welding equipment – Part 1: Welding power sources
EN 60974−10, Arc welding equipment – Part 10: Electromagnetic compatibility (EMC) requirements
Additional information: / Tilläggsinformation: Restrictive use, this Control Box is use with equipment of Class A, intended
for use in locations other than residential
By signing this document, the undersigned declares as manufacturer, or the manufacturer’s authorised
representative established within the EEA, that the equipment in question complies with the safety requirements
stated above.
Genom att underteckna detta dokument försäkrar undertecknad såsom tillverkare, eller tillverkarens representant inom
EES, att angiven materiel uppfyller säkerhetskraven angivna ovan.
Date / Datum
Laxå 2009−05−20
Signature / Underskrift Position / Befattning
Global Director
Equipment and Automation
Kent Eimbrodt
Clarification
- 2 -
Page 3
- 3 -
TOCe
Rights reserved to alter specifications without notice.
1 SAFETY 4...........................................................
2 INTRODUCTION 6...................................................
2.1 Equipment 6................................................................
2.2 Control panel 6.............................................................
3 TECHNICAL DATA 7.................................................
4 INSTALLATION 7....................................................
4.1 Mains supply 7..............................................................
5 OPERATION 8.......................................................
5.1 Connections 8..............................................................
5.2 USB connection 8...........................................................
5.3 Key to symbols 9............................................................
6 MAINTENANCE 10....................................................
6.1 Inspection and cleaning 10....................................................
7 ORDERING SPARE PARTS 10.........................................
DIAGRAM 12............................................................
ORDERING NUMBER 14.................................................
ACCESSORIES 15.......................................................
Page 4
- 4 -
be01d1ea
1 SAFETY
NOTE: The unit is tested by ESAB in a general set-up. The responsibility for safety
and function, of the specific set-up, lies with the integrator.
Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or
near the equipment observes all the relevant safety precautions. Safety precautions must meet the
requirements that apply to this type of equipment. The following recommendations should be ob
served in addition to the standard regulations that apply to the workplace.
All work must be carried out by trained personnel well-acquainted with the operation of the equip
ment. Incorrect operation of the equipment may lead to hazardous situations which can result in in
jury to the operator and damage to the equipment.
1. Anyone who uses the equipment must be familiar with:
S its operation
S location of emergency stops
S its function
S relevant safety precautions
S welding and cutting
2. The operator must ensure that:
S no unauthorized person is stationed within the working area of the equipment when it is
started up.
S no-one is unprotected when the arc is struck
3. The workplace must:
S be suitable for the purpose
S be free from drafts
4. Personal safety equipment
S Always wear recommended personal safety equipment, such as safety glasses, flame-proof
clothing, safety gloves. Note! Do not use safety gloves when replacing wire.
S Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which could become
trapped or cause burns.
5. General precautions
S Make sure the return cable is connected securely.
S Work on high voltage equipment may only be carried out by a qualified electrician.
S Appropriate fire extinquishing equipment must be clearly marked and close at hand.
S Lubrication and maintenance must not be carried out on the equipment during operation.
GB
Page 5
- 5 -
be01d1ea
WARNING
Read and understand the instruction manual before installing or operating.
Arc welding and cutting can be injurious to yourself and others. Take precausions when welding and
cutting. Ask for your employer's safety practices which should be based on manufacturers' hazard
data.
ELECTRIC SHOCK - Can kill
S Install and earth the unit in accordance with applicable standards.
S Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
S Insulate yourself from earth and the workpiece.
S Ensure your working stance is safe.
FUMES AND GASES - Can be dangerous to health
S Keep your head out of the fumes.
S Use ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone
and the general area.
ARC RAYS - Can injure eyes and burn skin.
S Protect your eyes and body. Use the correct welding screen and filter lens and wear protective
clothing.
S Protect bystanders with suitable screens or curtains.
FIRE HAZARD
S Sparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE - Excessive noise can damage hearing
S Protect your ears. Use earmuffs or other hearing protection.
S Warn bystanders of the risk.
MALFUNCTION - Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
CAUTION
This product is solely intended for arc welding.
CAUTION
Class A equipment is not intended for use in residential locations where
the electrical power is provided by the public low-voltage supply system.
There may be potential difficulties in ensuring electromagnetic
compatibility of class A equipment in those locations, due to conducted
as well as radiated disturbances.
CAUTION
Read and understand the instruction manual before
installing or operating.
GB
Page 6
- 6 -
be01d1ea
Dispose of electronic equipment at the recycling facility!
In observance of European Directive 2002/96/EC on Waste Electrical and Electronic
Equipment and its implementation in accordance with national law, electrical and/or
electronic equipment that has reached the end of its life must be disposed of at a
recycling facility.
As the person responsible for the equipment, it is your responsibility to obtain
information on approved collection stations.
For further information contact the nearest ESAB dealer.
ESAB can provide you with all necessary welding protection and accessories.
2 INTRODUCTION
PEK is a control unit intended for submerged arc welding (SAW) and for gas metal
arc welding (GMAW). The control unit is used together with automatic welding
machines, power sources, column and booms.
ESAB's accessories for the product can be found on page 15.
2.1 Equipment
The control unit is supplied with:
S An instruction manual for the control unit
S An instruction manual for the control panel in English
Instruction manuals in other languages can be downloaded from the website,
www.esab.com.

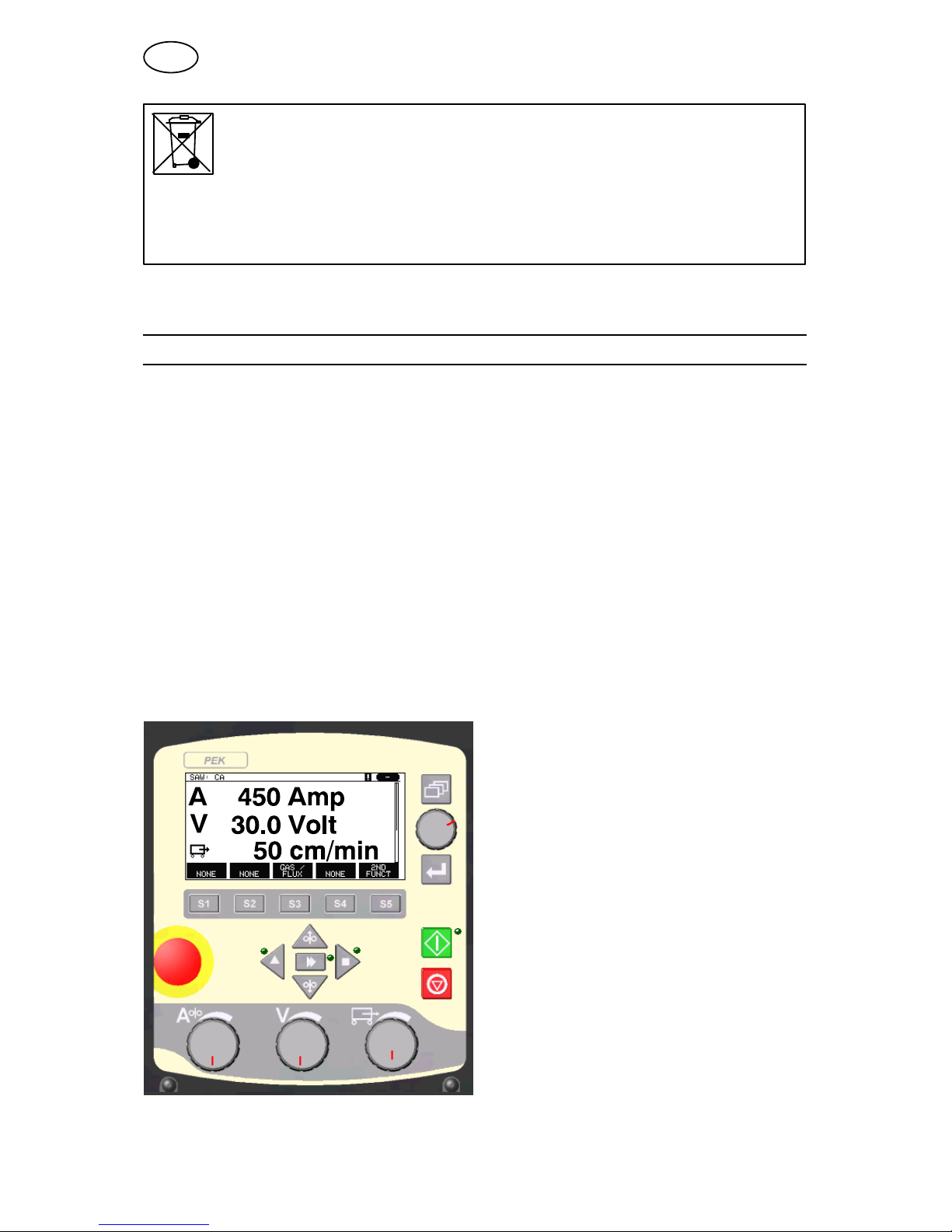

2.2 Control panel
See the separate instruction manual for
a detailed description of the control
panel
GB
Page 7
- 7 -
be01d1ea
3 TECHNICAL DATA
PEK
Supply voltage 42 V, 50/60 Hz
Power requirement Max 900 VA
Engine connections adapted for ESAB's
motors
6 A 100%
Speed control Reconnection from motor with pulse sensor
Operating temperature -15° C to + 45 ° C
Transportation temperature -20° C to + 55 ° C
Relative air humidity Max 95%
Dimensions lxwxh 246 x 235 x 273 mm
Weight 6.6 kg
Enclosure class IP23
Travel speed 0-200 cm/min *)
See separate instruction manual for automatic
welding machines
Max manual travel speed 2.0 m/min
Wire feed speed, filler wire 0-2500 cm/min *)
See separate instruction manual for wire feed
unit
*) The setting range is dependent on the product used.
Enclosure class
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.
4 INSTALLATION
The installation must be executed by a professional.
4.1 Mains supply
Note
Mains supply requirements
High power equipment may, due to the primary current drawn from the mains supply, influence the
power quality of the grid. Therefore connection restrictions or requirements regarding the
maximum permissible mains impedance or the required minimum supply capacity at the interface
point to the public grid may apply for some types of equipment (see technical data). In this case it
is the responsibility of the installer or user of the equipment to ensure, by consultation with the
distrubution network operator if necessary, that the equipment may be connected.
GB
Page 8
- 8 -
be01d1ea
5 OPERATION
General safety regulations for the handling of the equipment can be found on
page 4. Read through before you start using the equipment!
5.1 Connections

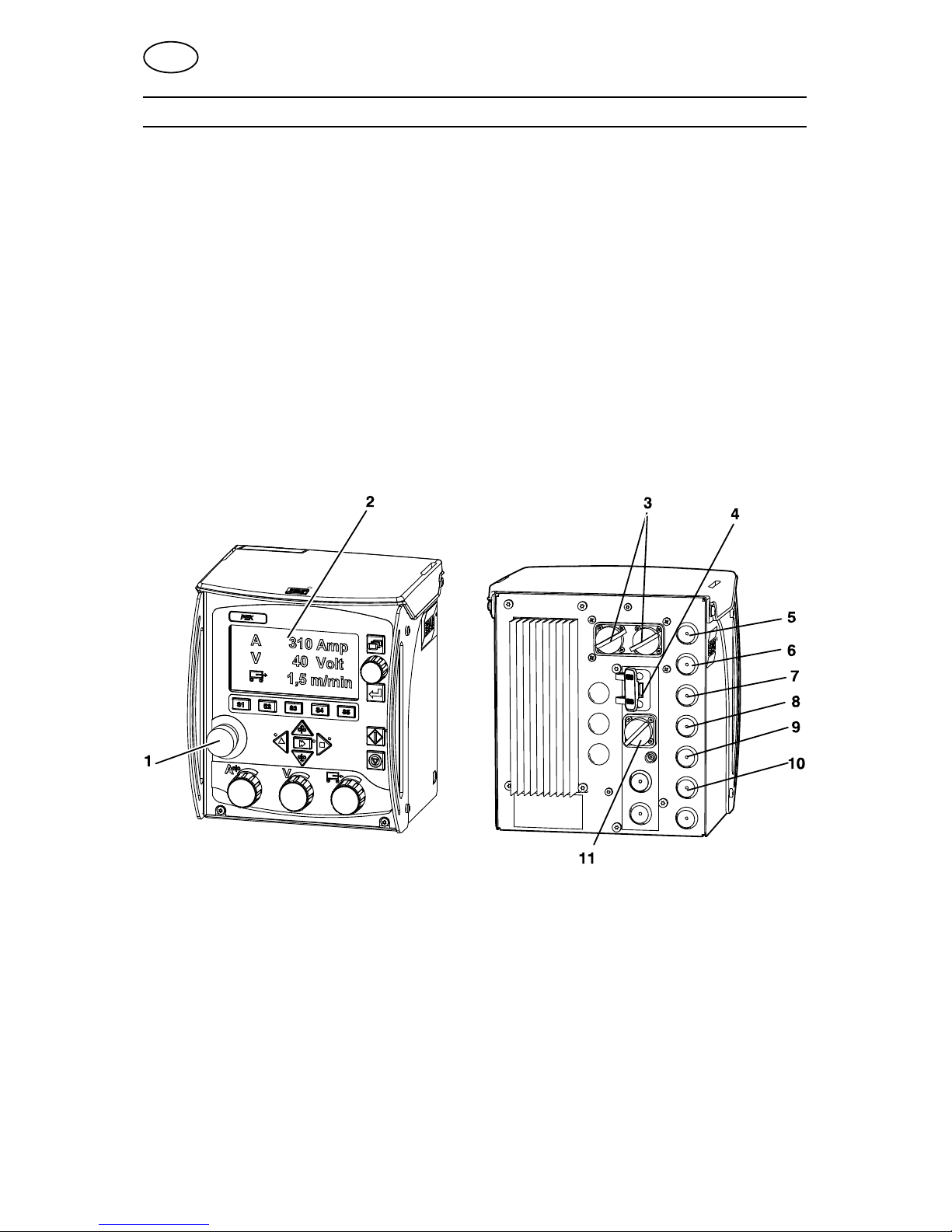

1 Emergency stop 7 Connection of speed feedback for travel
motion
2 Control panel, see separate instruction
manual
8 Connection for arc voltage feedback
3 Connection (CAN) for remote control unit
or service tool
9 Connection of motor cable for travel
motion
4 USB connection, see point 5.2 10 Connection of motor cable for wire feed
5 Connection for limit position switch or
cable with solenoid for gas
11 Connection for control cable from power
source
6 Connection of speed feedback for wire
feed
5.2 USB connection
The external USB memory can be used to transfer programs to and from systems.
During normal use there is no risk of ”viruses” ”infecting” equipment. To eliminate the
risk entirely, we recommend that the memory, which is used together with this
equipment, not be used for any other purpose other than its intended.
Certain USB memories may not work with this equipment. We recommend using
USB memories from a reputable supplier.
ESAB assumes no responsibility for any damage caused as a consequence of
incorrect use of the USB memory.
GB
Page 9
- 9 -
be01d1ea
To insert a USB memory
S Switch off the power supply main switch.
S Insert the USB memory into the USB socket.
S Switch on the power supply main switch.

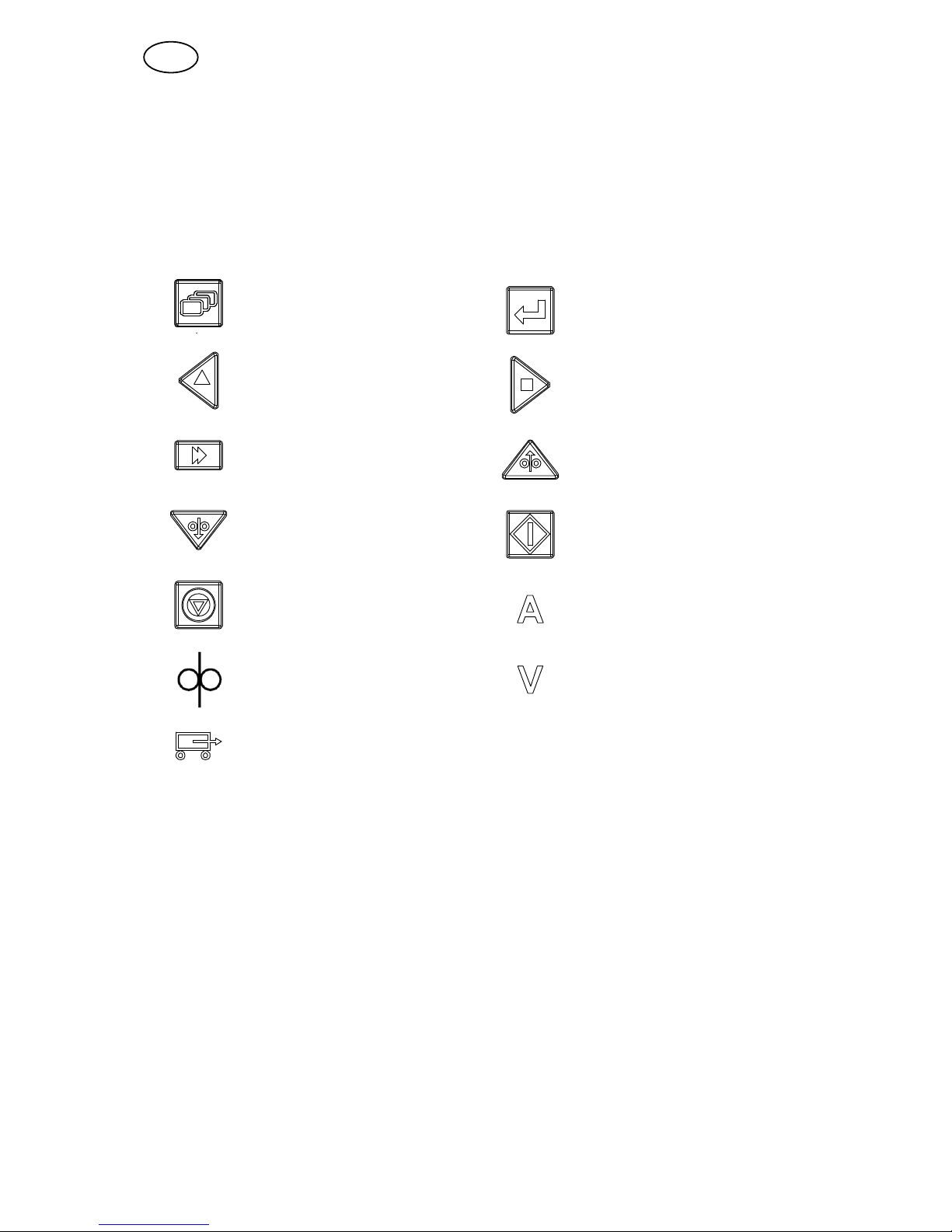

5.3 Key to symbols
Main menu Enter
Manual travel motion in
direction Y
Manual travel motion in
direction J
Fast motion
Manual wire feed
upwards
Manual wire feed
downwards
Start
Stop Current
Wire feed speed Voltage
Travel speed
See separate instruction manual for more information regarding the control panel.
GB
Page 10
- 10 -
be01d1ea
6 MAINTENANCE
Regular maintenance is important for safe, reliable operation.
Maintenance may only be carried out by an authorised technician.
Only personnel with the appropriate electrical skills (authorised staff) may remove
safety plates.
CAUTION
All guarantee undertakings from the supplier cease to apply if the customer himself
attempts any work in the product during the guarantee period in order to rectify any faults.
6.1 Inspection and cleaning
Check regularly that the control unit is not clogged with dirt.
How often and which cleaning methods apply depend on:
S welding process
S arc time
S placement
S surrounding environment.
It is normally sufficient to blow down the box with dry compressed air (reduced
pressure) once a year.
7 ORDERING SPARE PARTS
PEK is designed and tested in accordance with the international and European stan
dards EN 60974-1 and EN 60974-10. It is the obligation of the service unit which has
carried out the service or repair work to make sure that the product still conforms to
the said standard.
Spare parts may be ordered through your nearest ESAB dealer, see the last page of
this publication.
GB
Page 11
- 11 -
p
Page 12
Edition 110119

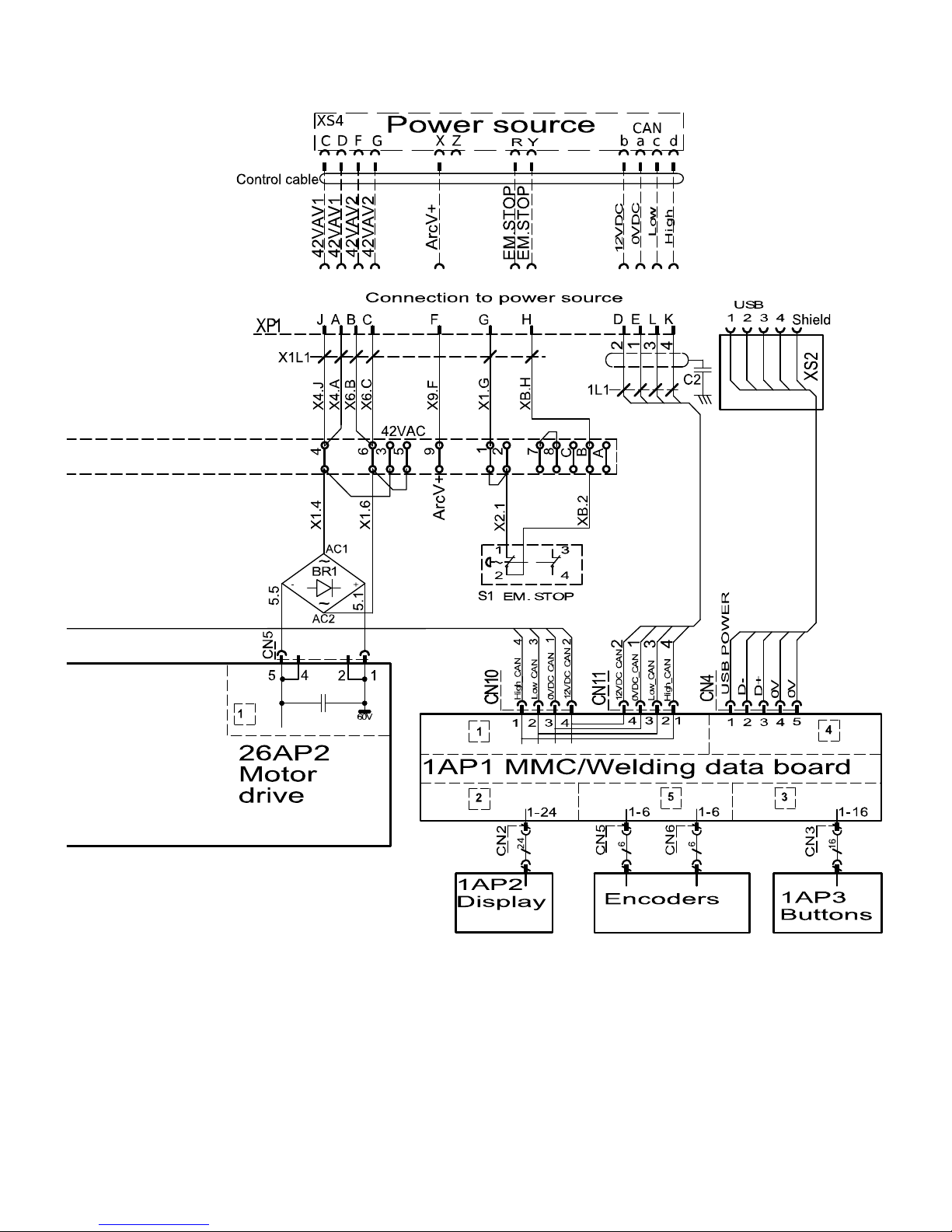

Diagram
12
Page 13

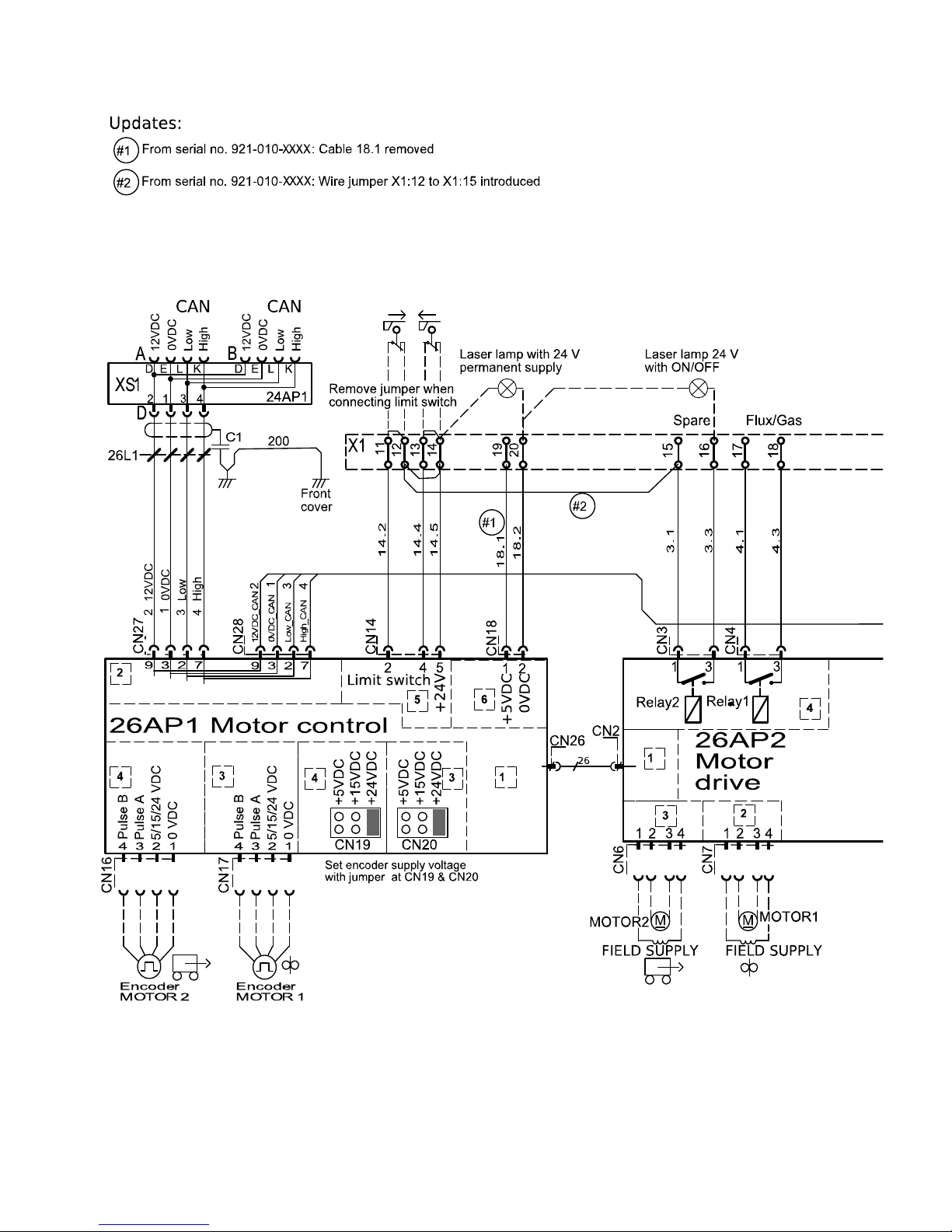

Edition 110119
13
Page 14
PEK
Edition 110119
Ordering number
14
Ordering no. Denomination Type
0460 504 880 Control unit PEK
0459 839 036 Spare parts list PEK
0460 949 Instruction manual Control panel for PEK
Instruction manuals and the spare parts list are available on the Internet at www.esab.com
Page 15
PEK
Edition 110119

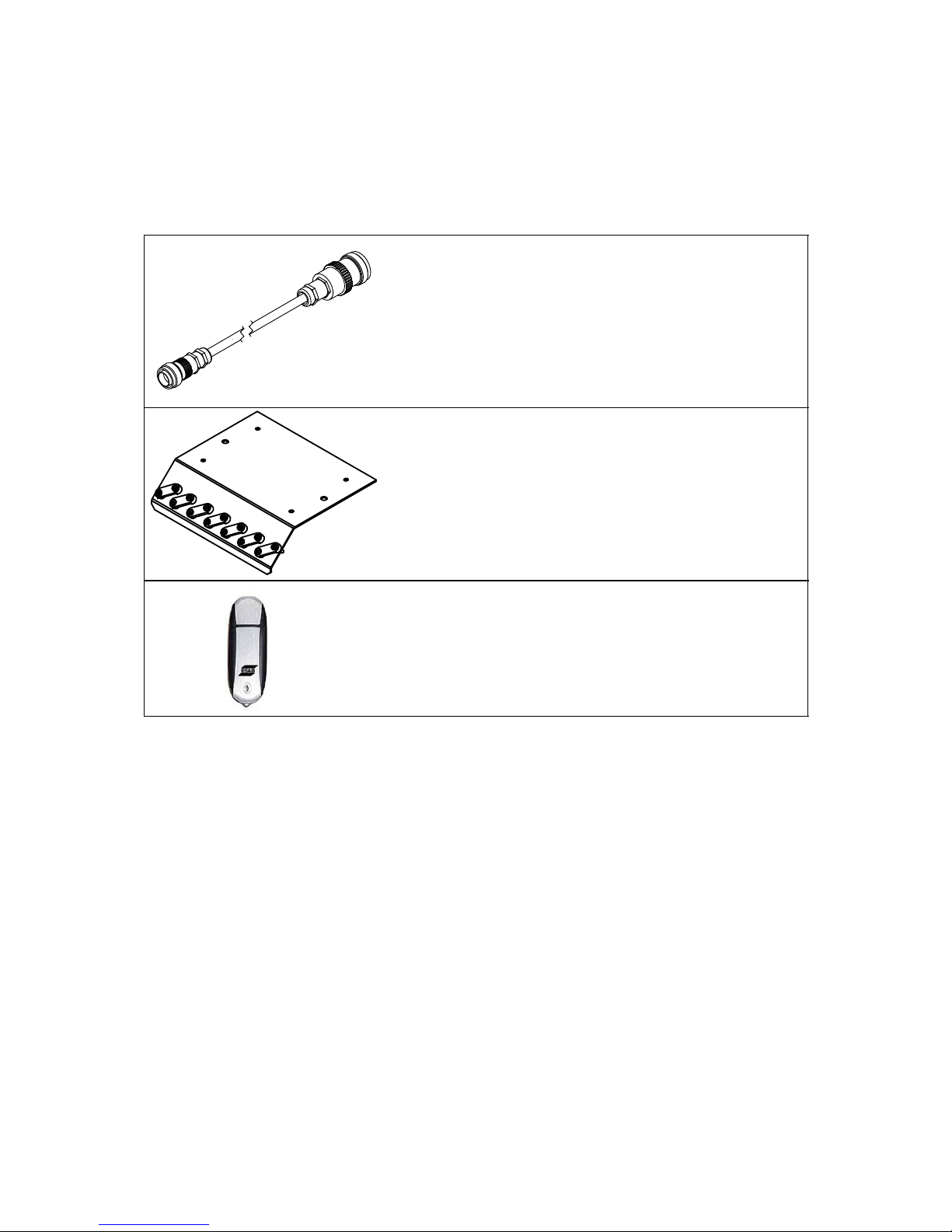

Accessories
15
Control cable PEK - Power source
15 m.....................................
25 m.....................................
35 m.....................................
50 m.....................................
0460 910 881
0460 910 882
0460 910 883
0460 910 884
Cable restraining bracket ................. 0460 861 880
USB Memory stick 2 Gb ................. 0462 062 001
Page 16
ESAB AB
SE-695 81 LAXÅ
SWEDEN
Phone +46 584 81 000
www.esab.com
101217
ESAB subsidiaries and representative offices
Europe
AUSTRIA
ESAB Ges.m.b.H
Vienna-Liesing
Tel: +43 1 888 25 11
Fax: +43 1 888 25 11 85
BELGIUM
S.A. ESAB N.V.
Brussels
Tel: +32 2 745 11 00
Fax: +32 2 745 11 28
BULGARIA
ESAB Kft Representative Office
Sofia
Tel/Fax: +359 2 974 42 88
THE CZECH REPUBLIC
ESAB VAMBERK s.r.o.
Vamberk
Tel: +420 2 819 40 885
Fax: +420 2 819 40 120
DENMARK
Aktieselskabet ESAB
Herlev
Tel: +45 36 30 01 11
Fax: +45 36 30 40 03
FINLAND
ESAB Oy
Helsinki
Tel: +358 9 547 761
Fax: +358 9 547 77 71
FRANCE
ESAB France S.A.
Cergy Pontoise
Tel: +33 1 30 75 55 00
Fax: +33 1 30 75 55 24
GERMANY
ESAB GmbH
Solingen
Tel: +49 212 298 0
Fax: +49 212 298 218
GREAT BRITAIN
ESAB Group (UK) Ltd
Waltham Cross
Tel: +44 1992 76 85 15
Fax: +44 1992 71 58 03
ESAB Automation Ltd
Andover
Tel: +44 1264 33 22 33
Fax: +44 1264 33 20 74
HUNGARY
ESAB Kft
Budapest
Tel: +36 1 20 44 182
Fax: +36 1 20 44 186
ITALY
ESAB Saldatura S.p.A.
Mesero (Mi)
Tel: +39 02 97 96 81
Fax: +39 02 97 28 91 81
THE NETHERLANDS
ESAB Nederland B.V.
Amersfoort
Tel: +31 33 422 35 55
Fax: +31 33 422 35 44
NORWAY
AS ESAB
Larvik
Tel: +47 33 12 10 00
Fax: +47 33 11 52 03
POLAND
ESAB Sp.zo.o.
Katowice
Tel: +48 32 351 11 00
Fax: +48 32 351 11 20
PORTUGAL
ESAB Lda
Lisbon
Tel: +351 8 310 960
Fax: +351 1 859 1277
ROMANIA
ESAB Romania Trading SRL
Bucharest
Tel: +40 316 900 600
Fax: +40 316 900 601
RUSSIA
LLC ESAB
Moscow
Tel: +7 (495) 663 20 08
Fax: +7 (495) 663 20 09
SLOVAKIA
ESAB Slovakia s.r.o.
Bratislava
Tel: +421 7 44 88 24 26
Fax: +421 7 44 88 87 41
SPAIN
ESAB Ibérica S.A.
Alcalá de Henares (MADRID)
Tel: +34 91 878 3600
Fax: +34 91 802 3461
SWEDEN
ESAB Sverige AB
Gothenburg
Tel: +46 31 50 95 00
Fax: +46 31 50 92 22
ESAB international AB
Gothenburg
Tel: +46 31 50 90 00
Fax: +46 31 50 93 60
SWITZERLAND
ESAB AG
Dietikon
Tel: +41 1 741 25 25
Fax: +41 1 740 30 55
UKRAINE
ESAB Ukraine LLC
Kiev
Tel: +38 (044) 501 23 24
Fax: +38 (044) 575 21 88
North and South America
ARGENTINA
CONARCO
Buenos Aires
Tel: +54 11 4 753 4039
Fax: +54 11 4 753 6313
BRAZIL
ESAB S.A.
Contagem-MG
Tel: +55 31 2191 4333
Fax: +55 31 2191 4440
CANADA
ESAB Group Canada Inc.
Missisauga, Ontario
Tel: +1 905 670 02 20
Fax: +1 905 670 48 79
MEXICO
ESAB Mexico S.A.
Monterrey
Tel: +52 8 350 5959
Fax: +52 8 350 7554
USA
ESAB Welding & Cutting Products
Florence, SC
Tel: +1 843 669 44 11
Fax: +1 843 664 57 48
Asia/Pacific
CHINA
Shanghai ESAB A/P
Shanghai
Tel: +86 21 2326 3000
Fax: +86 21 6566 6622
INDIA
ESAB India Ltd
Calcutta
Tel: +91 33 478 45 17
Fax: +91 33 468 18 80
INDONESIA
P.T. ESABindo Pratama
Jakarta
Tel: +62 21 460 0188
Fax: +62 21 461 2929
JAPAN
ESAB Japan
Tokyo
Tel: +81 45 670 7073
Fax: +81 45 670 7001
MALAYSIA
ESAB (Malaysia) Snd Bhd
USJ
Tel: +603 8023 7835
Fax: +603 8023 0225
SINGAPORE
ESAB Asia/Pacific Pte Ltd
Singapore
Tel: +65 6861 43 22
Fax: +65 6861 31 95
SOUTH KOREA
ESAB SeAH Corporation
Kyungnam
Tel: +82 55 269 8170
Fax: +82 55 289 8864
UNITED ARAB EMIRATES
ESAB Middle East FZE
Dubai
Tel: +971 4 887 21 11
Fax: +971 4 887 22 63
Africa
EGYPT
ESAB Egypt
Dokki-Cairo
Tel: +20 2 390 96 69
Fax: +20 2 393 32 13
SOUTH AFRICA
ESAB Africa Welding & Cutting Ltd
Durbanvill 7570 - Cape Town
Tel: +27 (0)21 975 8924
Distributors
For addresses and phone
numbers to our distributors in
other countries, please visit our
home page
www.esab.com
Loading...
