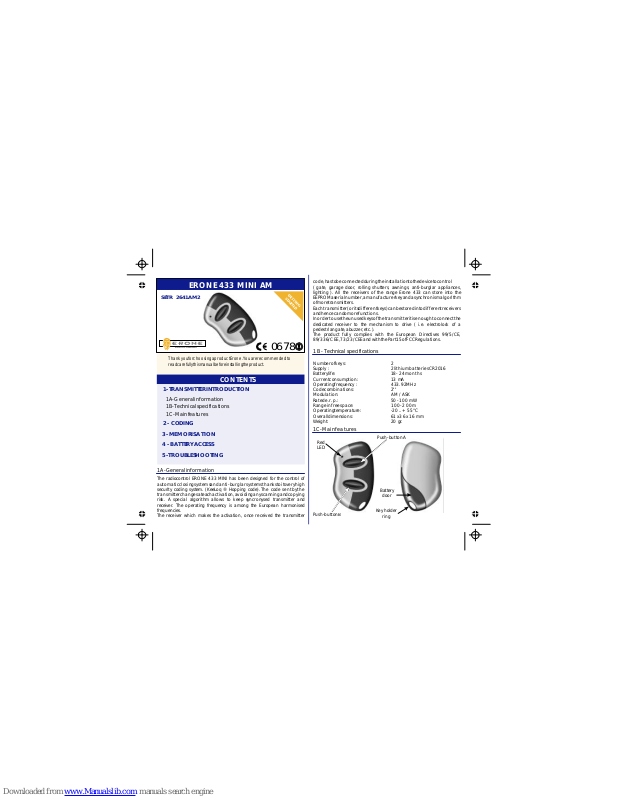

Page 1
ERONE433MINIAM
1A-Generalinformation
TheradiocontrolERONE433MINIhasbeendesignedforthecontrolof
automaticclosingsystemsandanti-burglarsystemsthankstoitsveryhigh
securitycodingsystem.(KeeLoq®Hoppingcode).Thecodesentbythe
transmitterchangesateachactivation,avoidinganyscanningandcopying
risk.Aspecialalgorithmallowstokeepsyncronysedtransmitterand
receiver.TheoperatingfrequencyisamongtheEuropeanharmonised
frequencies.
Thereceiverwhichmakestheactivation,oncereceivedthetransmitter
RADIOCOMANDI
SETR2641AM2
CONTENTS
1A-Generalinformation
1B-Technicalspecifications
1C-Mainfeatures
1-TRANSMITTERINTRODUCTION
2-CODING
3-MEMORISATION
4-BATTERYACCESS
5-TROUBLESHOOTING
1B-Technicalspecifications
Numberofkeys:2
Batterylife:18-24months
Currentconsumption:13mA
Operatingfrequency:433.92MHz
Codecombinations:2
Modulation:AM/ASK
Ratede.r.p.:50-100mW
Rangeinfreespace:100-200m
Operatingtemperature:-20..+55°C
Overalldimensions:61x36x16mm
Weight:20gr.
Supply:2lithiumbatteriesCR2016
64
code,hastobeconnectedduringtheinstallationtothedevicetocontrol
(gate,garagedoor,rollingshutters,awnings,anti-burglarappliances,
lighting).AllthereceiversoftherangeErone433canstoreintothe
EEPROMaserialnumber,amanufacturerkeyandasynchronismalgorithm
ofmoretransmitters.
Eachtransmitter(oritsdifferentkeys)canbestoredintodifferentreceivers
andhencecandomorefunctions.
Inordertousetheunusedkeysofthetransmitteritisenoughtoconnectthe
dedicatedreceivertothemechanismtodrive(i.e.electrolockofa
pedestriangate,abuzzer,etc.).
withthePart15ofFCCRegulations.
TheproductfullycomplieswiththeEuropeanDirectives99/5/CE,
89/336/CEE,73/23/CEEand
1C-Mainfeatures
Push-buttonB
Red
LED
Keyholder
ring
Battery
door
Push-buttonA
0
6
7
8
ThankyouforchoosingaproductErone.Youarerecommendedto
readcarefullythismanualbeforeinstallingtheproduct.
Page 2
3-MEMORISATION
2-CODING
4-BATTERYACCESS
5-TROUBLESHOOTING
FAULT SOLUTION
ERONEisatrademarkbyELPROINNOTEKS.r.l.
ViaPiave,23-I-31020S.PietrodiFeletto(TV)-ITALY
Tel.:+39/0438/450879-Fax.:+39/0438/457126
Toll-freenumber:800.53.46.46
E-Mail:[email protected]:www.erone.com
Thetransmitterled
blinks
Checkthereceiversupply.
Replacethetransmitter
batteries
IS-TMNERGXRev.0del10.12.2001
Toaccessthebatteryturnclockwisethebattery
door.
Placethe2lithiumCR2016batteriesinserting
apartofthemunderthedoorandtakingcare
topushthemjustontheinternalringplane.
NOTE:Pleasedisposeofthebatteriescorrectly,
theyarehazardouswaste.
Eachtransmitterismanufacturedandsoldwithadifferentunivocalserial
numberset-in-factory.Therealtransmittedcodeistheresultofaspecial
algorithmwhichcombinesaserialnumber,amanufacturerkeyanda
synchronizationnumber.
Thetransmittersecuritycodehastobestoredontothereceiverorthe
receiversmemoryavailable.Yourowninstallerorresellerwillperformthis
operationduringtheinstallationorwillgiveyouthenecessariesinstructions
duringtheselling.Don'tforgetthatthestillfreebuttonsofyourtransmitter
canbeusedforfurtherwirelessfunctions.
Askyourinstallerthebestsuitablereceiver.
Theradioemissionisn’tverifiable
ThetransmitterledisOFF.
Theradioemissionisn’tverifiable
ThetransmitterledisON.
Replacethetransmitter
batteries
TheguaranteeperiodofallEroneproductsis24months,beginningfrom
themanufacturerdate.Duringthisperiod,iftheproductdoesnotwork
correctly,duetoadefectivecomponent,theproductwillberepairedor
substitutedatthediscretionoftheproducer.Theguaranteedoesnot
covertheplasticcontainerintegrity.After-saleserviceissuppliedatthe
producer'sfactory.
GUARANTEE
ERONE-Type:SETR2641AM2
FCCID:PWJT433
ThisdevicecomplieswithFCCRules
Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptinterferencereceived,including
interferencethatmaycauseundesiredoperation.
Part.15ofthe
Notice
AnychangesormodificationtoELPROINNOTEKequipmentnot
expresslyapprovedbyELPROINNOTEKcouldvoidtheuser'sauthority
tooperatetheequipment.
