ERNI SMC ML 50-8,2G-P Instructions

7http://Connect.ERNI.com/contact/

Catalog E 074473 09/00 Edition 2

0,10 N min.

IEC 60512 test 16e

Gauge retention force

12 cont.: 6 N max. 26 cont.: 13 N max. 50 cont.: 26 N max. 68 cont.: 35 N max. 80 cont.: 40 N max.

IEC 60512 test 13b

Insertion and withdrawal force

> 500 mating cycles

IEC 60512 test 9a

Mechanical operation (mating cycles)

< 1 µs

IEC 60512 test 2e

Contact disturbance (while shock halfsine)

50g 11 ms

IEC 60512 test 6c

Shock halfsine

< 1 µs

IEC 60512 test 2e

Contact disturbance (while vibration sine)

10 – 2000 Hz 20g

IEC 60512 test 6d

Vibration

> 10

4

MΩ

> 10

4

MΩ

IDC Assembly (depends on cable)

IEC 60512 test 3a

Insulation resistance

< 25 mΩ

IEC 60512 test 2a

Contact resistance

contact – contact 500V

contact – contact 500V IDC Assembly (depends on cable)

IEC 60512 Dielectric strength

Has to be determined according to client-specific using case (degree of environmental pollution) according to VDE 0110

DIN VDE 0110Voltage rating

CTI-150

IEC 112Comparative figure of voltage

0,4mm

Air – and creepage distance

By ambient temperature: 20°C 1,2 A 70°C 0,9 A 100°C 0,6 A

By ambient temperature: 20°C 1,2 A 70°C 0,9 A 100°C 0,6 A IDC Assembly (depends on cable)

IEC60512 test 5b

Current rating

-55/125 °C

-55/125 °C IDC Assembly (depends on cable)

Bearing and operating temperature area

-55/125/56

-55/125/56 IDC Assembly (depends on cable)

DIN EN 60068-1 test b

Climate Category

Technical data

12, 26, 50, 68 and 80

Number of Pins

Type Q (inversed)Type B and IDC AssembliesStandard

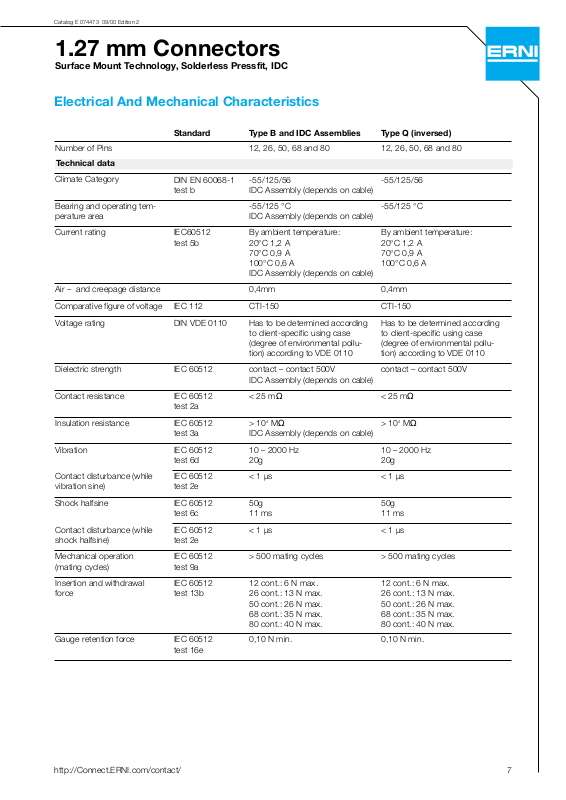

Electrical And Mechanical Characteristics

1.27 mm Connectors

Surface Mount Technology, Solderless Pressfit, IDC

8 http://Connect.ERNI.com/contact/

Catalog E 074473 09/00 Edition 2

in preparationin preparationCSA

file E 84703file E 84703UL

Product-approval and customer specific tests

no flame-retardent additives, no toxic additives allow easy recyclingrecycling

Enviroment compatibility

SnSnSolder, press-fit and

IDC-technology

Cu alloyCu alloyBase material

Termination area

Au over NiAu over NiPlating

Cu alloyCu alloyBase material

Contact and mating area

E 83005E 83005

UL file

UL 94 V-0UL 94 V-0UL flame rating

CTI 150CTI 150IEC 112CTI value

LCPLCP

Housing: plastic material (symbol)

Materials

0/55 °C

IDC (Insulation Displacement Connection)

< 0,1mm

Coplanarity

soldering of press-fit connectors not to be recommended

Warning

10s at 260°C

SMT-Reflow soldering temperature max.

10s at 260°C

Dip soldering temperature max.

3,5s at 350°C

Hand soldering temperature max.

IEC 68-2-20

Solder temperature max.

Process-conditions

12, 26, 50, 68 and 80

Number of Pins

Type Q (inversed)Type B and IDC AssembliesStandard

Electrical And Mechanical Characteristics

18 http://Connect.ERNI.com/contact/

Catalog E 074473 09/00 Edition 2

Dimensional drawing

Vertical Male Connectors Type Q Standard Assembly Height

a1

nx1.27=

a1

1,8

3,25

1,27

7,2

1,27

5

4

0,1

8,2

1,5

-0,03

0,75

+0,05

10

4,2

2,21

0,03

2,6

7,6

0,3

1,2

0,8

1,6

-0,03

1,27

1,1

5,5

D

E

C

B

A

F

A

B

80

49.53 53.95 55.8 52.75 51.75 53.53

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

ABCDE

±0.03

12

6.35 10.77 12.7

26

15.24 19.66 21.6

50

30.48 34.9 36.8

68

41.91 46.33 48.2

9.57 8.57

18.46 17.46

33.7 32.7

45.13 44.13 45.91

34.48

19.24

10.35

F

Polzahl No. of contacts

The SMC Type Q vertical male connector in pitch 1.27 mm is available with 12, 26 or 50 contacts. There is a very high flexibility for sandwich boards by combination of different connector heights (6.2 mm, 6.7 mm, 8.2 mm and 9 mm). The board to board distances are possible between 8.0 mm and 12.2 mm (wipe length 2.5 mm) or up to 14.0 mm (wipe length 0.7 mm). Fully automatic assembly is possible by using tape on reel packaging. The black insulator ensures easy recognition for quick visual identification, and the pre-assembled pick and place cover provides a firm vacuum grip of the connector. Special contact lead design guarantees exact placement of the connectors on the PCB. A secure soldering process is guaranteed due to the coplanarity of the contacts and the high temperature insulator. The integrated solid metal SMT mounting bracket secures the seating of the connector on the PCB for reliable mating and unmating.

All dimensions in mm

19http://Connect.ERNI.com/contact/

Catalog E 074473 09/00 Edition 2

Type Q With Assembly Cap Tape On Reel Packaged 280 pcs

Ordering Information

Vertical Male Connectors Type Q Standard Assembly Height

Part NumberHeightConfiguration

063179

128,2 mm

No. of Pins

Type Q With Assembly Cap Tape On Reel Packaged 280 pcs

063209

268,2 mm

Type Q With Assembly Cap Tape On Reel Packaged 280 pcs

063210

508,2 mm

For smaller quantities or tube feeder please refer to the cross reference table on page 39.

All dimensions in mm

Vertical Male Standard Assembly Height

Vertical Male Low Profile

12,2

Vertical Female Standard Assembly Height

10,8

Vertical Female Standard Assembly Height

Vertical Male Standard Assembly Height

9,4

Vertical Female Low Profile

Vertical Male Low Profile

8

Vertical Female Low Profile

20 http://Connect.ERNI.com/contact/

Catalog E 074473 09/00 Edition 2

Type Q With Assembly Cap Tape On Reel Packaged 280 pcs

a1 a34

Ordering Information

Vertical Male Connectors Type Q Standard Assembly Height

Part NumberHeightConfiguration

114807

688,2 mm

No. of Pins

Type Q With Assembly Cap Tape On Reel Packaged 280 pcs

a1 a40

114808

808,2 mm

All dimensions in mm

Vertical Male Standard Assembly Height

Vertical Male Low Profile

Vertical Male Standard Assembly Height

Vertical Male Low Profile

12,2

Vertical Female Standard Assembly Height

10,8

Vertical Female Standard Assembly Height

9,4

Vertical Female Low Profile

8

Vertical Female Low Profile

23http://Connect.ERNI.com/contact/

Catalog E 074473 09/00 Edition 2

Dimensional drawing

Vertical Male Connectors Type Q Low Profile

nx1.27=

a1

A

B

nx1.27=

1,27

1,5

-0,03

0,75

+0,05

6,7

4

0,1

5

1,27

7,2

1,8

3,25

5,5

1,1

8,6

4,2

A

B

F

D

E

C

2.21

+

-

0.03

1.27

2.6

7.6

0.3

1.2

1.6

- 0.03

a1

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

0.8

ABCDE

±0.03

12

6.35 10.77 12.7

26

15.24 19.66 21.6

50

30.48 34.9 36.8

9.57 8.57

18.46 17.46

33.7 32.7 34.58

19.34

10.45

F

Polzahl No. of contacts

The SMC Type Q vertical male connector in pitch 1.27 mm is available with 12, 26 or 50 contacts. There is a very high flexibility for sandwich boards by combination of different connector heights (6.2 mm, 6.7 mm, 8.2 mm and 9 mm). The board to board distances are possible between 8.0 mm and 12.2 mm (wipe length 2.5 mm) or up to 14.0 mm (wipe length 0.7 mm). Fully automatic assembly is possible by using tape on reel packaging. The black insulator ensures easy recognition for quick visual identification, and the pre-assembled pick and place cover provides a firm vacuum grip of the connector. Special contact lead design guarantees exact placement of the connectors on the PCB. A secure soldering process is guaranteed due to the coplanarity of the contacts and the high temperature insulator. The integrated solid metal SMT mounting bracket secures the seating of the connector on the PCB for reliable mating and unmating.

All dimensions in mm

24 http://Connect.ERNI.com/contact/

Catalog E 074473 09/00 Edition 2

Type Q With Assembly Cap Tape On Reel Packaged 280 pcs

Ordering Information

Vertical Male Connectors Type Q Low Profile

Part NumberHeightConfiguration

064319

506,7 mm

No. of Pins

Type Q With Assembly Cap Tape On Reel Packaged 280 pcs

064320

266,7 mm

Type Q With Assembly Cap Tape On Reel Packaged 280 pcs

064321

126,7 mm

For smaller quantities or tube feeder please refer to the cross reference table on page 39.

All dimensions in mm

Vertical Male Standard Assembly Height

Vertical Male Low Profile

12,2

Vertical Female Standard Assembly Height

10,8

Vertical Female Standard Assembly Height

Vertical Male Standard Assembly Height

9,4

Vertical Female Low Profile

Vertical Male Low Profile

8

Vertical Female Low Profile
