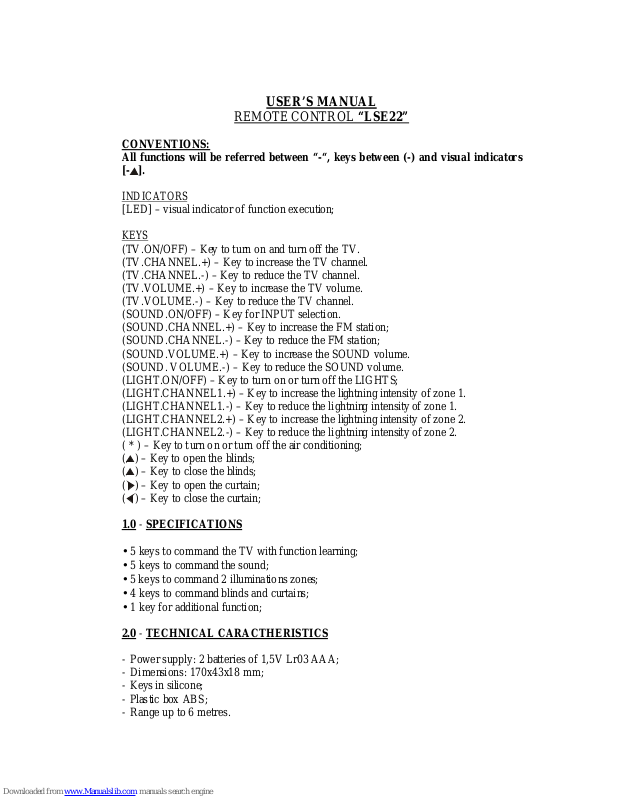

USER’S MANUAL
REMOTE CONTROL “LSE22”
CONVENTIONS:
All functions will be referred between “-“, keys between (-) and visual indicators
[- ].
INDICATORS
[LED] – visual indicator of function execution;
KEYS
(TV.ON/OFF) – Key to turn on and turn off the TV.
(TV.CHANNEL.+) – Key to increase the TV channel.
(TV.CHANNEL.-) – Key to reduce the TV channel.
(TV.VOLUME.+) – Key to increase the TV volume.
(TV.VOLUME.-) – Key to reduce the TV channel.
(SOUND.ON/OFF) – Key for INPUT selection.
(SOUND.CHANNEL.+) – Key to increase the FM station;
(SOUND.CHANNEL.-) – Key to reduce the FM station;
(SOUND.VOLUME.+) – Key to increase the SOUND volume.
(SOUND. VOLUME.-) – Key to reduce the SOUND volume.
(LIGHT.ON/OFF) – Key to turn on or turn off the LIGHTS;
(LIGHT.CHANNEL1.+) – Key to increase the lightning intensity of zone 1.
(LIGHT.CHANNEL1.-) – Key to reduce the lightning intensity of zone 1.
(LIGHT.CHANNEL2.+) – Key to increase the lightning intensity of zone 2.
(LIGHT.CHANNEL2.-) – Key to reduce the lightning intensity of zone 2.
( * ) – Key to turn on or turn off the air conditioning;
( ) – Key to open the blinds;
( ) – Key to close the blinds;
( ) – Key to open the curtain;
( ) – Key to close the curtain;
1.0 - SPECIFICATIONS
• 5 keys to command the TV with function learning;
• 5 keys to command the sound;
• 5 keys to command 2 illuminations zones;
• 4 keys to command blinds and curtains;
• 1 key for additional function;
2.0 - TECHNICAL CARACTHERISTICS
- Power supply: 2 batteries of 1,5V Lr03 AAA;
- Dimensions: 170x43x18 mm;
- Keys in silicone;
- Plastic box ABS;
- Range up to 6 metres.
Page 2
3.0- MANUTENTION
1.Clean frontal panel, in case of damage contact authorized reseller.
4.0 - PRECAUTIONS
2.Do not use abrasive cleaners;
3.Do not apply liquids directly;
5.0 - TV SET KEYS
Program the TV SET keys:
*Point the original remote control of the television, to the remote control LSE22, see
pic.;
* Press simultaneously keys (SOM.ON/OFF) and (LIGHT.ON/OFF) for 3 seconds;
* [LED] lights on;
* Press (TV.VOLUME.+) key
* [LED] blinks one time;
* Press correspondent key to the increase volume of the original remote control;
* [LED] blinks one time;
* Wait until the [LED] blinks twice as a confirmation of correct code;
* The [LED] remains lighte d;
* Proceed the same way for the other keys;
* After programming all television keys, press key (SOM.ON/OFF);
* [LED] blinks two times and all programmed keys remain memorized.
Note: All codes of the programmed keys remain in memory even without
batteries.
6.0 - SOUND KEYS
(SOUND.ON/OFF) – Key of INPUT selection in the models Ref. ERAMP1802-S,
ERAMPTCL 202-S and ERAMPLCD;
(SOUND.CHANNEL.+) – Key to increase FM station in models Ref. ERAMP1802S, ERAMPTCL 202-S and ERAMPLCD;
(SOUND.CHANNEL.-) – Key to reduce FM station in models Ref. ERAMP1802 -S,
ERAMPTCL 202-S and ERAMPLCD;
(SOUND.VOLUME.+) – Key to increase the SOUND volume in the models Ref.
ERAMP1802-S, ERAMPTCL 202-S and ERAMPLCD;
(SOUND.VOLUME.-) – Key to reduce the SOUND volume in the models Ref.
ERAMP1802-S, ERAMPTCL 202-S and ERAMPLCD.
Page 3
6.0 - LIGHT KEYS
(LIGHT.ON/OFF) – Key to turn on or turn off LIGHTS referring to the
designated zones as channel 1 and channel 2, through the installation of the
receptor module ref. ERDIMMER for each zone;
(LIGHT.CHANNEL1.+) – Key to increase the luminous intensity of zone 1
through the installation of receptor module Ref. ERDIMMER;
(LIGHT.CHANNEL1.-) – Key to reduce the luminous intensity of zone 1 through
the installation of receptor module Ref. ERDIMMER;
(LIGHT.CHANNEL2.+) – Key to increase the luminous intensity of zone 2
through the installation of receptor module Ref. ERDIMMER;
(LIGHT.CHANNEL2.-) – Key to reduce the luminous intensity of zone 2 through
the installation of receptor module Ref. ERDIMMER;
NOTE: In case of non-functioning with remote controls check if the dipswitch
configuration (pic. 2) of the command ERDIMMER corresponds to the zone
of the remote control in use.
6.0 - BLIND KEYS
( ) – Key to open the blinds through the installation of module ERESTORES;
( ) – Key to close the blinds through the installation of module ERESTORES;
NOTE: In case of non-functioning with remote controls check if the dipswitch
configuration (pic. 2) of the command ERESTORES corresponds to the zone
of the remote control in use.
6.0 - CURTAINS KEYS
( ) – Key to open the curtain through the installation of module ERCURTAINS;
( ) – Key to close the blinds through the installation of module ERCURTAINS;
NOTE: In case of non-functioning with remote controls check if the dipswitch
configuration (pic. 4) of the command ERCURTAINS corresponds to the
zone of the remote control in use.
