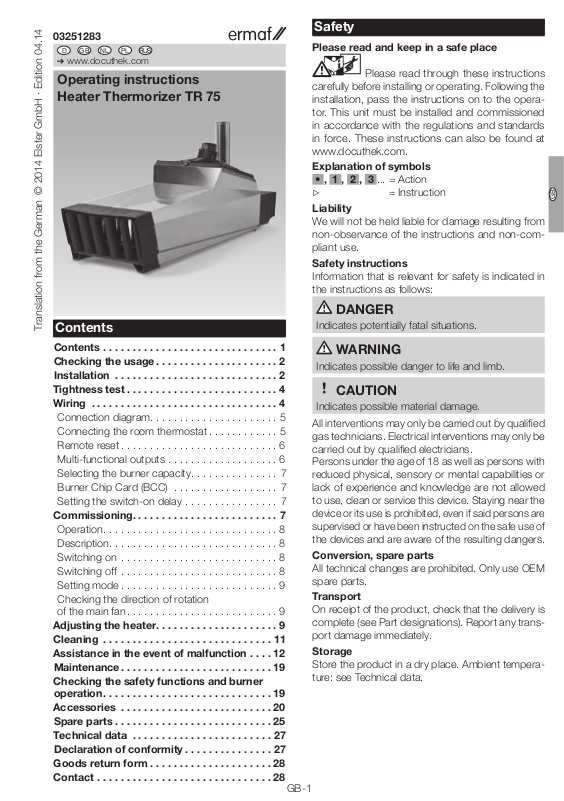

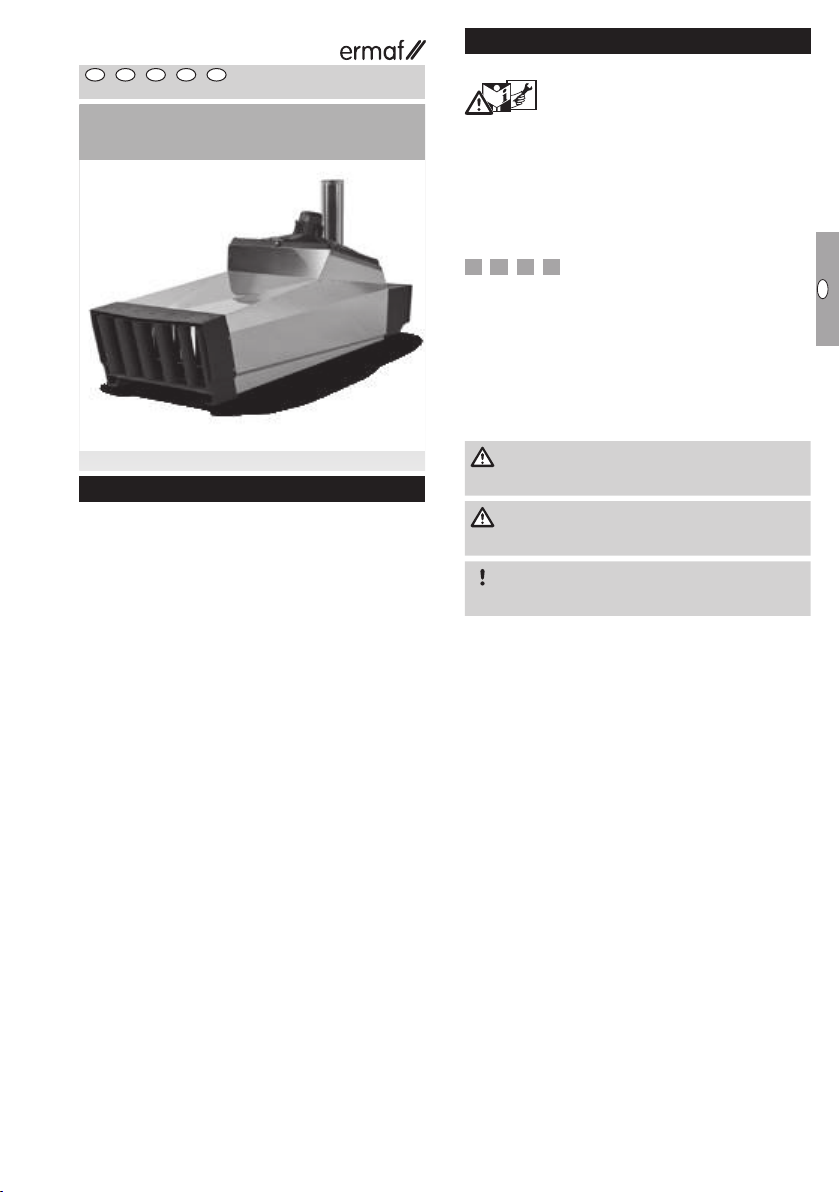

ermaf TR 75 Operating Instructions Manual

Download

058

D GB NL PL RUS

➔ www.docuthek.com

Operating instructions

Heater Thermorizer TR 75

Translation from the German

Contents

Contents ..............................

Checking the usage .....................

Installation ............................

Tightness test ..........................4

Wiring ................................4

Connection diagram......................5

Connecting the room thermostat ............5

Remote reset ...........................6

Multi-functional outputs ...................6

Selecting the burner capacity............... 7

Burner Chip Card (BCC) .................. 7

Setting the switch-on delay ................ 7

Commissioning.........................7

Operation..............................8

Description.............................8

Switching on ...........................8

Switching off ...........................8

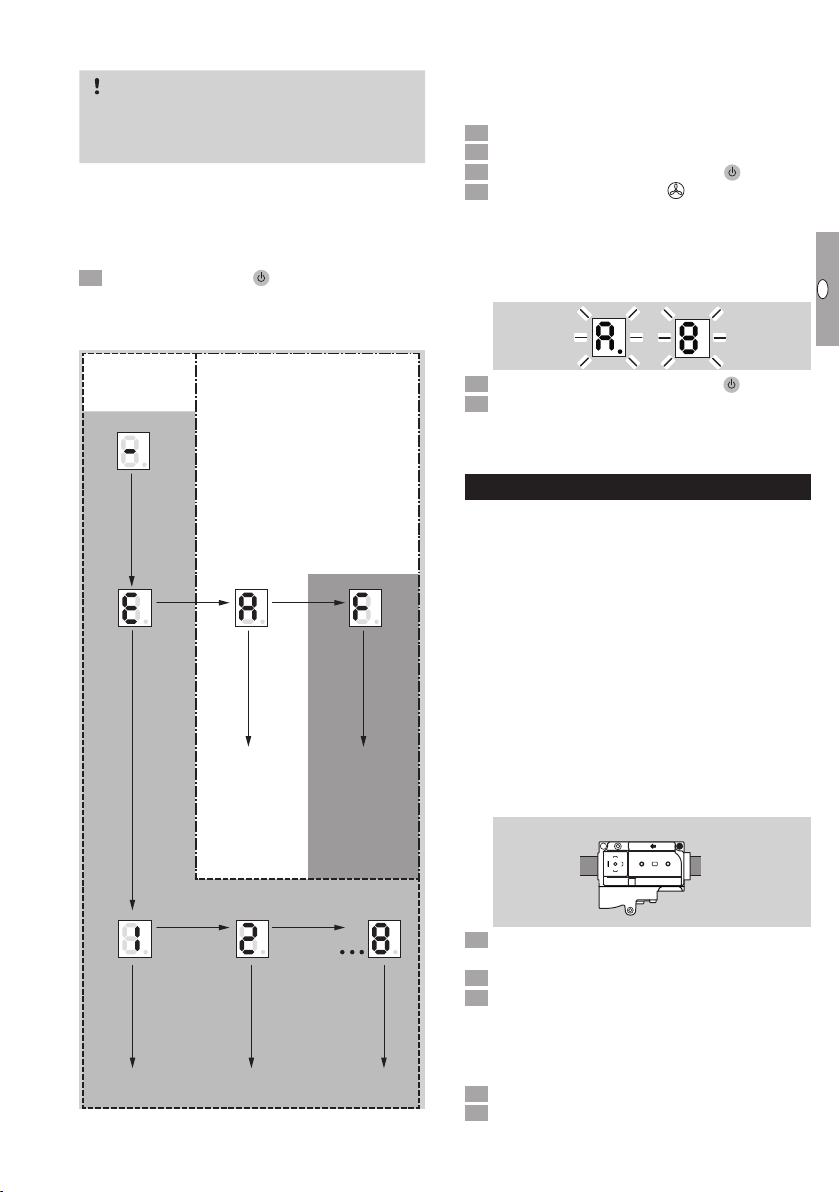

Setting mode ...........................9

Checking the direction of rotation

of the main fan ..........................9

Adjusting the heater.....................9

Cleaning .............................

Assistance in the event of malfunction ....

Maintenance ..........................9

Checking the safety functions and burner

operation.............................9

Accessories ..........................0

Spare parts ...........................5

Technical data ........................7

Declaration of conformity ...............7

Goods return form . . . . . . . . . . . . . . . . . . . . . 8

Contact ..............................8

Safety

Please read and keep in a safe place

Please read through these instructions carefully before installing or operating. Following the installation, pass the instructions on to the operator. This unit must be installed and commissioned in accordance with the regulations and standards in force. These instructions can also be found at www.docuthek.com.

Explanation of symbols

• ,  ,  ,  ... = Action

▷ = Instruction

Liability

We will not be held liable for damage resulting from non-observance of the instructions and non-compliant use.

Safety instructions

Information that is relevant for safety is indicated in the instructions as follows:

DANGER

Indicates potentially fatal situations.

WARNING

Indicates possible danger to life and limb.

CAUTION

Indicates possible material damage.

All interventions may only be carried out by qualiﬁed gas technicians. Electrical interventions may only be carried out by qualiﬁed electricians. Persons under the age of 18 as well as persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge are not allowed to use, clean or service this device. Staying near the device or its use is prohibited, even if said persons are supervised or have been instructed on the safe use of the devices and are aware of the resulting dangers.

Conversion, spare parts

All technical changes are prohibited. Only use OEM spare parts.

Transport

On receipt of the product, check that the delivery is complete (see Part designations). Report any transport damage immediately.

Storage

Store the product in a dry place. Ambient temperature: see Technical data.

GB-1

Checking the usage

TR 75

Heater with indirect combustion for agricultural sta-

bles and horticultural greenhouses. Depending on

the type and setting, the heater can be operated with

natural gas or LPG (propane/butane). This function is only guaranteed when used within the speciﬁed limits– see page27 (Technical data). Any other use is considered as non-compliant.

Type code

Code Description

TR Heater 75 Capacity 75kW, jet length > 50 m

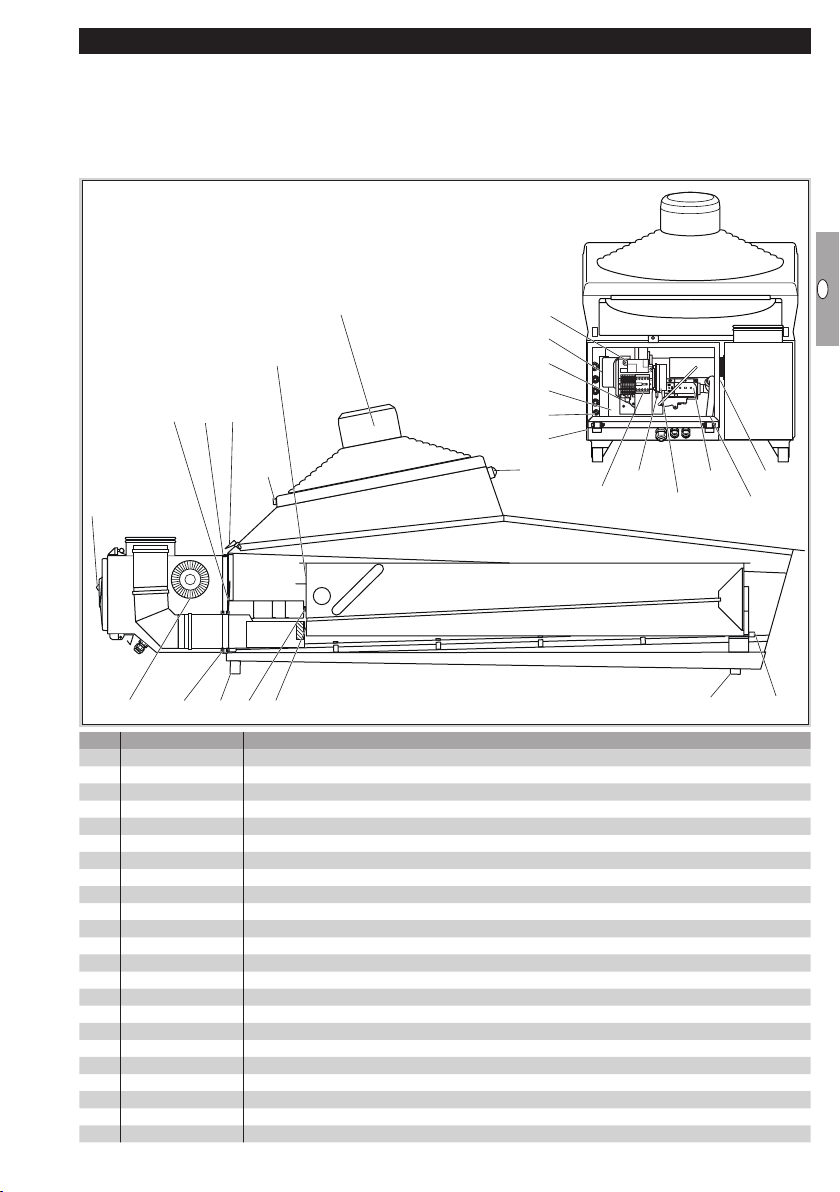

Part designations

F O / N O

SET E R

E D O M

2 8

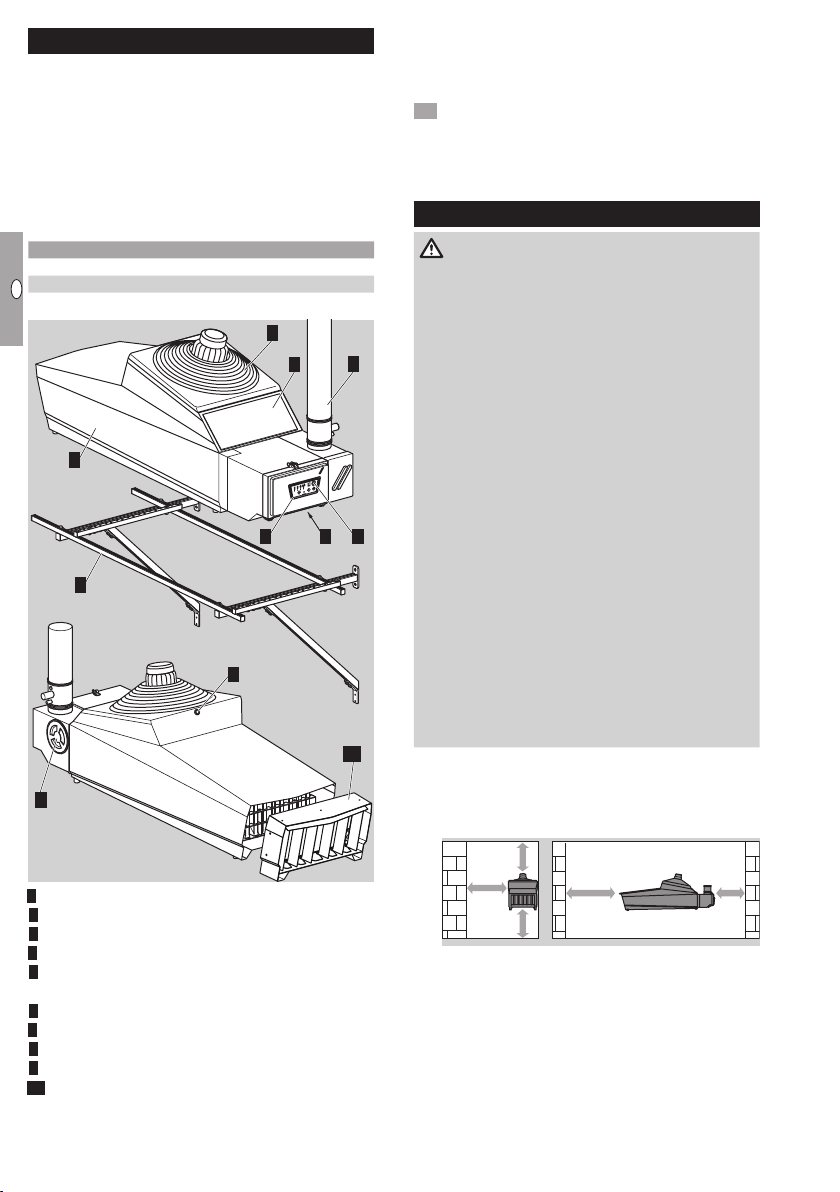

 Thermorizer stainless steel housing  Housing cover/Burner control unit

 Service ﬂap 4 Connection for gas combination control 5 Chimney with condensate vessel (not included

in the delivery)

6 Main fan 7 Filter

8 Status indicator (operation/faults)

9 Wall bracket (optional) 0 Air diffuser (optional)

Type label

Air circulation, electrical connection rating, rated heat

input, gas type, category, supply pressure, burner pressure, enclosure: see type label.

• Before installation, check whether the device is suitable for the regional gas type and the speciﬁed limits, see type code and page27 (Technical data).

Installation

DANGER

Danger of death! Gases are generated during the storage of slurry which remain partly dissolved in the liquid. If the slurry is strongly agitated during mixing and purging, poisonous, explosive gases

such as hydrogen sulphide and methane are released. If an ignition source is present, the released gas can explode.

To avoid damage during operation, please observe

the following:

– Switch off the heater before mixing and purging

the slurry.

– Close the slide valves when storing slurry out-

side.

– The fan for the air supply must not be part of a

closed pipe system.

– Respect the safety distance of the heater to

inﬂammable materials, see “Installation position”.

– Consult your ﬁre insurance provider and/or local

ﬁre protection engineer to assess the foresee-

able, general risk of ﬁre.

– For cleaning, care and maintenance, note the

applicable national regulations and directives.

– No condensation permitted. Comply with am-

bient temperature, see page27 (Technical data).

Installation position

▷ Installation position: horizontal.

Note the safety distance to walls and inﬂam-

▷

mable materials.

> 0,5 m

> 0,2 m

> 0,5 m

> 1 m> 3 m

▷ Ensure sufﬁcient free space around the device.

There must be no obstructions in front of the inlet

and outlet side of the heater.

▷

The distance between the heaters should be

greater than 30m.

▷ To avoid overheating, do not cover the main fan.

GB-2

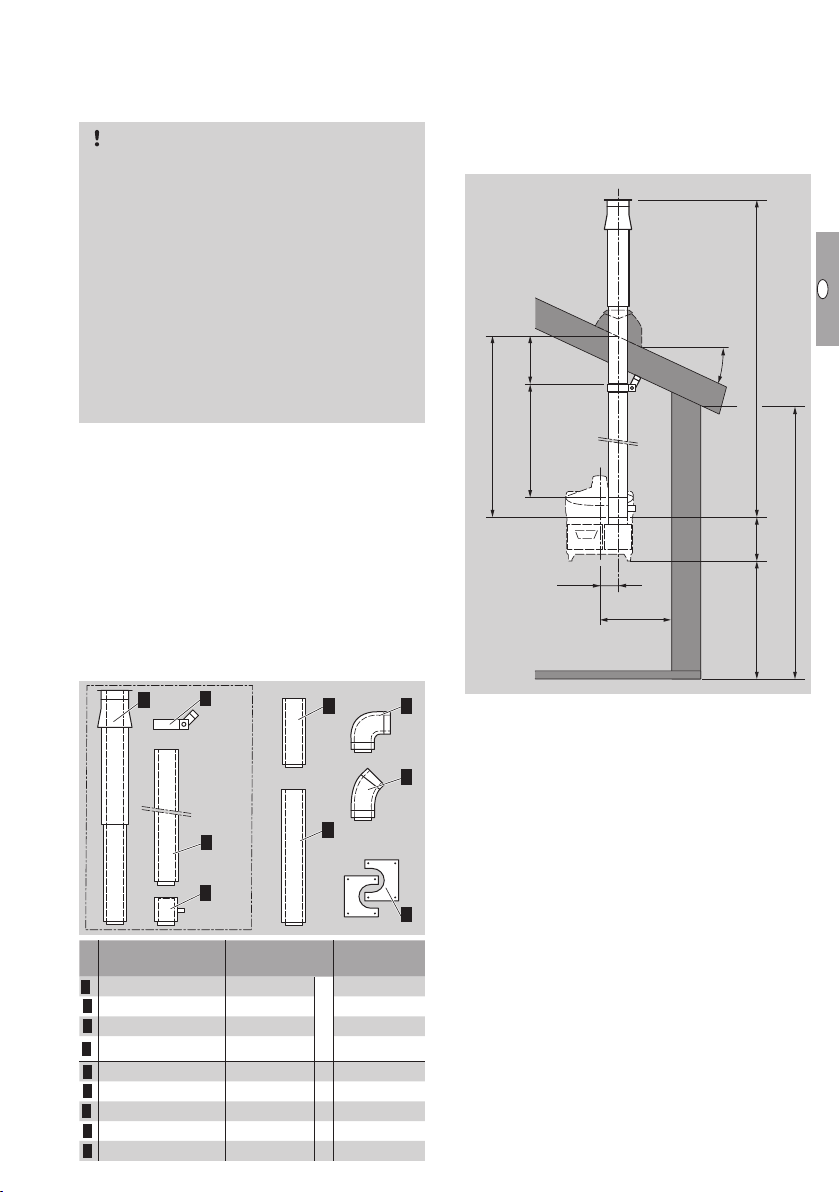

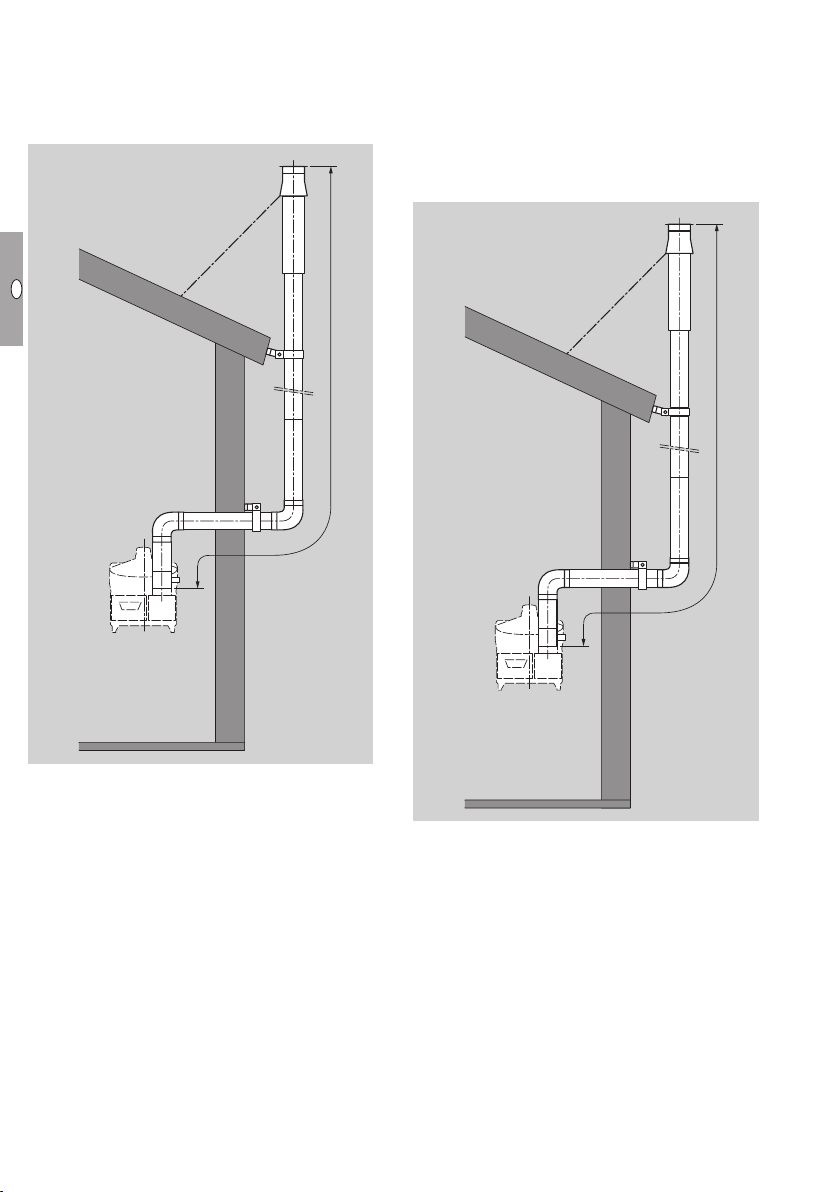

Chimney

CAUTION

The TR is only deemed CE tested and approved

when used with the coaxial chimney described in

“Accessories”.

▷

Do not exceed the maximum length (5m) of the chimney.

▷

The design of the chimney depends on the prem-

ises and the roof construction.

▷

Various chimney elements for individual applications can be supplied, see page 20 (Accessories).

▷

The wall bracket cannot be installed in the correct

position until the chimney has been selected.

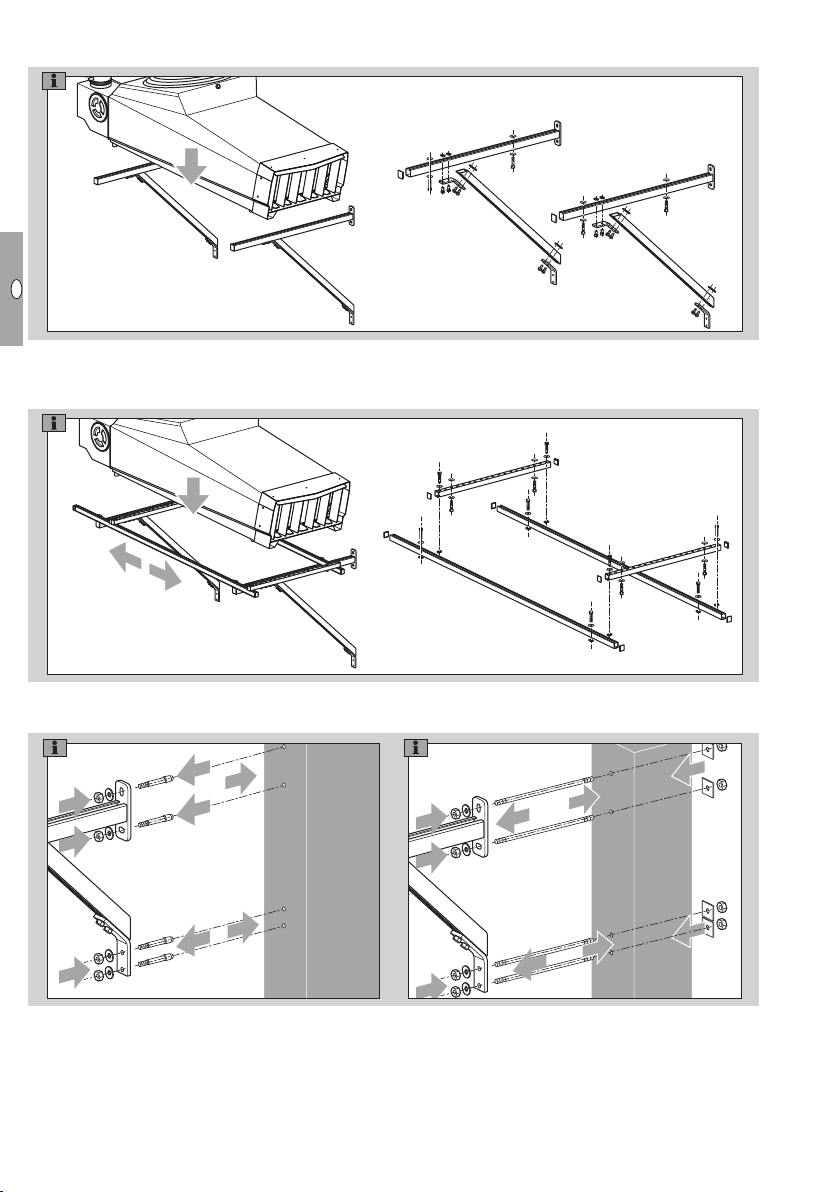

Wall bracket

▷ The wall bracket is the support and wall mount-

ing for the heater.

▷

The design of the mounting depends on

the premises and the wall construction, see page20 (Accessories).

▷

For its alignment, we recommend that the heater is positioned at the correct height using a forklift truck.

▷ The heater must remain on the forklift truck until

the wall bracket has been mounted to make it easy to install.

CAUTION

To avoid damage to the heater TR, please observe

the following:

– If the slide is used for the wall bracket, position

the TR so that when the slide is extended it does not tip over.

≥

1,6 m

<–

0,2 m

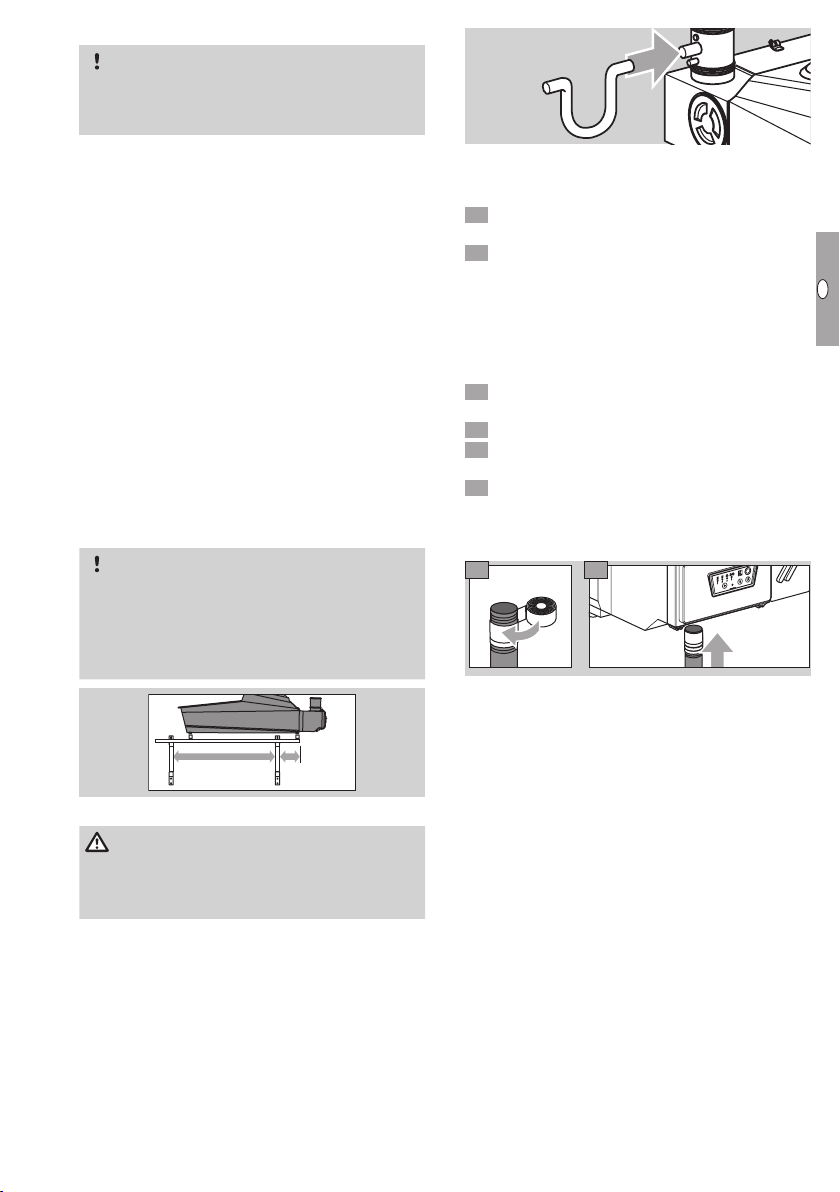

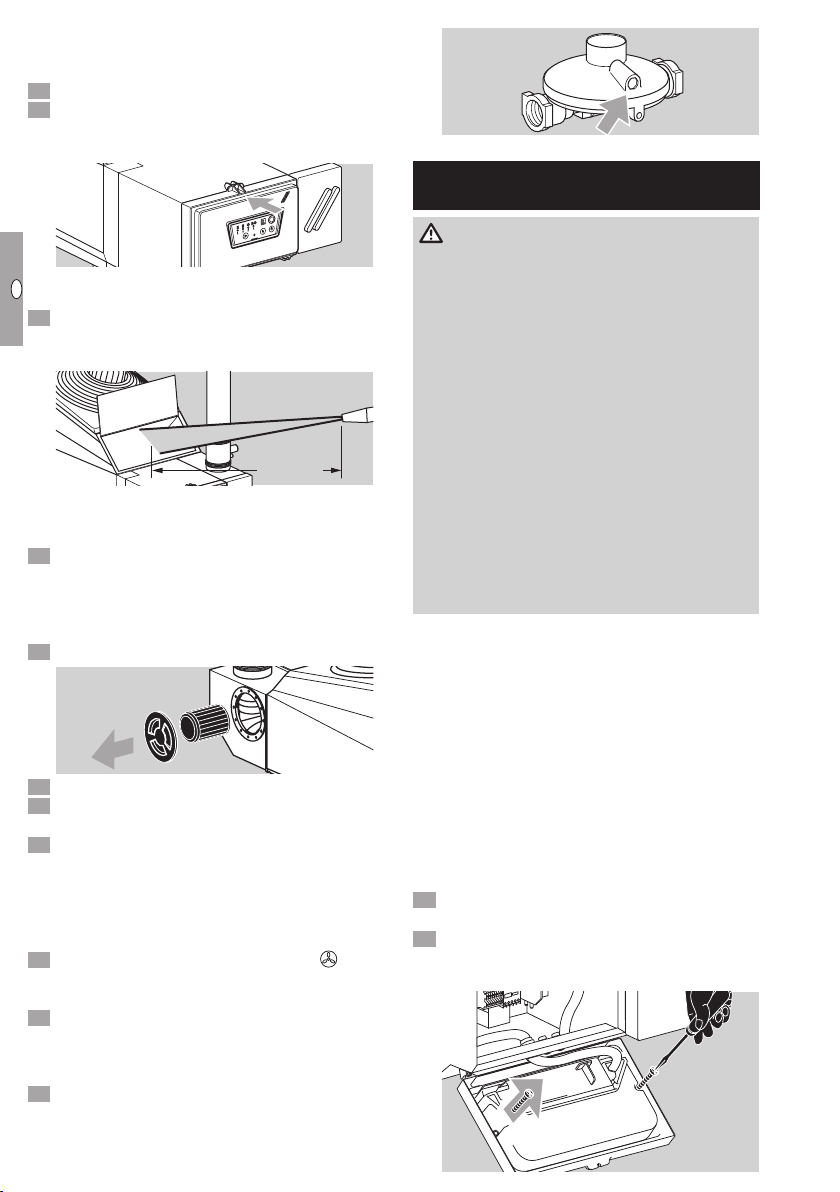

Siphon connection

DANGER

Risk of poisoning!

– If the TR is operated without a siphon or with

an empty siphon, toxic ﬂue gases may escape.

▷

A siphon must be connected before commissioning. This prevents the escape of toxic ﬂue gases and will also collect any condensate contained in the ﬂue gas.

▷

The siphon is not included in the delivery and

must be ordered separately for the nominal size of DN40.

▷

Fill the siphon with water before commissioning.

▷ If large volumes of condensate are discharged,

we recommend that an additional drain pipe is connected to the siphon.

▷

If the heater has not been used for a lengthy period, the siphon must be checked, cleaned and ﬁlled with water before commissioning.

• Unscrew the siphon, remove it and ﬁll it until

water ﬂows out of the side drain.

• Secure the siphon again and ensure that the seal

is correctly positioned.

Connecting the gas supply

▷

The TR is set to the correct gas type as speciﬁed

in the purchase order.

▷

If you wish to use a different gas type, see page3 (Changing the gas type).

 Disconnect the system from the electrical power

supply.

 Shut off the gas supply.  Remove the sealing plug from the gas inlet on the

combination control on the underside of theTR.

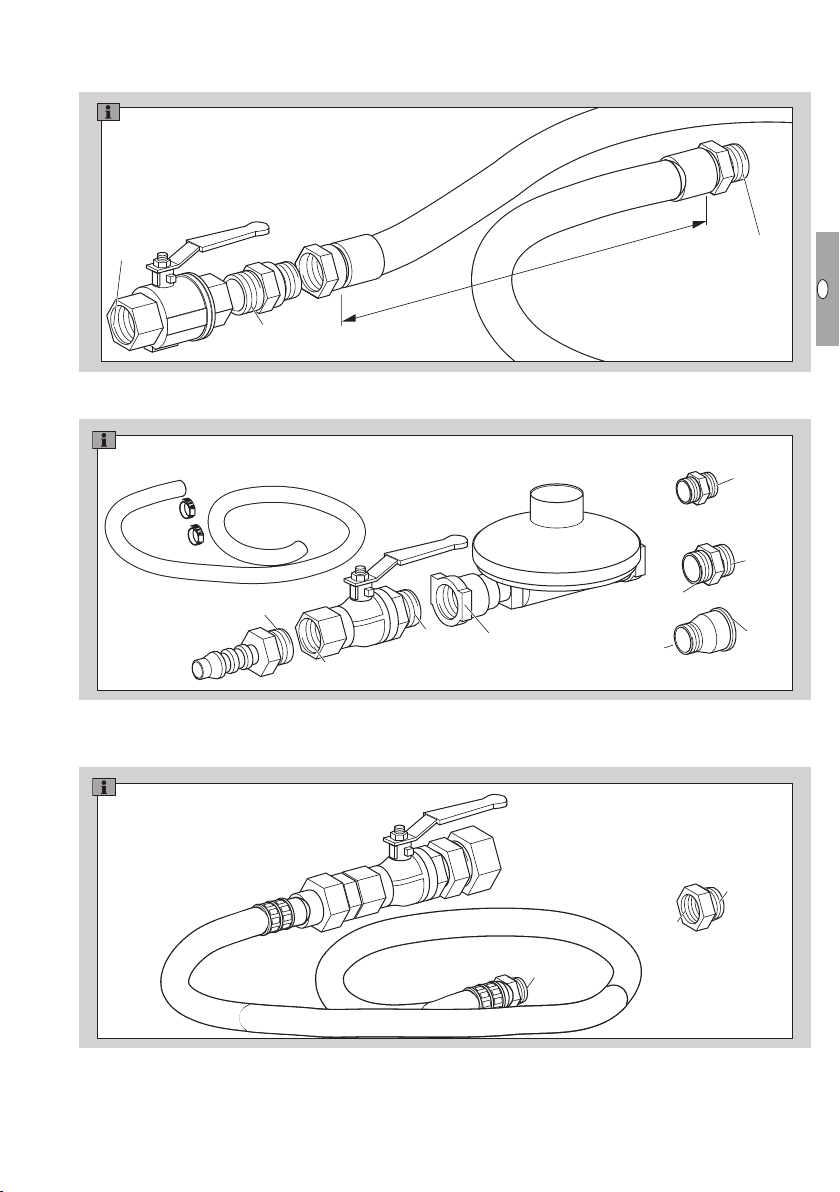

4 Connect the gas pipe with an R¾" threaded

connection or gas hose with an R¾" connector, see page20 (Accessories).

▷ Use approved sealing material only.

/O N O

T E S

E R

D O M

Changing the gas type

▷ If you wish to use a gas type other than the one

speciﬁed in the purchase order, you will have to order an appropriate burner chip card.

▷

The TR must be set to the new gas type, see

page9 (Adjusting the heater).

▷ Mark the new gas type on the type label using

waterproof ink.

GB-3

Tightness test

9 10

–

+ –

▷ The heater may only be disconnected from the

electrical power supply once the device has been switched off.

 Disconnect the system from the electrical power

supply.

▷ The valves are closed when de-energized.

 Open pressure test pointpu on the gas combina-

tion control.

 Connect a pressure gauge to pu.

4 Switch on the power supply. 5 Release the gas supply. 6 Do not exceed the maximum inlet pressurepu. 7 Close the manual valve. 8 Check the pressure gauge onpu.

▷ The pressure must not drop.

N2 = max. 70 mbar

 Having successfully completed the tightness test,

remove the pressure gauge and close pressure test pointpu.

F O / N O

E S E R

E D O M

F O / N O

T SE E R

E D O

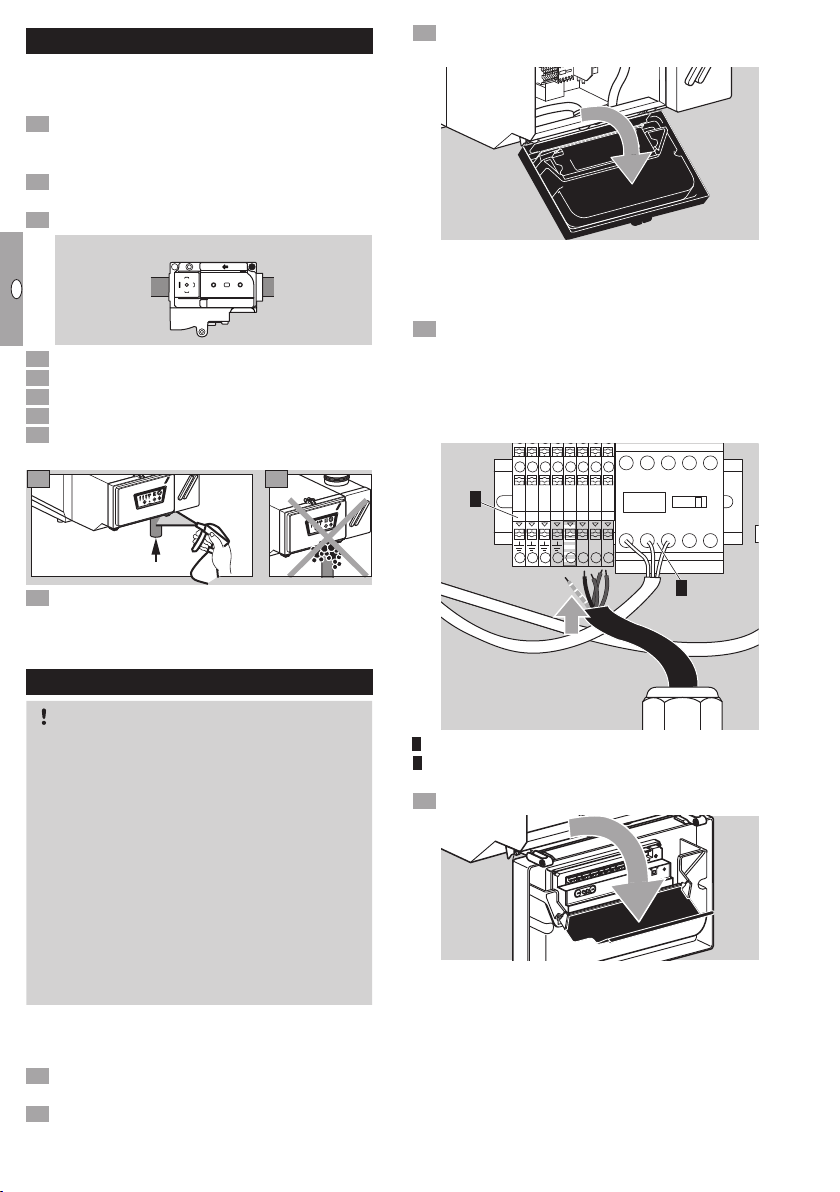

 Open the housing cover of the burner control

unit.

▷ External electrical interference must be avoided. ▷ Check the rotating ﬁeld at L1, L2 and L3. ▷

The terminal block is marked with L1, L2, L3, N and PE.

4 Connect the mains cable. L1, L2, L3 = grey

N = blue PE = green/yellow

▷

The selection of cables and mains plug must comply with local/national regulations.

400 V~,

-15/+10 %, 50 Hz

L2L1N

Wiring

CAUTION

Danger of electric shocks!

– Before working on possible live components,

ensure the unit is disconnected from the power

supply. – The TR 75 must have an external 10 A fuse. – It must be possible to isolate the system from the

power supply. The TR must be equipped with

a mains cable or a plug featuring a contact gap

according to the speciﬁcations for Overvoltage

Category III for full isolation at each pin. If this is

not the case, the permanently wired electrical

installation must include an isolating switch of

this type pursuant to the local installation regulations.

▷ The heater may only be disconnected from the

electrical power supply once the device has been

switched off.  Disconnect the system from the electrical power

supply.

 Shut off the gas supply.

 Terminal block for the voltage supply

 Relay for actuating the main fan

5 Open the cover of the burner control unit.

GB-4

230 V AC

L N

X1 Gas

LT LV X4

L N

X1 Gas

LT LV X4

230 V AC

L N

X1 Gas

LT LV X4

L N

X1 Gas

LT LV X4

L N

X1 Gas

LT LV X4

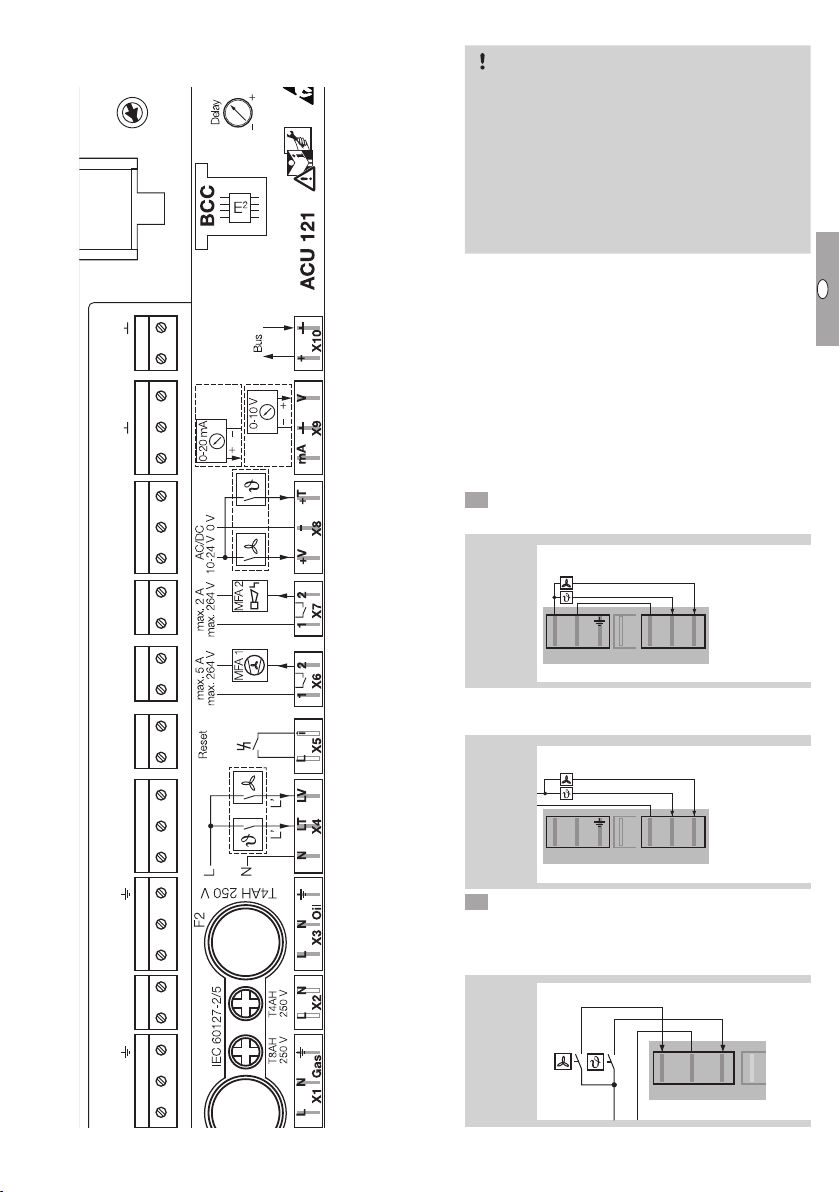

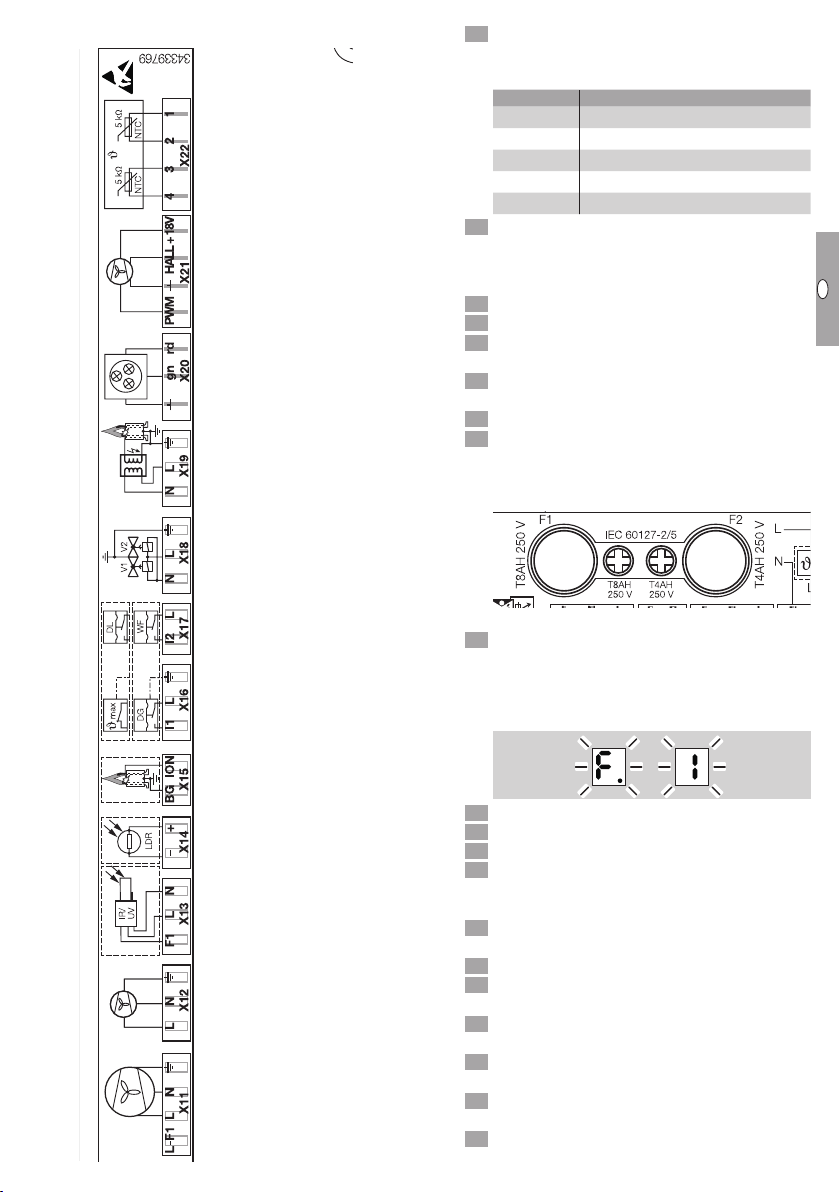

Connection diagram

▷

The burner control unit is ﬁtted with coded plugs

to prevent them being mixed up.

Potentiometer (switch-on delay)

Burner chip card (BCC)

eBus

V12

0 – 10 V

–+V

0 V

0 – 20 mA

10 – 24 V Thermostat

Controlled air ﬂow

12 +

MFA 2

Connecting the room thermostat

CAUTION

To avoid damage to the heater TR, please observe

the following:

– Provide post-cooling for the TR. The TR requires

a continuous supply of 400VAC (3NAC), 50Hz.

– In case of a power failure, an emergency power

supply unit should automatically take over the power supply. Emergency power supply units

with a cardan shaft drive for tractor attachment

are also suitable.

▷

Use a room thermostat with a hysteresis of ±1°C. It switches on if the room temperature is 1°C less than the set temperature and switches off again once the room temperature is 1°C more than the set temperature.

▷

The ﬂoating plugs X4 (230V) or X8 (24V) are

used to connect the room thermostat.

▷

If the room thermostat is connected to the mains supply of other plugs (plug X1 orX3) the heaterTR will be damaged.

Connecting a single heater to a room thermostat 6 Connect a room thermostat for 230VAC.

▷ Method 1: power supply via the heater.

230 V AC

L N

X1 Gas

LT LV

MFA 1

▷ Method 2: power supply via the environmental

control computer.

LT LV

Remote reset

230 V

Thermostat

230 V AC

L N

X1 Gas

LT LV

Controlled air ﬂow

6 Connect a room thermostat for 24VDC/AC to

LLiN

Mains connection Mains ﬁlter

Mains ﬁlter

Mains con-

LN LN L

nection

plugX8.

▷ The 24V power supply must always be from an

external source.

10-24 V AC/DC

– +T

GB-5

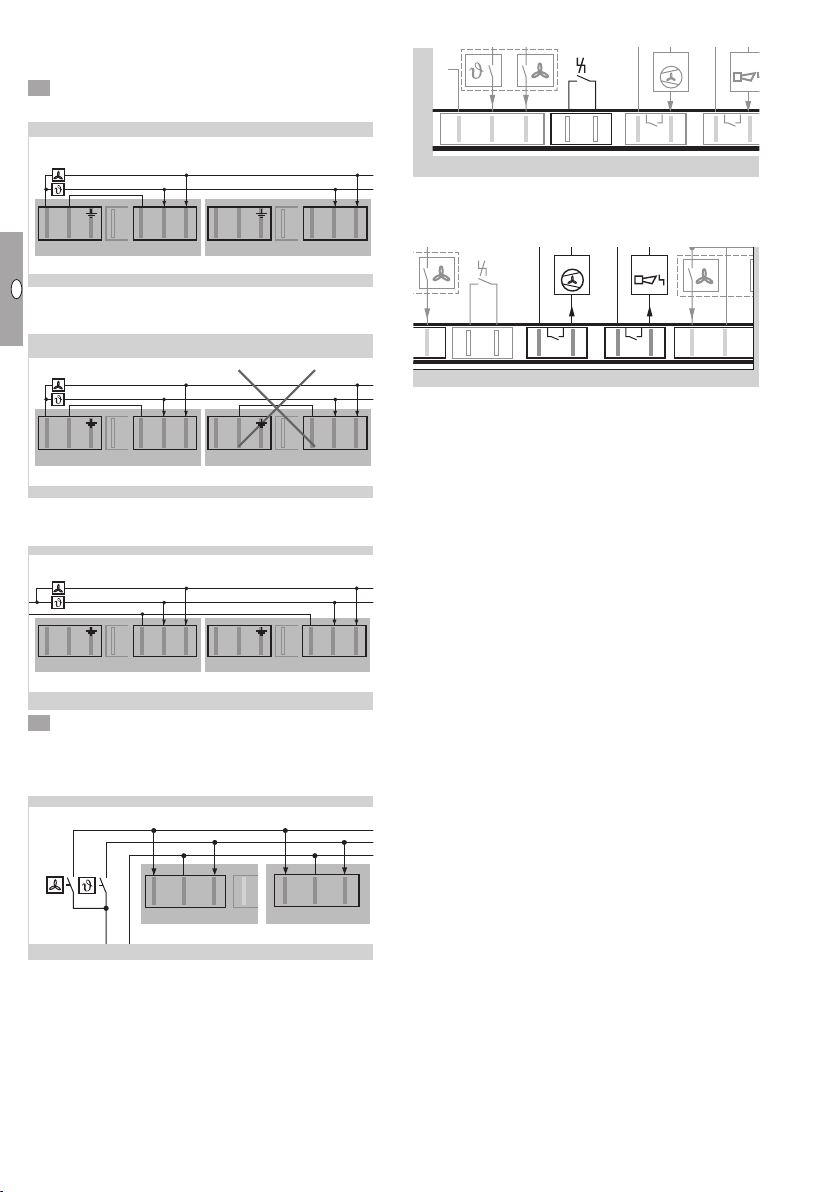

Connecting multiple heaters to a room

2. TR 75

L N

X1 Gas

LT LV X4

2. TR 75

L N

X1 Gas

LT LV X4

1. TR 75

230 V AC

L N

X1 Gas

LT LV X4

L N

X1 Gas

LT LV X4

2. TR 75

L N

X1 Gas

LT LV X4

1. TR 75

230 V AC

L N

X1 Gas

LT LV X4

2. TR 75

L N

X1 Gas

LT LV X4

2. TR 75

L N

X1 Gas

LT LV X4

2. TR 75

L N

X1 Gas

LT LV X4

1. TR 75

230 V AC

L N

X1 Gas

LT LV X4

L N

X1 Gas

LT LV X4

L N

X1 Gas

LT LV X4

Reset

max. 5 A max. 264 V

max. 2 A max. 264 V

Reset

max. 5 A

max. 264 V

max. 2 A

max. 264 V

AC/DC 10-24 V

0 V

thermostat or an environmental control computer 6 Connect a room thermostat for 230VAC.

▷ Method 1: power supply via the heater.

230 V AC

L N

X1 Gas

1. TR 75

▷

“N” may only be connected to plug X4 of one

LT LV X4

L N

X1 Gas

2. TR 75

LT LV X4

of the heaters.

230 V AC

L N

X1 Gas

1. TR 75

LT LV X4

L N

X1 Gas

2. TR 75

LT LV X4

▷ Method 2: power supply via the environmental

control computer.

230 V AC

L N

X1 Gas

1. TR 75

6 Connect a room thermostat for 24VDC/AC to

plugX8.

▷

The 24 V power supply must be from an external

10-24 V AC/DC

source.

LT LV X4

– +T

1. TR 75

L N

X1 Gas

LT LV

2. TR 75

– +T

2. TR 75

Remote reset

LT LV

MFA

X6X5

▷ An external remote reset may be connected to

plugX5.

Multi-functional outputs

MFA 1MFA 2

X6X5

–

▷ Floating multi-functional outputs can be param-

eterized using plugs X6 andX7. There are two methods of completing this parameterization:

The PC software for burner control units

BCSoft can be used via the optical interface on the burner control unit, see page20 (Accessories).

The “Setting mode” menu can be opened us-

ing the MODE selection button (heater OFF) and used for parameterizing the outputs, see page9 (Setting mode).

▷ MFA , external fan (max. 5 A)

For improved air circulation in the room, an addi-

tional fan can be connected. The external fan can be actuated with an adjustable delay (BCSoft) for switching it on and off. The exact time relates to the operation of the main fan.

▷ Possible parameterization options: – Inactive: the external fan is not actuated. – Main fan active: the external fan is actuated at

the same time as the main fan.

– Main fan inactive: the external fan is actuated

when the main fan of the TR switches off.

– Modulation enable: the external fan is not actu-

ated until the TR starts modulating operation.

▷ MFA , status signal (max. 2A) Possible parameterization options: – Fault NO (default setting): For example, the input for a horn can be set to

NO. – Fault NC: The input on an environmental control computer

can be set to NC (e.g. to indicate a cable dis-

continuity). – Operation – Standby

GB-6

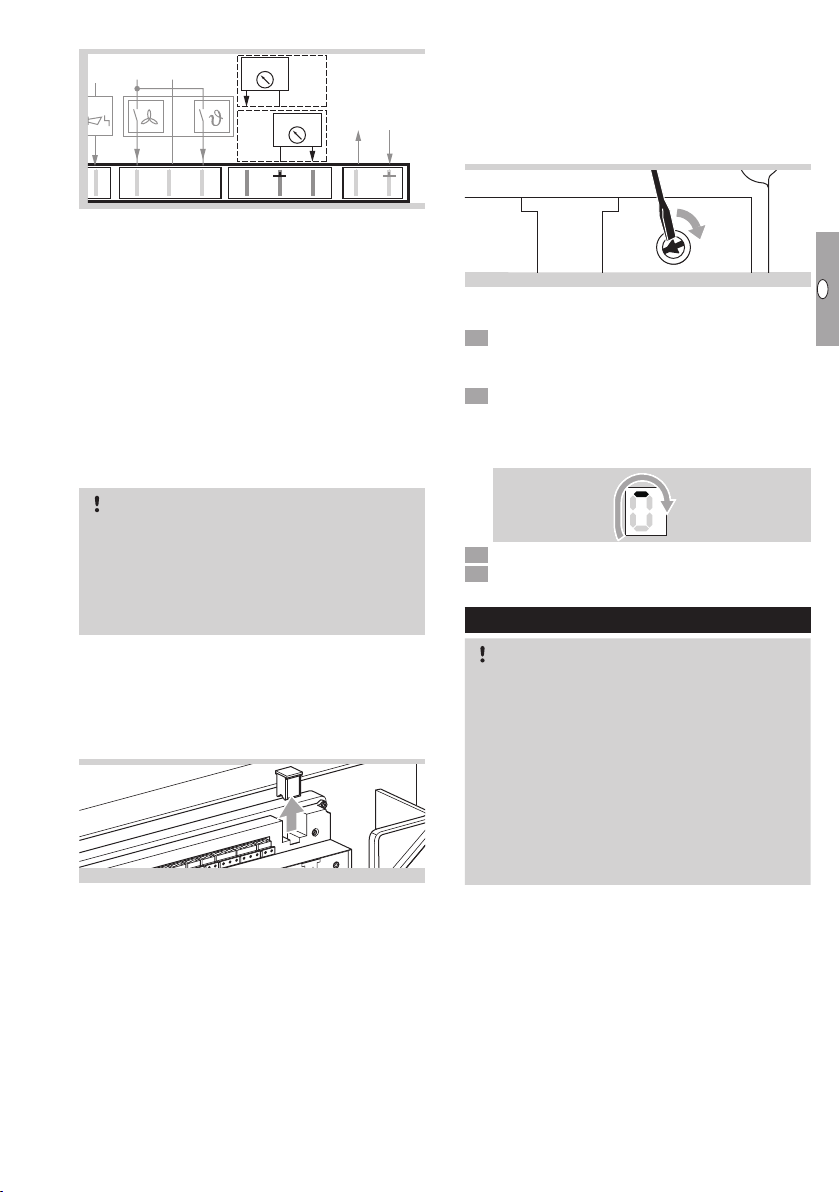

Selecting the burner capacity

2 A

AC/DC

10-24 V

0 V

–

64 V

FA 2

▷

Plug X9 is not wired at the factory. In other words,

0-20 mA

+ –

0-10 V

– +

Bus

X10

the burner heats at its full capacity.

▷

A capacity range from 60 to 100% can be selected using a voltage or current signal. A signal sensor is connected to terminalX9 for this purpose:

20 mA/0 V = maximum capacity,

0 mA/10 V = minimum capacity.

Burner Chip Card (BCC)

▷

All the data relevant to the device are saved on the BCC and the internal device memory (EEProm). In addition, the parameters are saved on the BCC.

CAUTION

Danger of electric shocks!

– Before working on possible live components,

ensure the unit is disconnected from the power supply.

– If the BCC is removed from the burner control

unit, the heaterTR will be non-functional.

▷ In the event of faults which cannot be rectiﬁed

by authorized trained personnel, contact the supplier.

▷

The BCC can be removed from the burner control

unit and submitted for diagnostic purposes by agreement with the supplier.

ay l e

▷ If no other fault is active, the TR can be readied

for use again by inserting a new BCC. The BCC must be compatible with the TR75 and the gas type used.

Setting the switch-on delay

▷

If multiple heaters switch on at the same time, there can be a gas and/or power shortage on individual devices. To avoid this happening, adjust the switch-on delay using the potentiometer on the burner control unit.

▷ The potentiometer is set to 0s at the factory.

– +

▷ If necessary, a switch-on delay of 5 to 10s can

be set between the devices.

7 After completing the wiring, close the cover

and the housing cover on the burner control unit again.

8 Switch on the power supply.

▷

A circulating dash will be displayed when the voltage supply is switched on to indicate that the switch-on delay is running.

9 Release the gas supply. 0 Commission the heater.

Commissioning

CAUTION

To avoid damage to the heater TR, please observe

the following:

– The heater may only be commissioned once

it has been ensured that the heater, gas pipes, mains voltage supply and room thermostat have been installed by authorized trained personnel according to the regulations.

– During the initial commissioning procedure, the

direction of rotation of the main fan must be checked ﬁrst, see page 9 (Checking the direction of rotation of the main fan).

▷

The TR may only be commissioned using the

gas type speciﬁed on the type label.

GB-7

Operation

MODE RESET ON/OFF

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

MODE RESET ON/OFF

 ON/OFF

 Operating modes

 MODE selection button

4 RESET

5 Status indicator 6 Optical interface

7 7-segment display

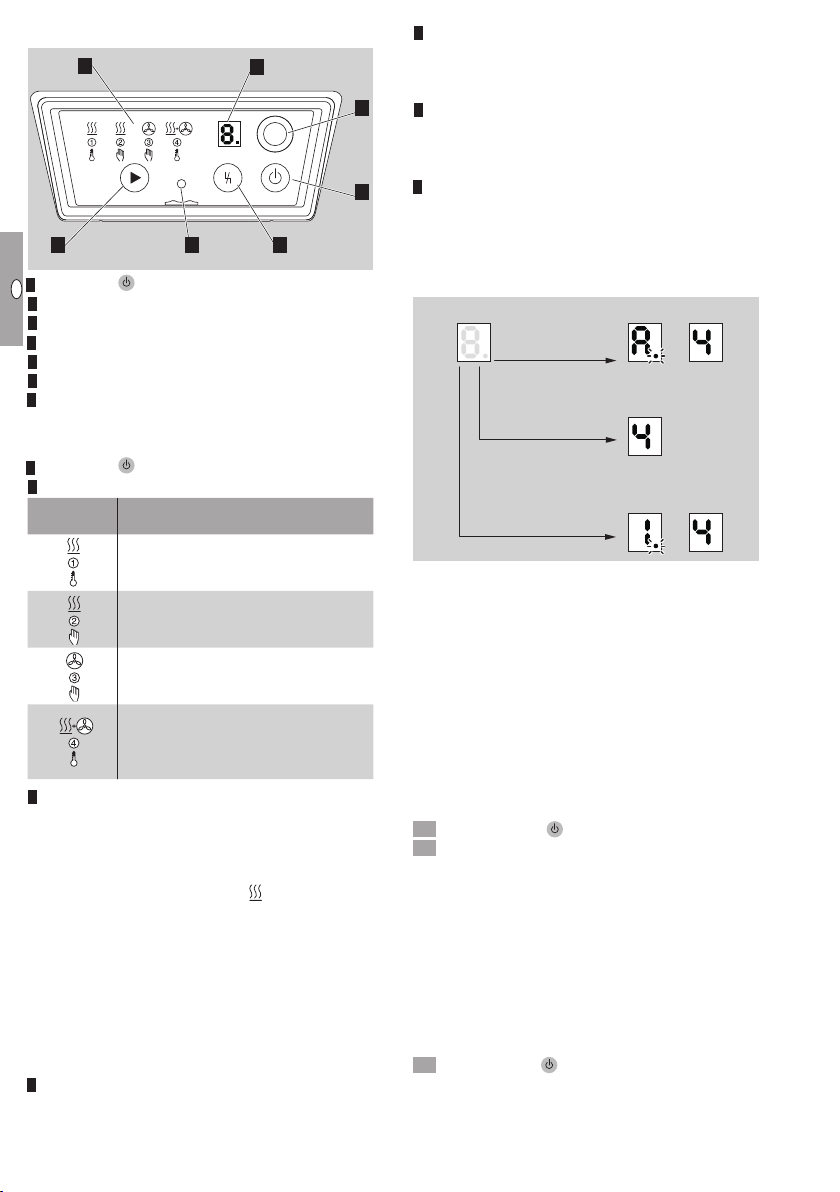

Description

 ON/OFF

: to switch the heater on and off.

 Operating modes:

Operating mode

Explanation

The burner control unit waits for the

signals for controlled air ﬂow or heating (automatic)

Continuous heating (manual)

Control air ﬂow in continuous operation (manual) Controlled air ﬂow in continuous operation and heating when a thermostat signal is applied (automatic)

 MODE selection button (heater switched on):

By pressing the MODE selection button, it is pos-

sible to switch between the different operating modes.

By pressing and holding the MODE selection

button in operating mode 2 Heating, the current capacity setting is displayed and can be selected, see page10 (Display and selection

of the capacity setting). MODE selection button (heater switched off): By pressing and holding the MODE selection but-

ton, you can go to Setting mode, see page9

(Setting mode). The multi-functional outputs can

be assigned and the eBus address speciﬁed in

this mode.

4 RESET: internal reset button

5 Status indicator (light):

red: fault yellow: standby/ready for operation green: TR in operation

6 Optical interface:

The PC software BCSoft can be used with the PC

opto-adapter via this interface, see page20 (Accessories).

7 7-segment display:

Fault code Flame signal Number of operating cycles can be displayed. The decimal point indicates

that another ﬁgure follows.

Fault code

RESET button

Flame signal

> 3 s RESET button

Operating cycles

Fault code: a fault is displayed immediately in the

form of an alternating letter and number indicating a warning or fault, see page12 (Assistance in the event of malfunction).

Flame signal: pressing the RESET button displays

the ﬂame signal, see page11 (Flame signal).

Operating cycles: pressing and holding the

RESET button for more than 3s displays the number of operating cycles in changing displays, see page19 (Maintenance).

▷

Press the RESET button to exit the display of the ﬂame signal or operating cycles.

Switching on

• Press ON/OFF

• The LED for the last selected operating mode will ﬂash. A different operating mode can be selected within 2s. If you retain the selection, the ﬂashing light will change to permanently lit after 2s.

▷ The heater will start once the thermostat signal

has been applied and the set switch-on delay elapsed, see page7 (Setting the switch-on delay).

▷

The burner starts after approx. 15s and operates

in the last selected operating mode.

Switching off

• Press ON/OFF

. The burner control unit display and the burner will switch off immediately. Mains voltage is still supplied however. The display indicates “–”.

GB-8

▷

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

The main fan cools the heater down until it

reaches switch-off temperature.

CAUTION

– Do not disconnect the heater from the electrical

power supply until the cooling process has been completed.

▷ The display “–” will go out.

Setting mode

▷

You can go to Setting mode by pressing and

holding the MODE selection button when the heater is switched off.

• Switch off the heater

▷

Mode E: eBus addresses can be saved. Mode A/F: multi-functional outputs can be parameterized.

▷

After a timeout of 20s, the display will automatically return to the initial mode. The display indicates “–”.

Checking the direction of rotation of the main fan  Switch on the power supply.  Release the gas supply.

 Switch on the TR. Press ON/OFF

4 Select operating mode 3 Controlled air ﬂow.

▷ The main fan will start. ▷

If it is turning in the correct direction, the fan blades will turn clockwise.

▷

If the direction of rotation is incorrect, fault codeA 8 will be displayed.

Mode E

eBus address

OFF

5 Switch off the TR. Press ON/OFF

6 Disconnect the heater from the electrical power

supply and rectify the fault, see page12 (Assistance in the event of malfunction).

Adjusting the heater

▷ The heater is set to the gas type speciﬁed in the

Mode A/F

MFA 2 MFA 1

> 2 s MODE button

MODE button

> 2 s MODE button

0 Inactive 1 Fault (NC) 2 Fault (NO) 3 Operation 4 Standby

MODE button

> 2 s MODE button

0 Inactive 1 Main fan

active 2 Main fan inactive 3 Modulation enable

> 2 s MODE button

eBus adddress 1 ... eBus address 8

MODE button

> 2 s MODE button

▷

Press the RESET button to return to the previous menu.

Save eBus address

MODE button

> 2 s MODE button

GB-9

purchase order.

▷

The ﬁne adjustment on the gas combination

control is made on the basis of the CO2measurements on the chimney.

▷ The following are required for setting: – 2.5mm Allen key, – pressure gauge with display range 0to 50mbar, – CO2 ﬂue gas analyzer. The ﬂue gas analyzer must

be able to measure O2, CO and CO2. The sensor should be suitable for temperatures of up to 300°C.

▷

The inlet pressurepu must comply with the tech-

nical data, see page27 (Technical data).

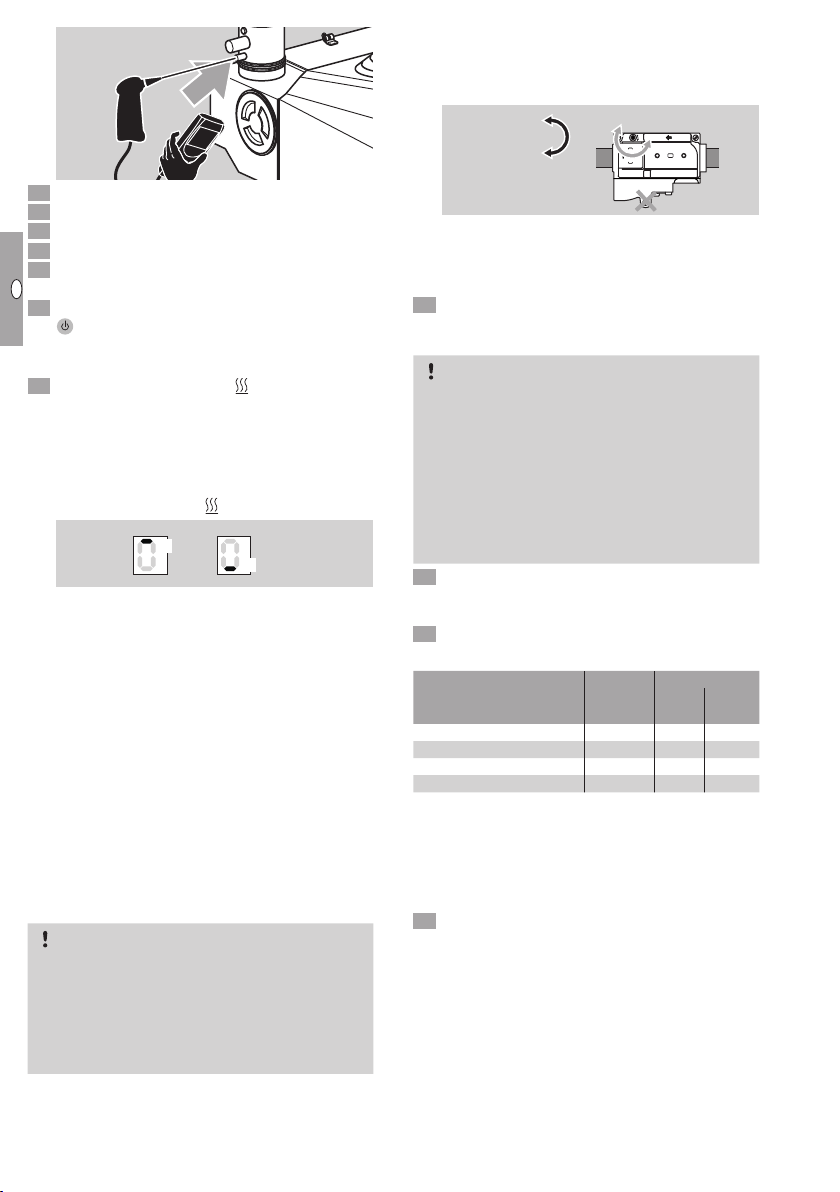

▷ The inlet pressure pu can be measured using a

test point on the combination control.

 Open test point pu.

▷ Do not use force!

 Connect a pressure gauge to pu.  Disconnect the system from the electrical power

supply.

▷ The heater may only be disconnected from the

electrical power supply once the device has been switched off and post-cooling is complete.

4 Shut off the gas supply. 5 Remove the plastic cap from the CO2 test point

on the chimney.

6 Place the analyzer sensor in the test point.

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

7 Ensure that there is no air in the gas system. 8 Switch on the power supply. 9 Release the gas supply. 0 Measure the CO and CO2 values simultaneously

and observe them.

 Switch on the burner control unit. Press ON/OFF

until an LED lights up.

▷

The burner control unit switches on in the last

operating mode selected.

 Select operating mode 2 Heating.

Display and selection of the capacity setting

▷ This display is only possible when the heater is

switched on.

▷

The current capacity setting can be displayed by

pressing and holding the MODE selection button

in operating mode 2 Heating.

max.

min.

▷

If the top dash is lit, the heater is operating at full capacity.

▷ If the bottom dash is lit, the heater is operating

at minimum capacity.

▷

If the dash ﬂashes, the heater has not yet reached the capacity setting.

▷

When the capacity setting has been reached, the dash will be lit for 15s. During this time, you can switch between minimum and maximum capacity setting by pressing and holding the MODE selection button again.

▷

The display will go out after 15s. The display

can be reactivated by pressing and holding the MODE selection button again.

▷

The display can be cancelled at any time by

pressing the RESET button.

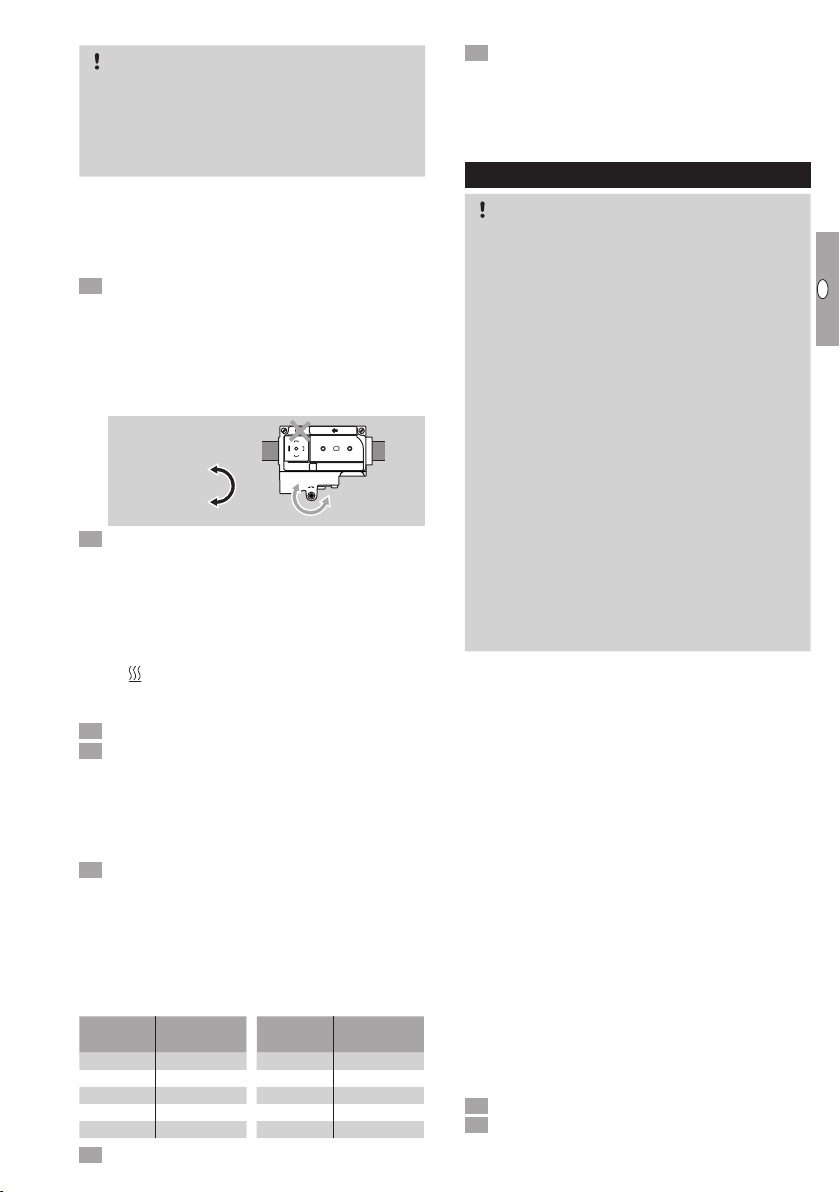

Setting the high-ﬁre rate

CAUTION

To avoid damage to the heater TR, please observe

the following:

– CO2 adjustment may only be made at the re-

strictorD.

– The zero point setting is sealed and should not

be changed.

▷

The heater must be operated at maximum ca-

pacity.

▷ Having initiated the ignition process, the burner

should start within 4s.

▷

If the burner does not ignite after several attempts, the CO2 value is set too low.

▷

Turn the restrictor half a turn in the +direction

using the Allen key.

–

▷

If the burner still does not ignite, turn the restrictor

+ –

further in the + direction.

▷ If the burner starts successfully, you can watch

on the ﬂue gas analyzer how the CO2 value rises.

 Monitor the CO value.

▷ During a normal start-up, the CO value will rise

brieﬂy and then fall quickly again.

CAUTION

To avoid damage to the heater and ﬂue gas analyzer,

please observe the following:

– The CO value may rise brieﬂy to 500ppm im-

mediately after ignition.

If the CO value does not drop after a short time,

immediately reduce the CO2value by turning the restrictorD clockwise.

Take the ﬂue gas analyzer sensor out of the

test point immediately.

4 Allow the heater to operate for 10minutes.

▷ During a normal start-up, it may take up to 15s

for the main fan to start the cooling process.

5 Set the CO2 value on the combination control

to the correct value shown in the table.

Inlet pressure

vol.]

p [mbar]

[%-by-

Natural gas L G25 9.6 18 70 Natural gas H G20 9.6 17 70 Butane G 30 LPG 13.4 25 70 Propane G 31 LPG 12.3 42.5 70

▷ If the measured CO

details on the type label and in the table, the

value corresponds to the

heater has been set correctly. Otherwise, continue with the measurement and ﬁne adjustment until the heater is correctly set.

▷ High-ﬁre rate adjustment is now complete.

6 The low-ﬁre rate setting must be checked.

GB-10

u min.

[mbar]

u max.

Checking the low-ﬁre rate setting

+ –

–

CAUTION

To avoid damage to the heaterTR, please observe

the following:

– The low-ﬁre rate may only be set by author-

ized trained personnel by agreement with the manufacturer.

▷

The heater must be operated at minimum capac-

ity, see page10 (Display and selection of the capacity setting).

▷

The combination control regulates the gas supply

according to the reduced air supply.

7 Contact the manufacturer if the measured CO2

value differs from the high-ﬁre rate by 0.5%. Further adjustments may only be made by agreement with the manufacturer. Otherwise, the warranty will be voided.

▷ The CO2 value is adjusted by changing the zero

point on the combination control atN.

–

8 Repeat this ﬁne adjustment process on D andN

until the CO2value is correct at both capacity settings.

▷

Adjustment is complete when the CO2value corresponds to the speciﬁcations.

▷

The heater is currently set to low-ﬁre rate. To

switch to high-ﬁre rate, exit operating mode

Heating and reselect it or hold the MODE selection button, go to “Select capacity setting” and select the maximum capacity setting.

9 Remove the pressure gauge. 0 Close test point pu tightly again.

▷ The heater is ready for operation.

Flame signal

▷

The ﬂame signal can be displayed when the

burner is operating.

 Pressing the RESET button displays the ﬂame

signal.

▷

It appears in coded form as a number from 0 to9. For a gas appliance the number must be multiplied by a factor of 2. The result of this multiplication is the ﬂame current in µA. Example: the number 3 corresponds to a ﬂame current of 6 – 8µA.

Display

Flame

current [µA]

0 0 – 2 5 10 – 12

1 2 – 4 6 12 – 14

2 4 – 6 7 14 – 16 3 6 – 8 8 16 – 18 4 8 – 10 9 18...

 Check the ﬂame signal.

+–

Display

Flame

current [µA]

▷ The ﬂame signal is displayed for 20s.

 Press the RESET button to exit the ﬂame signal

display.

▷ If the ﬂame signal <2µA, the fault F (ﬂame fault)

1 or 2 is displayed, see page12 (Assistance

in the event of malfunction).

Cleaning

CAUTION

To ensure that no damage occurs during operation

and cleaning, please observe the following instructions. Otherwise, injuries or damage to the device may occur and/or the function of the device may be impaired, and the manufacturer’s warranty will be cancelled.

– Sharp-edged metal sheets. Always wear protec-

tive gloves.

– After cleaning, check that the components on

and in the heater are in good condition. The device may only be restarted if all safety devices have been installed and the safety functions have been checked.

– Clean the heater once a year when used in

horticulture and at regular intervals as well as after each fattening period when used in agriculture, as described below. Inadequate or irregular cleaning can cause the device to overheat and can thus lead to ﬁre damage or damage to the device. For example, dirt particles can catch

ﬁre and can be blown out of the device.

▷

The TR is made of high-quality stainless steel

and is resistant to external influences such as dirt and moisture.

▷ It is designed so that it can be cleaned carefully

both inside and outside with a high-pressure cleaner.

▷

The housing cover and cable glands on the

burner control unit must be closed during the cleaning process.

▷

The electrical components are protected from

moisture by additional water drip edges on the housing cover. Nevertheless, direct water inﬂuence on the edges of the housing cover should be avoided.

▷

A downward slope inside the device ensures that dirty water drains out.

▷

Never direct the high-pressure cleaner at the heater when it is set to water jet. Always use the spray setting.

▷

The distance between the nozzle and the surface

to be cleaned must always be at least 50cm. Too short a water jet from the high-pressure cleaner can cause serious damage to the device.

 Switch off the burner control unit.  Disconnect the system from the electrical power

supply.

GB-11

▷ The heater may only be disconnected from the

electrical power supply once the device has been switched off and post-cooling is complete.

 Shut off the gas supply. 4 Check the cover on the burner control unit and

the housing cover to ensure they are both tightly closed

F F

O N/ O

RESE

▷ The heat exchanger can be easily accessed via

the service ﬂap.

5 Open the service ﬂap and carefully clean the ﬁns

on the heat exchanger with the high-pressure cleaner (spray setting).

> 50 cm

▷

The rubber seals between the electrodes and

electrode plugs may be displaced by the water

jet.

6 After cleaning, check that all the parts on and

in the heater are in the correct positions, for example whether the rubber seals between the electrodes and electrode plugs are ﬁtted correctly.

7 Remove the air ﬁlter and check it for dirt.

8 Tap the air ﬁlter. 9 The air ﬁlter can be rinsed under running water

if it contains stubborn dirt particles.

0 Chemical cleaning agents, disinfectants and/or

pesticides contain corrosive substances which can even corrode stainless steel. Always rinse the devices with water after cleaning using such agents to remove any residue of these agents from the surface.

 After cleaning, select operating mode 3 Con-

trolled air ﬂow so that the interior of the device can dry properly.

 After cleaning the heater, check it is functioning

faultlessly in normal operation, see page19 (Checking the safety functions and burner operation).

 When operating with LPG, check and clean the

breather oriﬁce of the pressure reducer.

Assistance in the event of malfunction

WARNING

To avoid harm to persons and animals or damage

to the heater, please observe the following:

– Electric shocks can be fatal! Before working

on possible live components, ensure the unit is disconnected from the power supply.

– Fault-clearance must only be undertaken by

authorized trained personnel!

– Repairs to components, e.g. the burner control

unit or the combination control, may only be carried out by the manufacturer. Otherwise, the

warranty will be voided. Unauthorized repairs or

incorrect electrical connections, e.g. the connection of power to outputs, can cause gas

valves to open and the burner control unit to

become defective. In this case, fail-safe opera-

tion can no longer be guaranteed.

– (Remote) resets may only be conducted by au-

thorized personnel with continuous monitoring

of the devices concerned.

▷

In the event of an installation fault, the burner control unit closes the gas valves and the status indicator light will be red at the latest after a restart has been unsuccessful.

▷

The 7-segment display will show a fault code

in the form of a letter with a decimal point and a number alternately indicating a warning. Together with the red status indicator light, this then constitutes a fault.

▷ Warnings and faults may be cleared only using

the remedies described below.

Internal wiring

▷

To rectify a fault, it is sometimes necessary to

check the internal wiring.

 Open the housing cover of the burner control

unit.

 Undo the two screws (M3) using a Phillips screw-

driver and remove the complete plastic cover from the burner control unit.

GB-12

Internal connection diagram

LN LN L

LT LV

–+V

V12

LLiN

12 +

0 V

eSTB2 (temperature sensor)

Burner fan

Status indicator

Ignition

Valves

Pressure switch for air (vane not used)

WT Klixon

(temperature limiter)

 Press the RESET button to reset. The unit then

reverts to the last operating mode selected.

▷ Possible faults

Display Fault type

F A C E U

Flame fault

Air fault

Temperature fault

Electronics fault

Other possible faults

4 If the burner control unit does not respond even

though all the possible faults have been rectiﬁed as described below, contact your supplier.

? Fault ! Cause

• Remedy

? The 7-segment display has gone out despite

the voltage supply being OK?

! Fuse F2 is defective.

• Check the fuse contacts. There is a spare fuse directly next to the fuse

holder.

Important! Fit the correct fuse for 4A.

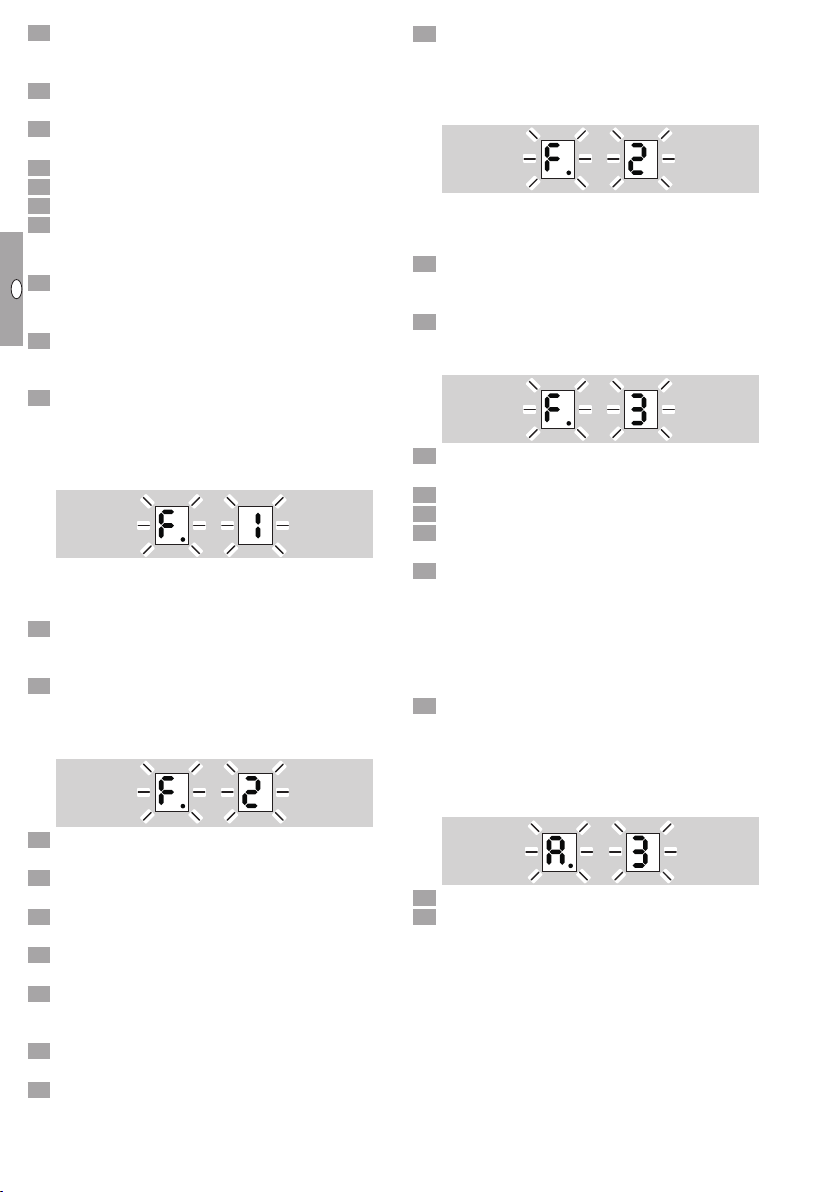

? Fault code F. and 1 ﬂash alternately? On burner start-up, the burner control unit has

not detected a ﬂame during the safety time. Several automatic start-up attempts will be completed if a restart has been programmed.

Ionization

Not used

Burner fan

230 V

Main fan

! Inadequate inlet pressure available.

• Check the inlet pressure. ! Ignition is not working properly.

• Check the connection of the ignition cables for damage or moisture. The spark plug must be ﬁtted correctly.

• Check the ignition spark acoustically during the 3-second ignition time from the burner fan side.

• Clean the ignition electrode.

• Check the ignition transformer and replace it if

necessary.

! Poor ﬂame signal due to incorrect burner adjust-

ment.

• Readjust the CO2 value, see page9 (Adjust- ing the heater).

! Poor ﬂame signal due to dirty or badly connected

ionization electrode.

• Check the ionization electrode and clean it with

GB-13

ﬁne abrasive paper if necessary.

• Check the cable connection, cable and plug for damage or moisture. The plug must be ﬁtted correctly.

• Check the yellow and green burner ground cable for corrosion and to ensure it is ﬁrmly connected.

• The ionization electrode is defective and must be replaced.

! Air in the gas pipe.

• Vent the gas pipe.

! Valves do not open.

• Disconnect the valve plug on the gas combination control and measure the voltage at the valve plug during the safety time.

• If the voltage is not adequate, ﬁrst check fuseF2

(4A). If the display and the LEDs are not lit, it is defective.

• If the voltage is not adequate, replace the gas combination control and return it to the supplier.

? Fault code F. and 1 ﬂash alternately and the

light is red?

The fault could not be rectiﬁed. All start-up at-

tempts have been used and the burner control unit goes into lock-out.

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

• Rectify the cause of the fault as described above for warningF.1.

? Fault code F. and 2 ﬂash alternately?

The ﬂame has gone out during operation. If a

restart has been programmed, an automatic restart will be completed.

? Fault code F. and 2 ﬂash alternately and the

light is red?

The fault could not be rectiﬁed. All start-up at-

tempts have been used and the burner control unit goes into lock-out.

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

• Rectify the cause of the fault as described above for warningF.2.

? Fault code F. and 3 ﬂash alternately?

The burner control unit detects a ﬂame signal

during start-up or in fault status.

! Incorrect ﬂame signal due to leakage/creepage

current.

• Check the wiring, see page4 (Wiring).

• Check the ionization electrode.

! Incorrect ﬂame signal through conductive ce-

ramic insulation, e.g. surge via PE wire, possible.

• Remedy incorrect ﬂame signal. Replace the ionization electrode and, if necessary, also the complete burner control unit and housing.

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

? Fault code A. and 3 ﬂash alternately and the

light is red?

The fault could not be rectiﬁed after four auto-

matic start-up attempts. All start-up attempts have been used and the burner control unit goes into lock-out.

! Poor ﬂame signal due to incorrect burner adjust-

ment.

• Readjust the CO2 value, see page9 (Adjust- ing the heater).

! Poor ﬂame signal due to dirty or badly connected

ionization electrode.

• Check the ionization electrode and clean it with ﬁne abrasive paper if necessary.

• Check the cable connection, cable and plug for damage or moisture. The plug must be ﬁtted correctly.

• Check the yellow and green burner ground cable for corrosion and to ensure it is ﬁrmly connected.

• The ionization electrode is defective and must be replaced.

! This air ﬁlter is not OK.

• Check the air ﬁlter and clean it if necessary, see page11 (Cleaning).

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

GB-14

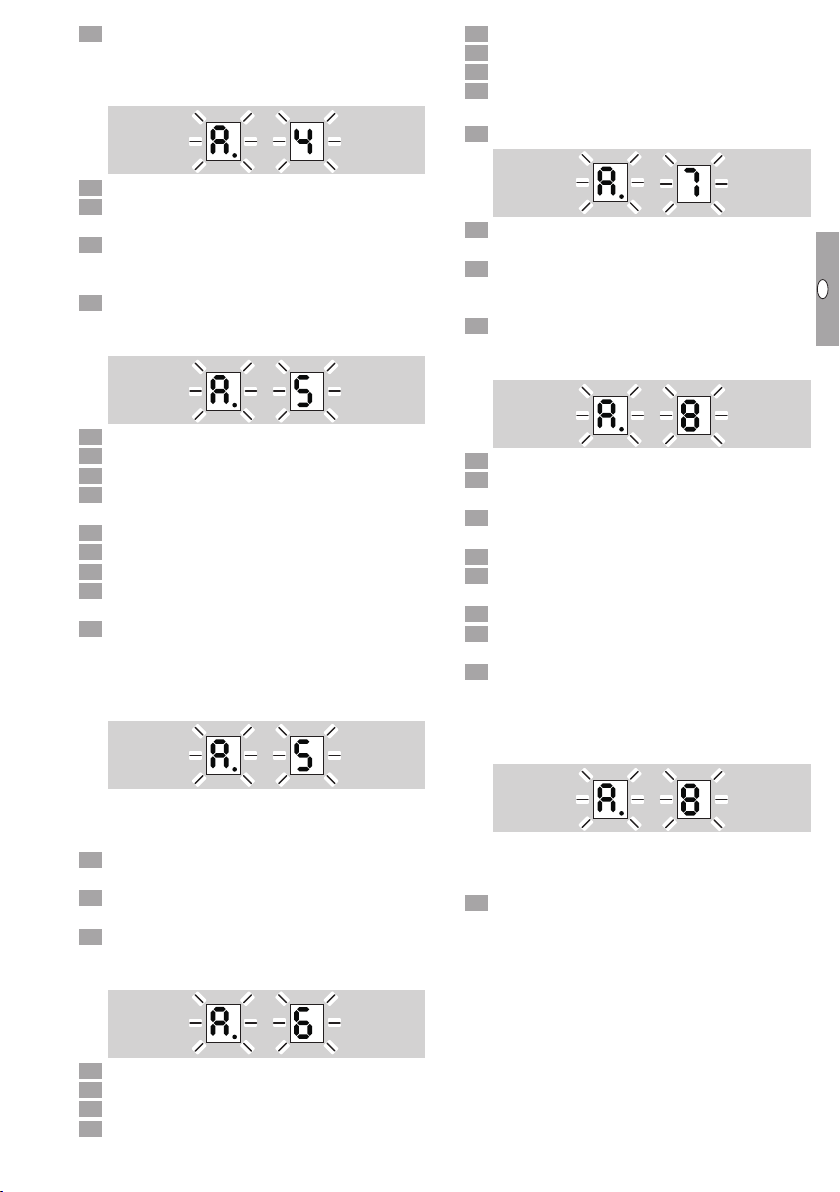

? Fault code A. and 4 ﬂash alternately and the

light is red?

Burner fan continues to operate when the burner

control unit is in idle state.

! Wiring fault.

• Check whether the wiring from plugX21 to the burner fan has continuity.

! A vacuum is generated in the chimney due to

strong wind and this affects the burner fan.

? Fault code A. and 5 ﬂash alternately?

The burner fan does not reach the required speed

when starting up.

! The air route is blocked.

• Check the air supply route.

! This air ﬁlter is not OK.

• Check the air ﬁlter and clean it if necessary, see page11 (Cleaning).

! Fan motor defective.

• Check motor.

! Wiring fault.

• Check wiring (plugs X21 andX12).

? Fault code A. and 5 ﬂash alternately and the

light is red?

The fault could not be rectiﬁed. All start-up at-

tempts have been used and the burner control unit goes into lock-out.

! Fan motor defective.

• Check motor. ! Wiring fault.

• Check wiring (plugs X21 andX12).

? Fault code A. and 7 ﬂash alternately?

! The air ﬁlter is becoming blocked and must be

cleaned shortly.

• Check the air ﬁlter and clean it if necessary, see page11 (Cleaning).

? Fault code A. and 8 ﬂash alternately?

The main fan does not start during the start-up

attempts.

! The pressure switch does not switch.

• Check the air hose on the pressure switch for dirt and moisture and clean it.

• Check the pressure switch and replace it if necessary.

! The main fan is rotating in the wrong direction.

• Check the wiring. The rotating ﬁeld may be incorrect. Swap L1 and L2, see page4 (Wiring).

! Main fan defective.

• If possible, remove the main fan and replace it.

? Fault code A. and 8 ﬂash alternately and the

light is red?

The fault could not be rectiﬁed. All start-up at-

tempts have been used and the burner control unit goes into lock-out.

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

• Rectify the cause of the fault as described above for warningF.5.

• Check the air ﬁlter and replace it if necessary.

? Fault code A. and 6 ﬂash alternately?

The burner fan does not reach the required speed

during operation.

! The air route is blocked.

• Check the air supply route.

! This air ﬁlter is not OK.

• Check the air ﬁlter and clean it if necessary, see page11 (Cleaning).

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

• Rectify the cause of the fault as described above for warningA.8.

GB-15

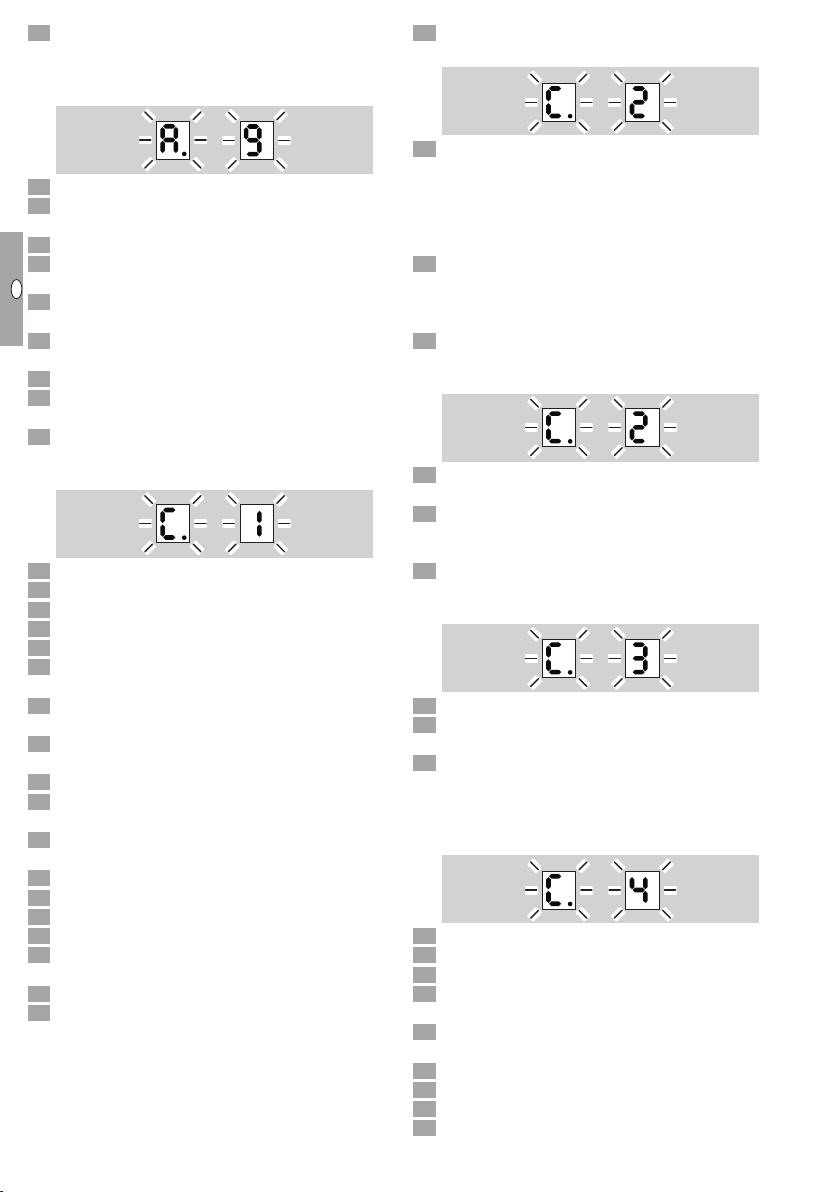

? Fault code A. and 9 ﬂash alternately and the

light is red?

The main fan continues to operate after the de-

vice has been switched off.

! Wiring fault.

• Check the wiring to actuate the main fan, see page4 (Wiring).

! The pressure switch does not switch.

• Check the air hose on the pressure switch for dirt and moisture and clean it.

! The main fan is switched off but the pressure

switch signal does not drop.

• Check the pressure switch and replace it if necessary.

! The relay to actuate the main fan is defective.

• Replace the relay.

? Fault code C. and 1 ﬂash alternately and the

light is red after 5 minutes?

Signal from safety temperature monitor(STM).

? Fault code C. and 2 ﬂash alternately?

Signal from safety temperature limiter(STL).

! Temperature has been exceeded. In the event of a power failure during operation,

the heater will be switched off without a cooling phase. In the event of a brief power failure (<5minutes), the heat exchanger will heat the device excessively and the STL will issue a signal.

• In this case, Controlled air ﬂow mode is activated. If the heater has been successfully cooled within 1minute, it will restart.

? Fault code C. and 2 ﬂash alternately and the

light is red?

Signal from safety temperature limiter(STL).

! The cause of the fault as described above for

warningC.1 could not be rectiﬁed.

• Check the heater for damage, see page19 (Visual inspection).

! Temperature has been exceeded.

• Leave heater to cool down for longer. ! The main fan does not switch on.

• Check the main fan. ! Wiring fault.

• Check the wiring to actuate the main fan, see page4 (Wiring).

! The safety temperature monitor (STM) is incor-

rectly aligned.

• Check the position of the safety temperature monitor(STM).

! Ambient temperature exceeded.

• The temperature is >40°C. Allow the room to cool.

! The safety temperature monitor (STM) is measur-

ing an incorrect temperature.

• Replace the safety temperature monitor.

! The heater is badly soiled.

• The heater must be cleaned urgently.

! Installation position.

• The heater is too close to other heaters, see page2 (Installation).

! Incorrect CO

• The heater is not set correctly and must be ad-

value.

justed, see page9 (Adjusting the heater).

? Fault code C. and 3 ﬂash alternately and the

light is red?

Temperature limiter (TL) has tripped.

! Wiring fault.

• Check contact at plug X16.

? Fault code C. and 4 ﬂash alternately?

Capacity reduction function active. The capacity

reduction function is activated 10°C below the trip temperature of the safety temperature monitor(STM).

! The main fan does not switch on.

• Check the main fan. ! Wiring fault.

• Check the wiring to actuate the main fan, see page4 (Wiring).

! Ambient temperature exceeded. The temperature

is >40°C.

• Allow the room to cool.

! The heater is badly soiled.

• The heater must be cleaned urgently.

! Installation position.

GB-16

• The heater is too close to other heaters, see page2 (Installation).

! Incorrect CO2 value. The heater is not correctly

set.

• Adjust the heater, see page9 (Adjusting the heater).

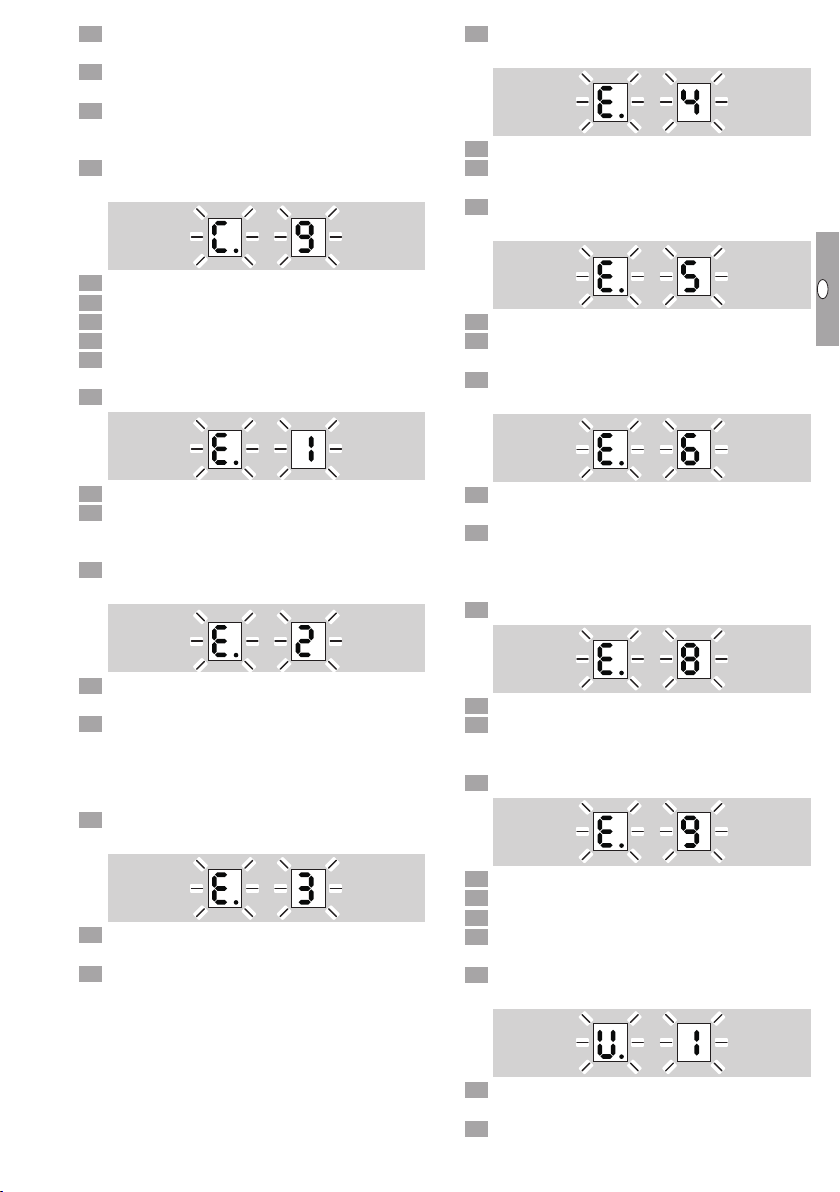

? Fault code C. and 9 ﬂash alternately and the

light is red?

? Fault code E. and 4 ﬂash alternately and the

light is red?

! Limits for ﬁxed parameters not observed.

• Order a new BCC. Contact your supplier.

? Fault code E. and 5 ﬂash alternately and the

light is red?

! Temperature sensor incorrectly connected.

• Check contact at plug X22.

! Temperature sensor is below -30°C. ! Temperature sensor defective.

• Replace the temperature sensor.

? Fault code E. and 1 ﬂash alternately?

! The remote reset input is defective.

• If you use the remote reset input, contact your supplier.

? Fault code E. and 2 ﬂash alternately and the

light is red?

! An adjustable parameter and the CRC check are

not the same. The parameters are implausible.

• Order a new BCC. Contact your supplier.

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

? Fault code E. and 3 ﬂash alternately and the

light is red?

! The BCC is not connected.

• Connect the BCC to the printed circuit board.

? Fault code E. and 6 ﬂash alternately and the

light is red?

! An incorrect BCC is connected. The BCC must

be compatible with the TR75.

• Remove the BCC and connect the correct BCC to the printed circuit board, see page7 (Burner Chip Card (BCC)).

? Fault code E. and 8 ﬂash alternately?

! Programming mode is active.

• As soon as Programming mode has been deactivated, the display will go out.

? Fault code E. and 9 ﬂash alternately?

! A ﬁxed parameter and the CRC check are not

the same. The parameters are implausible.

• Order a new BCC. Contact your supplier.

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

! Internal electronics fault.

• Remove the BCC and send it to your supplier.

! Fuse defective.

• Check external fuseF1 (8A).

? Fault code U. and 1 ﬂash alternately and the

light is red?

! Voltage supply is below the limit (programmable

limit, e.g. <160V).

• Ensure that adequate mains voltage is supplied.

GB-17

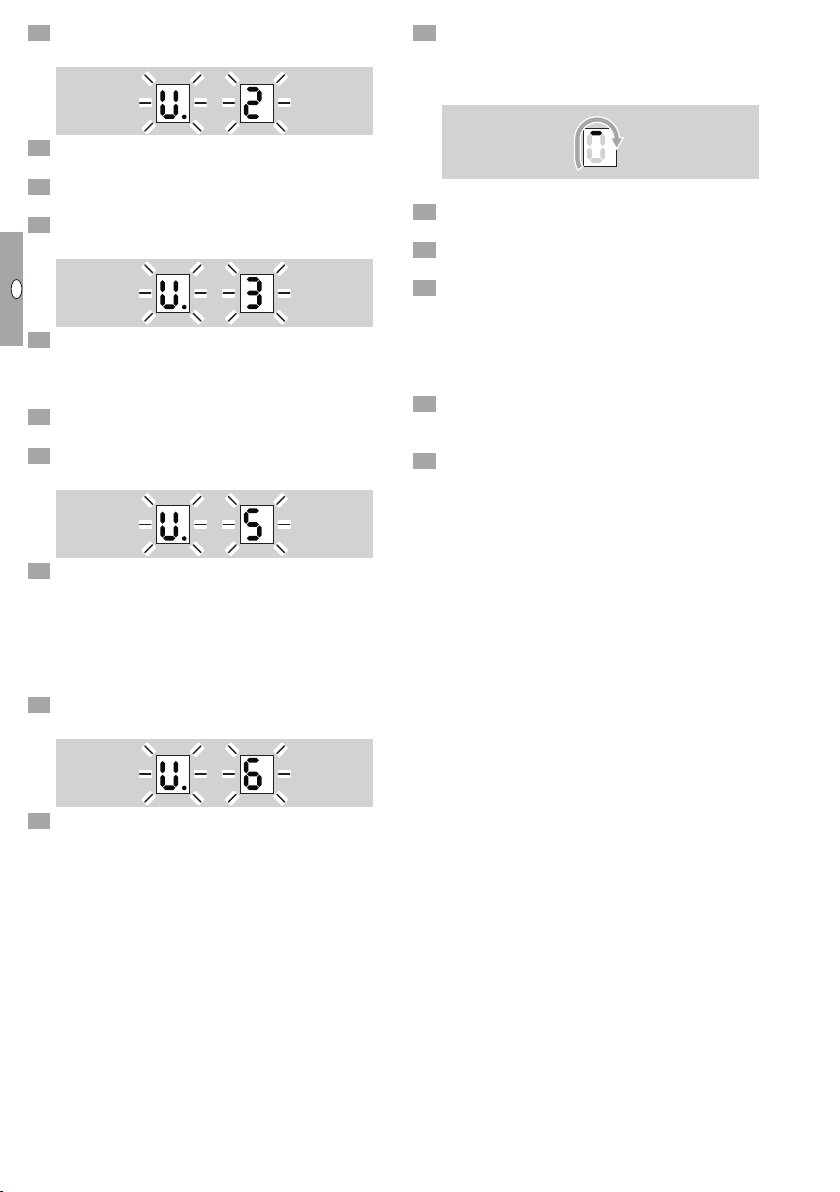

? Fault code U. and 2 ﬂash alternately and the

light is red?

! Voltage supply is above the limit (programmable

limit, e.g. >260V).

• Ensure that adequate mains voltage is supplied.

? Fault code U. and 3 ﬂash alternately and the

light is red?

! All start-up attempts in the programmed voltage

range (e.g. 160 – 180V) are unsuccessful. The last start-up attempt is not made to prevent a lock-out.

• Ensure that adequate mains voltage is supplied.

? Fault code U. and 5 ﬂash alternately and the

light is red?

! While a fault was pending, the unit has been

successfully reset more than 5times within 15minutes using the remote reset input.

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

? A circulating dash is displayed rather than

a fault code?

▷

After switching on the voltage, a circulating dash

is displayed.

▷ Three possible pieces of information are output:

! Switch-on delay time running.

! Cycle lock active. The time (cycle lock) between

two starts is too short.

• The display will go out automatically as soon as the time between two starts is long enough. The burner control unit will ensure a pause between start-up attempts on the basis of its parameterization. This warning is displayed during this time.

! The main fan is switched off but the pressure

switch signal does not drop. A burner restart is not possible.

• After 25s, the display will change to fault code

A. 9.

? Fault code U. and 6 ﬂash alternately and the

light is red?

! The unit has been unsuccessfully reset more

than 10times within 15minutes using the remote reset input.

▷

Reset is only possible by pressing the RESET button on the burner control unit or using the remote reset if there is one.

GB-18

Maintenance

OFF 1

AUTO

+AUT

MODE

(RESET)

ON/OFF

CAUTION

To ensure that no damage occurs during operation

and maintenance, please observe the following instructions. Otherwise, injuries or damage to the device may occur and/or the function of the device may be impaired. The supplier/manufacturer cannot accept liability for damage resulting thereof.

– Have the heater cleaned at least once a year

by qualiﬁed maintenance personnel.

– Have the safety functions checked at least once

a year by qualiﬁed maintenance personnel, see page19 (Checking the safety functions and burner operation).

– Check the chimney once a year with your local

chimney sweep to ﬁnd whether the ﬂue gas and air supply routes are clear.

– Sharp-edged metal sheets. Always wear protec-

tive gloves.

– After cleaning or repair work, check that the

components on and in the heater are in good condition. The device may only be restarted if all safety devices have been installed and the safety functions have been checked, see

Number of operating cycles  Check the number of operating cycles (heat-

erON): the number of operating cycles can be displayed by pressing and holding the RESET button. The number of operating cycles is composed as follows in alternating displays:

The ﬁrst character (X.) stands for X,000,000 op-

erating cycles, the second character (Y) stands for Y00,000 operating cycles. For example, the ﬁrst character is the number 2: the unit has exceeded 2,000,000 operating cycles. The second character is the number 3: the unit has exceeded 300,000 operating cycles. The total number of operating cycles is composed of the numbers 2 and3. This gives a total number of operating cycles of 2,300,000.

 Disconnect the system from the electrical power

supply.

▷ The heater may only be disconnected from the

electrical power supply once the device has been switched off and post-cooling is complete.

4 Shut off the gas supply.

Checking the safety functions and burner operation

page19 (Checking the safety functions and burner operation).

 Switch off the burner control unit.

Visual inspection  Check all heaters for dirt and clean them accord-

ingly, see page11 (Cleaning).

 Check all heaters for damage and loose parts. 4 The rubber seals between the electrodes and

electrode plugs may be displaced by the water jet. Check whether the seals are ﬁtted correctly.

5 Check the wiring. 6 Check the cable glands. 7 Depending on the number of operating cycles,

we recommend that the ignition electrode and ionization electrode are replaced once per year.

8 Check the seal on the housing cover of the burner

control unit. Replace it if necessary.

9 Check the inside of the housing cover for traces

of dust, dirt or moisture. If you ﬁnd such traces, the cause must be rectiﬁed at all times, e.g. by sealing an open cable gland.

0 Check the cable harness and wiring for signs of

damage.

WARNING

Risk of explosion!

– If these checks are not carried out, the gas

valves might remain open allowing non-combusted gas to escape.

Safety functions  Switch off the heater during operation. Press

ON/OFF

▷ The ﬂame goes out <1s. ▷

The main fan cools the heater down until it

reaches switch-off temperature.

 Remove the valve plug on the combination con-

trol during operation.

▷ The gas valves close <1s. ▷ The ﬂame goes out. ▷

The burner control unit displays the fault message

“The ﬂame has gone out during operation”. Fault

code F. and 2 ﬂash alternately.

▷

If a restart has been programmed, the burner control unit will initially attempt to restart and will then perform a fault lock-out. Fault code F. and 1 ﬂash and indicate the fault message “No

ﬂame has been detected during the safety time”.

 Shut off the inlet pressure during operation.

▷

The burner control unit performs a safety shut-

down: the gas valves are disconnected from the electrical power supply.

▷ The ﬂame goes out. ▷

GB-19

The burner control unit displays the fault message

“The ﬂame has gone out during operation”. Fault

code F. and 2 ﬂash alternately.

▷ If the burner control unit responds in a different

way to that described, a fault has occurred, see page12 (Assistance in the event of malfunction).

CAUTION

The fault must be remedied before the system may

be operated.

Checking burner operation  Switch on the burner control unit ACU.  Select operating mode 2

Heating.

 Check the CO2 value, see page9 (Adjusting

the heater).

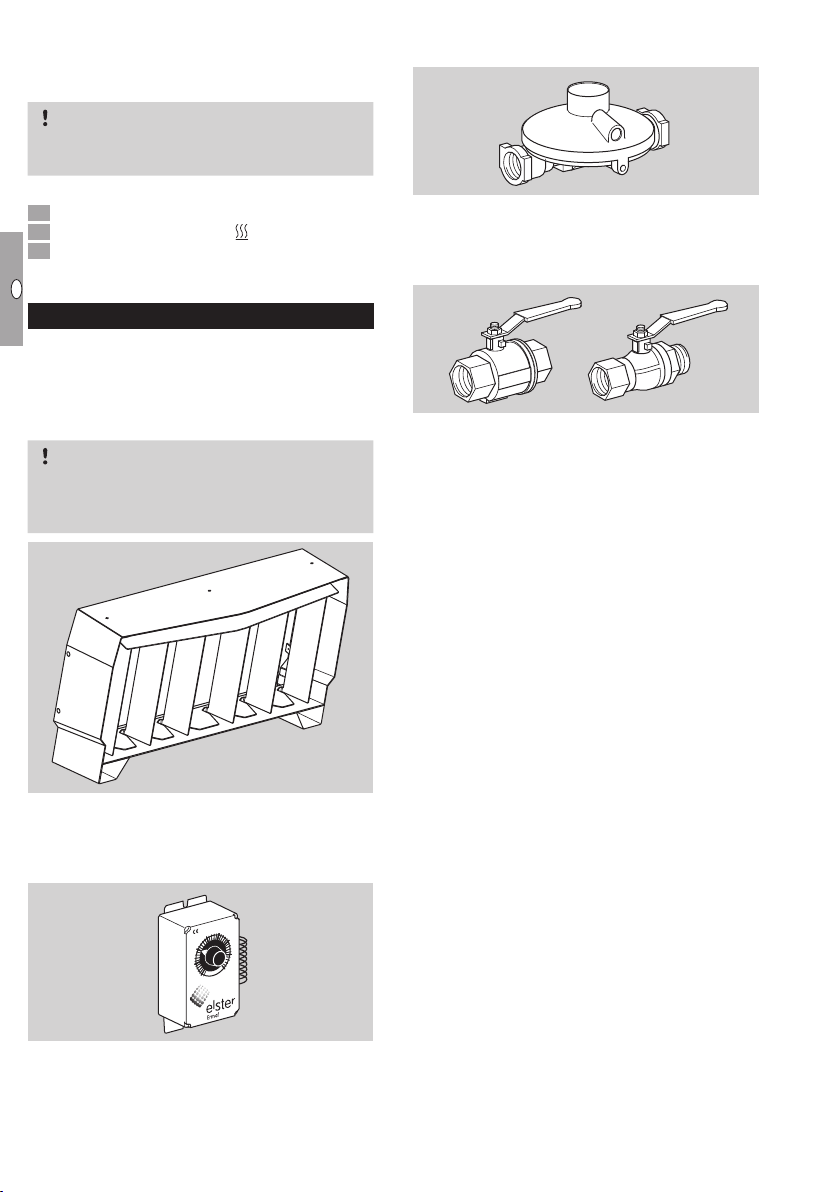

Accessories

Air diffuser

The air diffuser allows the ﬂow of heated air to be

channelled in the required direction. By bending the plates in the housing, the air ﬂow can be aligned horizontally and vertically.

CAUTION

Ensure that the plates are always aligned so that the air can ﬂow out properly. If the air ﬂow is blocked, the heater will overheat.

Order No.: N70000001

Room thermostat

Use a room thermostat with a hysteresis of ±1°C, 230V, Type TH215.

Pressure reducer

Pressure reducer for LPG.

RECA 1.5 bar to 50mbar, 2x½" internal thread connection, 10kg/h, Order No.: N50260023.

Manual valve

Manual valve for gas.

2 x ½" internal thread connection, Order No.: N50260019.

½" internal and external thread connection,

Order No.: N50260027.

BCSoft

There are two PC opto-adapters (PCO) available for

the connection to the PC and BCSoft: Wireless connection using Bluetooth technology: Bluetooth adapter PCO 300 Including BCSoft CD-ROM, Order No.: N70000066. Cable connection via USB port: Opto-adapter PCO 200 Including BCSoft CD-ROM, Order No.: N70000065.

▷

See operating instructions PCO 200 and PCO300 at http://www.docuthek.com.

▷

The current BCSoft software can be downloaded

from our Internet site at http://www.docuthek.com.

To do so, you need to register in the DOCUTHEK.

Order No.: N50260145

TH215

GB-20

Connection kit

Connection kit for natural gas

Manual valve and gas hose to connect the gas combination controlCG to the gas supply.

Rp ¾"

1,40 m

R ¾"

Connection kit: R¾" threaded connection, total length = 1.50m, OrderNo.: N70000013.

Connection kit for propane

GP 14/GP 40

R ½"

ø 6 mm

TR 75

R ¾"

R ½"

Rp ½"

R ½"

Rp ½"

R ½"

Rp ¾"

GP 70/GP 95/GP 120

Pressure reducer, manual valve, hose (length = 2m), 2 hose clamps, R½" double nipple for GP14/GP40, R½"/R¾" double nipple for TR75, R½"– Rp ¾" reducing ﬁtting for GP70– GP120, to connect the gas combination controlCG to the gas supply, OrderNo.: N70000014.

R 3/8"

ø 15 mm

R ¾"

Rp ½"

R ½"

Manual valve and hose (DVGW certiﬁed, length = 2m) to connect the gas combination controlCG to the gas supply, OrderNo.: N52990209. Rp½" – R ¾" connector, Order No.: N70000018.

GB-21

Wall bracket

The wall bracket is the support and wall mounting for the heater. The position of the heater is ﬁxed.

Two wall mounts with angle brackets and fastening elements, Order No.: N70000002.

Slide for the wall bracket

The slide on the wall bracket enables the heater to be moved horizontally.

4 struts with fastening elements, Order No.: N70000015.

Wall bracket fastening set

Fastening set for wall plug mounting, consisting of 8x M8 fastening elements for the wall bracket, Order No.: N70000017. Fastening set for a through-hole in the wall, consisting of 4xM10 threaded rods, each 1m long, and 8x fastening elements. The threaded bolts can be cut as desired to a maximum of 500mm in length for securing the wall bracket, Order No.: N70000016.

GB-22

Chimney

Double-walled coaxial chimney with integrated ﬂue gas and air supply route, category C33.

▷ Internal/External diameter: 100/150 mm, maxi-

mum length: 5m.

CAUTION

To avoid damage during operation, please observe

the following instructions.

– The TR is only CE tested and approved with

the coaxial chimney described below.

– Do not exceed the maximum length of the

chimney. Otherwise the CE approval will be voided and the function of the device may be impaired. The supplier/manufacturer cannot accept liability for damage resulting thereof.

– Check the applicable building regulations,

standards and the relevant accident prevention regulations before installation. The same applies to the erection and maintenance of a scaffold.

▷

The design of the chimney depends on the prem-

ises and the roof construction.

▷

Before installation, the site and any wall mounting which may be required for a chimney length in excess of 2m must be deﬁned.

▷ The elements are sealed and connected using

clamp strips. Each chimney element is supplied with a clamp strip. A seal is provided for each clamp strip which is either integrated or supplied loose.

▷

The clamp strips are only designed for sealing

and connection purposes, not for absorbing axial forces.

▷ Any roof bushing depends on the roof construc-

tion and must be ordered separately.

Examples of application

This example of application shows the chimney as

a standard kit.

▷

The telescopic pipe is adjusted to minimum

length (maximum length) to match the wall height.

~ 345950 (1740)

25°

2390 (3180)

~ 1435 (~ 2225)

400

208

674

~ 2220 (~ 3010)

900

Standard chimney kit, Order No. N70000003: roof hood, roof hook, telescopic pipe and condensate vessel.

N70000003

Designation Order number

 Roof hood N70000004

Length

[mm]

1300

 Roof hook N70000007  Telescopic pipe N70000005 950 – 1740

Condensate vessel

N70000006 140

N70000003

5 Pipe N70000008 450 6 Pipe N70000009 950 7 90° elbow N70000012 8 45° elbow N70000011 9 2 x cover plates N70000010

GB-23

This example of application shows the chimney with

the maximum installation length of 5m.

▷

The telescopic pipe can be adjusted to a shorter

wall height(...).

▷

Two pipes (950mm) from the accessories range

can be used as extensions.

max. 5000

In this example of application, the chimney is routed sideways along the exterior wall rather than on the roof. Additional elbows from the accessories range are used for this purpose. Here, too, the maximum installation length is 5m.

If the chimney only has to bypass a single ob-

▷

stacle in the roof construction, its vertical installation position can also be compensated using a 45° elbow.

max. 5000

Standard chimney kit, 2 x pipes, Order No.: N70000003, 2 x N70000009.

▷

The pipe (450mm), Order No. N70000008, may

also be used for a lower wall height.

▷ Additional wall mountings may be required.

Standard chimney kit, 2 x pipes, 2 x elbows, Order No.: N70000003, 2 x N70000009, 2 x N70000012.

▷

The pipe (450mm), Order No. N70000008, may

also be used for a smaller installation length.

▷ One roof hook is included in the standard chim-

ney kit package.

▷ Additional wall mountings may be required.

GB-24

Spare parts

▷ When ordering spare parts, please quote the order number along with the designation and item no. of

the spare part as well as the heater serial number.

▷ When ordering spare parts which are not listed here below, please quote the edition of these operating

instructions and the heater serial number.

▷ Use original spare parts only to ensure the replacement complies with the requirements stipulated by the

manufacturer.

29, 30, 31, 32, 33, 34

1, 2, 5, 6, 7

15 23

12 26

24 43

37, 38, 39,

40, 41, 44

13 25 91

Item Order number Designation

1 N50260150 Ignition cable 1 x 7 mm, TPE, black (per metre)

2 N50500016 Splash guard cap for ionization/ignition electrode 3 N50820058 Rigid silicone hose, 6 x 4 mm (per metre) 4 N52500050 Silicone hose, 7 x 5 mm (per metre) 5 N70000019 TR 75 ionization electrode 6 N70000020 TR 75 ignition electrode

7 N70000021 TR 75 seal for ionization/ignition electrode

8 N70000022 TR 75 ignition transformer

9 N70000023 TR 75 seal for combustion chamber 10 N70000024 TR 75 seal for ﬂue gas chamber 11 N70000027 TR 75 seal, Ø 60 mm, axial seal 12 N70000028 TR 75 rubber seal, U section (per metre) 13 N70000029 TR 75 seal, Ø 100 mm 14 N70000030 TR 75 ﬁlter service cover 15 N70000031 TR 75 burner fan seal 16 N70000032 TR 75 burner fan RG 148 17 N70000035 TR 75 3-phase relay 18 N70000036 TR 75 3-phase relay socket 19 N70000037 TR 75 air pressure switch DL 2E

20 N70000038 TR 75 metal hose, 3/4" x 290 mm

21 N70000039 TR 75 ﬂange for metal hose

22 N70000040 TR 75 vibration damper, Ø 30 x 15 x M8 x 10

23 N70000041 TR 75 rubber seal, U section, radial seal (per metre)

17, 18

3, 4

45 45

20, 21

28 42, 14

GB-25

Item Order number Designation 24 N70000042 TR 75 star ring, 12 mm 25 N70000043 TR 75 vibration damper, Ø 30 x 40 x M8 x 10 26 N70000045 TR 75 rubber fastener 27 N70000046 TR 75 status indicator 28 N70000047 TR 75 temperature sensor 29 N70000048 TR 75 main fan Multifan PGR 43Q 30 N70000049 TR 75 main fan motor 31 N70000050 TR 75 main fan motor bracket 32 N70000051 TR 75 main fan blade 33 N70000052 TR 75 main fan safety grille 34 N70000053 TR 75 main fan suspension 35 N70000054 TR 75 service ﬂap magnet 36 N70000055 TR 75 seal for heat exchanger 37 N70000056 TR 75 electronic control unit ACU 121

38 N70000057 TR 75 BCC for natural gas L

39 N70000058 TR 75 BCC for natural gas H 40 N70000059 TR 75 BCC for LPG (propane) 41 N70000060 TR 75 BCC for LPG (butane) 42 N70000061 TR 75 air ﬁlter K & N 43 N70000062 TR 75 cover sheet for cable gland 44 N70000064 TR 75 electronic main ﬁlter Delta 45 N70000067 TR 75 gas combination control CG 10 with seals

GB-26

Technical data

Gas types: II2ELL3B/P, natural gas H and L (gases of category2); LPG, gaseous (gases of category3): propane, propane/butane, butane. Fused with 10A. NOx Class: depending on gas type up to Class 5. Inlet pressure pu: 20 to 70mbar. Resistant to high-pressure cleaning. Gas connection: Rp¾ to ISO7-1. Staged control: On/Off signal (240VAC or 24VAC/DC via coupling relay). Continuous control: capacity control from 60 – 100% (0 – 10 V/0 – 20 mA actuating signal). Efﬁciency: 75 kW = 92%, 45 kW = 98%. Burner control unit with direct spark ignition and ionization control. Fan type: main fan: axial, burner fan: radial. Material: housing: stainless steel, heat exchanger: stainless steel, burner control unit: flame-retardant polymer blend made of polycarbonate (PC) and acrylonitrile butadiene styrene copolymer (ABS). Ambient temperature T temperature differential ∆T example for calculating the temperature of emissions:

T + ∆T = 40°C + 35°C = 75°C.

No condensation permitted. Cycle lock: 15s. Capacity: 45 – 75 kW. Jet length: >50 m, velocity at the jet end: 0.5m/s. Gas consumption: natural gas L: 8.75 m3/h, natural gas H: 7.52 m3/h, propane: 5.82 kg/h, butane: 5.91 kg/h. Connection rating: 400VAC, -15/+10%, 50Hz, 1022W. Current consumption: IN: 2.3 A. Air circulation: controlled air ﬂow: ±7000 m3/h, heating: ±8000 m3/h. Dimensions: 2145 x 811 x 653 mm. Sound level: ≤68dB. Weight: 130 kg.

: ≤ 40°C,

max

: ≤ 35°C,

Declaration of conformity

We, the manufacturer, hereby declare that the productTR complies with the requirements of the listed Directives:

– 2009/142/EC – 2006/95/EC – 2004/108/EC

The relevant product corresponds to the type tested

by the notiﬁed body 0085. The production is subject to the surveillance procedure pursuant to annexII,

paragraph3 of Directive 2009/142/EC, Deutscher Verein des Gas- und Wasserfaches e.V. (German Technical and Scientiﬁc Association for Gas and

Water, DVGW), Notiﬁed Body 0085.

Elster-Instromet B.V.

Scan of the Declaration of conformity (D, GB) – see

www.docuthek.com

GB-27

Goods return form

Name of the operator

P.O. Box/Street

Postcode and town/city

Tel.

E-mail

Returned by (Mr./Ms.)

Date

Number of returns

Heater serial number

Power supply [V/Hz]

Inlet pressure p

Reasons for return

Description of fault

[bar]

Desired action

Credit note Replacement Repair

Remarks

Date and signature

Please send returns back to your supplier.

Contact

If you have any technical questions, please contact your local branch ofﬁce/agent. The addresses are available on the Internet or from Elster-Instromet B.V.

Munstermanstraat 6 7064 KA Silvolde T +31 315 338-911

F +31 315 338-679

We reserve the right to make technical modiﬁcations

Elster-Instromet B.V. Sales Ofﬁce Postfach 2809, 49018 Osnabrück Strohteweg 1, 49504 Lotte (Büren) German

T +49 541 1214 702

F +49 541 1214 506

in the interests of progress. orders.ermaf@elster.com, www.ermaf.nl

GB-28

ermaf TR 75 Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Checking the usage

Installation

Tightness test

Wiring

Connection diagram

Connecting the room thermostat

Remote reset

Multi-functional outputs

Selecting the burner capacity

Burner Chip Card (BCC)

Setting the switch-on delay

Commissioning

Operation

Description

Switching on

Switching off

Setting mode

Adjusting the heater

Cleaning

Assistance in the event of malfunction

Maintenance

Checking the safety functions and burner operation

Accessories

Spare parts

Technical data

Declaration of conformity

Goods return form

Contact
