Page 1
Captair Bio 320
Mobile ductless ltering PCR workstation
Instructions & User’s Manual
Page 2
Contents
General ......................................................................................... 3
Safety notices ............................................................................ 3
The Erlab guarantee ................................................................ 4
Recommendation for
implementation/positioning ................................................ 5
Mounting the unit ..................................................................... 6
Start up ........................................................................................ 11
Admissible weights on worksurfaces ............................... 14
Cleaning and maintenance ................................................... 14
2
Page 3
Captair Bio 320
Instructions & User’s Manual
General
By choosing Captair ductless ltration fume hoods, you have chosen an ecient and responsible way to ensure safety.
Erlab’s 50 years of expertise in the eld of laboratory fume hoods provide unparalleled ltration quality to ensure your users are properly
protected when handling chemicals in the laboratory. The new Captair range uses an innovative and straightforward mode of communication
called Smart technology. This powerful interface uses light to intuitively and effortlessly communicate with users and leave them free to focus
all their attention on the main task: handling the chemicals.
Your ductless Captair ltration fume hood guarantees that you are protected when working with chemicals that pose an inhalation risk. The
Erlab ltration technology it employs traps hazardous particles and molecules and returns clean air back into the laboratory.
The system’s connectivity allows for real-time safety alerts and individual device usage reports to be sent via the eGuard.
Safety notices
The effectiveness of your device is directly dependent upon it being used correctly and monitored by its users. Your laboratory may also benet
from ergonomic, economic and ecological advantages provided by the Captair Smart fume hood throughout its life cycle.
The E.S.P. program (Erlab Safety Program) was set up to guarantee your safety. We would remind you that it is important to have the safety
parameters validated before using the device for the rst time and whenever it is used for a different application.
The handling of substances that are carcinogenic, mutagenic or toxic for reproduction (CMRs) underneath a fume hood is covered
by the French Labour Code. The code notably species that an in-depth risk analysis must be carried out prior to any CMRs being handled
under a recirculating fume hood.
The equipment provided is not intended to be used in an explosive atmosphere.
The lters delivered with this device must be removed from their packaging and positioned correctly; they must also be
suitable for the type of chemicals being handled in order to guarantee user safety.
Erlab recommends that lter breakthrough tests are regularly carried out.
Erlab recommends that the electronic anemometer is calibrated at least once a year.
The quantities of the chemicals handled in the enclosure should not be greater than those listed in the guide to approved
chemicals (the Chemical Listing).
AFNOR standard NF X 15-211: 2009 only applies to chemicals subject to an OEL.
Pursuant to the NF X 15-211 standard, only operations that can immediately be stopped are allowed to be carried out in a Class 2
enclosure. Moreover, the fume hood’s lter must be replaced if any chemicals are detected downstream of the lter.
New lters must be stored in their packaging, kept in a dry location and laid flat. (see recommendations for storing and using the lters).
Erlab recommends keeping a logbook which is specic to the device and shows the chemical agents handled, how often they are used and the
maintenance operations carried out on it.
3
Page 4
The Erlab guarantee
Product registration
Take full advantage of the device’s connectivity to enhance your safety
Get up to 10 years warranty on your connected Erlab unit
Register your product online: the registration of the product will automatically give you one extra year of warranty (in addition to the warranty
mentioned in the Erlab’ general terms and conditions of sale).
Connect your unit: Once the device is connected to the Internet and congured to exchange usage data, the warranty is extended for up to 10
years. Warranty will be successively renewed at each lters replacement and for the life time indicated on the Valipass® and/or or at the end
of lter usage time.
In order to benet from Erlab extension of warranty offer, the following conditions shall be respected:
• The registration and/or the connection of the product shall be performed within the twelve months from the purchase date ;
• Filters replacement must be performed following eValiQuest
The lter’s serial number, used as an identication key, validates this condition, regardless of your device’s supplier (and/or the replacement
lter’s supplier for the following years);
• The device’s replacement lters must be manufactured by Erlab, as must all other spare parts.
Consumables such as lters and lter failure sensors are not covered by the warranty.
®
service recommendations or at the end of lter usage time ;
4
Page 5
Recommendation for implementation/positioning
Necessary space and dimensions - according to the EN 14175-5 standard
Captair Bio 320
Instructions & User’s Manual
1,4 m.
1 m.
min 0,3 m.
2 m.
!
3 m.
1 m.
Pilier
!
0,30 m.
min 15 cm
3 m.
min 2,7 m
5

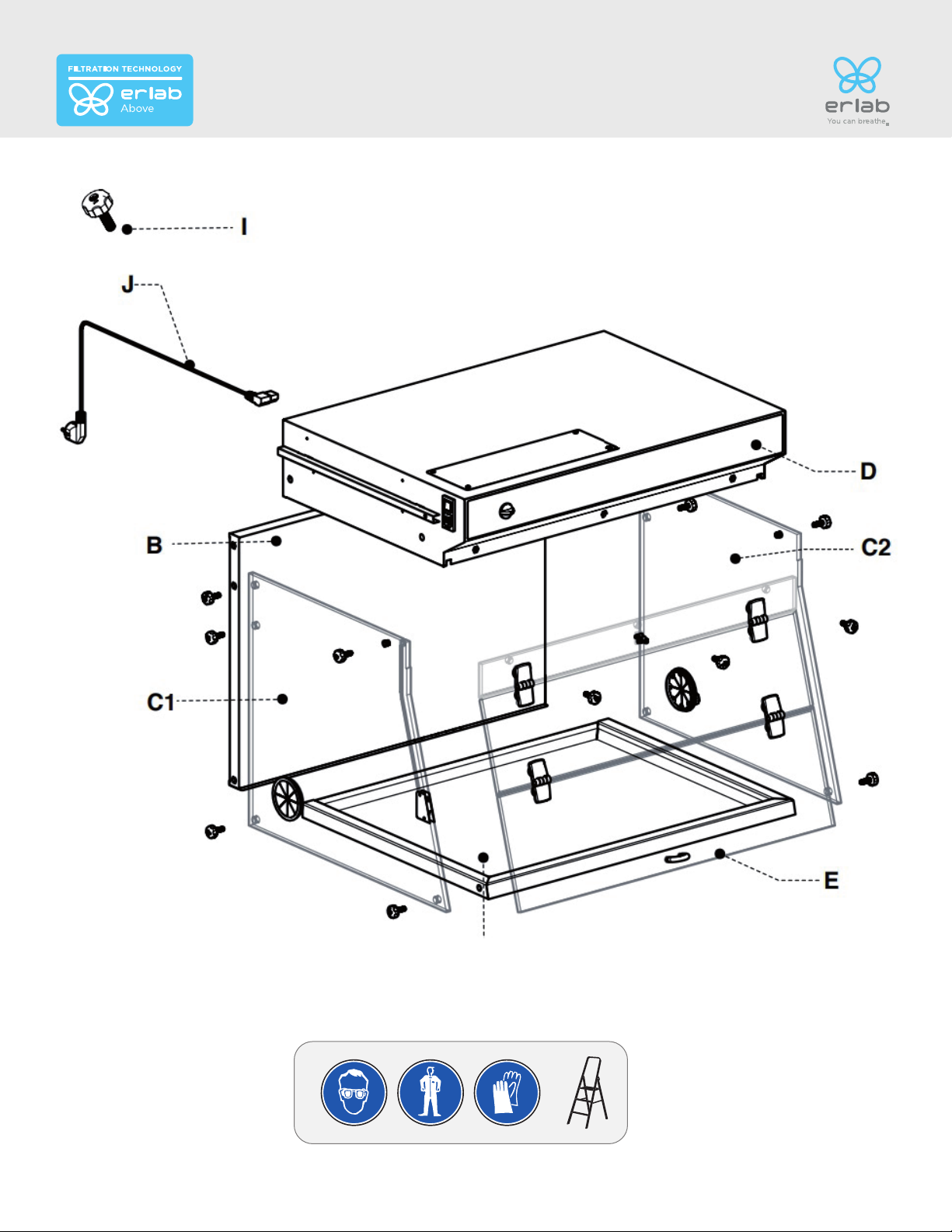

Page 6
6
Page 7
Captair Bio 320
Instructions & User’s Manual
A1
Resin work surfac
A2
Work surface - stainless steel 304L
B
Back panel
C1
Left side panel
C2
Right side panel
D
Top part (1), control panel (2) and UV lamp
E
Acrylic front panel
x1 IO115020002
x1 IO115050002
x1 Z7PIDRI7003
x1 Z7PIDVI712
x1 Z7PIDVI716
(1)Z3CEILINCBIO320 (2)
x1
K90Z021
x1 Z7PIDVISMARTBIO320
I
Nylon screws x13 PIDB08547
J
Power cable + 2 clamps
O
Nylon cable tie
P
Cable duct
Mandatory, to be chosen
EU = PIDEL076
x1
GB = PIDEL090
CH = PIDEL106
x2 Z7PIDEL8533
x1 z7PIDRE3724-1
7
Page 8
1
A1 x 1
1
A2 x 1
B x 1
2
C1 x 1
C2 x 1
I x 6
8
Page 9
Captair Bio 320
Instructions & User’s Manual
2
D x 1
I x 7
E x 1
1 2
3
4
J x 1
5
6
9
Page 10
3
1
O x 2
O
4
Captair Bio
Power up the UV lamp* using the switch located on the control panel.
The UV lamp can exclusively be activated when the front door is closed.
The UV timer decontamination cycle can be runned from 0 to 30 minutes.
* UV lamp : At 5,000 hours, it will have lost 15% / At 8,000 hours, it needs to be replaced.
10
Page 11
Admissible weights on worksurfaces
The chart below reflects loads that are evenly distributed across the work surface
Captair Bio 320
Instructions & User’s Manual
Trespa® Top Lab
Captair Bio 320 Smart 35 kg 35 kg
PLUS
Stainless steel
work top
Cleaning and maintenance
Mechanical item checks
Hinges:
Hinges must be properly attached and must allow any items on the front side of the workstation to be instantly and easily lifted
upward.
Acrylic Parts:
Ensure the transparency of the panels is a part of regular maintenance for the enclosure.
- Cleaning the enclosure
The enclosure must be cleaned on a regular basis.
This may be accomplished in several ways:
- With soapy water followed by rinsing with clear water and drying with a soft, non-abrasive absorbent paper towel.
- Or with a commercial pH neutral neutralizing product followed by drying with a soft, non-abrasive, absorbent paper towel..
- or with a non-alcoholic disinfectant detergent.
Coated Metal Parts:
- These must be inspected and free from any traces of corrosion.
- Check that there is no stagnant water in the spill tray.
- Clean the spill tray if necessary.
11
Page 12
The Erlab Research and Development laboratory
About Erlab
Since 1968, Erlab has been a specialist, inventor and world leader in ductless, zero-emission ltering fume hoods for laboratories
to provide total safety in chemical handling.
Erlab ltration
1
We provide technologies to protect laboratory staff from inhaling chemicals. This is made possible thanks to our Research and Development
(R&D) department, which has continuously improved our ltration technology for more than 50 years. That’s why, in 2009, we invented the
ERLAB ABOVE label for tried and tested ltration technology.
The AFNOR NF X 15-211: 2009 standard
2
Erlab’s ltration technology conforms to the NF X 15-211: 2009 standard, the industry’s most demanding standard for molecular ltration,
developed by a committee of independent scientists and specialized manufacturers.
This text imposes performance criteria linked to:
• Filtration efciency
• Containment efciency
• Air face velocity
• Documentation: chemical listing
The ESP programme
3
A set of three services included with the purchase of each device designed to ensure your safety.
Risk analysis – Determination of protection needs – Determination of ergonomic needs.
Certied installation – Total safety for handling.
Ongoing monitoring – Preventative and maintenance inspections – Device reconguration based on
protection needs – Development of handling.
Flex technology
4
The combination of molecular and particulate ltration technologies allows a single device to meet laboratories’ protection needs. This
innovation from Erlab’s R&D department offers unprecedented exibility, versatility and value. A single device can be recongured over time
and easily reassigned to other applications.
Smart technology
5
Smart technology is a simple and innovative means of communication that improves safety. This technology uses a light and sound signal
to indicate the user’s level of protection. The advantages of the technology are:
1/ Light pulsation: Real-time communication via LED light pulses intuitively alerts the user to the device’s operating
status.
2/ Simplicity: One-touch activation.
3/ Detection system: The exclusive detection system continuously monitors ltration performance.
4/ Built-in monitoring: This service provides direct access to the status, settings and history of your device.
France
+33 (0) 2 32 09 55 80 │ [email protected]
Germany
0800 330 47 31│ [email protected]
United States
+1 800-964-4434 │ [email protected]
United Kingdom
+44 (0) 1722 341 940 │[email protected]
China
+86 (0) 512 5781 4085 │ [email protected]
Italy
+39 (0) 2 89 00 771 │ [email protected]
Spain
+34 936 732 474│ [email protected]
DFS SAS reserves the right to modify the present document without prior notice.
®
Captair Bio 320 _V02_2023_EN- Erlab France - Technical data are not contractual. Erlab
