ERIKSON BRIDGE26 User Manual

USER’S MANUAL

BRIDGE26 E-BIKE

Hybrid Power Bicycle

2

IMPORTANT SAFETY INFORMATION ...................................4

GETTING TO KNOW YOUR E-BIKE

• Contents of the box ............................................................5

OPERATION & ADJUSTMENT

• Installation the battery ...................................................... 6

• Removing the battery ........................................................6

• Shifter ................................................................................6

• Power indicator .................................................................7

• Charging ............................................................................7

• Safety concerns .................................................................8

• Battery maintenance ......................................................... 8

BEFORE YOU RIDE

• Installation of the front wheel ........................................... 9

• Installation of the handle bar ............................................ 9

• Installation of the seat .......................................................9

• Installation of the pedals ................................................... 9

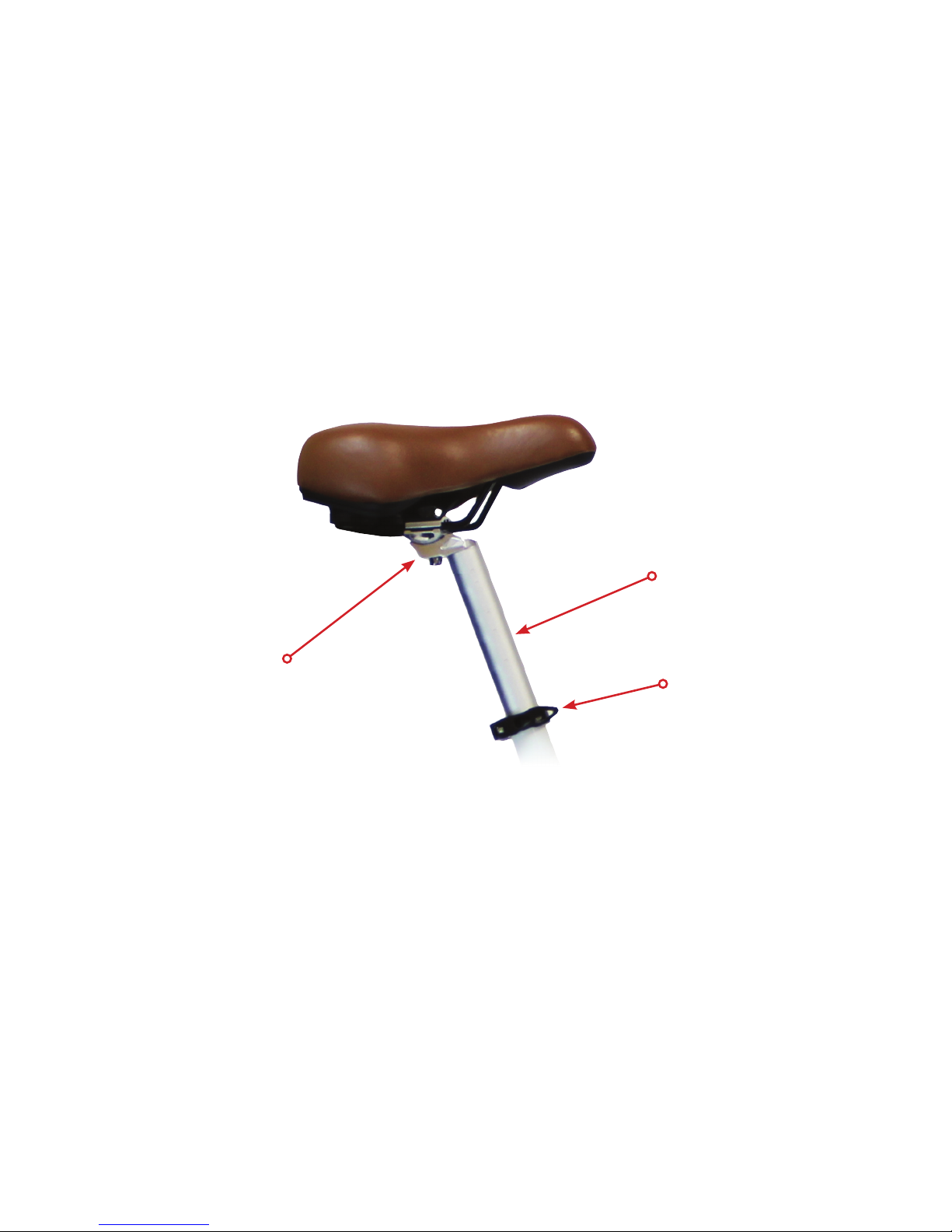

• Adjust Seat Post .............................................................. 10

• Modes of operation .......................................................... 10

USE AND MAINTENANCE

• Intended use .................................................................... 11

• Before the ride ................................................................. 11

• Before each ride .............................................................. 12

• Regular cleaning ............................................................. 12

• Regular checks ................................................................ 13

WARRANTY ............................................................................. 13

RETURN EXCHANGE ............................................................. 13

NOTICE WHEN RIDING .........................................................14

PRECAUTION .......................................................................... 14

WARNING ................................................................................ 14

FCC | CE ...................................................................................18

TECHNICAL INFORMATION ................................................. 19

TABLE OF CONTENTS

3

ABOUT ERIKSON

Designed for performance, comfort and convenience,
the Erikson brand offers a full assortment of battery­powered bikes and accessories. Passionate about
transforming the personal commuter experience,
Erikson is pushing the boundaries of conventional
transportation and has developed an exciting range
of products aimed to cater to new and experienced
riders alike. Erikson bikes are a sustainable alternative
to fuel-powered transit, and revolutionizing everyday
transportation and recreational riding.

CONTACT

If you have any questions related to this Erikson product,
including proper operation, maintenance, warranty
information, safety concerns, or if you want to give
us your feedback, we are here to help you. We can be
reached at the “Contact Us” page on EriksonBikes.com.

We are happy to assist you.

4

IMPORTANT SAFETY INFORMATION

• Do not operate this e-Bike without carefully reading the manual and
understanding how to operate the e-Bike.

• Wear your helmet, gloves and other protective gear before riding
to protect yourself from injury in case of an accident. We recommend
wearing bright or reflective clothes when riding at night.

• Observe rules and regulations when using this e-Bike. Passengers
should not be carried. When riding in rainy, snowy or slippery
conditions reduce your speed and increase the distance between
yourself and other vehicles.

• Your insurance policies may not provide coverage for accidents
involving the use of this e-Bike; to determine if coverage is provided
you should contact your insurance agent.

• Charge the battery in a dry place and ensure there is adequate
ventilation.
Neither the battery nor the charger should be covered during the
charging process. A lot of heat can be created during the charging
process and this has to be able to escape. Otherwise this could
lead to a danger of overheating or a possible hazard. We recommend
charging under supervision or with the user present. Only use an
Erikson charger to charge the battery.

• If planning to store the battery for a long time without using it, make
sure to charge it before storing. The battery is best preserved in
a cool and dry environment. It also needs to be charged once a month
if planning to store for several months.

• Lock then remove the key before riding. Otherwise, you may injure
yourself on the protruding key, lose or damage the key, or the battery
could become loose and fall out. This could result in accidents and
injury.

• The e-Bike should not be left out in the rain for a long time or
submerged because if water enters into the controller and motor
wheel, it may cause short circuit and damage the electrical
components.

• Keep appropriate air pressure inside the tires, so as to avoid
increased friction when riding, as low air pressure may easily wear
the tires and deform the rim.

• When riding with high speed or downhill, use the rear brake to avoid
the center of gravity from moving ahead, as using the front brake may
result in a shift in the center of gravity and may be dangerous.

• Do not alter any components on the e-Bike. Any changes to
the e-Bike not approved by Erikson will nullify the warranty
on the manufacturer’s side and may result to damage or injury.

5

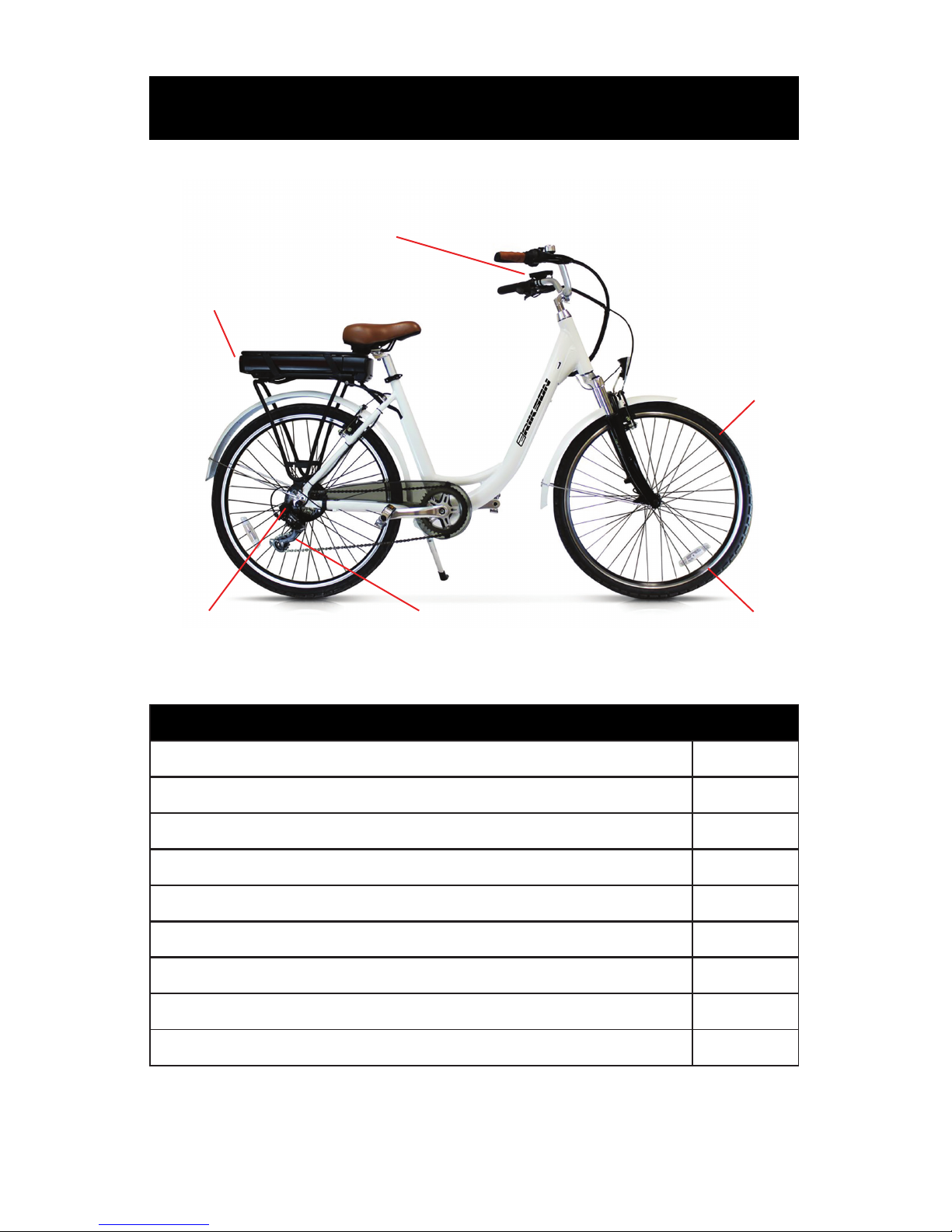

GETTING TO KNOW YOUR E-BIKE

3 Levels Assistant

LED display

36V x 10.4Ah LG

Cells Lithium Battery

36V x 250W

Brushless Rear Motor

Shimano 6 Speed Aluminum

Double Wall Ri

m

Tire

CONTENTS OF THE BOX

Bridge26 Electric Bicycle 1 Piece

Battery with keys 1 Set

Charger 1 Piece

Pedal 1 Pair

Handle bar 1 Set

Front wheelset 1 Set

Saddle with seat post 1 Set

This user manual 1 Piece

Assembly instructions 1 Piece

6

OPERATION AND ADJUSTMENT

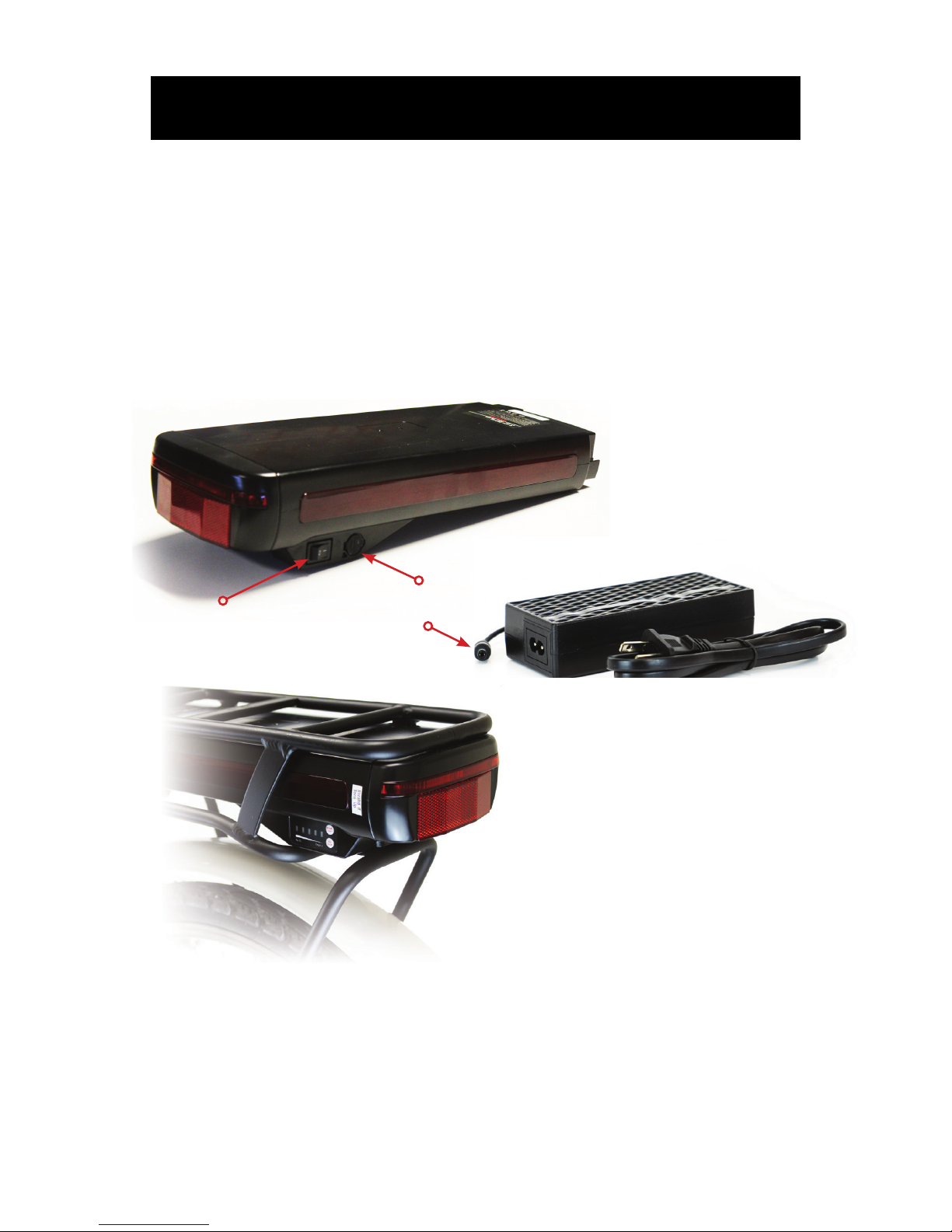

INSTALLING THE BATTERY

To insert the battery turn and hold the locking key counter-clockwise
and slide the battery securely into position. Release the key, ensure that
the battery is locked in place, and remove the key.

REMOVING THE BATTERY

To remove the battery, first turn and hold the locking key counter­clockwise, then slide the battery out of the holder. Release and remove
the key.

SHIFTER

Bridge26 e-Bike has gears, which consists of:

• A rear sprocket cluster, called a freewheel or cog set

• A rear derailleur

• One shifter

• One control cable

• One front sprocket (called a chaining)

• A drive chain

Battery power

ON/OFF button

Charging

Connector

7

There are many different types of shifter mechanisms, each preferred
for specific applications because of its ergonomic, performance and
price characteristics. A down-shift is a shift to a lower or slower gear,
one which is easier to pedal. An up-shift is a shift to a higher or faster
gear, one which is harder to pedal. For example, you can down-shift to a
lower gear to make pedaling easier on a hill. On the other hand, you may
up-shift to a higher gear when you wish to go faster. Whether up shifting
or down-shifting, the derailleur system requires that the Drive Chain
be moving forward and be under at least some tension. A derailleur will
shift only if you are pedaling forward.

Caution: Never move the shifter while pedaling backward. Do not
pedal backwards after moving the shifter. Both of these actions could
jam the chain and cause serious damage to the e-Bike.

POWER INDICATOR

When the throttle or sensor is engaged (Powering the motor) and the
bicycle is in motion, the LED on the battery gauge (on the throttle or
separate unit) indicates the instantaneous line voltage as measured at
the battery terminals - not the available energy in the battery pack. The
line voltage will max out from a dead stop, or going up a steep hill, the
motor will be under a high load and may show a reduced number of LED
or show the “Yellow” or even ”Red” LED.

When the throttle is disengaged (i.e. no power to the motor due to the
bicycle being Stationary or coasting) LED on the throttle will indicate
the voltage of the battery pack. The voltage of the battery pack will rise
when no load is on the motor. The best indication of how much battery
life is remaining is to check the throttle LED, after reaching cruising
speed, on a flat straight road as this will allow the battery voltage to
stabilize and give a much more accurate reading.

CHARGING

The battery should be charged before it is used for the first time. Please
only use the charger designated by Erikson for charging; otherwise it
might damage the battery, and may even lead to fire and other hazards.
Warranty will be voided if a charger other than the one designated by
Erikson is used.

1) Check carefully whether the rated input voltage of the charger is
consistent with the voltage of the power grid.

8

2) The battery can also be taken out of the bike to be charged
indoors and at other appropriate places.

3) First connect the output plug of the charger to the charging jack
of the battery properly, and then connect the input plug of the
charger to the AC power supply.

4) At this time, the power indicator light on the battery and the
charge indicator light of the charger should light up, indicating
that the charger has been connected.

5) Fully charging an “empty” battery takes 3-4 hours. When the
charge indicator light on the charger turns from red to green, the
battery has been fully charged.

6) After charging, pull out the AC power plug, and then pull out the
plug connected with the battery.

SAFETY CONCERNS

1) The battery should be charged in an open environment, staying
away from high temperature, high humidity and fire, because the
battery and the charger are electronic products, high temperature
and humidity will corrode electronic components, resulting in
some harmful gases and soot, and even a possible explosion.

2) Do not overcharge the battery. An excessive charging time will
lead to shortened life expectancy of the battery.

3) After the battery is fully charged, the power supply should be
pulled out as soon as possible, and at the same time, the battery
is disconnected from the charger.

BATTERY MAINTENANCE

1) You can achieve the best possible performance and lifespan of
your battery by charging on a regular basis and using it within the
recommended temperature range. The battery has almost no
memory effect thanks to the Li-ion technology.

2) Leaving a fully discharged battery for a long time will lead to
permanent loss of LEDs. Please recharge an empty battery as
soon as you have a chance to. If storing the battery for an
extended period, we recommend recharging at least up to
¾ (4 LEDs) at least every 30 days to avoid damage to the
battery. A dead battery due to neglect is not a warranty claim.

3) If your e -Bike does not move for a 30 minutes period, the BMS
will switch the battery power off. In order to continue riding with
assist, you have to switch the battery on again.

9

4) Every battery with Li-ion technology is subject to an unstoppable
chemical aging process. Provided the e-Bike has been used
properly, remaining capacity of 70% will remain after 500
charging cycles.

5) Please follow municipal regulations as to how to discard the
battery appropriately, so as to avoid environmental pollution.

6) Recommended temperature ranges:
a) Charging / Discharging: 0-45 Cº, 32-113Fº
b) Storage: <35Cº/95Fº

INSTALLATION OF THE FRONT WHEEL

Align the front wheel with the rear wheel and assemble the front wheel
into the fork. Secure the wheel to the fork using the quick release lever.

INSTALLATION OF THE HANDLE BAR

Insert the handlebars into position and secure using the spanner and
allen key provided.

INSTALLATION OF THE SEAT

Insert the seat post into position and secure using the quick release
lever provided.

INSTALLATION OF THE PEDALS

The pedal labeled L is to be installed on the left side, and the pedal
labeled R on the right side. Use wrench to tighten.

• Left Pedal- Turn counter-clockwise

• Right Pedal- Turn clockwise

BEFORE YOU RIDE

10

ADJUST SEAT POST

Rider must be able to stand and straddle bicycle with at least 1 inch
clearance above the top of the frame. Please note that seat post must
not be raised higher than the marked safety limits on the tube. Failure
to follow these instructions may lead to serious personal injury. Open
the saddle quick release lever shown in the image below then adjust
the seat post to your desired height setting. When you have found a
comfortable height setting ensure the quick release lever is back into
position and there is no movement in the seat post or saddle before
using.

MODES OF OPERATION

• Normal Mode: Turn Power-Switch OFF and Bridge26 behaves and
operates identical to an ordinary bike.

• Pedelec Mode: Turn Power-Switch ON, the motor will provide
power assist when you pedal.

Seat Angle

Adjustment

Seat Post

Quick

Release

11

USE AND MAINTENANCE

INTENDED USE

This e-Bike is intended for transporting one person at a time. Fit your
e-Bike with suitable equipment if you would like to transport luggage.
Ensure that you do not exceed the maximum permissible load (rider
+ luggage) of 265 lb (120 kg). The manufacturer and dealer do not
assume any liability for activities above and beyond the intended use.
This particularly applies for not adhering to safety advice and damage
resulting from this, for instance: aggressive off-road use, carrying
excess weight or making improper repairs to defects. The e-Bike is not
generally designed to withstand extreme stress, such as riding down
steps or over jumps.

BEFORE THE FIRST RIDE

1) Please fully charge the battery before the first use.

2) Please ensure that your e-Bike is ready for use and is adjusted to
your body, including:
a) Setting the position and fixture of the seat and handlebar
b) Checking the assembly and settings of the brakes
c) Securing the wheels into the frame and fork
d) Checking the tire pressure
e) Checking that battery is properly secured

3) Ensure that you know which lever operates which brake (right/left).

4) Before you switch the system on, ensure that the battery is
securely locked to the frame.

5) The effectiveness of brakes can be different in wet conditions or
on slippery surfaces. Please take into account the possibility of
longer braking distances and slippery surfaces when riding.

6) Practice operating and riding your e-Bike in a quiet and safe place.

7) Ensure that the wheels are securely fastened in the frame and
fork. Check that the wheels and thru axles as well as all important
nuts and bolts are secure.

8) Push the wheels forward with the brakes pulled. The back brake
should completely prevent the back wheel from moving, while the
front brake should lift the back wheel off the ground with its
braking effect. The e-Bike’s steering should not rattle under
braking or exhibit any play.

12

9) Check the air pressure in the tires. You will find instructions as to
the correct tire pressures on the sides of the tires. Please adhere
to the required minimum and maximum pressure. As a general
rule of thumb, e.g. on a ride, you can check the tire pressure as
follows: If you place your thumb on a pumped-up tire, you should
not be able to significantly change its shape by applying pressure.

10) Check the tires and rims. Scan them for any damage, cracks or
deformations, as well as embedded particles, e.g. shards of glass
or sharp stones.

11) If you should find any cuts, rips or holes in the tires, please refrain
from riding. First have your e-Bike checked over by a qualified
e-Bike mechanic and have any required tire service completed.

BEFORE EACH RIDE

Before each ride, please check that:

1) The brakes are working safely and are properly secured.

2) The tires are free of foreign objects and damage, and the wheels
run true.

3) The battery is properly secured.

4) The tires have sufficient pressure and tread depth.

5) All bolts and nuts are tight.

6) Check that all quick releases are still correctly secured.

7) The frame and fork are not damaged.

8) The handlebar and stem are correctly and securely fastened as
well as set up in the correct position.

9) The seat post and seat are secure and in the correct position. Try
turning the seat or tipping it upwards or downwards. It should not
move.

REGULAR CLEANING

1) Remove the battery box from the e-Bike before carrying out
regular cleaning.

2) Avoid using water spray to clean the e-Bike as the electrical and
electronic systems may get wet, resulting in malfunction of the
e-Bike or personal injury.

3) Delicately wipe any dirty painted or plastic parts with a soft, damp
cloth and a neutral cleaning solution. Carefully dry the parts with
a soft, dry cloth.

4) Clean the battery contacts with a dry damp cloth.

5) DO NOT grease or use a greasy cloth to wipe down the electrical
connectors, brake pads, wheels, tires or plastic parts.

13

REGULAR CHECKS (EVERY 1-2 MONTHS)

1) Check that the handlebar attachment and saddle post are correctly
inserted and tightened.

2) Check that the wheel hub mounting bolts and quick-release are
correctly tightened.

3) Check that the wheel rims are not cracked and that no spokes are
loose or broken.

4) Check that the tires have sufficient thread depth and not
punctured.

5) Check that the tires are correctly inflated.

6) Check that the battery contacts are not dirty or oxidized.

7) Check that the batteries are sufficiently charged.

8) Check that the front and rear brakes brake effectively.

9) Check that the cables are sufficiently greased, and that the brake
pads are in good condition.

10) Check that frame welds are in good condition and are free from
corrosion or oxidation.

WARRANTY

RETURN AND EXCHANGE

Please refer to our website EriksonBikes.com for all warranty terms,
conditions and how to make a claim. For all returns and warranty
shipping, please keep the original packaging. The warranty does not
include damage from shipping in inadequate packaging.

Please refer to our website EriksonBikes.com for all product and
exchange information and procedures. Please keep the original

packaging.

14

NOTICE WHEN RIDING

• Actual mileage is affected by the battery level, tire pressure, mode of
operation and frequent turning OFF/ON of the system.

• Before riding, always check if the battery is sufficiently charged, tire
pressure is normal, and brakes are working properly. When braking,
always use the rear brake first to avoid risk of serious injury or death.

• Always wear a helmet and other appropriate protective gear when
using the Bridge26.

• Obey local traffic rules.

• Use the head light when riding at night or in a poorly lit area.

• Never ride in snow/rain or on wet surfaces as these conditions will
severely impact braking performance. Riding in these conditions
creates an unreasonable risk of serious injury or death.

• This Bridge26 e-Bike is for riding on a paved road only – this is not an
off-road vehicle and severe injury or death could occur if used
off-road or on unpaved surfaces.

• Do not modify your Erikson Bridge26 e-Bike without consulting us
first.

PRECAUTIONS

• If lending your Erikson Bridge26 to others, please let the other user
read this manual as well. This will reduce the chance for injury and
accidents.

• Please wear a helmet and other suitable safety gear at all times and
reflective or light-emitting gear when riding at night.

• Please do not exceed local speed limits.

• Please do not touch any of the power connectors or couplers with bare
hands to avoid the risk of accidental electrical discharge.

• Full throttle starts, frequent braking, riding against the wind, riding
with heavy loads and insufficient tire pressure will cause more
pronounced battery consumption and will affect pedelec/electrical
mileage. In order to obtain optimum mileage, we advise that you:

15

WARNINGS

a) Avoid full throttle starts and frequent braking - but of course brake
to stay safe.
b) Use pedal mode when riding uphill or against wind.
c) Avoid heavy loads.
d) Check and maintain proper tire pressure regularly.

• Avoid prolonged exposure to sunlight or rain, avoid storing the bike
in a high temperature / high humidity environment or near corrosive/
hazardous materials. These may damage electrical components and
can compromise the bike’s performance.

• This Erikson Bridge26 is not a toy! A person must be over 16 years
old to operate an Erikson Bridge26. Always follow the local laws and
regulations of your area when using this product.

• This manual may not cover every situation you may encounter using
this product. For more information please contact us at
EriksonBikes.com with any questions.

We want you to be able to fully enjoy this bicycle. Please read this
section and take it seriously.

RIDE AT YOUR OWN RISK AND USE COMMON SENSE. FAILURE TO USE
COMMON SENSE AND HEED THE WARNINGS BELOW ONLY SERVES TO
INCREASE THE RISK OF SERIOUS INJURY AND/OR DEATH. USE AT
YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS ATTENTION
TO SAFE OPERATION. USE CAUTION AT ALL TIMES.

Using an electric bicycle presents potential risks/hazards; suitable
caution and common sense is required at all times. There are inherent
hazards associated with the use of this product (such as falling off). It
is, of course, possible to lose control or otherwise get into dangerous
situations even with taking all appropriate precautions. All riders
and any person supervising them must recognize that a rider can be
seriously injured or die even when using safety equipment and other
precautions.

16

THIS BICYCLE IS NOT A TOY – IT IS A MACHINE CAPABLE OF SPEEDS
UP TO 20 MPH.

WARNING: PARENTAL AND ADULT RESPONSIBILITY AND
SUPERVISION IS NECESSARY: Because products, like electric bicycles,

can and do present potential hazards plainly associated with their
use, it is well recognized THE NEED FOR EXERCISE OF PARENTAL
RESPONSIBILITY IN SELECTING RIDING PRODUCTS APPROPRIATE TO
THE AGE OF A CHILD, OR PARENTAL SUPERVISION IN SITUATIONS IN
WHICH CHILDREN OF VARIOUS AGES MAY HAVE ACCESS TO THE SAME
RIDING PRODUCTS, IS IMPORTANT.

Not every product is appropriate for every person and the
recommendations found within this section are intended to reflect the
nature of the hazards which could be encountered during use and the
expected mental or physical ability, or both, of a rider to cope with the
hazards. The recommended minimum rider age is 16 and older. Any
rider, regardless of age, who is unable to fit comfortably on the bicycle
should not attempt to ride it. A parent’s decision to allow his or her child
to ride this product should be based on the child’s maturity, skill and
ability to follow rules.

Keep this product away from small children and remember that it is
intended for use only by persons who are, at a minimum, completely
comfortable and competent while operating the bicycle. Persons with
any conditions (mental or physical) that may make them susceptible to
injury, impair their physical dexterity or mental capabilities to recognize
and follow safety instructions and to be able to understand the hazards
inherent in bicycle use, should not use or be permitted to use this
product. Persons with heart conditions, head, back or neck ailments (or
prior surgeries to these areas of the body) should be cautioned not to
operate such products. Pregnant women should never use this product.

DO NOT EXCEED THE WEIGHT LIMIT OF 265 lbs total

Rider weight does not necessarily mean a person’s size is appropriate to
fit or maintain control of the bicycle.

17

CHECK AND MAINTAIN THE BICYCLE BEFORE EACH USE

Before each use, check to confirm that the bicycle frame is in good
condition with no cracks or other breaks. Check that the brakes are
functioning properly, that the tires are securely fastened and rotate
smoothly. The bicycle should be maintained and repaired in accordance
with the manufacturer’s specifications, using only the manufacturer’s
authorized replacement parts, and should not be modified from the
manufacturer’s original design and configuration.

ACCEPTABLE RIDING PRACTICES AND CONDITIONS

Always check and obey any local laws or regulations which may affect
the locations where the electric bicycle may be used. Keep safely away
from cars and motor vehicle traffic at all times. Only use where allowed
and with caution. Do not activate the accelerator unless you are on
the bicycle wearing safety gear and in a safe, outdoor environment
suitable for riding. The normal powered top speed of this bicycle will
be approximately 20 mph, which can be impacted by many conditions,
such as rider weight, level of incline and battery power level. Avoid
excessive speeds that can be associated with downhill rides as injury
or death may occur. Maintain a firm hold on the handlebars at all times
during use. Do not touch the brakes or motor on your bicycle when in
use or immediately after riding, as these parts can become very hot.
Ride defensively. Watch out for potential obstacles that could catch
your wheel or force you to swerve suddenly or lose control. Be careful
to avoid pedestrians, skaters, bicycles, bikes, children or animals who
may enter your path, and respect the rights and property of others.
The electric bicycle is intended for use on flat, dry surfaces, such as
pavement or level ground, without loose debris.

Wet, slick, bumpy, uneven or rough surfaces may impair traction and
contribute to possible accidents. Do not ride your bicycle in mud, ice,
puddles, water, or wet or icy weather. Watch out for potential obstacles
that could catch your wheel or force you to swerve suddenly or lose
control. Avoid sharp bumps and any sudden surface changes. Do not
attempt or do stunts or tricks on your electric bicycle. The bicycle is not
made to withstand abuse from misuse, such as jumping, curb grinding
or any other type of stunts. Racing, stunt riding, or other maneuvers
also enhance the risk of loss of control or may cause uncontrolled rider
actions or reactions and serious injury or death could occur.

18

• Never allow more than one person at a time to ride the bicycle.

• Do not ride at night or when visibility is impaired.

• Never use near steps or swimming pools.

• Do not allow hands, feet, hair, body parts, clothing, or similar
articles to come in contact with moving parts or wheels while the
motor is running.

• Never use headphones or a mobile device to talk or text when
riding.

• Never hitch a ride with a vehicle.

• Do not ride your bicycle in water, as severe damage to the electrical
components of the bicycle could occur or lead to other possibly
unsafe conditions. Never use this electric bicycle indoors.

PROPER RIDING ATTIRE

Always wear proper protective equipment, such as an approved safety
helmet (with chin strap securely buckled). A helmet may be legally
required by local law, ordinance or regulation in your area. A long­sleeved shirt, long pants, and gloves are recommended. Always wear
athletic shoes (lace-up shoes with rubber soles) and keep shoelaces
tied and out of the way of the wheels, motor and drive system. Never
ride barefooted or in sandals or flip-flops.

You are cautioned that any changes or modifications not expressly
approved by us could void your authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that the interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and of, the user is encouraged to tr y and
correct the interference by one or more of the following measures: Reorient or
relocate the receiving antenna; increase the separation between the equipment and
receiver; connect the equipment into an outlet on a circuit different from that of the
receiver; consult the dealer or an experienced radio/TV technician for help.

19

TECHNICAL INFORMATION

Index Item Bridge26

Weight

Maximum load 265lbs / 120kg

Net weight 55lbs / 25kg

Riding

Min age 16+

Recommended height 63in / 1.60m

Bike

Max Speed 20mph / 32.2kph

Mileage-pedelec 35 miles / 56km

Hill grade 10˚

Frame Aluminum

Adjustable Seat Height 8in

Chain Ring 38T

Gear Shimano 6 speed

Brakes Front V - Brake, Rear V - Brake

Trim Size 26in - ETRTO 47-559

Battery

Battery Cell

LG Li-ion Cells, 36V, 10.4 Ah,
Inside battery case

Max charge voltage 36V

Capacity 10.4 Ah

Motor

Type

Brushless DC Motor
w/Hall Sensor

Max Power 250w

Charger

Input 100-240VAC

Output 42VDC 2.0A

Charging time 3-4 hours

SERIAL NUMBER

www.EriksonBikes.com
