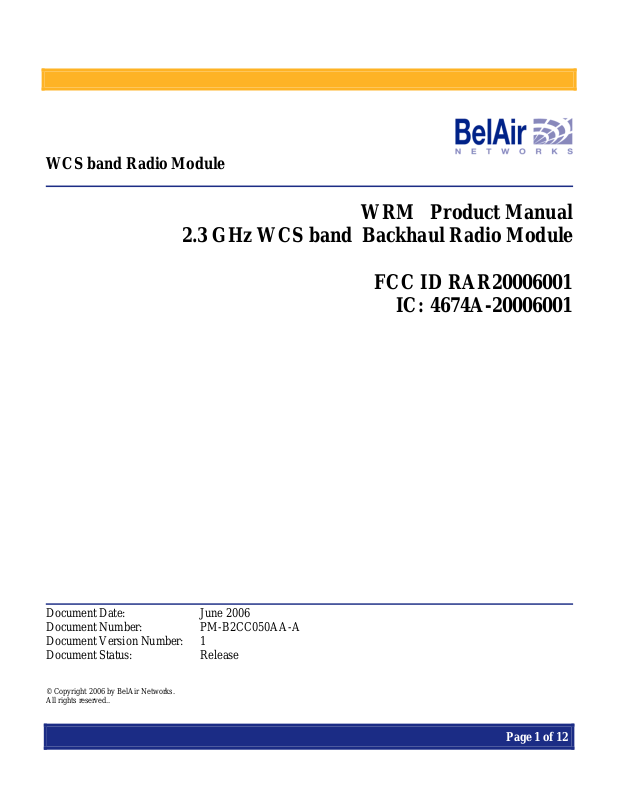

WCS band Radio Module
WRM Product Manual
2.3 GHz WCS band Backhaul Radio Module
FCC ID RAR20006001
IC: 4674A-20006001
Document Date: June 2006
Document Number: PM-B2CC050AA-A
Document Version Number: 1
Document Status: Release
© Copyright 2006 by BelAir Networks.
All rights reserved..
Page 1 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
Contents
About this Document.......................................................................2
Introduction...................................................................................... 3
Conditions of Use.............................................................................4
Module Installation and Service.....................................................6
Final Product Requirements........................................................... 7
Regulatory Statements .................................................................. 10
About this Document
This document is a product manual for the B2CC050AA-A 2.3 GHz WCS band
Backhaul Radio Module 1, including its limitations on use in any product
marketed or offered for sale. It is intended as a supplement to training and
documentation by BelAir Networks Inc. or its authorized agents.
Page 2 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
Introduction
The B2CC050AA-A (hereafter referred to as “the module”) is a 2.3 GHz WCS
band radio module compatible with the IEEE 802.16 standard for WIMAX
operation. The module contains a complete 802.16 radio and Medium Access
Control protocol engine.
The module is not intended for stand-alone operation. It will only be marketed
as a complete product, in conjunction with a package, DC power supply and
antenna (hereafter referred to as “the product” or the “final product”).
Since the module has a BelAir networks proprietary digital interface, it cannot
be directly connected to any standard telecommunications or computer devices.
It can only be used with final products designed and authorized specifically for
that purpose.
Page 3 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
Conditions of Use
General Conditions of Use
This manual is intended to supplement training provided by BelAir Networks or
authorized parties. The module B2CC050AA-A is only intended for use in
BelAir Networks products and is not for sale to the general public as a standalone module.
Please read this entire document, including the Regulatory Statements section
before attempting to install or operate the module.
Warning: Any use of B2CC050AA-A in any manner which is not
expressly specified within this manual or specifically approved by BelAir
Networks or its authorized agents will void the user’s right to operate this
module, and is expressly forbidden by BelAir Networks. This includes any
modification of the module, installation of the module in a configuration or used
with an antenna which is not expressly listed in this document or approved by
BelAir Networks.
List of Approved Final Products
The B2CC050AA-A module is only approved for use in the following BelAir
Networks products:
• BelAir200. See BelAir200 documentation for complete manufacturing
instructions.
• BelAir100. See BelAir100 documentation for complete manufacturing
instructions.
Operation of the module within the products expressly listed above is required
to ensure compliance to all FCC regulations. Any modification of the module,
or its use in any configuration not expressly listed above may void the user’s
right to operate this module.
Page 4 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
Country of Use
B2CC050AA-A is certified with limited modular approval for use as an
Intentional Radiator in the United States as device: FCC ID: RAR20006001
and in Canada as IC:4674A-20006001. Please read all regulatory statements at
the end of this document before any attempt to install or operate this module.
The module is only certified for operation in the United States and in Canada.
Before attempting to install and operate this module in any other country,
contact BelAir Networks for approval.
Module Labeling
One or more labels are applied to the module during manufacture, including a
label which identifies the FCC and Industry Canada identification numbers. Do
not attempt to remove any labels from the module.
Page 5 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
Module Installation and Service
Installation into a Product
The module shall only be installed by a technician trained by BelAir Networks
or its authorized agents. It should only be installed into an approved product
(see above) following all manufacturing and service procedures for that product.
The module should only be installed into a final product in a manufacturing or
service depot site.
Caution: B2CC050AA-A is an electro-static discharge (ESD) sensitive device.
All appropriate ESD measures must be taken when handling the module.
Failure to employ appropriate ESD protection may damage the module.
Module Service
The module is not intended as a field-serviceable unit. It contains no fieldreplaceable or field-serviceable parts, or any external adjustable mechanisms.
The module should only be serviced in a manufacturing or service depot site
approved by BelAir Networks or its authorized agents.
Page 6 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
Final Product Requirements
The requirements below apply to any final product in which the B2CC050AAA module is installed.
Antenna Usage and Module Transmit Power
B2CC050AA-A module shall only be used in conjunction with the following
antenna types:
• BelAir Networks model: BEL10012, 8.0 dBi directional diversity antenna.
• MTI Wireless Edge MT-344014/18 8.5 dBi patch antenna
• MTI Wireless Edge MT-344026 15 dBi
• MaxRad model: MFB24006, 6 dBi omni-directional antenna.
• MaxRad model: MFB24008, 8 dBi omni-directional antenna.
• MaxRad model: WISP 24013, 13 dBi omni-directional antenna.
• MaxRad model: WISP 24018, 18 dBi omni-directional antenna.
• MaxRad model: MFB24025 25 dBi dish antenna
In order to comply with the FCC and Industry Canada rules in the USA and
Canada, respectively, it is required to respect the maximum transmit power
limits as follows for each of the antenna types.
Antenna Models and Maximum Allowable Power Setting
Antenna
Model
BEL10012 BelAir Networks 8.0 dBi directional
MT344014/18
MT-344026 MTI Wireless Edge 15dBi patch
Manufacturer Antenna Type Maximum Transmit
Power Setting
+20 dBm (module
diversity
MTI Wireless Edge 8.5 dBi patch
antenna
antenna
maximum power)
+20 dBm (module
maximum power)
+20 dBm (module
maximum power)
Page 7 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
Installation
MFB24008 MAXRAD 8 dBi omni-
directional
WISP 24013 MAXRAD 13 dBi directional
panel
WISP 24018 MAXRAD 18 dBi directional
panel
MFB24025 MAXRAD 25 dBi dish +20 dBm (module
+20 dBm (module
maximum power)
+20 dBm (module
maximum power)
+20 dBm (module
maximum power)
maximum power)
Note: 18 dBi and 25 dBi antennas are for outdoor use only
Warning: Use of this module in conjunction with any antenna not
expressly listed above will void authority to install or operate this equipment.
Products which contain B2CC050AA-A shall only be installed by professional
installers trained by BelAir Networks or its authorized agents. In addition to
normal installation procedures and good installation practice, professional
installers are responsible to ensure that:
1. Only an approved antenna (see above) is connected to the module, and,
2. The antenna is mounted in such a manner and in such a location that access
to the antenna by the general population is minimized. Access during
normal operation to the antenna by the general population should be limited
distances as outlined in the Table 1 in the section on RF Exposure
Statement.
Adherence to these rules by the professional installer is mandatory. See full
installation procedures for the particular product for details.
Product Labeling
The following permanent label, or one containing equivalent information, must
be affixed in a conspicuous location on the exterior of every product containing
this module:
Page 8 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
This device contains the following:
FCC ID: RAR20006001 IC: 4674A-20006001
Page 9 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
Regulatory Statements
The following regulatory notes apply to the product which contains module
B2CC050AA-A.
FCC ID: RAR20006001 IC: 4674A-20006001
The following sections or equivalent information shall appear in the usermanual of the final product.
Regulatory Information and Disclaimers
Installation and use of this device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any
changes or modifications to this product not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
The manufacturer is not responsible for any interference to radio or television
equipment caused by unauthorized modification of this device, or attachment of
any antennas or equipment other than those specified by the manufacturer.
The manufacturer or its authorized resellers or distributors will assume no
liability for any damage or violation of government regulations arising from
failing to comply with these guidelines.
Manufacturer’s FCC Conformity Statement
This device complies with Part 27 of the FCC Rules.
.
Manufacturer’s Industry Canada Conformity Statement
This device has been designed to operate and comply with the Radio Standards
Specification RSS-195, with an antenna having a maximum gain of 25 dB.
Antenna having a higher gain is strictly prohibited per regulations of Industry
Canada. .
Page 10 of 12
WRM Product Manual – 2.3 GHz WCS Band Radio Module
RF Exposure Statement
This Wireless radio device has been evaluated under FCC Bulletin OET 65C
and found to be compliant to the requirements set forth in CFR 47 Sections
2.1091, 2.1093, and part 27.52 and Industry Canada RSS-102 addressing RF
exposure from radio frequency devices.
This device complies with FCC RF radiation exposure limits for an
uncontrolled environment. The radiated output power of this Wireless device is
below the FCC radio frequency exposure limits. However, this device should
still be installed and used in such a manner that the potential for human contact
during normal operation is minimized. In order to comply with RF exposure
limits, this equipment should be installed and operated at a minimum distance
as per the following table between the radiator and a human body.
Table 1
Minimum Safety Distance cm (inches)
18 dBi and
15 dBi
antenna
36
(14.5 inches)
51
(20.5 inches)
13, 8.5, 8, 6
dBi antenna
24
(9.5 inches)
30
(11.8 inches)
Radios
2 x RAR20006001
or 1 RAR20000003
and 1
RAR20006001
4 x RAR20006001
or 1 RAR20000003
and 3x
RAR20006001
Node
BelAir100
BelAir100S
BelAir100C
BelAir200
25 dBi
antenna
80
(31.5 inches)
115
(45.5 inches)
Note:
The Industry Canada references for the above table are
IC: 4674A-2006001 and IC:4674A-20000003
