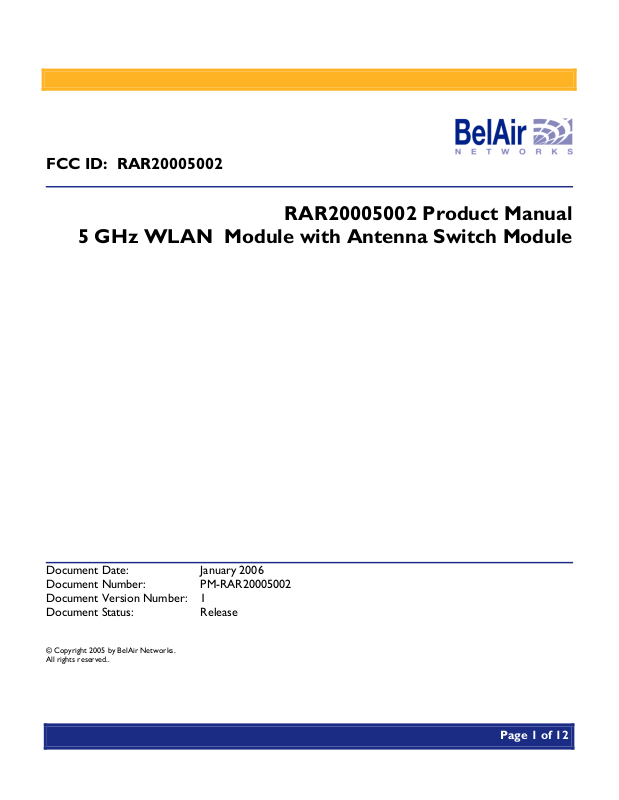

Ericsson Wi Fi 20005002 User Manual
FCC ID: RAR20005002
RAR20005002 Product Manual
5 GHz WLAN Module with Antenna Switch Module
Document Date: January 2006
Document Number: PM-RAR20005002
Document Version Number: 1
Document Status: Release
© Copyright 2005 by BelAir Networks.
All rights reserved..
Page 1 of 12
RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module
Contents
About this Document ............................................................. 2
Introduction............................................................................. 3
Conditions of Use.................................................................... 4
Module Installation and Service ............................................ 6
Final Product Requirements.................................................. 7
Regulatory Statements........................................................... 9
About this Document
This document is a product manual for the FCC ID: RAR20005002, 5 GHz
WLAN Radio Module with Antenna Switch Module, including its limitations on
use in any product marketed or offered for sale. It is intended as a supplement
to training and documentation by BelAir Networks Inc. or its authorized
agents.
January 2006 Page 2 of 12
PM-RAR20005002 version 1
RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module
Introduction
The RAR20005002 (hereafter referred to as “the module”) is a 5 GHz radio
module compatible with the IEEE 802.11 standard for Wireless LAN
operation. It is designed to be interoperable with WLAN products which are
based on Direct Sequence Spread Spectrum (DSSS) radio technology.
The module contains a complete 802.11a radio and Medium Access Control
(MAC) protocol engine which allows implementation of an 802.11a device.
The module is not intended for stand-alone operation. It will only be
marketed as a complete product, in conjunction with a package, DC power
supply and antenna (hereafter referred to as “the product” or the “final
product”).
Since the module has a BelAir networks proprietary digital interface, it cannot
be directly connected to any standard telecommunications or computer
devices. It can only be used with final products designed and authorized
specifically for that purpose.
January 2006 Page 3 of 12
PM-RAR20005002 version 1
RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module
Conditions of Use
General Conditions of Use
This manual is intended to supplement training provided by BelAir Networks
or authorized parties. The module RAR20005002 is only intended for use in
BelAir Networks products and is not for sale to the general public as a standalone module.
Please read this entire document, including the Regulatory Statements section
before attempting to install or operate the module.
Warning: Any use of RAR20005002 in any manner which is not
expressly specified within this manual or specifically approved by BelAir
Networks or its authorized agents will void the user’s right to operate this
module, and is expressly forbidden by BelAir Networks. This includes any
modification of the module, installation of the module in a configuration or
used with an antenna which is not expressly listed in this document or
approved by BelAir Networks.
List of Approved Final Products
The RAR20005002 module is only approved for use in the following BelAir
Networks products:
• BelAir200.
See product assembly instructions for complete details.
Operation of the module within the products expressly listed above is
required to ensure compliance to all FCC and Industry Canada regulations.
Any modification of the module, or its use in any configuration not expressly
listed above may void the user’s right to operate this module.
Country of Use
RAR20005002 is certified with limited modular approval for use in the United
States as an Intentional Radiator as device: FCC ID: RAR20005002 and in
January 2006 Page 4 of 12
PM-RAR20005002 version 1
