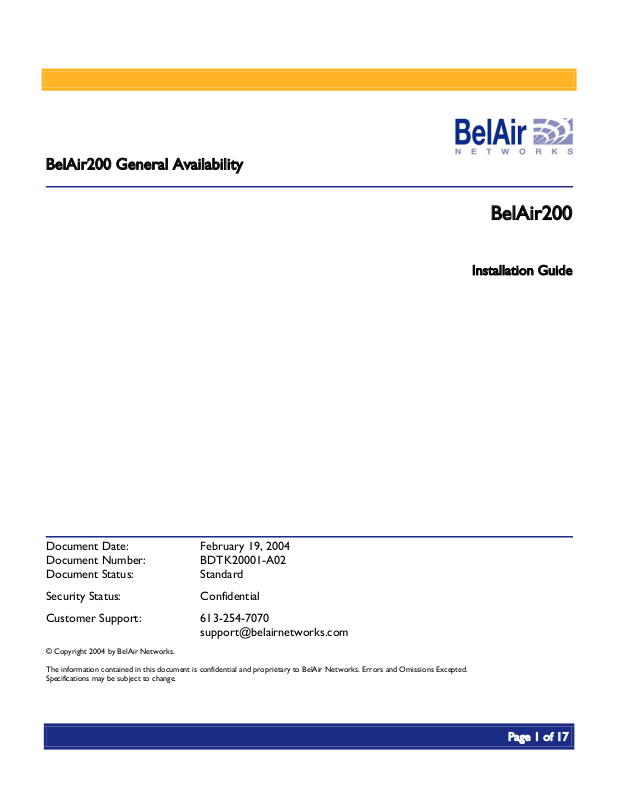

BelAir200 General Availability
BelAir200
Installation Guide
Document Date: February 19, 2004
Document Number: BDTK20001-A02
Document Status: Standard
Security Status: Confidential
Customer Support: 613-254-7070
support@belairnetworks.com
© Copyright 2004 by BelAir Networks.
The information contained in this document is confidential and proprietary to BelAir Networks. Errors and Omissions Excepted.
Specifications may be subject to change.
Page 1 of 17
BelAir200 Installation Guide
Contents
About this Document.................................................................................. 2
Introduction ................................................................................................... 3
Mounting the BelAir200.............................................................................. 8
Regulatory Statements ..............................................................................13
Detailed Table of Contents......................................................................15
About this Document
This guide provides the information you need to physically install the
BelAir200.
Related Documentation
The following titles are BelAir reference documents:
•
•
February 19, 2004 Confidential Page 2 of 17
Document Number BDTK20001-A02 Standard
BelAir200 Building Coverage Deployment Guidelines
BelAir200 User Guide
BelAir200 Installation Guide
Introduction
BelAir Networks recommends that you prepare for the installation of your
Belair200 as follows:
1. Verify the contents of your shipping container. Be sure to note any
external carton damage with your shipper to facilitate any future warranty
claims. See the section “Shipping Contents” on page 4.
2. Fill out the included
installation and network configuration settings.
3. Analyze your site to determine the optimum mounting location. To assist
you, refer to:
— the section “Site Survey” on page 6
— the
— your authorized reseller
4. Mount the Belair200 by following the steps in the procedure the section
“Mounting the BelAir200” on page 8.
5. Configure the BelAir200 for operation. Refer to the
6. Verify proper operation of the Belair200.
WARNING! Only personnel qualified by BelAir Networks or by one of its authorized
resellers or channel partners should install the BelAir200.
WARNING! This entire document, including the regulatory statements section, should be
read before attempting to install or operate the BelAir200.
BelAir200 Building Coverage Deployment Guidelines
Configuration Worksheet
to record the important
BelAir200 User Guide.
February 19, 2004 Confidential Page 3 of 17
Document Number BDTK20001-A02 Standard
BelAir200 Installation Guide
Shipping Contents
Table 1 describes how the standard BelAir200 items are packaged for shipping.
Table 1: BelAir200 Shipping
Box Contents
1 (of 2)
See Figure 1 on page 5.
2 (of 2)
See Figure 2 on page 6.
BelAir200
AC mains power pigtail
Quick Configuration Guide Card
User Guide on CD-ROM
battery unit (if ordered)
universal mounting bracket
threaded nipple
lock nut
decorative finial
hardwall anchors (quantity of 4)
8-inch worm drive (jubilee) clamp (quantity of 2)
drill template
February 19, 2004 Confidential Page 4 of 17
Document Number BDTK20001-A02 Standard
BelAir200 Installation Guide
Figure 1: Contents of Box 1,without BelAir200 Unit
February 19, 2004 Confidential Page 5 of 17
Document Number BDTK20001-A02 Standard
BelAir200 Installation Guide
Figure 2: Contents of Box 2, BelAir200 Mounting Kit
Site Survey
Due to differences in component configurations, physical placement and
environmental considerations, every application is unique. BelAir Networks
recommends that a site survey be completed to best determine your coverage
needs, installation limitations and optimal node configurations. Contact an
authorized reseller to help you with this planning.
Antenna Type and Placement
Proper antenna placement, orientation and selection are critical factors in
maximizing network performance. The antennas are typically placed between
5 m and 10 m above ground level; although alternate installations can be used.
Additionally, the antennas should be located with clear lines of site to adjacent
equipment in the system and free from obstruction by buildings, foliage and
passing traffic.
WARNING! Only antennas approved by BelAir Networks may be used in conjunction with
the BelAir200. Contact BelAir Networks for an up-to-date list of available
approved antennas. Use of any other antenna may exceed FCC or Industry
February 19, 2004 Confidential Page 6 of 17
Document Number BDTK20001-A02 Standard
