Printed in U.S.A.
LBI-38775D
Mobile Communications
MASTR III BASE STATION
SYSTEMS COMBINATION PACKAGE
TABLE OF CONTENTS
T/R SHELF . . . . . . . . . . . . . . . . . . . . . . . . . . LBI-38637
SYSTEM MODULE . . . . . . . . . . . . . . . . . . . . . LBI-38764
POWER MODULE . . . . . . . . . . . . . . . . . . . . . . LBI-38752
Maintenance Manual
Copyright© February 1992, Ericsson GE Mobile Communications Inc.
TABLE OF CONTENTS
Page
APPLICAT ION DIAGRAMS
37" Indoor Cabinet 19D902845P1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation of T/R Shelf 19D902845P2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation of SOR into T/R Shelf 19D902845P7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation of Data Module 19D902845P14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Coax Switch Assembly 19D902845P3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
37" Indoor Cabinet with Duplexer Shelf 19D902845P4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
37" Indoor Cabinet with Automobile Battery Emer. Power 19D902845P5 . . . . . . . . . . . . . . . . . . . . 9
37" Indoor Cabinet with Gel Cell Battery Emer. Power 19D902845P6 . . . . . . . . . . . . . . . . . . . . . . 10
69" Indoor Cabinet with One Station 19D902845P21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
37" & 69" Indoor Cabinet with Auxiliary Receiver 19D902845P8 . . . . . . . . . . . . . . . . . . . . . . . . . 17
69" Indoor Cabinet with GETC Shelf 19D902845P9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installation of Modem 19D902845P10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
37" & 69" Indoor Cabinet with Voice Guard GETC 19D902845P11 . . . . . . . . . . . . . . . . . . . . . . . . 19
37" & 69" Indoor Cabinet with Voice Guard E/D Shelf or VGE 19D902845P12 . . . . . . . . . . . . . . . . . 19
37" Indoor Cabinet with Voice Guard E/D Shelf 19D902845P13 . . . . . . . . . . . . . . . . . . . . . . . . . 19
EDACS Cabinet with One Station 19D902845P15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
EDACS Cabinet with Multi-Stations 19D902845P16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
EDACS Open Rack with Multi-Stations 19D902845P16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation of RIC Equipment 19D902845P23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Station Receiver Voting for RS232 19D902845P24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
EDACS Simulcast Station 19D902845P22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
45" Weather-Proof Cabinet 19D902845P25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MODEM Voting Installation 19D902845P26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
CNI Installation 19D902845P27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
HARNESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
INTRODUCTION
This manual contains information for the MASTR III Station including application information, cable diagrams and a parts list
for the cabinet hardware. For additional information refer to the following manuals:
LBI-38636 Installation How to install including Interconnection Diagrams.
LBI-39074 Installation Installation, Configuration and Checkout for EDACS Basic or Level 1 System.
LBI-38754 VHF RF Package Information on the VHF frequency equipment.
LBI-38675 UHF RF Package Information on the UHF frequency equipment.
LBI-39025 800 MHz RF Package Information on the 800 MHz frequency eq uipment.
LBI-38983 Antenna Systems Information on typical antenna system installations.
LBI-38812 EDACS System Panel Information on the panel used in EDACS applications.
LBI-38894 GETC Information on the GETC equipment.
LBI-38625 Charger/Emer. Power Information on the battery charge r a nd emergency power equipment.
APPLICATIONS
OPTION
NUMBER
APPLICATION
ASSEMBLY
DESCRIPTION
SXCAIS 19D902845P1 Installation of one MASTR III station in a 37" indoor cabinet.
SXRB1J 19D902845P2 Installation of T/R shelf for MASTR III station.
SXSU3A 19D902845P3 Installation of coax switch.
SXDU1J
SXDU1K
SXDU1M
19D902845P4 Installati on of VHF (150-162 MHz) duplexer.
Installation of VHF (162-174 MHz) duplexer.
Installation of UHF (450-470 MHz) duplexer.
SXCH1L/M 19D901845P5 Installation of battery charger with automobile battery emergency power in a
37" indoor cabinet.
SXCH1R
SXCH3A
19D902845P6 Installation of battery charger with Gel Cell battery emergency power in a 37" in-
door cabinet.
SXSU3D 19D902845P7 Installation of SOR Relay Kit.
SXMK3C 19D902845P8 Installation of auxiliary receiver in a 37" or 69" cabinet.
SXMD3J 19D902845P9 Installation of GETC shelf in a 69" indoor cabinet.
SXVG3E
SXVG3F
19D902845P11 Installation of GETC shelf for a E/E Voice Guard/Aegis repeater and remote/
repeater in a 37" or 69" indoor cabinet.
SXVV1N
SXVW1J
SXVV1M
19D902845P12 Installation of E/D module (non-1027 version) in a 37" or 69" indoor cabinet.
SXVG3C
SXVG3D
19D902845P13 Installation of E/D module (1027 version) in a 37" or 69" indoor cabinet.
SXDE5B 19D902845P14 Installation of transmit data board.
SXAP3K 19D902845P16 Installation of multi-station in a 69" or 83" indoor cabinet or open rail rack.
SXMNEY
SXMD3M
19D902845P21
19D902845P22
Installation in 69" indoor cabinet or open rail rack.
Installation of simulcast stations.
SXMD1S 19D902845P2 3 Installation and modification instructions for RIC telephone interconnect.
SXVT1B 19D902845P24 Modification for station receiver voting for RS-232.
19D902845P25 Installation in 45" weatherproof cabinet.
SXVT1L 19D902845P26 Modem Voting installation.
SXCP5T 19D902845P27 CNI installation.
LBI-38775
1
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P1
(19D902845, Sh. 1, Rev. 4)
LBI-38775
2
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 2, Rev. 2)
LBI-38775
3
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 3, Rev. 3)
MASTR III STATION
(19D902845, Sh. 3A, Rev. 2)
LBI-38775
4
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 5, Rev. 3)
MASTR III STATION
(19D902845, Sh. 4, Rev. 1)
LBI-38775
5
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P2, P7 & P14
(19D902845, Sh. 6, Rev. 5)
LBI-38775
6
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 7, Rev. 4)
LBI-38775
7
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P3
(19D902845, Sh. 8, Rev. 5)
MASTR III STATION
19D902854P4
(19D902845, Sh. 9, Rev. 3)
LBI-38775
8
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P5
(19D902845, Sh. 10, Rev. 1)
LBI-38775
9

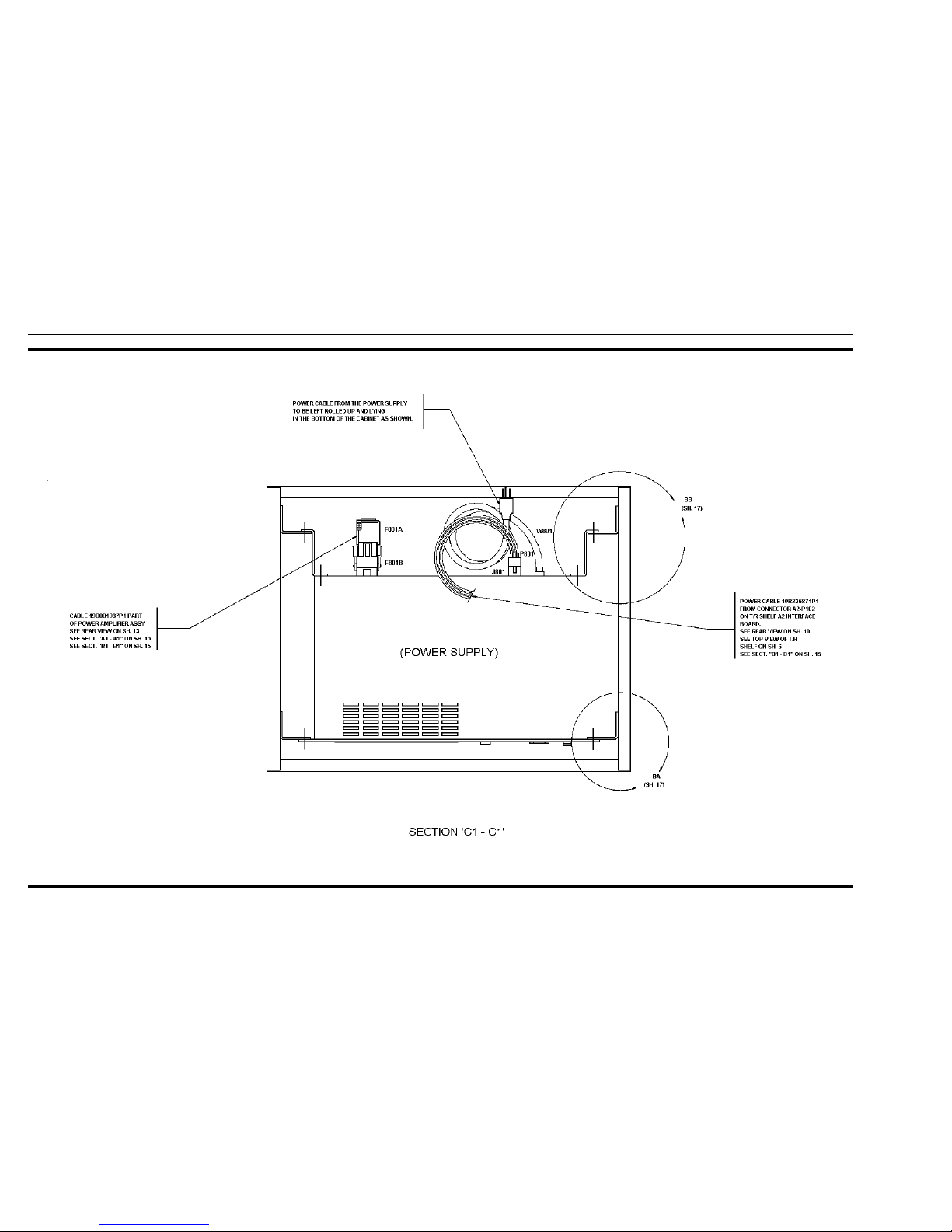

ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P6
(19D902845, Sh. 11, Rev. 1)
LBI-38775
10
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 12, Rev. 1)
LBI-38775
11
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P21
(19D902845, Sh. 13, Rev. 2)
LBI-38775
12
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 14, Rev. 3)
LBI-38775
13
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 15, Rev. 2)
LBI-38775
14
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845, Sh. 15A, Rev. 2)
LBI-38775
15
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 16, Rev. 1)
LBI-38775
16
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 17, Rev. 1)
MASTR III STATION
19D902845P8
(19D902845, Sh. 18, Rev. 2)
LBI-38775
17
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P9 & P10
(19D902845, Sh. 19, Rev. 4)
LBI-38775
18
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P11 - P13
(19D902845, Sh. 20, Rev. 4)
LBI-38775
19
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 21, Rev. 3)
LBI-38775
20
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P15
(19D902845, Sh. 22, Rev. 6)
LBI-38775
21
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P16
(19D902845, Sh. 23, Rev. 7)
LBI-38775
22
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P16
(19D902845, Sh. 23A, Rev. 4)
LBI-38775
23
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P16
(19D902845, Sh. 24, Rev. 5)
LBI-38775
24
ASSEMBLY DIAGRAM
MASTR III STATION
(19D902845, Sh. 25, Rev. 2)
LBI-38775
25
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P23
(19D902845, Sh. 26, Rev. 5)
LBI-38775
26
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P24
(19D902845, Sh. 27, Rev. 30)
LBI-38775
27
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P22
(19D902845, Sh. 28, Rev. 2)
LBI-38775
28
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P25
(19D902845, Sh. 29, Rev. 1)
LBI-38775
29
ASSEMBLY DIAGRAM
MASTR III STATION
19D902845P26 & P27
(19D902845, Sh. 30, Rev. 4)
LBI-38775
30
ASSEMBLY DIAGRAM
HARNESS
19C337792P1
(19C337792, Sh. 1, Rev.2), ( 19B803755, Sh.1, Rev. 3)
LBI-38775
31

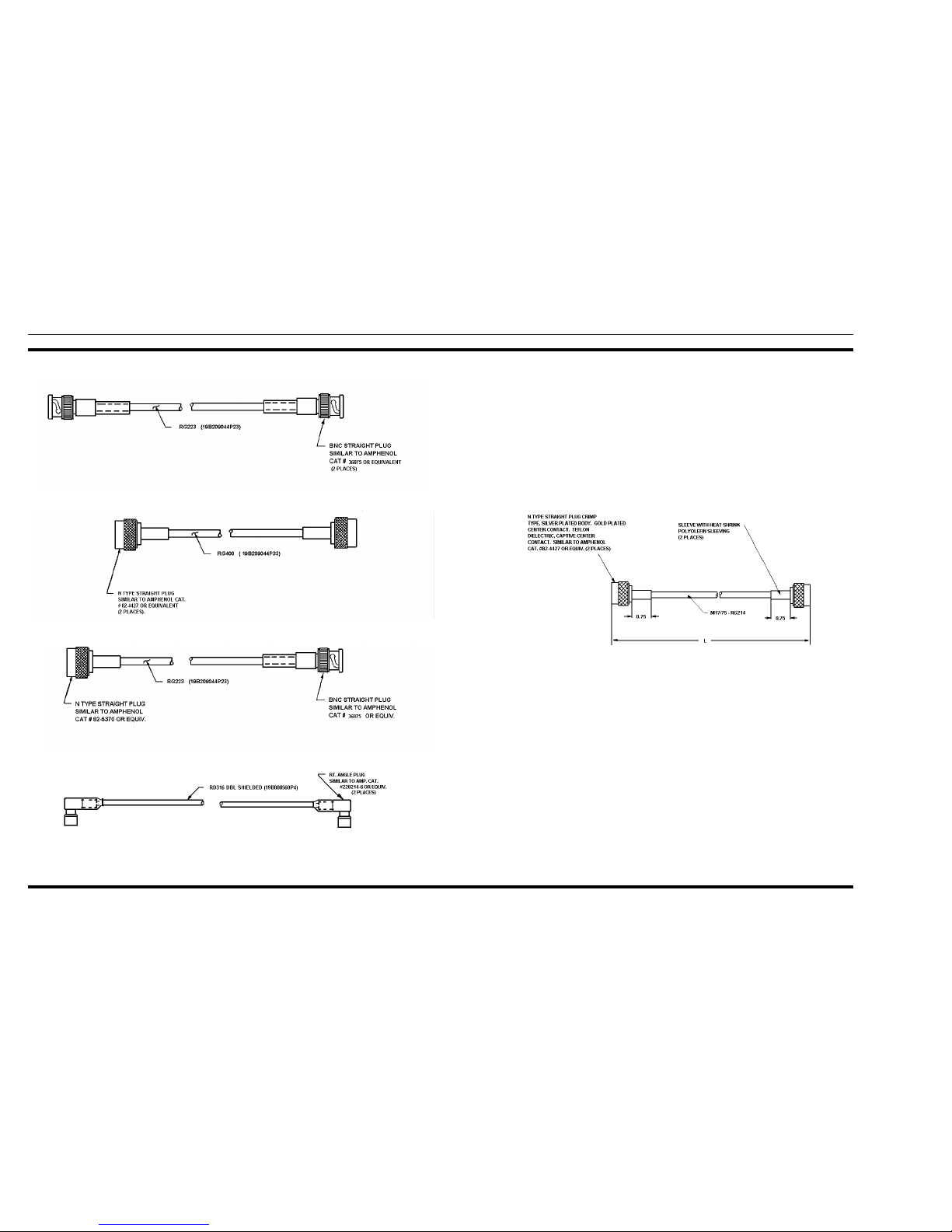

CABLE DIAGRAMS
19B801454P16
(19B801454, Sh. 10, Rev. 9)
19B801454P17 & P18
(19B801454, Sh. 11, Rev. 9)
19B801454P19 & P20
(19B801454, Sh. 12, Rev. 9)
19B801454P24
(19D801454, Sh. 15, Rev. 11)
19B801454P43
(19B801454, Sh. 23, Rev. 20
LBI-38775
32
CABLE DIAGRAMS
CONTROL CABLE ASSEMBLY (part of Power Amplifier) - 19B801739P1
(19B801739, Sh. 1, Rev. 2)
POWER CABLE (part of Power Amplif i er) - 19B801937P1
(19B80937, Sh. 1, Rev. 1)
19B235871P1
(19B235871, Sh. 1, Rev. 2)
344A3052P1
(344A3052, Sh. 1, Rev. 1)
LBI-38775
33
PART S L I S T
*COMPONENTS, ADDED, DELETED OR CHANGED BY PRODUCTION CHANGES
SYMBOL PART NO. DESCRIPTION
- - - - - - - 37" CABINET - - - - - -
19D902838P1 37-inch Cabinet.
19C852074P1 Equipment support rail (left side).
19C852074P2 Equipment support rail (right side).
344A3450G1 Hardware Kit.
344A3450G2 Hardware Kit.
19D902422P4 Rear Door.
19D902422P4 Front Door.
19J706152P5 Tie Strap.
5491682P4 Key, sim to Yale & Towne #BF-10A
5490407P29 Grommet.
- - - - - - - - 69" CABINET - - - - - - -
19D417358G3 69-inch Cabinet.
19D417623G2 Grill, Label.
19A130031G12 Hardware Kit.
19B226318P2 Plate.
19B801476P1 Cover.
19B801476P2 Cover.
19B209539P1 Lock, rim.
19B209539P2 Lock, rim.
19B209539P3 Key, lock, rim.
344A3450G21 Hardware Kit.
5490407P29 Grommet.
- - - - - - 83" CABINET - - - - - - -
19D902663G1 83-inch Cabinet.
19C337428G1 Door.
19C337428G2 Door.
19B801476P1 Cover.
19B801476P2 Cover.
19B209539P2 Lock, rim.
19B209239P2 Lock, rim.
19B209539P3 Key, lock, rim.
19B226318P2 Plate.
344A2450P21 Hardware Kit.
- - - - - - CABLES - - - - - - -
19B235871P1 Power Cable: Station Power Supply (J801) to
T/R Shelf (A2-P102).
19B801454P17 RF Cable: Low Pass Filter (J1) to Power
Amplifier (J104). Replaced by 19B801454P43.
19B801454P20 RF Cable: T/R Shelf (J2) to Duplexer Shelf (J2)
(Used when Duplexer is installed).
19B801454P19 RF Cable: T/R Shelf (J2) to Antenna Switch
(J2).
19B801454P16 RF Cable: T/R Shelf (J1) to Power Amplifier
(J101).
19B801454P43 RF Cable: Low Pass Filter (J1) to Power
Amplifier (J104).
MASTR III STATION
ISSUE 2
LBI-38775
34
This page intentionally left blank
