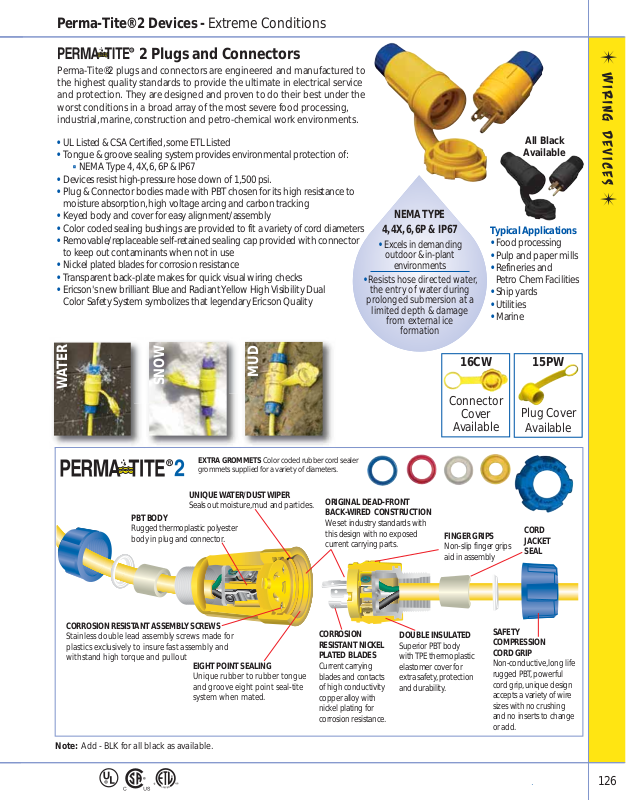

Ericson Perma-Tite 2 Devices Catalog Page
126
Perma-Tite® 2 Devices - Extreme Conditions
2 Plugs and Connectors
Perma-Tite®2 plugs and connectors are engineered and manufactured to
the highest quality standards to provide the ultimate in electrical service
and protection. They are designed and proven to do their best under the
worst conditions in a broad array of the most severe food processing,
industrial, marine, construction and petro-chemical work environments.
Typical Applica tions
• Food processing
• Pulp and paper mills
• Refineries and
Petr
o Chem Facilities
• Ship yards
• Utilities
• Marine
EXTRA GROMMETS Color coded rubber cord sealer
grommets supplied for a variety of diameters.
UNIQUE WATER/DUST WIPER
Seals out moisture, mud and particles.
ORIGINAL DEAD-FRONT
BACK-WIRED CONSTRUCTION
We set industry standards with
this design with no exposed
current carrying parts.
CORROSION RESISTANT ASSEMBLY SCREWS
Stainless double lead assembly screws made for
plastics exclusively to insure fast assembly and
withstand high torque and pullout
PBT BODY
Rugged thermoplastic polyester
body in plug and connector.
CORROSION
RESISTANT NICKEL
PLA TED BLADES
Current carrying
blades and contacts
of high conductivity
copper alloy with
nickel plating for
corrosion resistance.
FINGER GRIPS
Non-slip finger grips
aid in assembly
CORD
JACKET
SEAL
SAFETY
COMPRESSION
CORD GRIP
Non-conductive, long life
rugged PBT, powerful
cord grip, unique design
accepts a variety of wire
sizes with no crushing
and no inserts to change
or add.
EIGHT POINT SEALING
Unique rubber to rubber tongue
and groove eight point seal-tite
system when mated.
DOUBLE INSULA TED
Superior PBT body
with TPE thermoplastic
elastomer cover for
extra safety, protection
and durability.
• UL Listed & CSA Certified, some ETL Listed
• Tongue & gr oove sealing system provides environmental prot ection of:
· NEMA Type 4, 4X, 6, 6P & IP67
• Devices resist high-pressure hose down of 1,500 psi.
• Plug & Connector bodies made with PBT chosen for its high resistance to
moisture absorption,
high voltage arcing and carbon tracking
• Keyed body and cover for easy alignment/assembly
• Color coded sealing bushings are provided to fit a variety of cord diamet ers
• Removable/replaceable self-retained sealing cap provided with connector
to k
eep out contaminants when not in use
• Nickel plated blades for corrosion resistance
• Transparent back-plate makes f or quick visual wiring checks
• Ericson's new brilliant Blue and Radiant Yellow High Visibility Dual
Color Saf
ety System symbolizes that legendary Ericson Quality
NEMA TYPE
4,
4X, 6, 6P & IP67
• Excels in demanding
outdoor & in-plant
environments
• Resists hose directed water,
the entry of water during
prolonged submersion at a
limited depth & damage
from external ice
formation
WATER
SNOW
MUD
15PW
Plug Cover
Available
16CW
Connector
Cover
Available
All Black
Available
Note: Add - BLK for all black as available.
