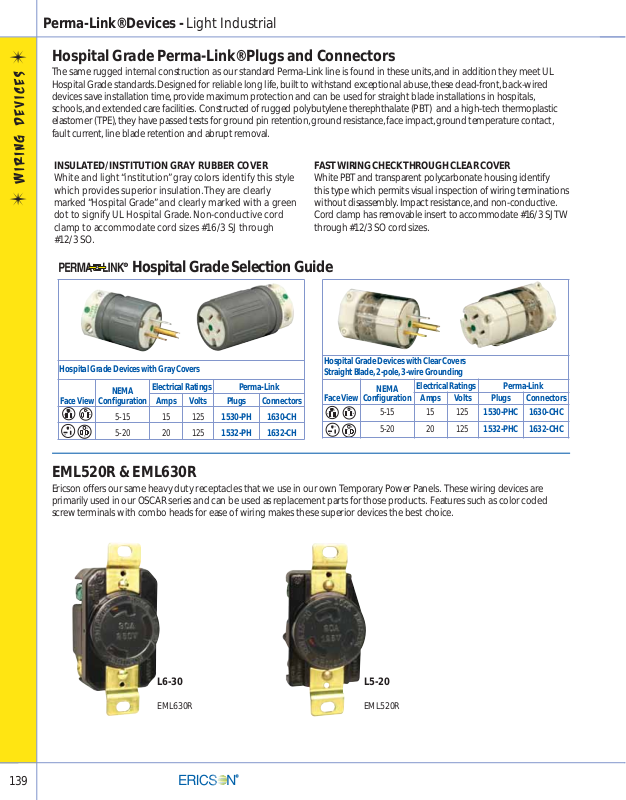

Ericson Perma-Link Devices Catalog Page

L6-30

EML630R

L5-20

EML520R

139

Perma-Link® Devices - Light Industrial

Hospital Grade Selection Guide

INSULATED/INSTITUTION GRAY RUBBER COVER

White and light “institution” gray colors identify this style
which provides superior insulation. They are clearly
marked “Hospital Grade” and clearly marked with a green
dot to signify UL Hospital Grade. Non-conductive cord
clamp to accommodate cord sizes #16/3 SJ through
#12/3 SO.

F AST WIRING CHECK THROUGH CLEAR COVER

White PBT and transparent polycarbonate housing identify
this type which permits visual inspection of wiring terminations
without disassembly. Impact resistance, and non-conductive.
Cord clamp has removable insert to accommodate #16/3 SJTW
through #12/3 SO cord sizes.

Hospital Grade Perma-Link®Plugs and Connectors

The same rugged internal construction as our standard Perma-Link line is found in these units, and in addition they meet UL
Hospital Grade standards. Designed for reliable long life, built to withstand exceptional abuse, these dead-front, back-wired
devices save installation time, provide maximum protection and can be used for straight blade installations in hospitals,
schools, and extended care facilities. Constructed of rugged polybutylene therephthalate (PBT) and a high-tech thermoplastic
elastomer (TPE), they have passed tests for ground pin ret ention, ground resistance, face impact, ground temperature contact,
fault current, line blade retention and abrupt removal.

EML520R & EML630R

Ericson offers our same heavy duty receptacles that we use in our own Temporary Power Panels. These wiring devices are
primarily used in our OSCAR series and can be used as replacement parts for those products. Features such as color coded
screw terminals with combo heads for ease of wiring makes these superior devices the best choice.

Hospital Grade Devices with Gray Covers

Face View

NEMA

Configuration

Electrical Ratings Perma-Link

Amps Volts Plugs Connectors

5-15 15 125 1530-PH 1630-CH
5-20 20 125 1532-PH 1632-CH

Hospital Grade Devices with Clear Covers
Straight Blade, 2-pole, 3-wire Grounding

Face View

NEMA

Configuration

Electrical Ratings Perma-Link

Amps Volts Plugs Connectors

5-15 15 125 1530-PHC 1630-CHC
5-20 20 125 1532-PHC 1632-CHC
