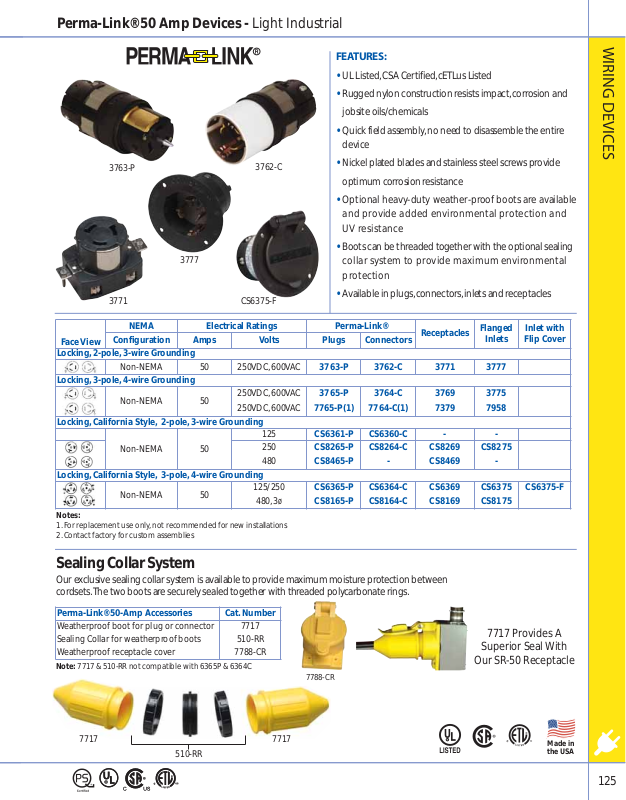

Perma-Link® 50 Amp Devices - Light Industrial
WIRING DEVICES
FEATURES:
• UL Listed, CSA Certified, cETLus Listed
• Rugged nylon construction resists impact, corrosion and
jobsite oils/chemicals
• Quick field assembly, no need to disassemble the entire
device
• Nickel plated blades and stainless steel screws provide
optimum corrosion resistance
• Optional heavy-duty weather-proof boots are available
and provide added environmental protection and
UV resistance
• Boots can be threaded together with the optional sealing
collar system to provide maximum environmental
protection
• Available in plugs, connectors, inlets and receptacles
Notes:
1. For replacement use only, not recommended for new installations
2. Contact factory for custom assemblies
Face View
NEMA Electrical Ratings Perma-Link®
Receptacles
Flanged
Inlets
Inlet with
Flip Cover
Configuration Amps Volts Plugs Connectors
Locking, 2-pole, 3-wire Grounding
Non-NEMA 50 250VDC, 600VAC 3763-P 3762-C 3771 3777
Locking, 3-pole, 4-wire Grounding
Non-NEMA 50
250VDC, 600VAC 3765-P 3764-C 3769 3775
250VDC, 600VAC 7765-P(1) 7764-C(1) 7379 7958
Locking, California Style, 2-pole, 3-wire Grounding
Non-NEMA 50
125 CS6361-P CS6360-C - -
250 CS8265-P CS8264-C CS8269 CS8275
480 CS8465-P - CS8469 -
Locking, California Style, 3-pole, 4-wire Grounding
Non-NEMA 50
125/250 CS6365-P CS6364-C CS6369 CS6375 CS6375-F
480, 3
ø
CS8165-P CS8164-C CS8169 CS8175
7717
510-RR
7717
Note: 7717 & 510-RR not compatible with 6365P & 6364C
7788-CR
Perma-Link® 50-Amp Accessories Cat. Number
Weatherproof boot for plug or connector 7717
Sealing Collar for weatherproof boots 510-RR
Weatherproof receptacle cover 7788-CR
7717 Provides A
Superior Seal With
Our SR-50 Receptacle
3763-P
3762-C
3777
3771
CS6375-F
Sealing Collar System
Our exclusive sealing collar system is available t o provide maximum moisture protection between
cordsets. T he two boots are securely sealed together with threaded polycarbonate rings.
