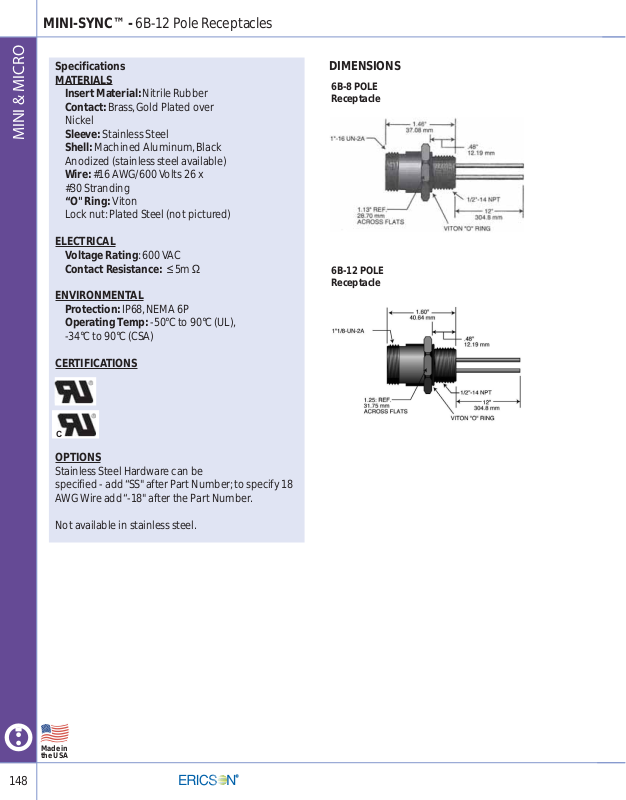

Ericson MINI-SYNC Specifications

148

MINI-SYNC™ - 6B-12 Pole Receptacles

Made in
the USA

MINI & MICRO

Specifications
MATERIALS

Insert Material: Nitrile Rubber
Contact: Brass, Gold Plated over

Nickel

Sleeve:Stainless Steel
Shell: Machined Aluminum, Black

Anodized (stainless steel available)
Wire: #16 AWG/600 Volts 26 x
#30 Stranding
“O" Ring:Viton
Lock nut: Plated Steel (not pictured)

ELECTRICAL

Voltage Rating: 600 VAC
Contact Resistance: ≤5m Ω

ENVIRONMENTAL

Protection: IP68, NEMA 6P
Operating T emp:-50°C to 90°C (UL),

-34°C to 90°C (CSA)

CERTIFICATIONS

OPTIONS

Stainless Steel Hardware can be
specified - add “SS" after Part Number; to specify 18
AWG Wire add “-18" after the Part Number.

Not available in stainless steel.

C

DIMENSIONS

6B-12 POLE
Receptacle

6B-8 POLE
Receptacle

149

MINI-SYNC™ - 6B-12 Pole Receptacles

Made in
the USA

MINI & MICRO

Poles Face View Rating Wiring Code

Overall Length

(ft./m)

Male Straight

Receptacle

12 in. Leads

Female Straight

Receptacle

12 in. Leads

6 B

Size

8A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

7-Green

12 inches 86BMRC 86BFRC

8

8A 1-White

600V 2-Red

3-Green

5-Black

4-Orange

6-Blue

7-Green

8-White-Blk.Tr.

12 inches 88MRC 88FRC

9

7A 1-Orange

600V 2-Blue

3-Red-Blk.Tr .

4-Green-Blk.Tr .

5-White

6-Red

7-Green

8-White-Blk.Tr.

9-Black

12 inches 89MRC 89FRC

10

7A 1-Orange

600V 2-Blue

3-White-Blk.Tr.

4-Red-Blk.Tr .

5-Green-Blk.Tr .

6-Orange-Blk.Tr .

7-Red

8-Green

9-Black

10-White

12 inches 810MRC 810FRC

12

7A 1-Orange

600V 2-Blue

3-White-Blk.Tr.

4-Red-Blk.Tr .

5-Green-Blk.Tr .

6-Orange-Blk.Tr .

7-Blue-Blk.Tr .

8-Black-Wht.Tr .

9-Green

10-Red

11-White

12-Black

12 inches 812MRC 812FRC
