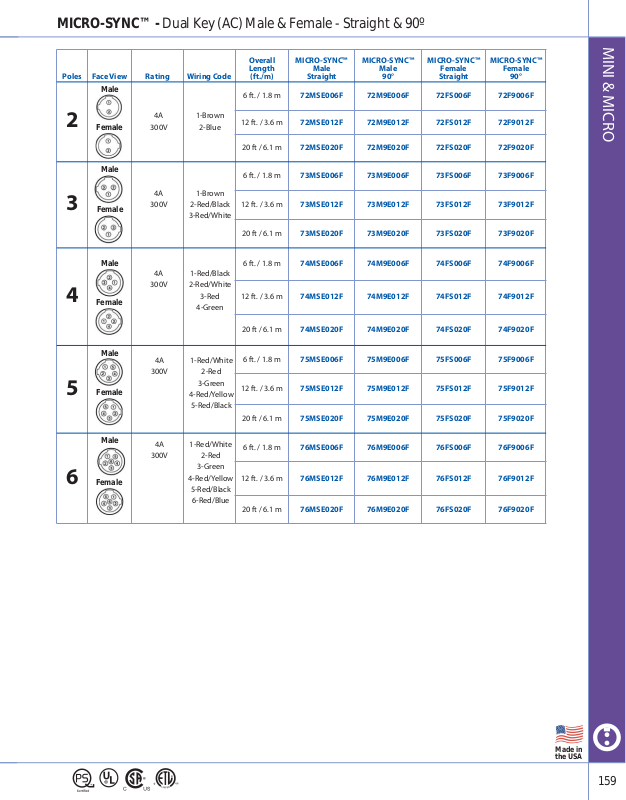

MICRO-SYNC™ - Dual Key (AC) Male & Female - Straight & 90º
Made in
the USA
MINI & MICRO
Poles Face View Rating Wiring Code
Overall
Length
(ft./m)
MICRO-SYNC™
Male
Straight
MICRO-SYNC™
Male
90°
MICRO-SYNC™
Female
Straight
MICRO-SYNC™
Female
90°
2
4A 1-Brown
300V 2-Blue
6 ft. / 1.8 m 72MSE006F 72M9E006F 72FS006F 72F9006F
12 ft. / 3.6 m 72MSE012F 72M9E012F 72FS012F 72F9012F
20 ft / 6.1 m 72MSE020F 72M9E020F 72FS020F 72F9020F
3
4A 1-Brown
300V 2-Red/Black
3-Red/White
6 ft. / 1.8 m 73MSE006F 73M9E006F 73FS006F 73F9006F
12 ft. / 3.6 m 73MSE012F 73M9E012F 73FS012F 73F9012F
20 ft / 6.1 m 73MSE020F 73M9E020F 73FS020F 73F9020F
4
4A 1-Red/Black
300V 2-Red/White
3-Red
4-Green
6 ft. / 1.8 m 74MSE006F 74M9E006F 74FS006F 74F9006F
12 ft. / 3.6 m 74MSE012F 74M9E012F 74FS012F 74F9012F
20 ft / 6.1 m 74MSE020F 74M9E020F 74FS020F 74F9020F
5
4A 1-Red/White
300V 2-Red
3-Green
4-Red/Yellow
5-Red/Black
6 ft. / 1.8 m 75MSE006F 75M9E006F 75FS006F 75F9006F
12 ft. / 3.6 m 75MSE012F 75M9E012F 75FS012F 75F9012F
20 ft / 6.1 m 75MSE020F 75M9E020F 75FS020F 75F9020F
6
4A 1-Red/White
300V 2-Red
3-Green
4-Red/Yellow
5-Red/Black
6-Red/Blue
6 ft. / 1.8 m 76MSE006F 76M9E006F 76FS006F 76F9006F
12 ft. / 3.6 m 76MSE012F 76M9E012F 76FS012F 76F9012F
20 ft / 6.1 m 76MSE020F 76M9E020F 76FS020F 76F9020F
Male
Female
Male
Female
Male
Female
Male
Female
Male
Female
