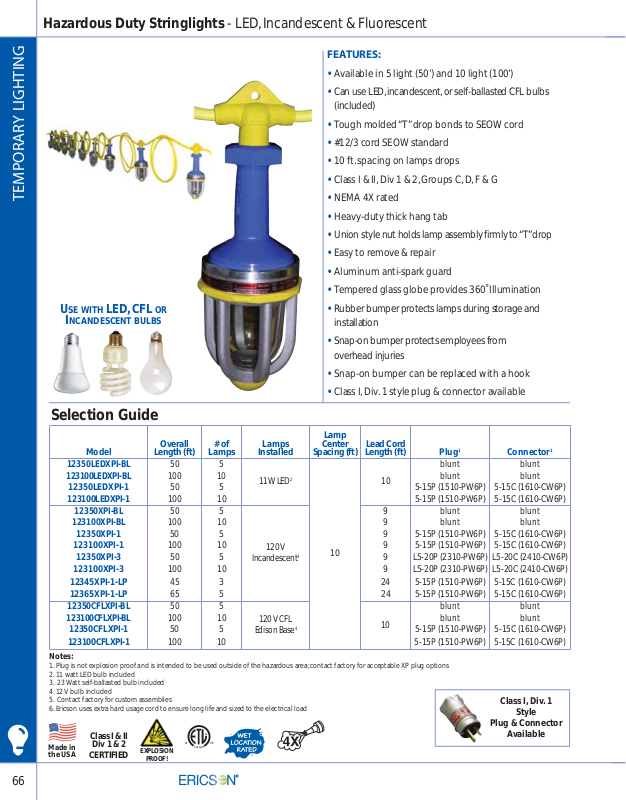

Ericson Hazardous Duty Stringlights Catalog Page
66
Hazardous Duty Stringlights - LED, Incandescent & Fluorescent
Selection Guide
Class I, Div. 1
Style
Plug & Connector
Available
TEMPORARY LIGHTING
USE WITH LED, CFL OR
INCANDESCENT BULBS
FEATURES:
• Available in 5 light (50’) and 10 light (100’)
• Can use LED, incandescent, or self-ballasted CFL bulbs
(included)
• Tough molded “T ” drop bonds to SEOW cord
• #12/3 cord SEOW standard
• 10 ft. spacing on lamps drops
• Class I & II, Div 1 & 2, Groups C, D, F & G
• NEMA 4X rated
• Heavy-duty thick hang tab
• Union style nut holds lamp assembly firmly to “T” dr op
• Easy to remove & repair
• Aluminum anti-spark guard
• Tempered glass globe provides 360˚Illumination
• Rubber bumper protects lamps during storage and
installation
• Snap-on bumper protects employees from
overhead injuries
• Snap-on bumper can be replaced with a hook
• Class I, Div. 1 style plug & connector available
Made in
the USA
Notes:
1. Plug is not explosion proof and is intended to be used outside of the hazardous area; contact factory for acceptable XP plug options
2. 11 watt LED bulb included
3. 23 Watt self-ballasted bulb included
4. 12 V bulb included
5. Contact factory for custom assemblies
6. Ericson uses extra hard usage cord to ensure long life and sized to the electrical load
Model
Overall
Length (ft)
# of
Lamps
Lamps
Installed
Lamp
Center
Spacing (ft)
Lead Cord
Length (ft)
Plug
1
Connector
1
12350LEDXPI-BL
50
5
11W LED
2
10
10
blunt
blunt
123100LEDXPI-BL
100
10
blunt
blunt
12350LEDXPI-1
50
5
5-15P (1510-PW6P)
5-15C (1610-CW6P)
123100LEDXPI-1
100
10
5-15P (1510-PW6P)
5-15C (1610-CW6P)
12350XPI-BL
50
5
120 V
Incandescent
3
9
blunt
blunt
123100XPI-BL
100
10
9
blunt
blunt
12350XPI-1
50
5
9
5-15P (1510-PW6P)
5-15C (1610-CW6P)
123100XPI-1
100
10
9
5-15P (1510-PW6P)
5-15C (1610-CW6P)
12350XPI-3
50
5
9
L5-20P (2310-PW6P)
L5-20C (2410-CW6P)
123100XPI-3
100
10
9
L5-20P (2310-PW6P)
L5-20C (2410-CW6P)
12345XPI-1-LP
45
3
24
5-15P (1510-PW6P)
5-15C (1610-CW6P)
12365XPI-1-LP
65
5
24
5-15P (1510-PW6P)
5-15C (1610-CW6P)
12350CFLXPI-BL
50
5
120 VCFL
Edison Base
4
10
blunt
blunt
123100CFLXPI-BL
100
10
blunt
blunt
12350CFLXPI-1
50
5
5-15P (1510-PW6P)
5-15C (1610-CW6P)
123100CFLXPI-1
100
10
5-15P (1510-PW6P)
5-15C (1610-CW6P)
EXPLOSION
PROOF!
Class I & II
Div 1 & 2
CERTIFIED
