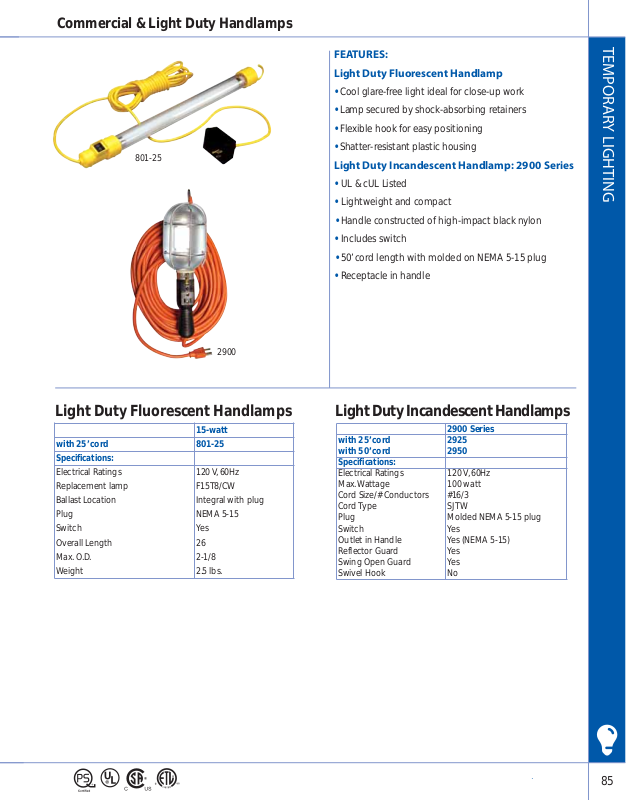

Ericson FS Series Catalog Page

85

Commercial & Light Duty Handlamps

TEMPORARY LIGHTING

Light Duty Incandescent Handlamps

2900 Series
with 25’ cord 2925
with 50’ cord 2950

Specifications:

Electrical Ratings 120 V, 60Hz
Max. Wattage 100 watt
Cord Size/# Conductors #16/3
Cord Type SJTW
Plug Molded NEMA 5-15 plug
Switch Yes
Outlet in Handle Yes (NEMA 5-15)
Reflector Guard Yes
Swing Open Guard Yes
Swivel Hook No

Light Duty Fluorescent Handlamps

15-watt

with 25’ cord 801-25

Specifications:

Electrical Ratings 120 V, 60Hz
Replacement lamp F15T8/CW
Ballast Location Integral with plug
Plug NEMA 5-15
Switch Yes
Overall Length 26
Max. O.D. 2-1/8
Weight 2.5 lbs.

801-25

2900

FEATURES:

Light Duty Fluorescent Handlamp

• Cool glare-free light ideal for close-up work

• Lamp secured by shock-absorbing retainers

• Flexible hook for easy positioning

• Shatter-resistant plastic housing

Light Duty Incandescent Handlamp: 2900 Series

• UL & cUL Listed

• Lightweight and compact

• Handle constructed of high-impact black nylon

• Includes switch

• 50’ cord length with molded on NEMA 5-15 plug

• Receptacle in handle
