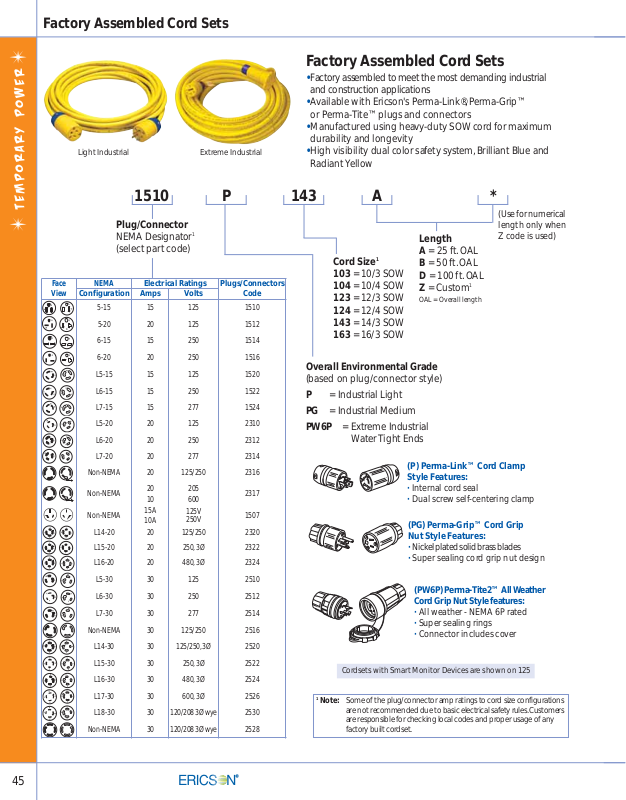

Ericson Factory Assembled Cord Sets Catalog Page

45

Factory Assembled Cord Sets

Factory Assembled Cord Sets

•Factory assembled to meet the most demanding industrial

and construction applications

•Available with Ericson's Perma-Link®, Perma-Grip™

or P

erma-Tite™ plugs and connectors

•Manufactured using heavy-duty SOW cord for maximum

dur

ability and longevity

•High visibility dual color safety system, Brilliant Blue and

Radiant Yellow

Light Industrial Extreme Industrial

1510

P

143 A *

(Use for numerical
length only when
Z code is used)

Cord S i z e

1

103 = 10/3 SOW
104 = 10/4 SOW
123 = 12/3 SOW
124 = 12/4 SOW
143 = 14/3 SOW
163 = 16/3 SOW

Length
A = 25 ft. OAL
B = 50 ft. OAL
D = 100 ft. OAL
Z = Custom

1

OAL = Overall length

Overall Environmental Grade

(based on plug/connector style)

P = Industrial Light
PG = Industrial Medium
PW6P = Extreme Industrial

Water Tight Ends

1

Note: Some of the plug/connector amp ratings to cord size configurations

are not recommended due to basic electrical safety rules. Customers
are responsible for checking local codes and proper usage of any
factory built cordset.

Cordsets with Smart Monitor Devices are shown on 125

(PW6P) Perma-Tite2™ All Weather
Cord Grip Nut Style features:

· All weather - NEMA 6P rated

· Super sealing rings

· Connector includes cover

(PG) Perma-Grip™ Cord Grip
Nut St

yle Features:

· Nickel plated solid brass blades

· Super sealing cord grip nut design

(P) Perma-Link™ Cord Clamp
St

yle Features:

· Internal cord seal

· Dual screw self-centering clamp

Plug/Connector

NEMA Designator

1

(select part code)

Face

View

NEMA

Electrical Ratings

Plugs/Connectors

Code

Configuration Amps Volts

5-15

15

125

1510

5-20

20

125

1512

6-15

15

250

1514

6-20

20

250

1516

L5-15

15

125

1520

L6-15

15

250

1522

L7-15

15

277

1524

L5-20

20

125

2310

L6-20

20

250

2312

L7-20

20

277

2314

Non-NEMA

20

125/250

2316

Non-NEMA

20
10

205
600

2317

Non-NEMA

15A
10A

125V
250V

1507

L14-20

20

125/250

2320

L15-20

20

250, 3Ø

2322

L16-20

20

480, 3Ø

2324

L5-30

30

125

2510

L6-30

30

250

2512

L7-30

30

277

2514

Non-NEMA

30

125/250

2516

L14-30

30

125/250, 3Ø

2520

L15-30

30

250, 3Ø

2522

L16-30

30

480, 3Ø

2524

L17-30

30

600, 3Ø

2526

L18-30

30

120/208 3Øwye

2530

Non-NEMA

30

120/208 3Øwye

2528
