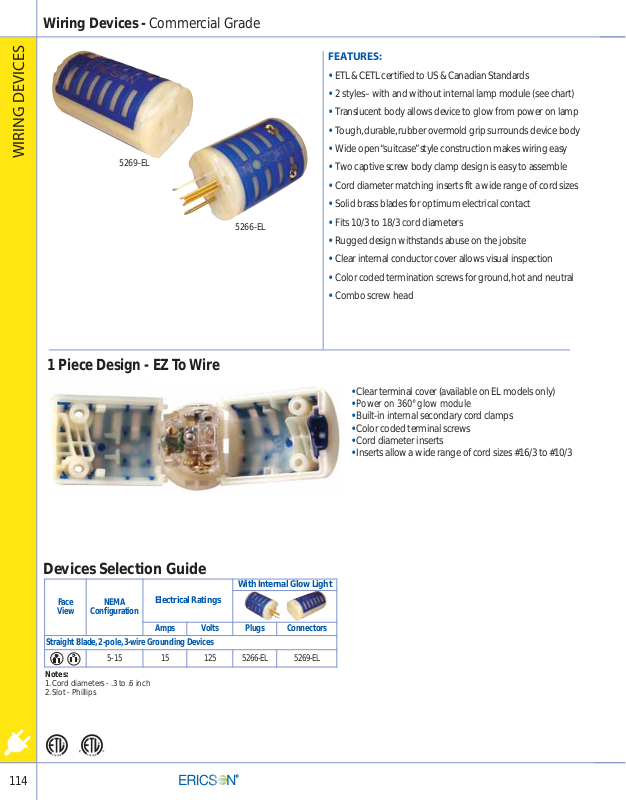

FEATURES:
• ETL & CETL certified to US & Canadian Standards
• 2 styles– with and without internal lamp module (see chart)
• Translucent body allows devic e to glow from power on lamp
• Tough, durable , rubber overmold grip surrounds device body
• Wide open “suitcase ” style construction makes wiring easy
• Two captive screw body clamp design is easy to assemble
• Cord diameter matching inserts fit a wide range of cord sizes
• Solid brass blades for optimum electrical contact
• Fits 10/3 to 18/3 cord diameters
• Rugged design withstands abuse on the jobsite
• Clear internal conductor cover allows visual inspection
• Color coded termination screws for ground, hot and neutral
• Combo screw head
Devices Selection Guide
Face
View
NEMA
Configuration
Electrical Ratings
With Internal Glow Light
Amps Volts Plugs Connectors
Straight Blade, 2-pole, 3-wir e Gr ounding De vic es
5-15 15 125 5266-EL 5269-EL
5266-EL
5269-EL
Notes:
1. Cord diameters - .3 to .6 inch
2. Slot - Phillips
1 Piece Design - EZ To Wire
114
Wiring Devices - Commercial Grade
WIRING DEVICES
• Clear terminal cover (available on EL models only)
•
Power on 360° glow module
• Built-in internal secondary cord clamps
• Color coded terminal screws
• Cord diameter inserts
• Inserts allow a wide range of cord sizes #16/3 to #10/3
