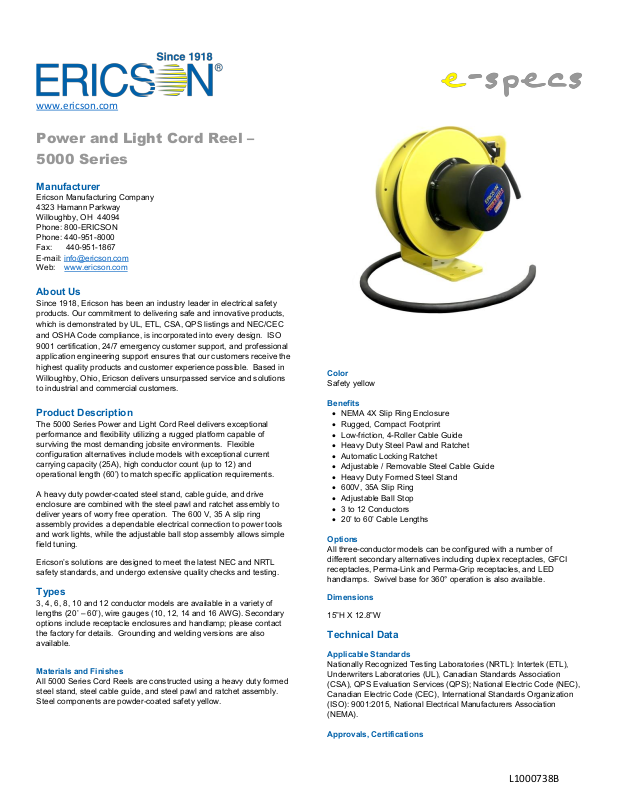

Ericson 5000 Series Data Sheet

www.ericson.com

Power and Light Cord Reel –

5000 Series

Manufacturer

Ericson Manufacturing Company
4323 Hamann Parkway
Willoughby, OH 44094
Phone: 800-ERICSON
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Web: www.ericson.com

About Us

Since 1918, Ericson has been an industry leader in electrical safety
products. Our commitment to delivering safe and innovative products,
which is demonstrated by UL, ETL, CSA, QPS listings and NEC/CEC
and OSHA Code compliance, is incorporated into every design. ISO
9001 certification, 24/7 emergency customer support, and professional
application engineering support ensures that our customers receive the
highest quality products and customer experience possible. Based in
Willoughby, Ohio, Ericson delivers unsurpassed service and solutions
to industrial and commercial customers.

Product Description

The 5000 Series Power and Light Cord Reel delivers exceptional
performance and flexibility utilizing a rugged platform capable of
surviving the most demanding jobsite environments. Flexible
configuration alternatives include models with exceptional current
carrying capacity (25A), high conductor count (up to 12) and
operational length (60’) to match specific application requirements.

A heavy duty powder-coated steel stand, cable guide, and drive
enclosure are combined with the steel pawl and ratchet assembly to
deliver years of worry free operation. The 600 V, 35 A slip ring
assembly provides a dependable electrical connection to power tools
and work lights, while the adjustable ball stop assembly allows simple
field tuning.

Ericson’s solutions are designed to meet the latest NEC and NRTL
safety standards, and undergo extensive quality checks and testing.

Types

3, 4, 6, 8, 10 and 12 conductor models are available in a variety of
lengths (20’ – 60’), wire gauges (10, 12, 14 and 16 AWG). Secondary
options include receptacle enclosures and handlamp; please contact
the factory for details. Grounding and welding versions are also
available.

Materials and Finishes

All 5000 Series Cord Reels are constructed using a heavy duty formed
steel stand, steel cable guide, and steel pawl and ratchet assembly.
Steel components are powder-coated safety yellow.

Color

Safety yellow

Benefits

 NEMA 4X Slip Ring Enclosure
 Rugged, Compact Footprint
 Low-friction, 4-Roller Cable Guide
 Heavy Duty Steel Pawl and Ratchet
 Automatic Locking Ratchet
 Adjustable / Removable Steel Cable Guide
 Heavy Duty Formed Steel Stand
 600V, 35A Slip Ring
 Adjustable Ball Stop
 3 to 12 Conductors
 20’ to 60’ Cable Lengths

Options

All three-conductor models can be configured with a number of
different secondary alternatives including duplex receptacles, GFCI
receptacles, Perma-Link and Perma-Grip receptacles, and LED
handlamps. Swivel base for 360° operation is also available.

Dimensions

15”H X 12.8”W

Technical Data

Applicable Standards

Nationally Recognized Testing Laboratories (NRTL): Intertek (ETL),
Underwriters Laboratories (UL), Canadian Standards Association
(CSA), QPS Evaluation Services (QPS); National Electric Code (NEC),
Canadian Electric Code (CEC), International Standards Organization
(ISO): 9001:2015, National Electrical Manufacturers Association
(NEMA).

Approvals, Certifications

L1000738B

UL, CSA

Model Length Wire Gauge Cable Type Electrical Rating

5163-20 20 16/3 SOW 600V / 10A
5164-20 20 16/4 SOW 600V / 8A
5166-20 20 16/6 SOW 600V / 8A
5168-20 20 16/8 SOW 600V / 7A
51610-20 20 16/10 SOW 600V / 5A
51612-20 20 16/12 SOW 600V / 5A
5163-30 30 16/3 SOW 600V / 10A
5164-30 30 16/4 SOW 600V / 8A
5166-30 30 16/6 SOW 600V / 8A
5168-30 30 16/8 SOW 600V / 7A
51610-30 30 16/10 SOW 600V / 5A
51612-30 30 16/12 SOW 600 V / 5A
5163-40 40 16/3 SOW 600V / 10A
5164-40 40 16/4 SOW 600V / 8A
5166-40 40 16/6 SOW 600V / 8A
5168-40 40 16/8 SOW 600V / 7A
51610-40 40 10/10 SOW 600V / 5A
51612-40 40 16/12 SOW 600V / 5A
5163-50 50 16/3 SOW 600V / 10A
5164-50 50 16/4 SOW 600V / 8A
5166-50 50 16/6 SOW 600V / 8A
5168-50 50 16/8 SOW 600V / 7A
5163-60 60 16/3 SOW 600V / 10A
5164-60 60 16/4 SOW 600V / 8A

5143-20 20 14/3 SOW 600V / 15A
5144-20 20 14/4 SOW 600V / 12A
5146-20 20 14/6 SOW 600V / 12A
5148-20 20 14/8 SOW 600V / 10.5A
51410-20 20 14/10 SOW 600V / 7.5A
5143-30 30 14/3 SOW 600V / 15A
5144-30 30 14/4 SOW 600V / 12A
5146-30 30 14/6 SOW 600V / 12A
5148-30 30 14/8 SOW 600V / 10.5A
5143-40 40 14/3 SOW 600V / 15A
5144-40 40 14/4 SOW 600V / 12A
5146-40 40 14/6 SOW 600V / 12A
5143-50 50 14/3 SOW 600V / 15A
5144-50 50 14/4 SOW 600V / 12A
5146-50 50 14/6 SOW 600V / 12A
5143-60 60 14/3 SOW 600V / 15A
5144-60 60 14/4 SOW 600V / 12A

5123-20 20 12/3 SOW 600V / 20A
5124-20 20 12/4 SOW 600V / 16A
5126-20 20 12/6 SOW 600V / 16A
5128-20 20 12/8 SOW 600V / 14A
5123-30 30 12/3 SOW 600V / 20A
5124-30 30 12/4 SOW 600V / 16A
5126-30 30 12/6 SOW 600V / 16A
5123-40 40 12/3 SOW 600V / 20A
5124-40 40 12/4 SOW 600V / 16A
5123-50 50 12/3 SOW 600V / 20A
5124-50 50 12/4 SOW 600V / 16A
5123-60 60 12/3 SOW 600V / 20A

5103-20 20 10/3 SOW 600V / 25A
5104-20 20 10/4 SOW 600V / 20A
5106-20 20 10/6 SOW 600V / 20A
5103-30 30 10/3 SOW 600V / 25A
5104-30 30 10/4 SOW 600V / 20A
5106-30 30 10/6 SOW 600V / 20A
5103-40 40 10/3 SOW 600V / 25A
5104-40 40 10/4 SOW 600V / 20A
5103-50 50 10/3 SOW 600V / 25A
5104-50 50 10/4 SOW 600V / 20A

Technical Properties

L1000738B

Installation

Methods

Use Ericson recommended secondary devices to ensure proper, safe
operation. All secondary devices and assembly should comply with
NEC Standards.

Precautions

The 5000 Series Cord Reel must be connected to the proper power
source, and wired according to local standards by a qualified
electrician.

A correct and matching plug must be used and connected by a
qualified electrician when applicable.

The safety earth ground must be connected and cannot be a
combination of neutral and ground wire.

Availability and Cost

The 5000 Series Cord Reel is available in the United States and
Canada through electrical distribution partners.

Maintenance

No special maintenance is required.

Technical Services

Technical assistance, including detailed information, product literature,
assistance in configuring temporary power and lighting systems or
installation advice is available by contacting Ericson Manufacturing
Company.

Filing Systems: UL, CSA
