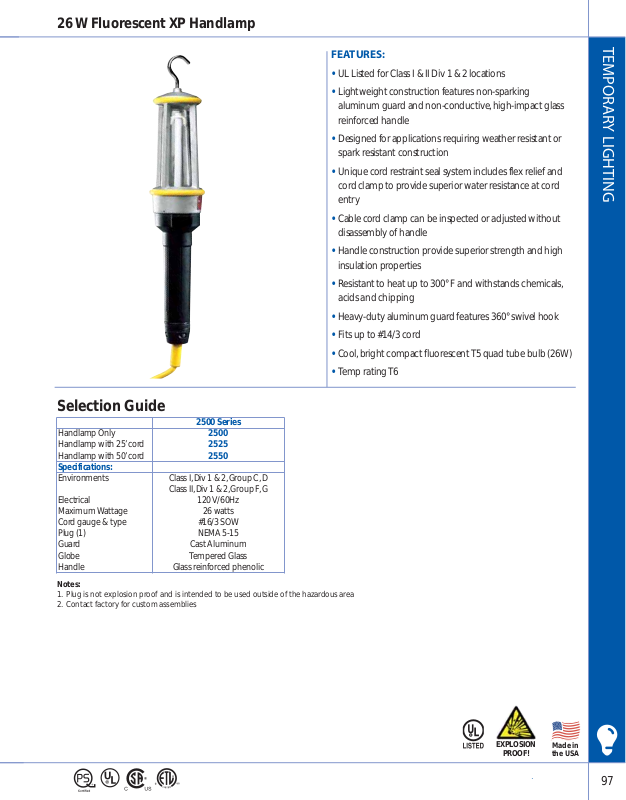

Ericson 2500 Catalog Page

97

26 W Fluorescent XP Handlamp

TEMPORARY LIGHTING

Notes:

1. Plug is not explosion proof and is intended to be used outside of the hazardous area

2. Contact factory for custom assemblies

Selection Guide

2500 Series

Handlamp Only 2500
Handlamp with 25’ cord 2525
Handlamp with 50’ cord 2550

Specific

ations:

Environments Class I, Div 1 & 2, Group C, D

Class II, Div 1 & 2, Group F, G
Electrical 120 V/60Hz
Maximum Wattage 26 watts
Cord gauge & type #16/3 SOW
Plug (1) NEMA 5-15
Guard Cast Aluminum
Globe Tempered Glass
Handle Glass reinforced phenolic

EXPLOSION

PROOF!

FEATURES:

• UL Listed for Class I & II Div 1 & 2 locations

• Lightweight construction features non-sparking

aluminum guard and non-conductive, high-impact glass
reinforced handle

• Designed for applications requiring weather resistant or

spark resistant c

onstruction

• Unique cord restraint seal system includes flex relief and

cor

d clamp to provide superior water resistance at cord

entry

• Cable cord clamp can be inspected or adjusted without

disassembly of handle

• Handle construction provide superior strength and high

insulation properties

• Resistant to heat up to 300° F and withstands chemicals,

acids and chipping

• Heavy-duty aluminum guard features 360° swivel hook

• Fits up to #14/3 cord

• Cool, bright compact fluorescent T5 quad tube bulb (26W)

• Temp r a ting T6

Made in
the USA
