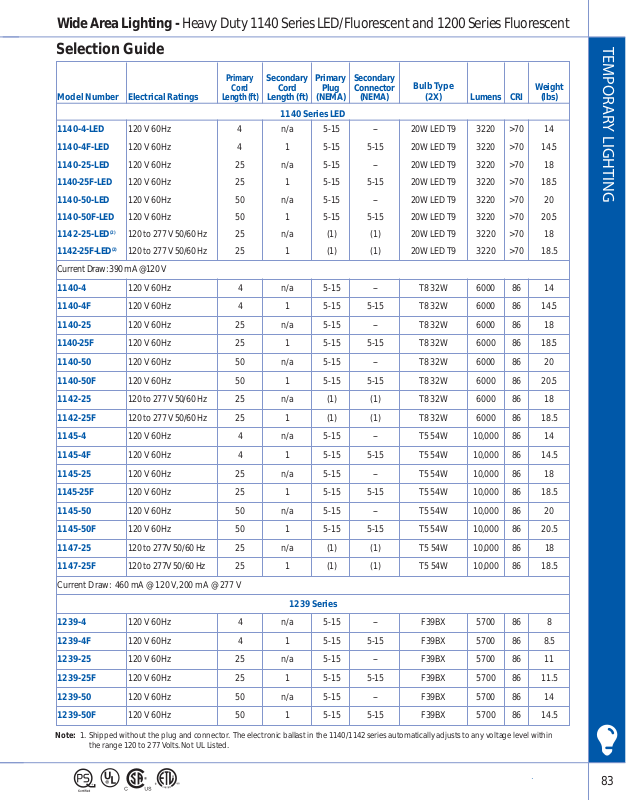

Ericson 1140 Series LED, 1140 Series Fluorescent, 1200 Series Fluorescent Selection Guide

83

Wide Area Lighting - Heavy Duty 1140 Series LED/Fluorescent and 1200 Series Fluorescent

TEMPORARY LIGHTING

Model Number Electrical Ratings

Primary

Cord

Length (ft)

Secondary

Cord

Length (ft)

Primary

Plug

(NEMA)

Secondary
Connector

(NEMA)

Bulb Type

(2X) Lumens CRI

Weight

(lbs)

1140 Series LED

1140-4-LED 120 V 60Hz 4 n/a 5-15 -- 20W LED T9 3220 >70 14
1140-4F-LED 120 V 60Hz 4 1 5-15 5-15 20W LED T9 3220 >70 14.5
1140-25-LED 120 V 60Hz 25 n/a 5-15 -- 20W LED T9 3220 >70 18
1140-25F-LED 120 V 60Hz 25 1 5-15 5-15 20W LED T9 3220 >70 18.5
1140-50-LED 120 V 60Hz 50 n/a 5-15 -- 20W LED T9 3220 >70 20
1140-50F-LED 120 V60Hz 50 1 5-15 5-15 20W LED T9 3220 >70 20.5
1142-25-LED

(2)

120 to 277 V 50/60 Hz 25 n/a (1) (1) 20W LED T9 3220 >70 18

1142-25F-LED

(2)

120 to 277 V 50/60 Hz 25 1 (1) (1) 20W LED T9 3220 >70 18.5

Current Draw: 390 mA @120 V

1140-4 120 V60Hz 4 n/a 5-15 -- T8 32W 6000 86 14
1140-4F 120 V60Hz 4 1 5-15 5-15 T8 32W 6000 86 14.5
1140-25 120 V60Hz 25 n/a 5-15 -- T8 32W 6000 86 18
1140-25F 120 V 60Hz 25 1 5-15 5-15 T8 32W 6000 86 18.5
1140-50 120 V60Hz 50 n/a 5-15 -- T8 32W 6000 86 20
1140-50F 120 V 60Hz 50 1 5-15 5-15 T8 32W 6000 86 20.5
1142-25 120 to 277 V 50/60 Hz 25 n/a (1) (1) T8 32W 6000

86

18

1142-25F 120 to 277 V 50/60 Hz 25 1 (1) (1) T8 32W 6000 86

18.5

1145-4 120 V60Hz 4 n/a 5-15 -- T5 54W 10,000 86 14
1145-4F 120 V60Hz 4 1 5-15 5-15 T5 54W 10,000 86 14.5
1145-25 120 V60Hz 25 n/a 5-15 -- T5 54W 10,000 86 18
1145-25F 120 V 60Hz 25 1 5-15 5-15 T5 54W 10,000 86 18.5
1145-50 120 V60Hz 50 n/a 5-15 -- T5 54W 10,000 86 20
1145-50F 120 V 60Hz 50 1 5-15 5-15 T5 54W 10,000 86 20.5
1147-25 120 to 277V 50/60 Hz 25 n/a (1) (1) T5 54W 10,000 86 18
1147-25F 120 to 277V 50/60 Hz 25 1 (1) (1) T5 54W 10,000 86 18.5

C

urr

ent Draw: 460 mA @ 120 V, 200 mA @ 277 V

1239 Series

1239-4 120 V60Hz 4 n/a 5-15 -- F39BX 5700 86 8
1239-4F 120 V60Hz 4 1 5-15 5-15 F39BX 5700 86 8.5
1239-25 120 V60Hz 25 n/a 5-15 -- F39BX 5700 86 11
1239-25F 120 V 60Hz 25 1 5-15 5-15 F39BX 5700 86 11.5
1239-50 120 V60Hz 50 n/a 5-15 -- F39BX 5700 86 14
1239-50F 120 V 60Hz 50 1 5-15 5-15 F39BX 5700 86 14.5

Note: 1. Shipped without the plug and connector. The electronic ballast in the 1140/1142 series automatically adjusts to any voltage level within

the range 120 to 277 Volts. Not UL Listed.

Selection Guide
