ERICO Standard Bar Threader User Manual

Standard Bar Threader

Instruction Manual

Table of Contents

Shipping Crate ............................................................................ 3

Electrical ...................................................................................... 4

Center Rings ............................................................................... 5

Add Oil ........................................................................................ 6

Change Control Key .................................................................. 7

Change Chasers and Holders ........................................... 8 – 12

Change Control Block ..................................................... 13 – 14

Threading Operation ...................................................... 15 – 16

Checking Threads and Bar End Engagement ....................... 17

Maintenance ............................................................................ 18

Troubleshooting ...................................................................... 19

Operator Reference Chart ...................................................... 19

WARNING

1. ERICO products shall be installed and used only as indicated in ERICO
product instruction sheets and training materials. Instruction sheets
are available at www.erico.com and from your ERICO customer
service representative.

2. ERICO products must never be used for a purpose other than the
purpose for which they were designed or in a manner that exceeds
specified load ratings.

3. All instructions must be completely followed to ensure proper and
safe installation and performance.

4. Improper installation, misuse, misapplication or other failure to
completely follow ERICO’s instructions and warnings may cause
product malfunction, property damage, serious bodily injury and death.

The customer is responsible for:

a. Conformance to all governing codes.

b. The integrity of structures to which the products are attached,
including their capability of safely accepting the loads imposed,
as evaluated by a qualified engineer.

c. Using appropriate industry standard hardware as noted above.

SAFETY INSTRUCTIONS:

All governing codes and regulations and those required by the job site
must be observed. Always use appropriate safety equipment such as
eye protection, hard hat, and gloves as appropriate to the application.

2

www.erico.com

Shipping Crate

21

The Standard Bar Threader will be shipped in a crate
like the one shown above.

To open, remove the three bolts on either side of the door.

43

Remove the ramp located at the inside top of the crate
and place at the base of the crate.

www.erico.com

Roll out the Standard Bar Threader. Please note when
putting the Standard Bar Threader back into the crate,
the stationary wheels go in first.

3

Electrical

1

The bar threader requires 220-240 volt, 3 phase power. A four-pronged
locking plug (as shown) is standard.

2

After connecting the power be sure the head of the bar threader is rotating
in the direction indicated by the arrow on the hood. If it is not rotating in
the correct direction, switch any two of the power leads in the plug.

4

www.erico.com

Center Rings

1

Adjust table height, with built-in jack, to match the elevation
of the bar.

2

To obtain the best centering of the rebar into the threading
machine, the best fitting set of center rings should be used.
We offer two or three different size sets per bar. To make sure
you are using the correct set, slide one of the center rings over
the bar ends to be threaded to determine which one slides
on easily with the least amount of slop. Each center ring is
stamped with the bar size it is to be used with in millimeters.

The bar threader will ship set up to run the largest bar size
you will be threading.

5

When threading a #14 (43 mm) or #18 (57 mm) bar, the
adaptor ring must be removed. This is done in the same way
you remove the center ring. See the previous step.

43

To change centers to a different bar size or to go with a set
that fits the bar better, push in the release ring and pull out
the existing center. Put in the new center and lock it in place
by letting loose of the release ring.

www.erico.com

5

Add Oil

21

Prior to threading, the oil must be added. Pour the oil
into the chip funnel and it will flow into the oil reservoir.
Only part #ELOIL oil should be used.

The reservoir is properly filled when the oil is just below
the chip drawer sliding brackets.

6

www.erico.com

Change Control Key

21

To change the control key, remove the support rod screw,
compression spring, and the support rod from the head.

Loosen and remove the back bearing.

43

Slide the key out. Each key is marked with the bar size it is
to be used with in millimeters.

www.erico.com

Slide in the new key and replace the spring, support rod and
support rod screw. Replace and tighten the back bearing.

7

Change Chasers and Holders

21

Remove the face plate bolts. Three bolts hold it in place.

43

Remove the holders from the head of the bar threader. Loosen the set screw (A927E034) as shown above.

65

Slide the chaser out of the holder. Chasers and holders have matching numbers. The number 1

chaser goes into the number 1 holder, etc.

8

www.erico.com

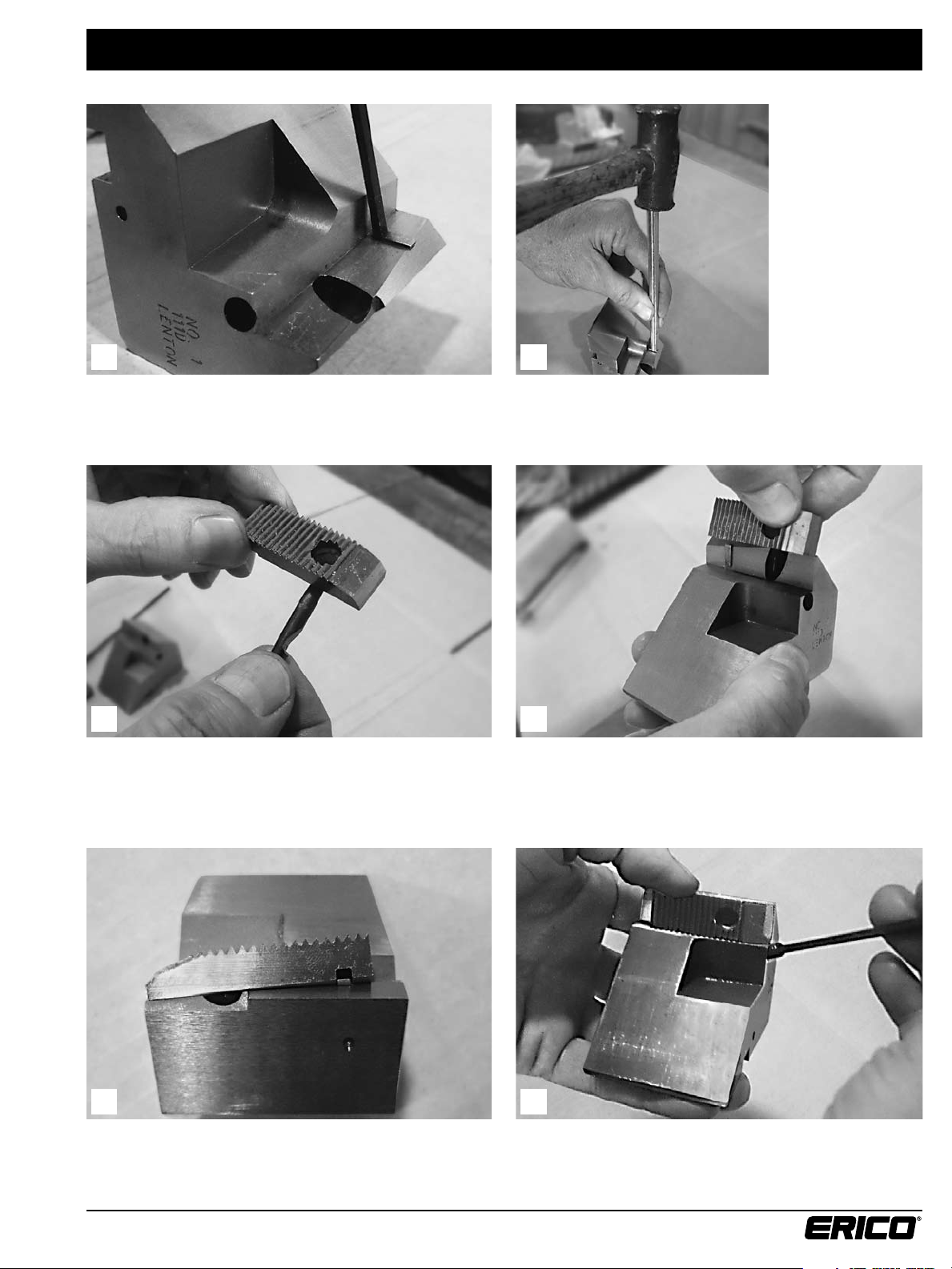

Change Chasers and Holders

87

Before installing the chasers make sure the woodruff key
(ELMP223) is tight. Press on both ends of the woodruff key
with an allen wrench, it should not move.

9

Take the hold down pin (ELMP203PIN) and place it through
the hole of the chaser as shown above.

To replace a woodruff key, set the key into the slot by hand
and drive into position using a hammer and punch.

10

Insert the chaser pin into the top hole of the holder and push
down, making sure that the woodruff slot aligns with the
woodruff key, until the chaser sits completely flush on the
holder shelf.

11

This is what a chaser looks like when it is installed correctly
onto the holder.

www.erico.com

12

After the chaser is installed correctly on the holder, hold the
chaser in place while tightening down the set screw against
the hold down pin.

9

Change Chasers and Holders

1313

Before replacing the holders make sure the cavity in the head and the holders are clear and free of chips.
Wipe all flat surfaces with a clean rag.

The number 1 holder, with the slot in it to accept the control
block, must be replaced first, followed by holders 2, 3 and 4.

Step 2 – While securely holding holder 1, slide holder 2
into position.

1414

Step 1 – Insert holder 1 as shown.

1414

Step 3 – While holding 2 in position, slide in holder 3.

10

www.erico.com

Change Chasers and Holders

14

Step 4 – While holding 3 tightly, slide in holder 4.
Holder 4 should slide in smoothly with no interference.

15

After the holders have been installed in the cutting square,
check that the numbers on the face of the holders match the
corresponding numbers on the face of the cutting square.

16 16

After installing the chaser holders check to see that they do
not protrude outside of the cutting head. This would prevent
free holder movement during threading. If any do protrude
outside, remove them and reclean the head and holder(s).
Also look over the holder for any burrs that might need
removed with a stone.

Stoning the flat surfaces in the cutting square.

www.erico.com

11

Change Chasers and Holders

1616

Stoning the flat surfaces on the chaser holder. Stoning the cover plate.

1717

After the holders are installed into the head correctly, wipe off the face plate and fasten it to the head.

18

Turn on the machine and move the body of the machine back
and forth to make sure the holders are opening and closing
properly. A “gushing” sound can be heard if they are working.

12

www.erico.com

Change Control Block

21

To change the control block, remove the face plate. Three bolts hold it in place.

Remove the chaser holders from the cutting square as
shown above.

Position the new control block as shown. Replace the support
rod, spring, and screw. The support rod goes through the hole
in the control block.

43

To remove the control block loosen the support rod screw and
pull out the support rod and spring. This will free the control
block and allow it to fall down.

65

Before replacing the chaser holders make sure the cavity in the
head and the holders are clear and free of chips.

www.erico.com

13

Change Control Block

7

Wipe the holders clean of any chips and contaminants. The number 1 holder, with the slot in it to accept the control

8

After the holders have been installed in the cutting square,
check that the numbers on the face of the holders match
the corresponding numbers on the cutting square face.

7B

block, must be replaced first, followed by holders 2, 3 and 4.

9

Push the holders all the way against the back of the head and
check to make sure they do not protrude outside the head.
This would prevent free holder movement during threading.
If any holders do protrude outside, remove them and reclean
the head and holder(s). Also look over the holder for any burrs
that might need taken down with a stone.

10

After the holders fit into the head correctly, wipe off the
face plate and fasten it to the head.

11

Turn on the machine and move the body of the machine back

and forth to make sure the holders are opening and closing
properly. A “gushing” sound can be heard if they are working.

14

www.erico.com

Threading Operation

21

Prior to positioning the rebar in the machine, be sure that the
machine carriage is all the way back to the right.

Position the bar stop so that it covers the hole in the faceplate.
Butt the rebar up against it. This helps assure the correct bar
placement into the bar threader.

Also be sure that the step drum is in the correct starting notch.

43

Once the bar is in position tighten the vise. Make sure the vise
is tight to prevent bar rotation during threading.

65

Move the bar stop away from the bar. Turn on the machine. Hood must be in the forward position

before the machine will start. The number I button is slow speed
which is used when threading #14 (43 mm) and #18 (57 mm)
bar. The number II button is high speed to be used for #11
(36 mm) and smaller bars.

www.erico.com

15

Threading Operation

87

Make sure oil is flowing into the head of the bar threader.
If it is, then with the right hand handle move the body of
the bar threader forward. Apply pressure on the handle once
the cutters are in contact with the bar, for at least one-half
turn of the handle. After this initial engagement the body of
the machine will move forward automatically.

9

Holding the machine carriage all the way back, move the step
drum to the next forward notch. Refer to reference chart for
number of passes.

Once the body of the machine stops moving forward it is
time to again move the machine carriage all the way back
to the right.

10

After the last threading pass, move the machine carriage all
the way back to the right.

11

Position the control ring in the same notch you used for the
first pass. The bar threader is now ready for the next bar.

16

www.erico.com

Checking Threads and Bar End Engagement

21

The thread profile should be checked with a brand new chaser. To check the length of the thread, slide the bar end gauge

over the bar and look to see if the end of the bar falls within
the step range of the gauge.

NOTE: More detailed thread inspection procedures
can be found in the LENTON® product document:
Bar Fabrication Procedures (PDF118).

3

If the length of the thread is off in step 2, the adjustment
screw below the motor is used to make up the difference.
Turning it in (counter-clockwise), makes the thread longer;
turning it out (clockwise), makes the thread shorter.

If the length of the thread is off, the proper adjustment can
easily be made by measuring the amount of protrusion from
or recession into the gauge.

Example: If the bar is protruding beyond the gauge by
1/8 inch you would turn the adjustment screw in (clockwise)
so that the machine body would move forward 1/8 inch.
If the bar was 1/8 inch too short you would turn the screw
out (counter-clockwise) moving the body of the machine
back 1/8 inch.

A scrap piece of bar should be used to set the bar end
gauge prior to making a production run.

www.erico.com

17

Maintenance

21

Machine chips are caught in the screened drawer above the
oil reservoir. The drawer should be emptied as required during
the machining run and at the end of the day.

The oil is drained by loosening and removing the drain plug
at the bottom of the oil reservoir. A bucket and crescent
wrench is provided to accomplish this.

Let the oil sit in the bucket overnight to allow the metal
fines to settle out. Next morning, slowly pour the oil back
into the bar threader and clean out the bucket.

At the end of each day 15 minutes should be put aside to
drain the oil and clean out the oil reservoir.

3

After the oil is drained, a piece of cardboard or putty knife
can be used to scrape the chips out of the oil reservoir.

18

www.erico.com

Troubleshooting

1. If the Standard Bar Threader will not start,
check the following:

a. The machine is plugged in and the power is on.

b. Machine hood must be in the forward position.

c. The correct electrical power must be used.
See “Electrical” section.

2. If the cutting oil is not flowing to the cutting head,
check the following:

a. Electrical plug connections to the coolant pump.

b. Chips jamming the impeller.

c. Oil level – see “Add Oil” section.

3. If the motor is stalling during threading,
check the following:

a. Improper machining step – see “Threading
Operation” section.

b. Proper voltage – see “Electrical” section.

c. Proper cutting speed.

d. Bar loose in the vise.

e. Chaser wear.

f. Bent bar ends.

4. If the chasers are wearing prematurely,
check the following:

a. Improper oil flow.

b. Harder than normal rebar.

5. If the bar threader will not engage the rebar,
check the following:

a. Is the bar stop moved out of the way.

b. Proper rotation of the cutting head –
see “Electrical” section.

c. Improper first pass machining step –
see “Threading Operation”.

6. If the bar ends have stripped threads,
check the following:

a. Are the chaser holders in the correct position –
see “Change Chasers”.

b. Are the woodruff keys tight in the slot –
see “Change Chasers”.

c. Chaser wear.

7. If the chaser holders will not shift in the
cutting head, check the following:

a. Chips, dirt or other contaminants in the
cutting head.

b. Bent control rod.

c. Damaged control key.

d. Damaged control block.

e. Chaser holder(s) protruding beyond face
of cutting square.

Operator Reference Chart

Bar Size
Number

Bar Size
Metric

Chaser
Holder Set

Bar End
Gauge

Control Key ELK12 ELK16 ELK20 ELK22 ELK25 ELK28 ELK32 ELK36 ELK43 ELK57

Control Block E2 E2 E2 E2 E2 E2 E2 E2 A2 A2

Guide Rings
Standard

Guide Rings
Large

Guide Rings
Extra Large

No. of
Threading
Steps

Operating
Speed

Spring Size Blue Blue Blue Blue Blue Blue Blue Blue Red Red

www.erico.com

4 5 6 7 8 9 10 11 14 18

12 mm 15 mm 20 mm 22 mm 25 mm 28 mm 32 mm 36 mm 43 mm 57 mm

101D 101D 111D 111D 111D 111D 111D 111D 121D 131D

ELBEG12A ELBEG16A ELBEG20A ELBEG22A ELBEG25A(HT) ELBEG28A(HT) ELBEG32A(HT) ELBEG36A(HT) ELBEG43A(HT) ELBEG57A(HT)

12D 16B 20A 22A 25A 28A 32A 36A 43A 57A

12E 16C 20B 25A 25B 28B 32B 36B 43B 57B

N/A N/A N/A N/A N/A N/A N/A N/A 43C 57C

1 1 2 2 2 2 2 3 4 4

II Fast II Fast II Fast II Fast II Fast II Fast II Fast II Fast I Slow I Slow

19

www.erico.com

AUSTRALIA

Phone [phone]
Fax [phone]

BELGIUM

Phone [phone]
Fax [phone]

BRAZIL

Phone [phone]
Fax [phone]

CANADA

Phone [phone]
Fax [phone]

CHINA

Phone [phone]
Fax [phone]

DENMARK

Phone [phone]
Fax [phone]

FRANCE

Phone [phone]
Fax [phone]

GERMANY

Phone [phone]
Fax [phone]

HUNGARY

Phone [phone]
Fax [phone]

INDONESIA

Phone [phone]
Fax [phone]

ITALY

Phone [phone]
Fax [phone]

MEXICO

Phone [phone]
Fax [phone]

NORWAY

Phone [phone]
Fax [phone]

POLAND

Phone [phone]
Fax [phone]

SINGAPORE

Phone [phone]
Fax [phone]

SPAIN

Phone [phone]
Fax [phone]

SWITZERLAND

Phone [phone]
Fax [phone]

THAILAND

Phone [phone]
Fax [phone]

UNITED ARAB
EMIRATES

Phone [phone]
Fax [phone]

UNITED KINGDOM

Phone [phone]
Fax [phone]

CHILE

Phone [phone]
Fax [phone]

Copyright ©2010, 2011 ERICO International Corporation. All rights reserved.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.

HONG KONG

Phone [phone]
Fax [phone]

NETHERLANDS

Phone [phone]
Fax [phone]

SWEDEN

Phone [phone]
Fax [phone]

UNITED STATES

Phone [phone]
Fax [phone]

IP8197_B C1009I-WWEN C1428IS11WWEN WB1111
