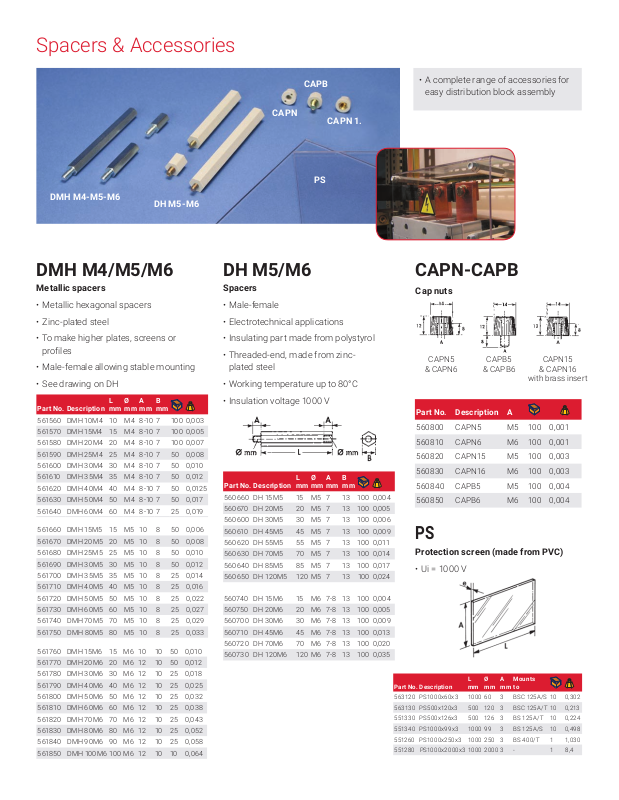

Spacers & Accessories
DMH M4-M5-M6
DH M5-M6
DMH M4/M5/M6
Metallic spacers
• Metallic hexagonal spacers
• Zinc-plated steel
• To make higher plates, screens or
profiles
• Male-female allowing stable mounting
• See drawing on DH
Part No. DescriptionL mmØ mmA mmB mm
561560 DMH 10M4 10 M4 8-10 7 100 0,003
5615 70 DMH 15M4 15 M4 8-10 7 100 0,005
5615 80 DMH 20M4 20 M4 8-10 7 100 0,007
5615 90 DMH 25M4 25 M4 8-10 7 50 0,008
5616 00 DMH 30M4 30 M4 8-10 7 50 0,010
561610 DMH 35M4 35 M4 8-10 7 50 0,012
561620 DMH 40M4 40 M4 8-10 7 50 0,0125
5616 30 DMH 50M4 50 M4 8-10 7 50 0,017
5616 40 DMH 60M4 60 M4 8-10 7 25 0, 019
5616 60 DMH 15M5 15 M5 10 8 50 0,006
561670 DMH 20M5 20 M5 10 8 50 0,008
5616 80 DMH 25M5 25 M5 10 8 50 0, 010
561690 DMH 30M5 30 M5 10 8 50 0,012
561700 DMH 35M5 35 M5 10 8 25 0,014
561710 DMH 40M5 40 M5 10 8 25 0,016
561720 DMH 50M5 50 M5 10 8 25 0,022
561730 DMH 60M5 60 M5 10 8 25 0,027
561740 DMH 70M5 70 M5 10 8 25 0,029
561750 DMH 80M5 80 M5 10 8 25 0,033
56176 0 DMH 15M6 15 M6 10 10 50 0 ,010
5617 70 DMH 20M6 20 M6 12 10 50 0,012
561780 DMH 30M6 30 M6 12 10 25 0,018
561790 DMH 40M6 40 M6 12 10 25 0,025
5618 00 DMH 50M6 50 M6 12 10 25 0,032
561810 DMH 60M6 60 M6 12 10 25 0,038
5618 20 DMH 70M6 70 M6 12 10 25 0,043
5618 30 DMH 80M6 80 M6 12 10 25 0,052
5618 40 DMH 90M6 90 M6 12 10 25 0,058
5618 50 DMH 100M6 10 0 M6 12 10 10 0,064
CAPB
CAPN
CAPN 1.
PS
DH M5/M6
Spacers
• Male-female
• Electrotechnical applications
• Insulating part made from polystyrol
• Threaded-end, made from zincplated steel
• Working temperature up to 80°C
• Insulation voltage 1000 V
Part No. DescriptionL mmØ mmA mmB mm
560660 D H 15 M5 15 M5 7 13 100 0,004
560670 DH 20M5 20 M5 7 13 100 0,005
560600 DH 30M5 30 M5 7 13 100 0,006
56 0610 DH 45M5 45 M5 7 13 100 0,009
560620 DH 55M5 55 M5 7 13 100 0 ,011
560630 DH 70M5 70 M5 7 13 100 0,014
560640 DH 85M5 85 M5 7 13 100 0, 017
560650 DH 120 M5 120 M5 7 13 100 0,024
56 0740 D H 15M6 15 M6 7- 8 13 100 0,004
560750 DH 20M6 20 M6 7-8 13 100 0,005
560700 DH 30M6 30 M6 7-8 13 100 0,009
560710 DH 45M6 45 M6 7-8 13 100 0 ,013
560720 DH 70M6 70 M6 7-8 13 100 0,020
560730 D H 120M 6 120 M6 7-8 13 100 0,035
• A complete range of accessories for
easy distribution block assembly
CAPN-CAPB
Cap nuts
CAPN5
& CAPN6
Part No. Description A
560800 CAPN5 M5 10 0 0,001
560810 CAPN6 M6 100 0,001
560820 C A PN15 M5 10 0 0,003
560830 C APN16 M6 10 0 0,003
560840 CAPB5 M5 100 0,004
560850 CAPB6 M6 100 0,004
CAPB5
& CAPB6
CA P N15
& CAP N16
with brass insert
PS
Protection screen (made from PVC
• Ui = 1000 V
Part No. DescriptionL mmØ mmA mm
56 3120 PS1000x60x3 1000 60 3 BSC 125A/S 10 0,302
56 3130 PS500x120x3 500 12 0 3 BSC 125A/T 10 0, 213
5513 30 PS50 0x126x3 500 12 6 3 B S 125A /T 10 0,224
5513 40 PS1000x99x3 1000 99 3 B S 125A /S 10 0,498
551260 PS1000x250x3 1000 250 3 BS 4 00/T 1 1,030
5512 80 PS1000x2000x3 1000 2000 3 - 1 8,4
