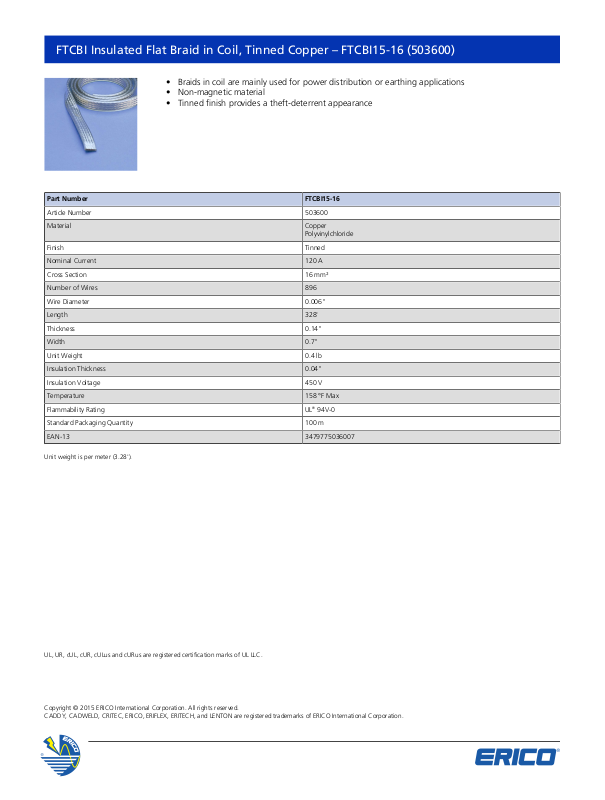

ERICO 503600 Data Sheet

FTCBI Insulated Flat Braid in Coil, Tinned Copper–FTCBI15-16 (503600)

• Braids in coil are mainly used for power distribution or earthing applications

• Non-magnetic material

• Tinned finish provides a theft-deterrent appearance

Part Number FTCBI15-16

Article Number 503600

Material Copper

Finish Tinned

Nominal Current 120 A

Cross Section 16 mm²

Number of Wires 896

Wire Diameter 0.006"

Length 328'

Thickness 0.14"

Width 0.7"

Unit Weight 0.4 lb

Insulation Thickness 0.04"

Insulation Voltage 450 V

Temperature 158 °F Max

Flammability Rating UL® 94V-0

Standard Packaging Quantity 100 m

EAN-13 3479775036007

Polyvinylchloride

Unit weight is per meter (3.28').

UL, UR, cUL, cUR, cULus and cURus are registered certification marks of UL LLC.


