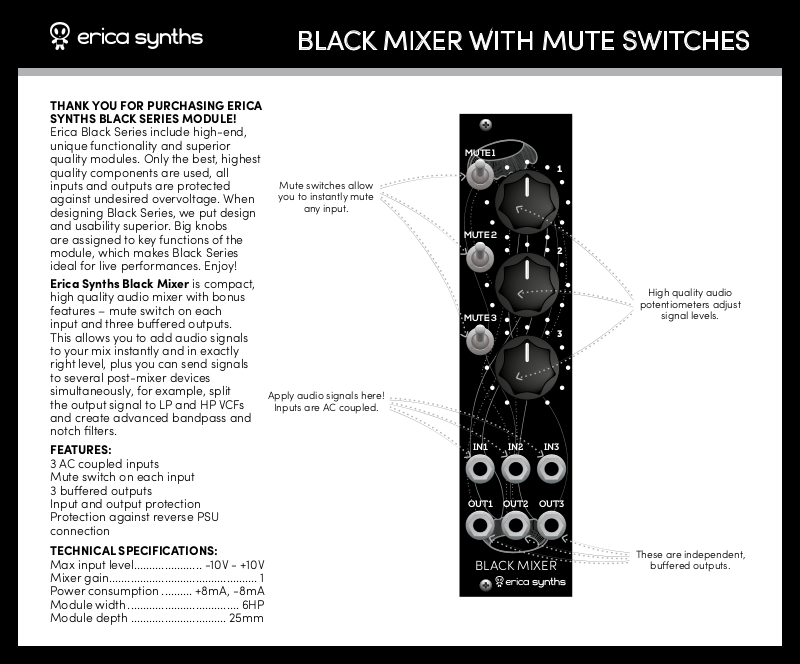

THANK YOU FOR PURCHASING ERICA
SYNTHS BLACK SERIES MODULE!
Erica Black Series include high-end,
unique functionality and superior
quality modules. Only the best, highest
quality components are used, all
inputs and outputs are protected
against undesired overvoltage. When
designing Black Series, we put design
and usability superior. Big knobs
are assigned to key functions of the
module, which makes Black Series
ideal for live performances. Enjoy!
Erica Synths Black Mixer is compact,
high quality audio mixer with bonus
features – mute switch on each
input and three buered outputs.
This allows you to add audio signals
to your mix instantly and in exactly
right level, plus you can send signals
to several post-mixer devices
simultaneously, for example, split
the output signal to LP and HP VCFs
and create advanced bandpass and
notch filters.
FEATURES:
3 AC coupled inputs
Mute switch on each input
3 buered outputs
Input and output protection
Protection against reverse PSU
connection
TECHNICAL SPECIFICATIONS:
Max input level...................... -10V - +10V
Mixer gain................................................ 1
Power consumption .......... +8mA, -8mA
Module width .................................... 6HP
Module depth ............................... 25mm

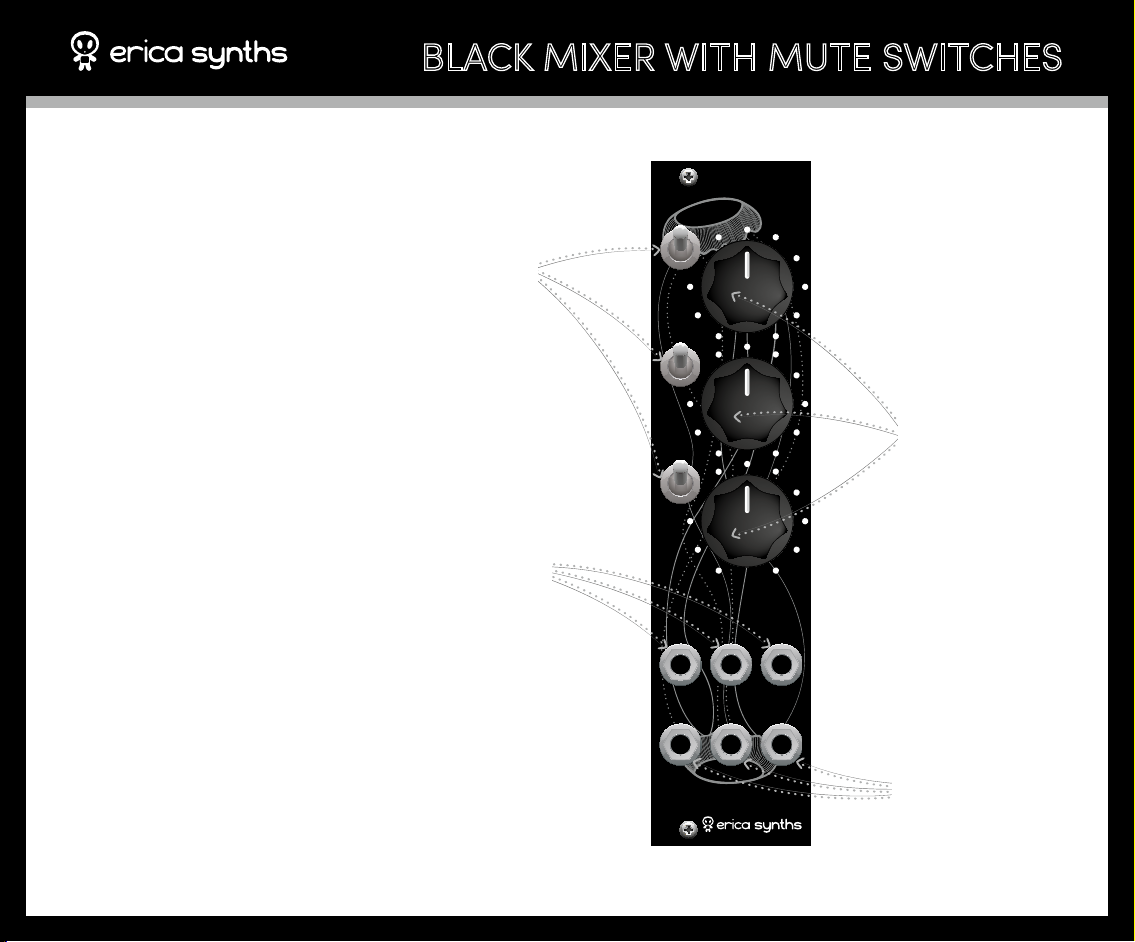

BLACK MIXER WITH MUTE SWITCHES
MUTE 1
1
Mute switches allow
you to instantly mute
any input.
MUTE 2
2
High quality audio
potentiometers adjust
MUTE 3
3
Apply audio signals here!
Inputs are AC coupled.
IN1 IN2 IN3
OUT3OUT2OUT1
BLACK MIXER
signal levels.
These are independent,
buered outputs.
Page 2
SAFETY INSTRUCTIONS
BLACK MIXER WITH MUTE SWITCHES
Please follow the instructions for use of this
Erica Synths module below, ‘cause only this
will guarantee proper operation of the module
and ensure warranty from Erica Synths.
Water is lethal for most of the electric devices,
unless they are made waterproof. Erica
Synths module is NOT intended for use in
a humid or wet environment. No liquids or
other conducting substances must get into
the module. Should this happen, the module
should be disconnected from mains power
immediately, dried, examined and cleaned by
a qualified technician.
Do not expose the module to temperatures
above +50° C or below -20° C.
Transport the instrument with modules
installed carefully, never let it drop or fall over.
Warranty does not apply to modules with
visual damages.
The module has to be shipped in the original
packaging only. Any module shipped to us
for return, exchange and/or warranty repair
has to be in its original packaging. All other
deliveries will be rejected and returned to you.
Make sure you keep the original packaging
and technical documentation.
You will find Erica Synths terms of warranty at
http://ericasynths.lv/en/terms/
Items for return, exchange and/or warranty
repair have to be sent to: Erica Synths,
Andrejostas Str.12, Riga, Latvia, LV-1045
DISPOSAL
This device complies to the EU guidelines and is
manufactured RoHS conforming without use of
led, mercury, cadmium and chrome.
Nevertheless, this device is special waste and
disposal in household waste is not
recommended.
Designed and made in Latvia.
User manual by Girts Ozolins@Erica Synths.
Design by Baiba Stelle.
Copying, distribution or any commercial use in
any way is prohibited and needs the written
permission by Erica Synths.
Specifications are subject to change without
notice.
In case of any questions feel free to contact us
via e-mail [email protected]
Check out other Erica Synths modules & devices
at www.ericasynths.lv
