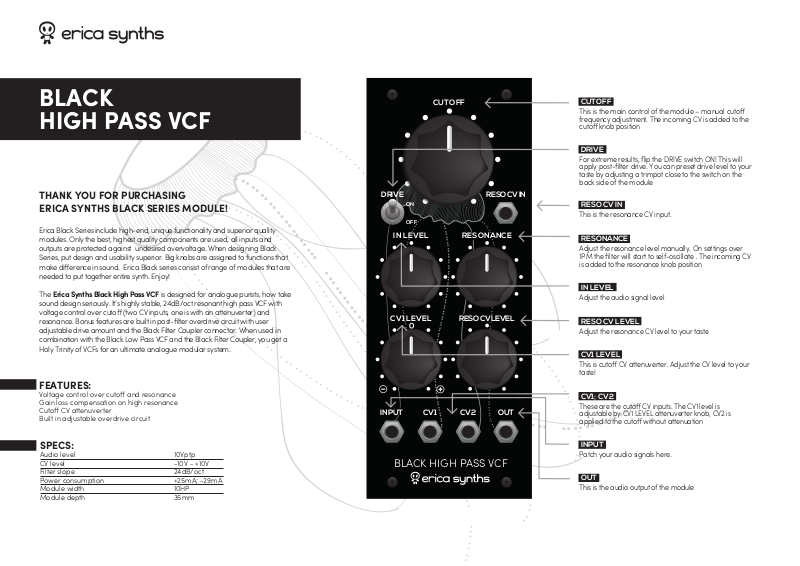

BLACK
HIGH PASS VCF
THANK YOU FOR PURCHASING
ERICA SYNTHS BLACK SERIES MODULE!
Erica Black Series include high-end, unique functionality and superior quality
modules. Only the best, highest quality components are used, all inputs and
outputs are protected against undesired overvoltage. When designing Black
Series, put design and usability superior. Big knobs are assigned to functions that
make dierence in sound. Erica Black series consist of range of modules that are
needed to put together entire synth. Enjoy!
The Erica Synths Black High Pass VCF is designed for analogue purists, how take
sound design seriously. It’s highly stable, 24dB/oct resonant high pass VCF with
voltage control over cuto (two CV inputs, one is with an attenuverter) and
resonance. Bonus features are built in post-filter overdrive circuit with user
adjustable drive amount and the Black Filter Coupler connector. When used in
combination with the Black Low Pass VCF and the Black Filter Coupler, you get a
Holy Trinity of VCFs for an ultimate analogue modular system.
FEATURES:
Voltage control over cuto and resonance
Gain loss compensation on high resonance
Cuto CV attenuverter
Built in adjustable overdrive circuit

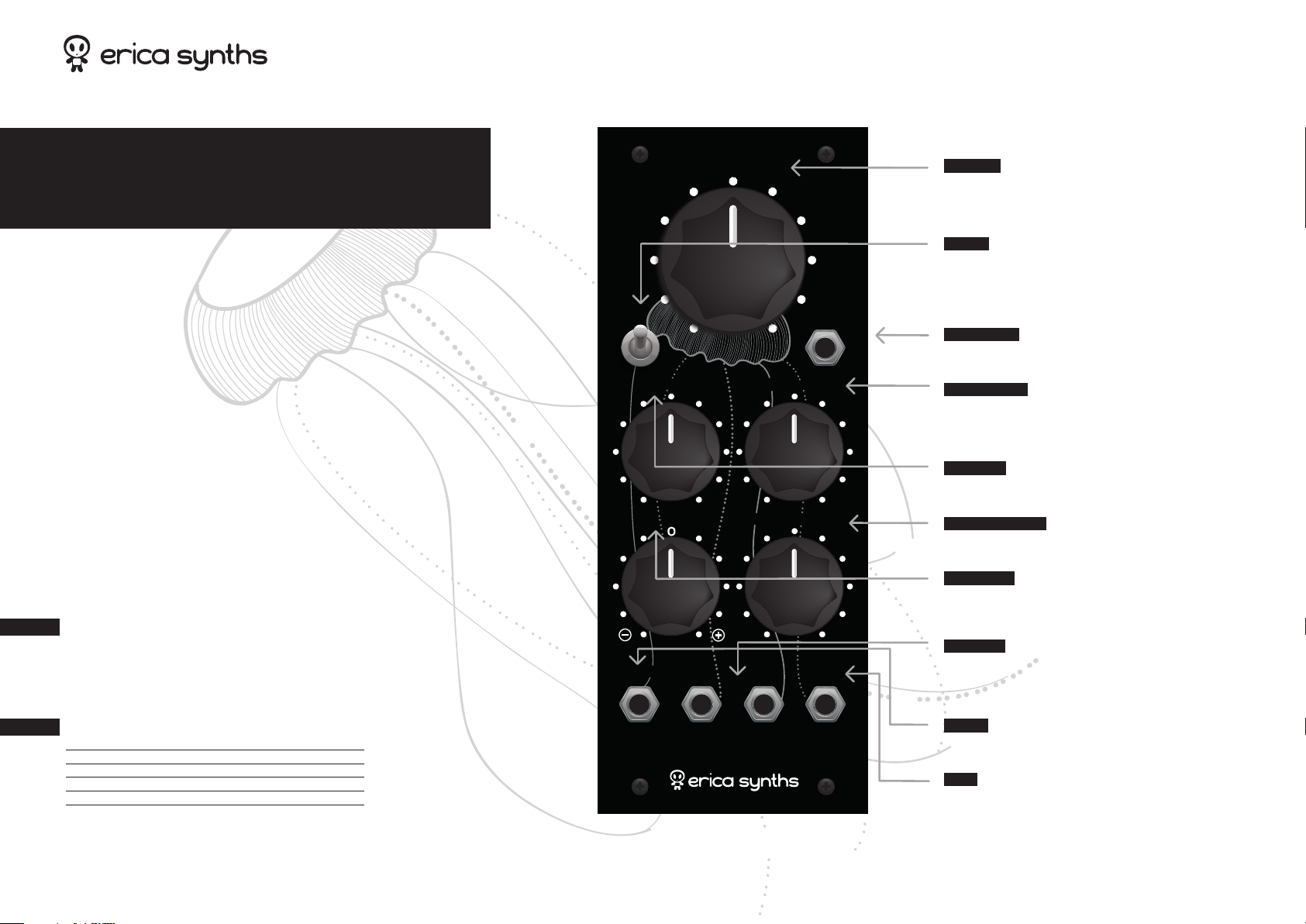

CUTOFF
DRIVE
ON
OFF
IN LEVEL
CV1 LEVEL
INPUT CV1 CV2 OUT
RESO CV IN
RESONANCE
RESO CV LEVEL
CUTOFF
This is the main control of the module – manual cuto
frequency adjustment. The incoming CV is added to the
cuto knob position
DRIVE
For extreme results, flip the DRIVE switch ON! This will
apply post-filter drive. You can preset drive level to your
taste by adjusting a trimpot close to the switch on the
back side of the module
RESO CV IN
This is the resonance CV input.
RESONANCE
Adjust the resonance level manually. On settings over
1PM the filter will start to self-oscillate . The incoming CV
is added to the resonance knob position
IN LEVEL
Adjust the audio signal level
RESO CV LEVEL
Adjust the resonance CV level to your taste
CV1 LEVEL
This is cuto CV attenuverter. Adjust the CV level to your
taste!
CV1; CV2
These are the cuto CV inputs. The CV1 level is
adjustable by CV1 LEVEL attenuverter knob, CV2 is
applied to the cuto without attenuation
SPECS:
Audio level 10Vptp
CV level -10V - +10V
Filter slope 24dB/oct
Power consumption +25mA; -29mA
Module width 10HP
Module depth 35mm
INPUT
Patch your audio signals here.
BLACK HIGH PASS VCF
OUT
This is the audio output of the module
Page 2

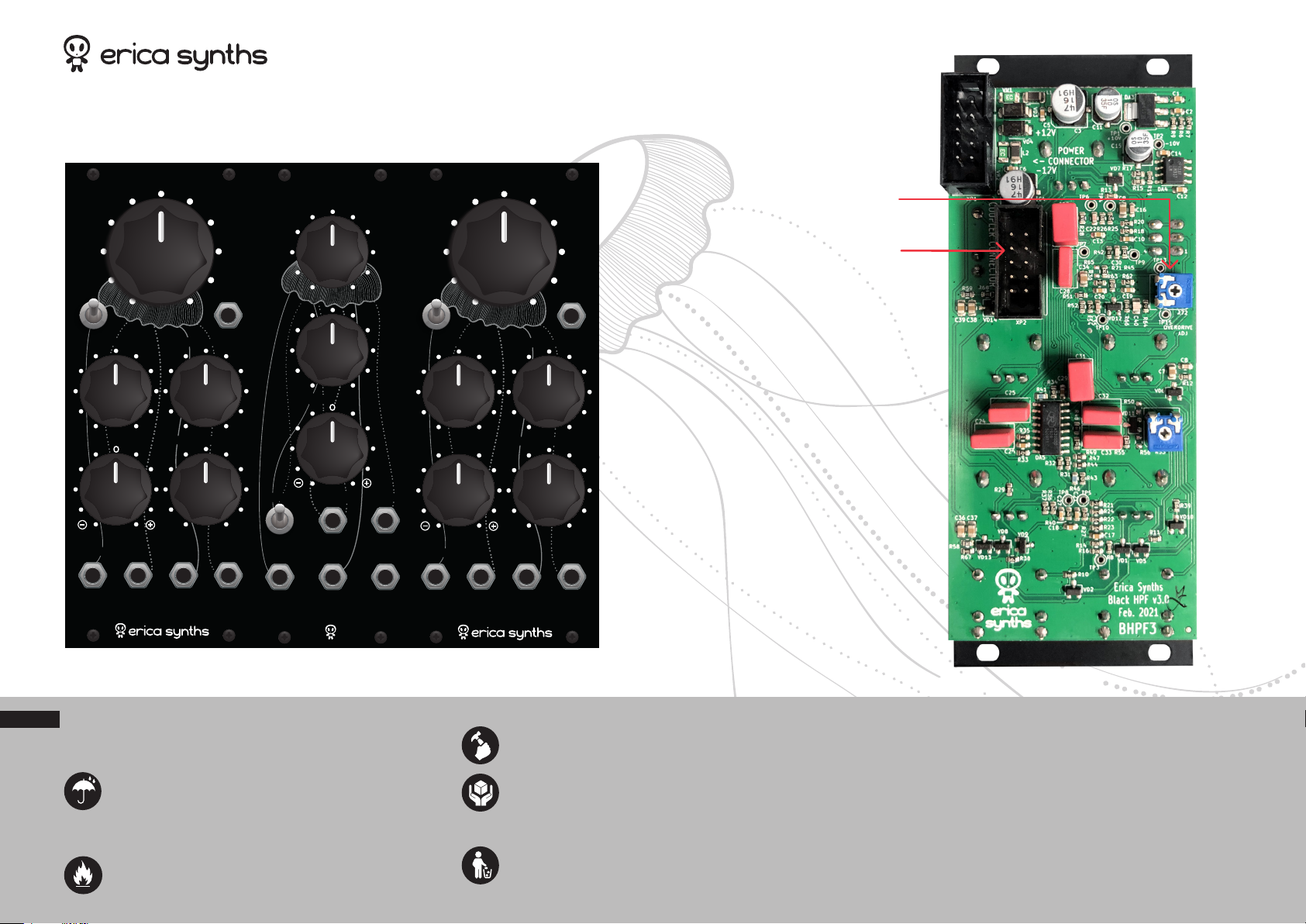

The Black High-Pass VCF has a hidden feature – the Black Filter Coupler
connector. The Erica Synths Black Filter Coupler is a satellite module for
the Black High-Pass and the Black Low-Pass VCFs, and it adds versatile
Bandpass and Band Reject filter functionality to your modular system.
Please note, that the Black Filter
Coupler works only with Erica Synths
modules and you need both Black
High-Pass and Low-Pass VCFs.
CUTOFF
DRIVE
ON
OFF
IN LEVEL
CV1 LEVEL
INPUT CV1 CV2 OUT
RESO CV IN
RESONANCE
RESO CV LEVEL
BLACK HIGH PASS VCF
CENTER FREQ
BANDWIDTH
CF CV LVL
MODE
BR
OFF
BP
BW CVCF CV
OUTIN2IN1
BLACK VCF COUPLER
CUTOFF
ON
OFF
IN LEVEL
CV1 LEVEL
0
INPUT CV1 CV2 OUT
RESO CV IN DRIVE
RESONANCE
RESO CV LEVEL
BLACK LOW PASS VCF
Use this trimpot to adjust
post-filter overdrive to
your taste.
Remove the jumper and
connect the Erica Synths
Black Filter Coupler. 2x5pin
ribbon cable is supplied
with the Black Filter
Coupler module.
SAFETY INSTRUCTIONS
Please follow the instructions for use of the Erica Synths module below,
‘cause only this will guarantee proper operation of the module and
ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a
humid or wet environment. No liquids or other conducting
substances must get into the module. Should this happen, the
module should be disconnected from mains power immediately,
dried, examined and cleaned by a qualified technician.
Do not expose the module to temperatures above +50° C or below
-20° C. If you have transported module in extreme low temperatures,
leave it in room temperature for an hour before plugging it in.
Transport the instrument carefully, never let it drop or fall
over. Warranty does not apply to modules with visual
damages.
The module has to be shipped in the original packaging
only. Any module shipped to us for return, exchange and/or
warranty repair has to be in its original packaging. All other
deliveries will be rejected and returned to you. Make sure
you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufactured RoHS conforming without use of lead, mercury,
cadmium and chrome. Nevertheless, this device is special
waste and disposal in household waste is not recommended.
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way is
prohibited and needs the written permission by Erica Synths.
Specifications are subject to change without notice.In case of
any questions, feel free to contact us through www.ericasynths.lv.
You will find Erica Synths terms of warranty at
www.ericasynths.lv
Items for return, exchange and/or warranty repair have to
be registered at SUPPORT on www.ericasynths.lv and send
back to us according to instructions in the support page.
