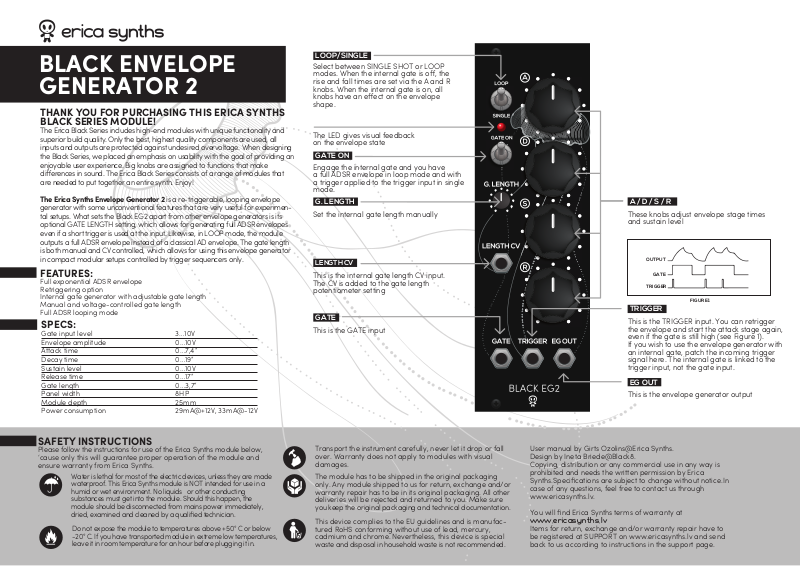

BLACK ENVELOPE
GENERATOR 2
THANK YOU FOR PURCHASING THIS ERICA SYNTHS
BLACK SERIES MODULE!
The Erica Black Series includes high-end modules with unique functionality and
superior build quality. Only the best, highest quality components are used, all
inputs and outputs are protected against undesired overvoltage. When designing
the Black Series, we placed an emphasis on usability with the goal of providing an
enjoyable user experience. Big knobs are assigned to functions that make
dierences in sound. The Erica Black Series consists of a range of modules that
are needed to put together an entire synth. Enjoy!
The Erica Synths Envelope Generator 2 is a re-triggerable, looping envelope
generator with some unconventional features that are very useful for experimental setups. What sets the Black EG2 apart from other envelope generators is its
optional GATE LENGTH setting, which allows for generating full ADSR envelopes
even if a short trigger is used at the input. Likewise, in LOOP mode, the module
outputs a full ADSR envelope instead of a classical AD envelope. The gate length
is both manual and CV controlled, which allows for using this envelope generator
in compact modular setups controlled by trigger sequencers only.
FEATURES:
Full exponential ADSR envelope
Retriggering option
Internal gate generator with adjustable gate length
Manual and voltage-controlled gate length
Full ADSR looping mode
SPECS:
Gate input level 3…10V
Envelope amplitude 0…10V
Attack time 0…7,4”
Decay time 0…19”
Sustain level 0…10V
Release time 0…17”
Gate length 0…3,7”
Panel width 8HP
Module depth 25mm
Power consumption 29mA@+12V, 33mA@-12V

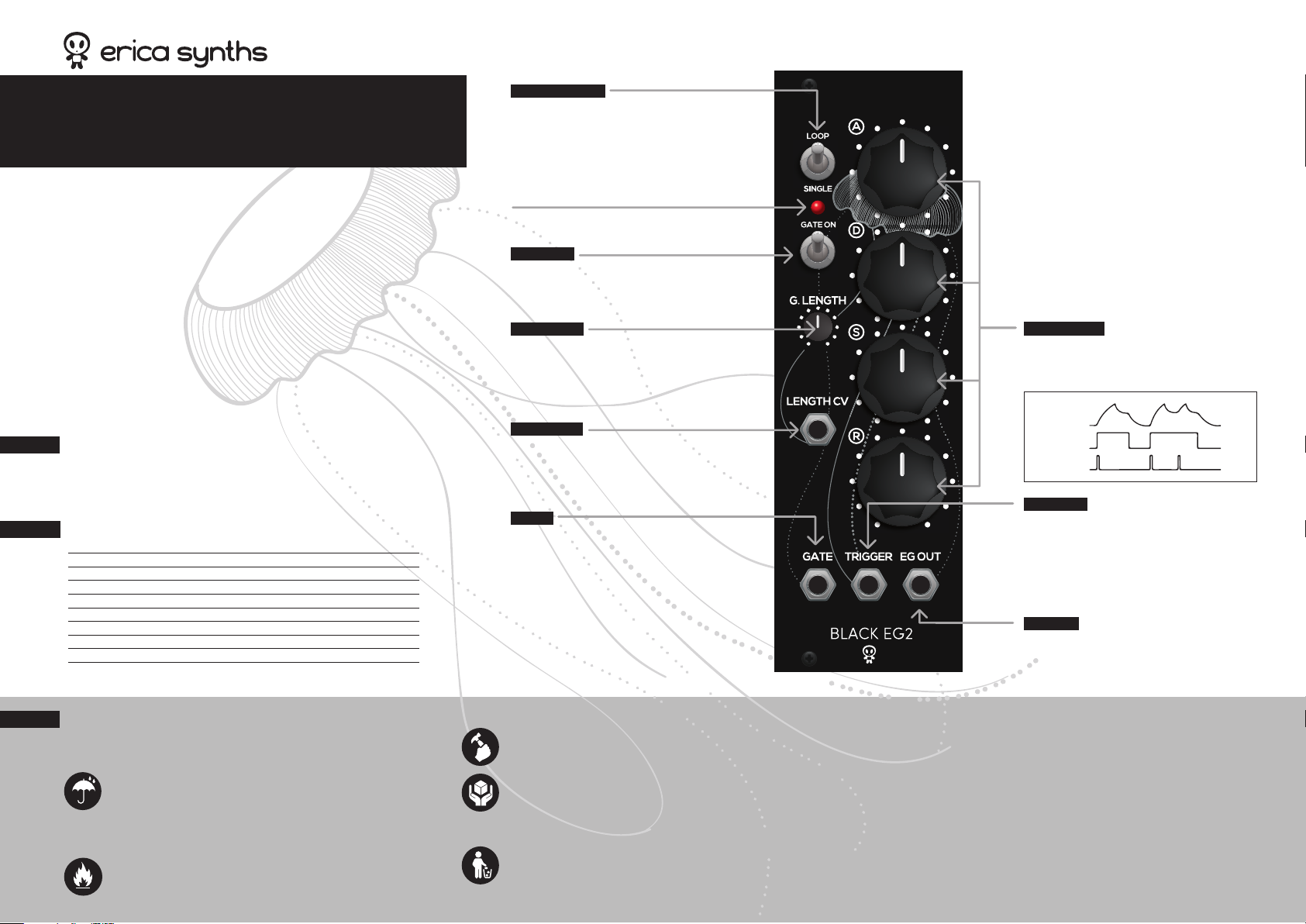

LOOP/SINGLE
Select between SINGLE SHOT or LOOP
modes. When the internal gate is o, the
rise and fall times are set via the A and R
knobs. When the internal gate is on, all
knobs have an eect on the envelope
shape.
The LED gives visual feedback
on the envelope state
GATE ON
Engage the internal gate and you have
a full ADSR envelope in loop mode and with
a trigger applied to the trigger input in single
mode.
G. LENGTH
Set the internal gate length manually
LENGTH CV
This is the internal gate length CV input.
The CV is added to the gate length
potentiometer setting
GATE
This is the GATE input
A / D / S / R
These knobs adjust envelope stage times
and sustain level
OUTPUT
GATE
TRIGGER
FIGURE 1
TRIGGER
This is the TRIGGER input. You can retrigger
the envelope and start the attack stage again,
even if the gate is still high (see Figure 1).
If you wish to use the envelope generator with
an internal gate, patch the incoming trigger
signal here. The internal gate is linked to the
trigger input, not the gate input.
EG OUT
This is the envelope generator output
SAFETY INSTRUCTIONS
Please follow the instructions for use of the Erica Synths module below,
‘cause only this will guarantee proper operation of the module and
ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a
humid or wet environment. No liquids or other conducting
substances must get into the module. Should this happen, the
module should be disconnected from mains power immediately,
dried, examined and cleaned by a qualified technician.
Do not expose the module to temperatures above +50° C or below
-20° C. If you have transported module in extreme low temperatures,
leave it in room temperature for an hour before plugging it in.
Transport the instrument carefully, never let it drop or fall
over. Warranty does not apply to modules with visual
damages.
The module has to be shipped in the original packaging
only. Any module shipped to us for return, exchange and/or
warranty repair has to be in its original packaging. All other
deliveries will be rejected and returned to you. Make sure
you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufactured RoHS conforming without use of lead, mercury,
cadmium and chrome. Nevertheless, this device is special
waste and disposal in household waste is not recommended.
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way is
prohibited and needs the written permission by Erica
Synths.Specifications are subject to change without notice.In
case of any questions, feel free to contact us through
www.ericasynths.lv.
You will find Erica Synths terms of warranty at
www.ericasynths.lv
Items for return, exchange and/or warranty repair have to
be registered at SUPPORT on www.ericasynths.lv and send
back to us according to instructions in the support page.
