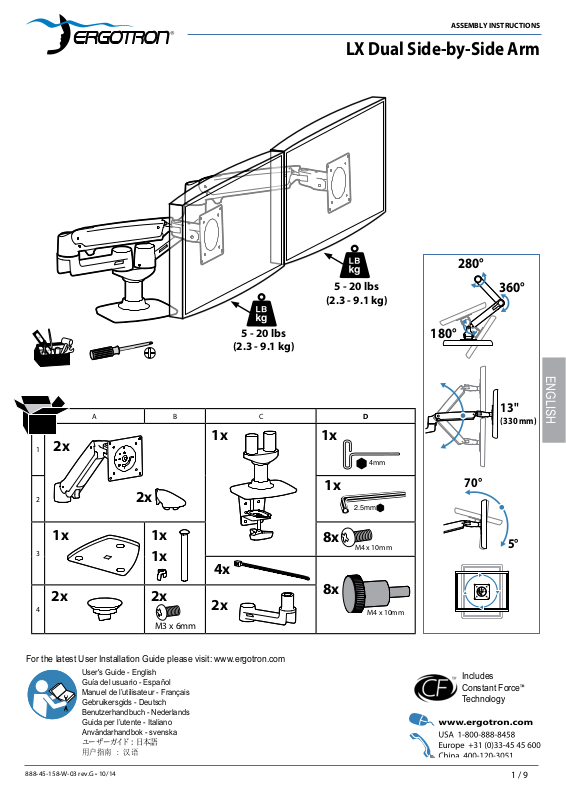

Ergotron LX Dual Users Guide

Page 1
3/16" 7/32"
1/8"
ASSEMBLY INSTRUCTIONS

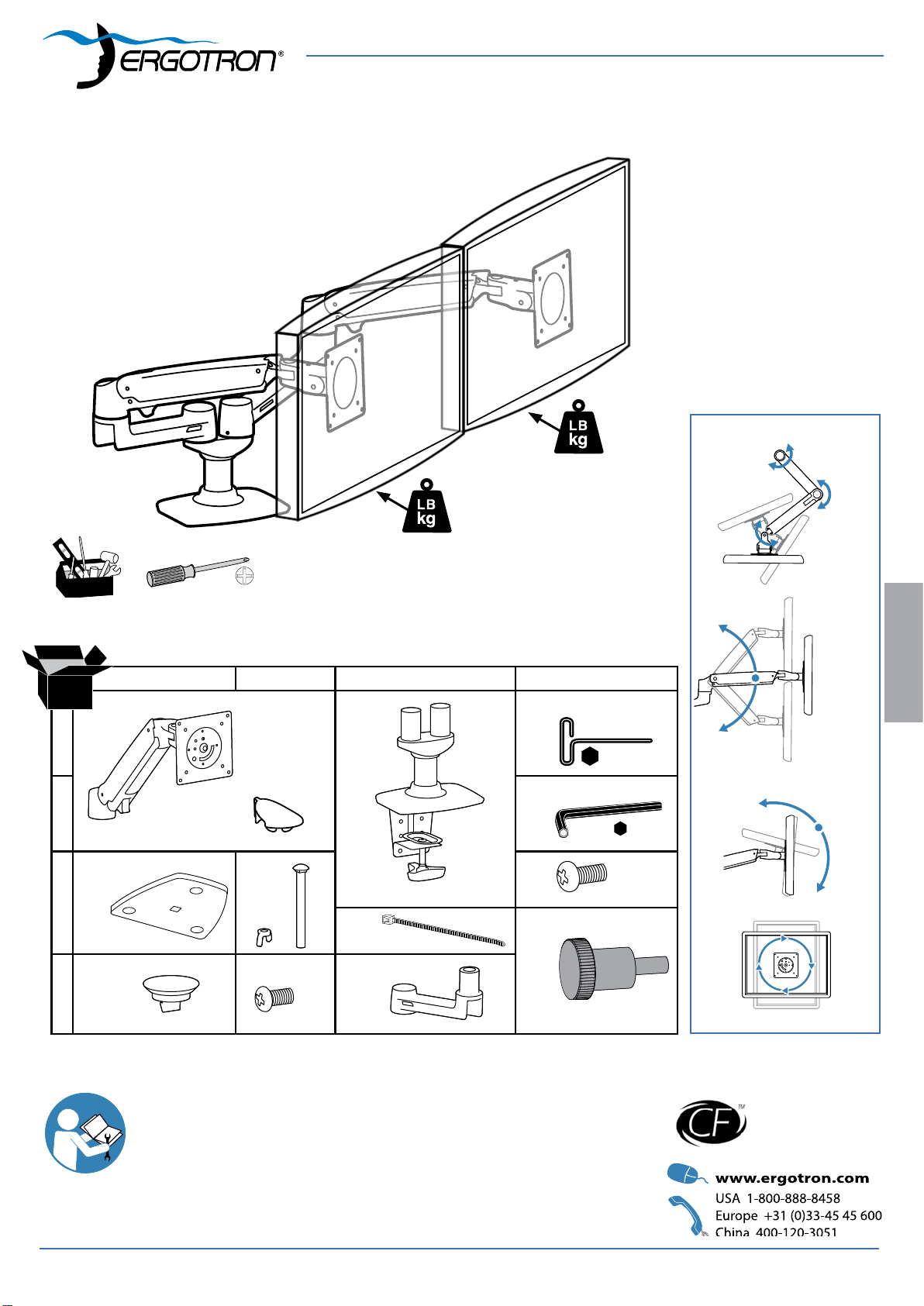

LX Dual Side-by-Side Arm
280°
5 - 20 lbs
360°
(2.3 - 9.1 kg)
5 - 20 lbs
180°
(2.3 - 9.1 kg)
ENGLISH
A B C D
13"
(330 mm)
1x 1x
2x
1
1x
2
3
2x
1x1x 1x
2.5mm
8x
M4 x 10mm
70°
5°
4x
2x
4
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano Användarhandbok - svenska
ユ ー ザ ー ガ イド : 日本語
用户指南 : 汉语
888-45-158-W-03 rev.G • 10/14
2x
2x
M3 x 6mm
8x
M4 x 10mm
Includes Constant Force™ Technology
1 / 9
Page 2
Hazard Symbols
Risk of Electric Shock
DANGER!
Symbol Signal Word Level of Hazard
Review
These symbols alert users of a safety condi­tion that demands attention. All users should be able to recognize and understand the
signicance of the following Safety Hazards if encountered on the product or within the documentation. Children who are not able
to recognize and respond appropriately to Safety Alerts should not use this product with­out adult supervision!
Safety
Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements
are too easy or difcult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements. Depending on your product and the adjustment,
it may take many turns to notice a difference. Any time equipment is added or removed from this
product, resulting in a change in the weight of the mounted load, you should repeat these adjustment
steps to ensure safe and optimum operation.
NOTE
CAUTION
WARNING
ELECTRICAL
A NOTE indicates important information that helps you make better use of this product.
A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
A WARNING indicates either potential for property dam­age, personal injury, or death.
An Electrical indicates an impending electrical hazard which, if not avoided, may result in personal injury, re and/or death.
ENGLISH
Warning: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong
enough to handle mounted product and equipment.
Caution: To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury.
2 / 9
888-45-158-W-03 rev.G • 10/14
Page 3
3/16" 7/32"
1/8"
3/16" 7/32"
1/8"

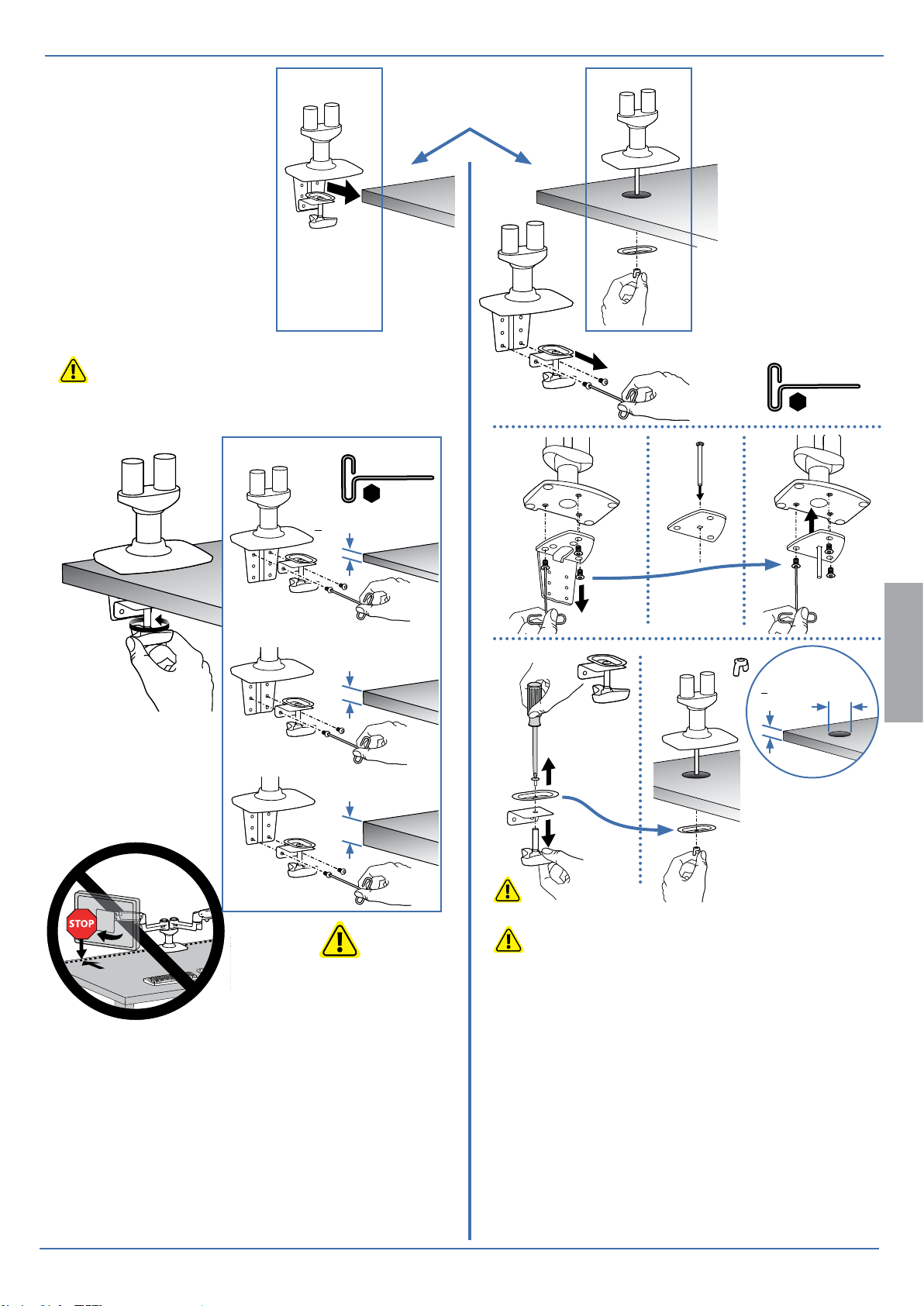

Choose Mounting Method
1
CAUTION: For secure arm attachment and to avoid equipment damage, plate must make contact with underside of desk on both sides of the hole.
4mm
< .63" (16 mm)
.5" - 1.63" (11 - 41 mm)
1.42" - 2.6" (36 - 66 mm)
a
b
c d
e f
< 3"
(80 mm)
4mm
ENGLISH
0.31" - 2"*
(8 - 51 mm)
888-45-158-W-03 rev.G • 10/14
CAUTION: For Desk Clamp installations: Do Not rotate
display past edge of desk
CAUTION: Bolt must be centered in hole.
CAUTION: For secure arm attachment and to avoid equipment damage, plate must make contact with underside of desk on both sides of the hole.
3 / 9
Page 4

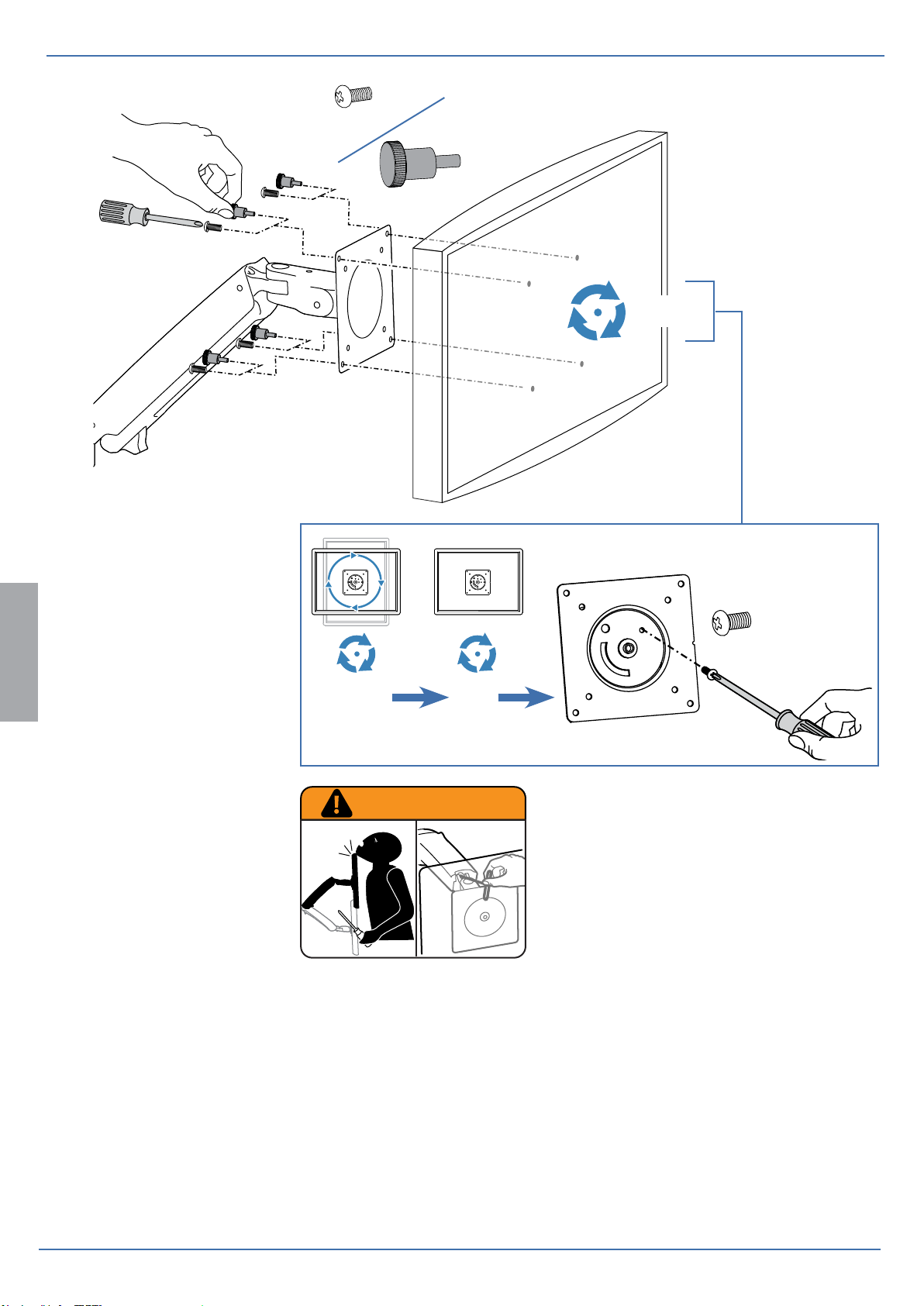

4x
2
M4 x 10mm
4x
M4 x 10mm
360°
ENGLISH
1x
M3 x 6mm
360° 0°
WARNING
WARNING! Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove equipment unless the arm has been moved to the highest position! Failure to follow this instruction may result in serious personal injury and/or equipment damage!
4 / 9
888-45-158-W-03 rev.G • 10/14
Page 5
4
3
ENGLISH
2x

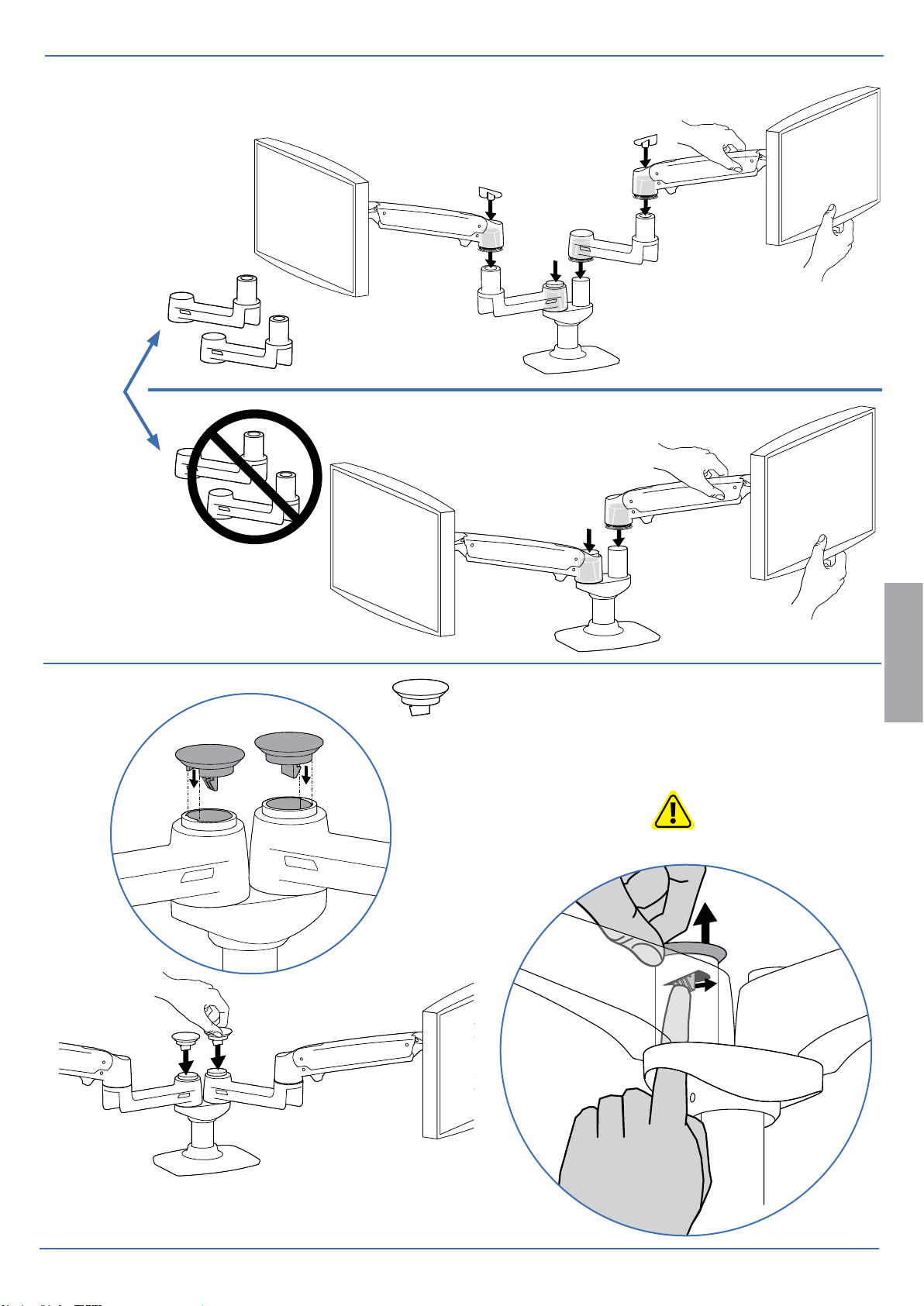

How to remove cap.
888-45-158-W-03 rev.G • 10/14
5 / 9
Page 6
5

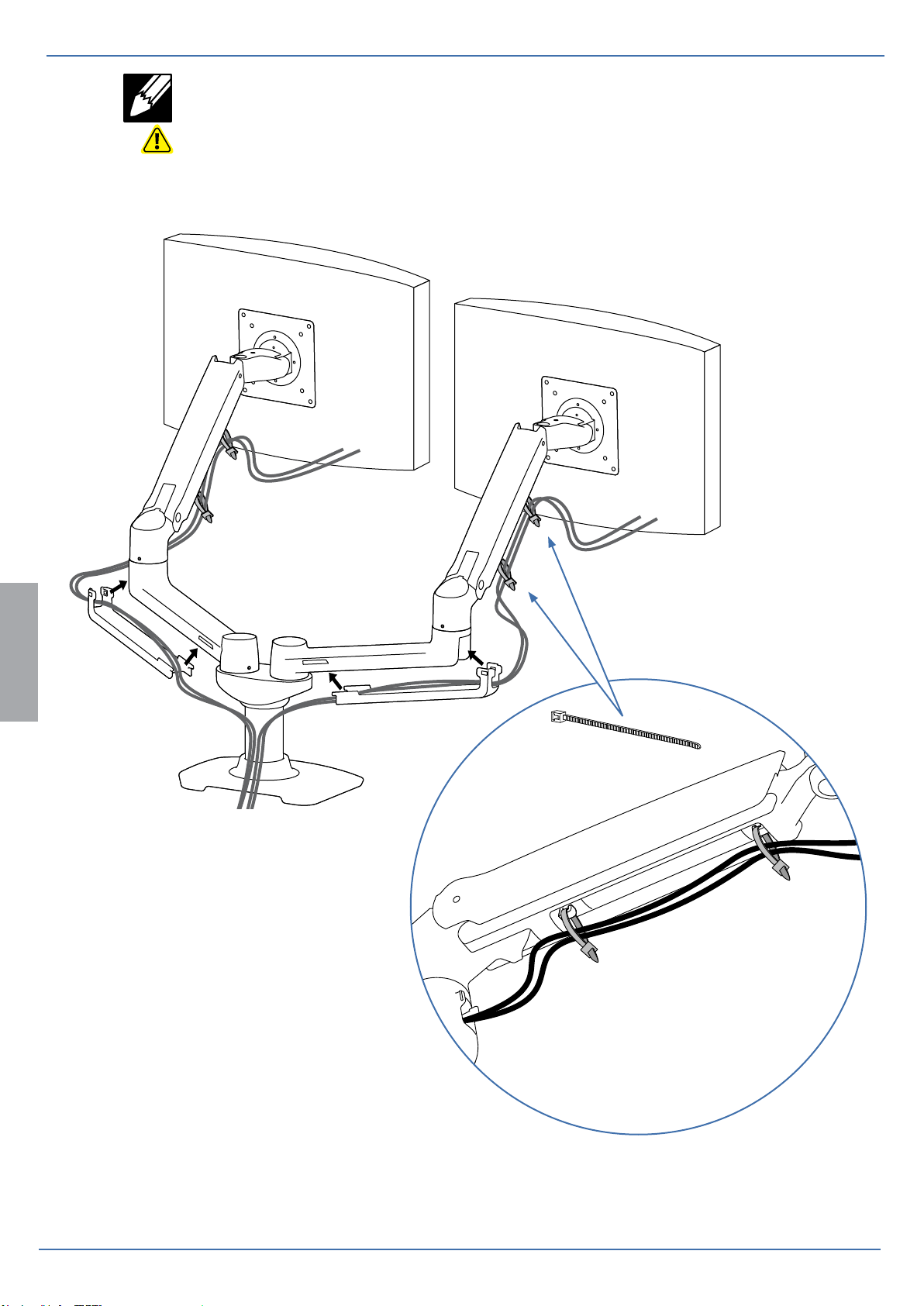

NOTE: Leave enough slack in cable to allow full range of motion.
Caution: To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury.
ENGLISH
6 / 9
888-45-158-W-03 rev.G • 10/14
Page 7
6
Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily
through the full range of motion and stay where you set it. If movements are too easy or difcult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements. Depending on your product and the adjustment, it may take many turns to notice a difference. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat
these adjustment steps to ensure safe and optimum operation.
Lift – Up and down
a
4mm
CAUTION: DO NOT overtighten fasteners. Overtightening may cause damage to your equipment.
Tilt – Forward and Backward
b
4mm
4mm

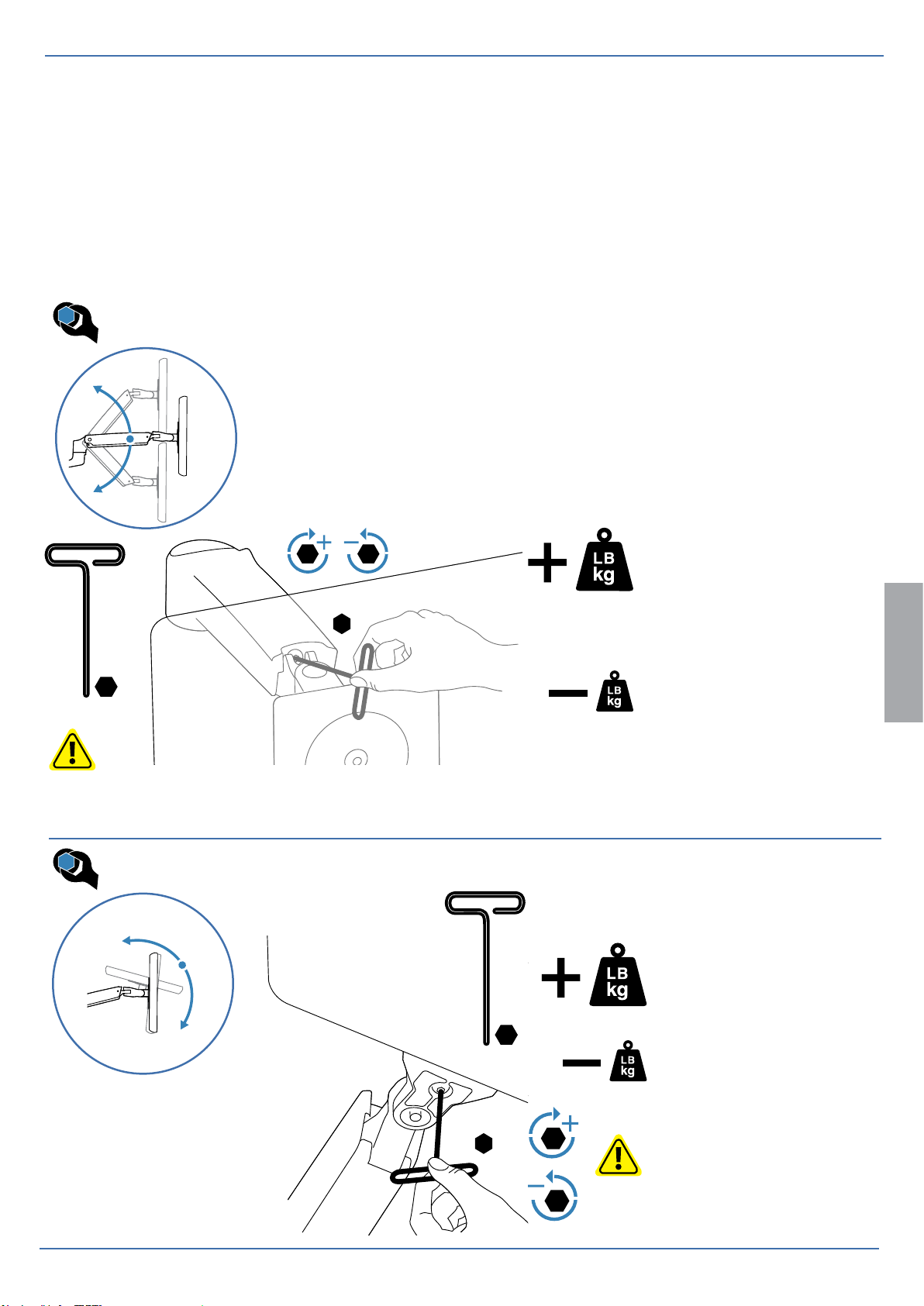

Increase Lift Strength
If the mounted weight is too heavy or this product does not stay up when
raised, then you'll need to increase
Lift Strength:
Decrease Lift Strength
If the mounted weight is too light or this product does not stay down when
lowered, then you'll need to decrease
Lift Strength:
Increase Friction
If this product moves too easily, then
you'll need to increase friction:
Decrease Friction
If this product is too difcult to move,
then you'll need to decrease friction:
ENGLISH
888-45-158-W-03 rev.G • 10/14
4mm
CAUTION: DO NOT remove screw. Removing screw may cause damage to equipment.
7 / 9
Page 8

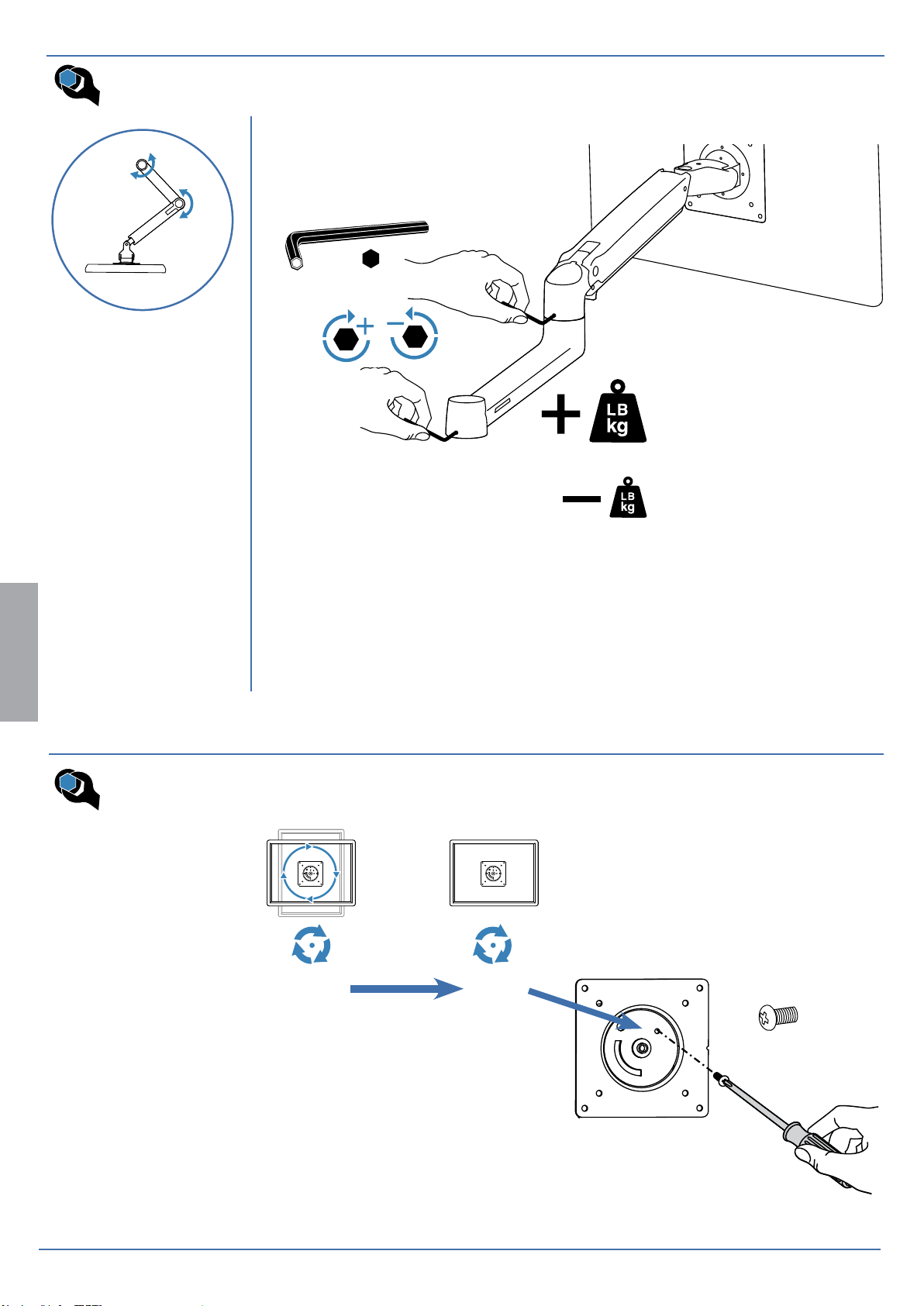

Arm Swing – Side-to-side
c
2.5mm
Increase Friction
If this product moves too easily, then
you'll need to increase friction:
Decrease Friction
If this product is too difcult to move,
then you'll need to decrease friction:
ENGLISH
Rotate – Portrait/Landscape
d
360° 0°
1x
M3 x 6mm
8 / 9
888-45-158-W-03 rev.G • 10/14
Page 9

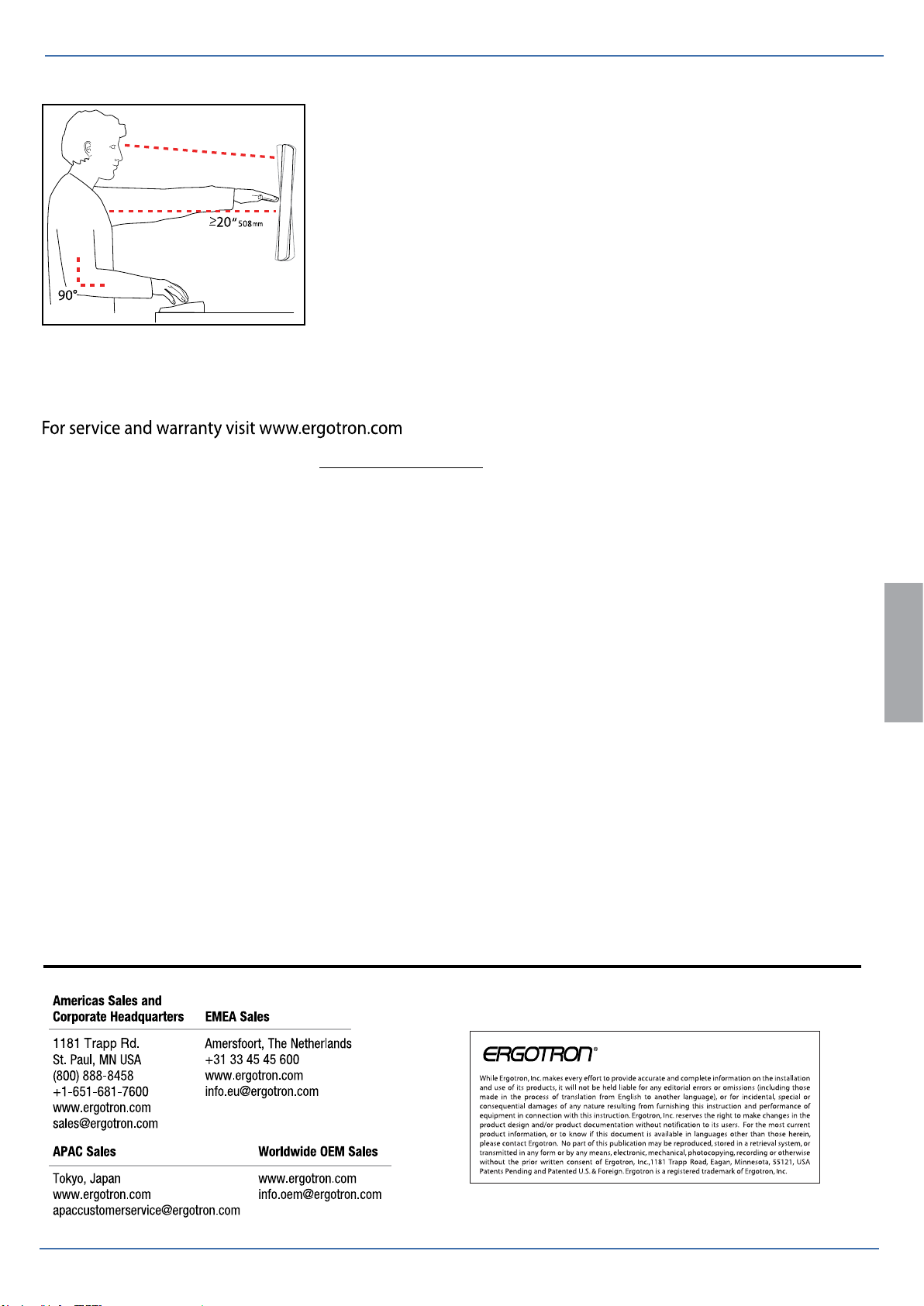

Set Your Workstation to Work For YOU!
Learn more about ergonomic computer use at:
www.computingcomfort.org
Height Position top of screen slightly below eye level.
Position keyboard at about elbow height with wrists at.
Distance Position screen an arm's length from face—at least 20” (508mm).
Position keyboard close enough to create a 90˚ angle in elbow.
Angle Tilt screen to eliminate glare.
Tilt the keyboard back 10° so that your wrists remain at.
To Reduce Fatigue Breathe - Breathe deeply through your nose. Blink - Blink often to avoid dry eyes. Break • 2 to 3 minutes every 20 minutes
• 15 to 20 minutes every 2 hours.
