14”-24.5”
(356-622 mm)

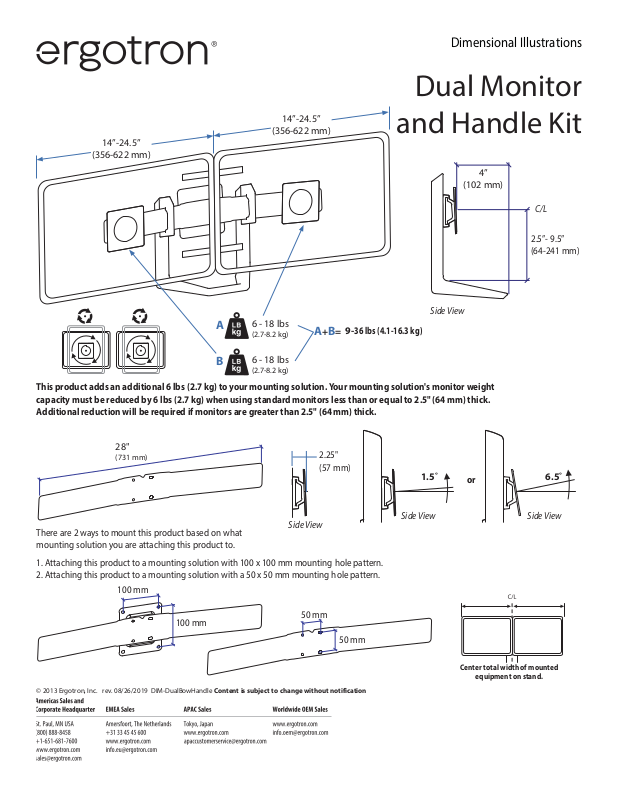

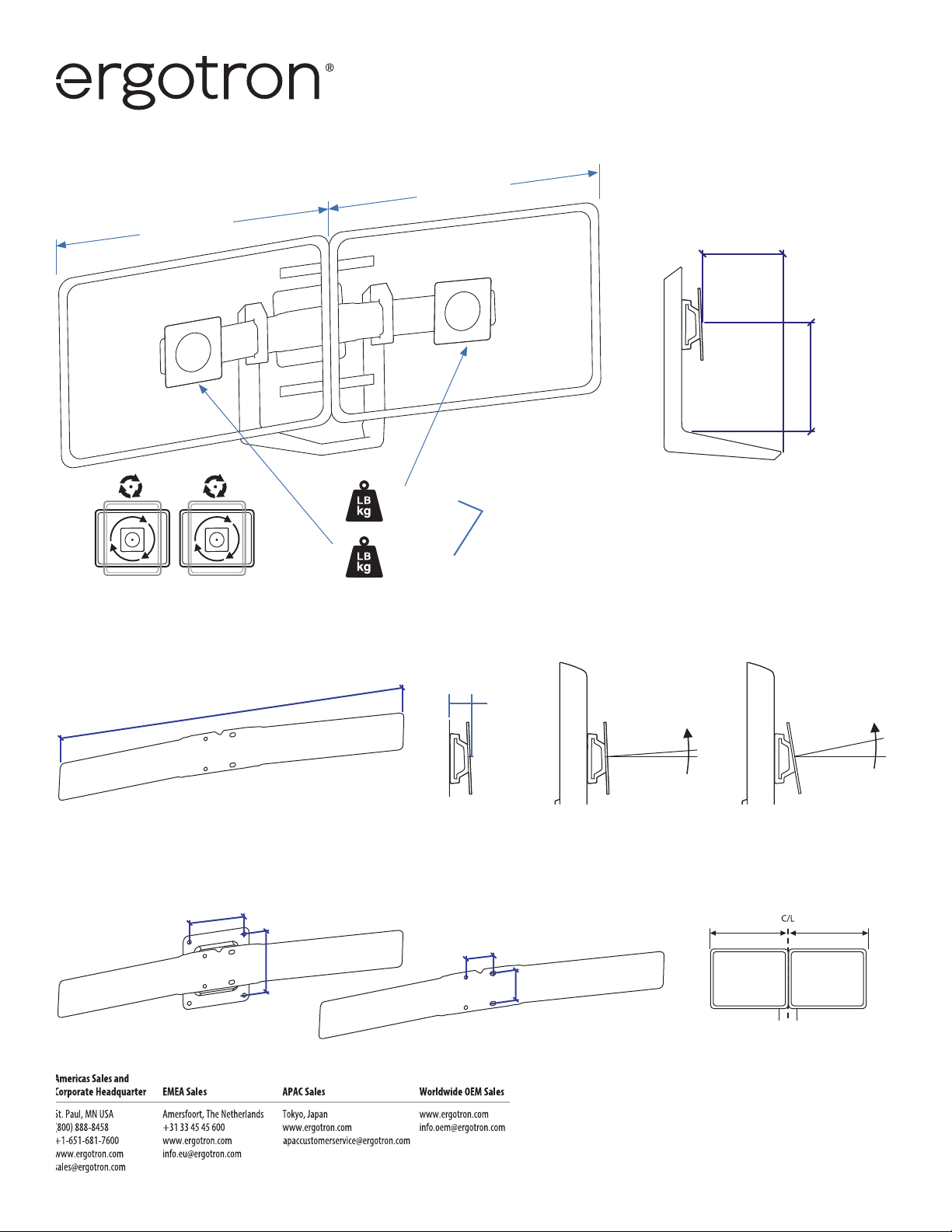

Dimensional Illustrations
Dual Monitor
14”-24.5”
(356-622 mm)
A
6 - 18 lbs
(2.7-8.2 kg)
A
+B=
9-
36 lbs (4.1-16.3 kg)
and Handle Kit
4”
(102 mm)
C/L
2.5”- 9.5”
(64-241 mm)
Side View
B
This product adds an additional 6 lbs (2.7 kg) to your mounting solution. Your mounting solution's monitor weight
capacity must be reduced by 6 lbs (2.7 kg) when using standard monitors less than or equal to 2.5" (64 mm) thick.
Additional reduction will be required if monitors are greater than 2.5" (64 mm) thick.
28"
(731 mm)
There are 2 ways to mount this product based on what
mounting solution you are attaching this product to.
1. Attaching this product to a mounting solution with 100 x 100 mm mounting hole pattern.
2. Attaching this product to a mounting solution with a 50 x 50 mm mounting hole pattern.
100 mm
100 mm
6 - 18 lbs
(2.7-8.2 kg)
2.25"
(57 mm)
or
Side View Side View
Side View
50 mm
50 mm
6.5˚1.5˚
© 2013 Ergotron, Inc. rev. 08/26/2019 DIM-DualBowHandle Content is subject to change without notification
Center total width of mounted
equipment on stand.
