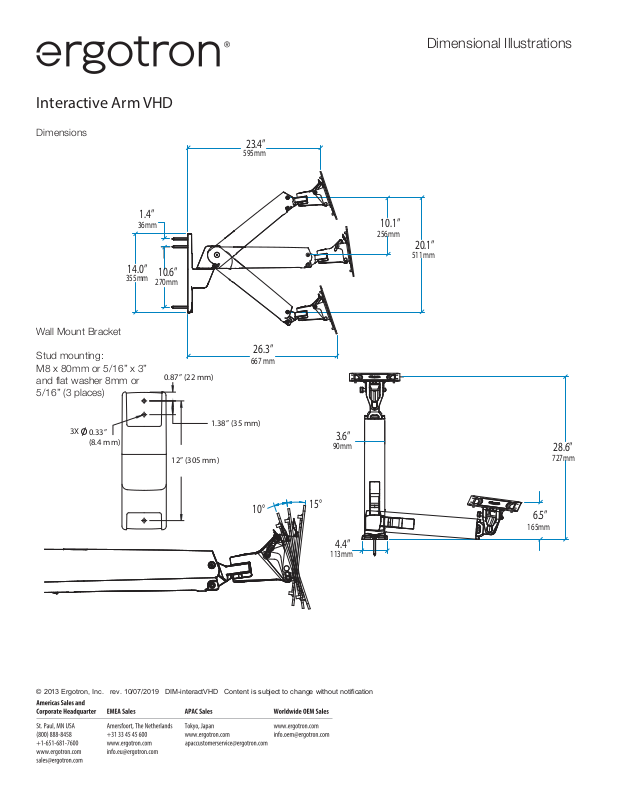

Page 1
Interactive Arm VHD
Dimensions
Dimensional Illustrations
23.4”
595mm
1.4”
36mm
14.0”
355mm
Wall Mount Bracket
Stud mounting:
M8 x 80mm or 5/16” x 3”
and flat washer 8mm or
5/16” (3 places)
3X
0.33”
(8.4 mm)
10.6”
270mm
0.87” (22 mm)
12” (305 mm)
667 mm
1.38” (35 mm)
10°
26.3”
15°
3.6”
90mm
10.1”
256mm
20.1”
511mm
28.6”
727mm
6.5”
165mm
4.4”
113mm
© 2013 Ergotron, Inc. rev. 10/07/2019 DIM-interactVHD Content is subject to change without notification
Page 2
Interactive Arm VHD
Dimensional Illustrations
Dimensions
15.8”
400mm
23.6”
600mm
7.9”
200mm
7.9”
200mm
VESA
Range of Motion
180°
Weight Capacity
21"
(533 mm)
15°
10°
© 2013 Ergotron, Inc. rev. 10/07/2019 DIM-interactVHD Content is subject to change without notification
180°
35 - 70 lbs
(15.9 - 31.8kg)
Page 3
Mounting Height for Ergonomic Workstation
This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5'0"-6'1"
(152-185cm) when set up for standing and user heights of 5’0”-6’4” (152-193cm) when set up for sitting.
If user heights are di erent than this, you should change mounting height to accommodate user heights. (Change mounting height one inch for every one inch di erence in user heights).
6”
(152 mm)
5’0” - 6’1”
Mounting height assumes
there is a 6” (152 mm) distance
between the center of your
monitor mounting holes and
the top of the screen. If your
distance is smaller, you should
increase mounting height
accordingly, if your distance
is larger, you should
decrease your mounting
height accordingly.
50.5”
(1283mm)
(152.-185cm)
5’0” - 6’4”
(152-193cm)
35”
(mm)
SPACE REQUIREMENTS
Distance from the Wall
side
© 2013 Ergotron, Inc. rev. 10/07/2019 DIM-interactVHD Content is subject to change without notification
28.8” (640 mm) +
Thickness of TV
25.2” (640 mm) + Thickness
of TV
Horizontal Space Requirements
40.49” (1028 mm) + Width of TV*
*Space requirement dimensions assume mounting holes are centered on the TV.
Vertical Space
Requirements
20.49” (520 mm) + Height
of TV*
front
