Ergo Systems 20008D Owner's Manual

MODEL NO.

20008D

Model and serial number may be found
at the rear of the 8 Day Feeder base.

Please record both model and serial
number in a safe place for future use.

Where Purchased :

Date purchased : Month

:Day

: Year

Model No. :

Serial # :

This Owner’s Manual contains
information for all models.

Read and keep this manual for future
reference.

This manual contains important
information on Safety, Assembly,
Operation and Maintenance.

Owner’s Manual

8 Day Autopetfeeder

Ergo Systems Inc. Rev # : 1.1

2

Congratulations on purchasing the “8 DAY AUTOPETFEEDER“.
You will now have more time on your hands and your pet can be
fed on time. Before you can use this appliance you need to
follow some simple steps to assemble the 8 Day Autopetfeeder.

DO NOT RETURN THE PRODUCT TO THE STORE

Call 1-888 ERGOSYS (1-888-374-6797)

If there are missing parts. Check all packing for missing

parts prior to discarding the package.

Before you call us, please have the following
information ready.

1. Details of purchase like invoice number
(found on the bill or invoice)

2. Name and model number of the product
(found on the manual and on the carton.)

3. Actual problem after following the instructions.

4. List of missing parts.

Important: This is an Owner’s Manual for 8 Day Autopetfeeder.

Please do not discard this.

LIMITED WARRANTY

Please read this warranty carefully. Ergo Systems Inc. will warranty this product to be free from manufacturing defects, including
workmanship, when assembled and operated according to operating instructions enclosed with this product, for a period of
ninety (90) days from the date of original purchase. This warranty is non-transferable and applies solely to the original purchaser
and does not extend to subsequent owners of this product. Please register your product at http://www.autopetfeeder.com.

1. Repair service for a period of ninety (90) days from the date of original purchase at no charge for parts and labor with
proof of purchase.

2. Replacement of defective parts for a period of 12 months from the date of original purchase with proof of purchase.
(Labor not included after initial ninety (90) days.)

3. This warranty does not cover cost incurred in the shipping of the product to and from Ergo Systems Inc. for service.
Shipping to Ergo Systems Inc. must be prepaid and insured by UPS or other parcel delivery services.

THIS WARRANTY IS VOID IF THE PRODUCT IS:

1. Damaged due to negligence, abuse, misuse, accident, modification, tampering, alteration, faulty installation and / or acts of God.

2. Used for commercial applications or rentals.

3. Modified or repaired by anyone other than Ergo Systems Inc.

The extent of Ergo Systems Inc. under this limited warranty is the repair or replacement of the product at the sole discretion of Ergo
Systems Inc. In no event shall Ergo Systems Inc.’s liability exceed the purchase price paid by the purchaser. Under no circumstances
shall Ergo Systems Inc. be liable for any loss, direct, indirect, incidental, foreseen, unforeseen, special or consequential damage arising
out of or in connection with the use of this product. This warranty is valid only in the United States of America and Canada.

Reviewing these important safety alert symbols

When you see this Safety Symbol on the following pages, it will alert you
to the possibility of damage to your 8 Day Pet Feeder, if you do not
comply with the corresponding instructions. The hazard may come from
something mechanical or electrical. Read the instructions carefully.

3

List of parts in the 8 Day Autopetfeeder Box

Components

1. Base.

2. Bowl Cover.

3. Bowl.

4. Ice Pack

5. Digital timer

6. Bowl Cover Handle

8 Day Feeder Base

1

Bowl Cover

2

Bowl

3

Ice Packs (Quantity 4)

4

Digital timer

5

Bowl Cover Handle

6

Fig 2

4

Assembly

Step 1

Fig 1

Step 2

Fig 3

The 8-Day Autopetfeeder comes as a pre-assembled unit.

Now the digital timer needs to be programmed for the unit to work automatically. Follow the steps below to program the timer.

Remove the sticker from the Bowl Cover Handle.

Remove the three screws to remove the Bowl Cover Handle.
Align the bowl to the cover and tighten the screws. Replace
the sticker.

Bowl Cover Alignment

Check to see if the bowl cover aligns with the feed bowl. If the
alignment is correct go to Step 3. If the alignment is off proceed to Step 1.

5

Step 1

Step 2

Fig 5

Remove the Digital Timer from the base by rotating it in
anticlockwise direction.

You will find the Battery compartment at the back of the
Timer Module.

Installing batteries in the Timer Module.

Fig 4

Step 3

Step 4

Fig 7

Open the battery compartment by pushing the plastic tab
to the left and lift up.

Install 3 new AAA batteries in the battery compartment.

Step 5

Close and latch the cover.

Fig 6

Fig 8

NOTE:

Always install new batteries. When you replace the old battery
you must do it within 1 minute or you will loose the programs.

THE TIMER WILL MAKE A BEEPING

SOUND WHEN THE BATTERY IS LOW

6

TIMER PROGRAMMING

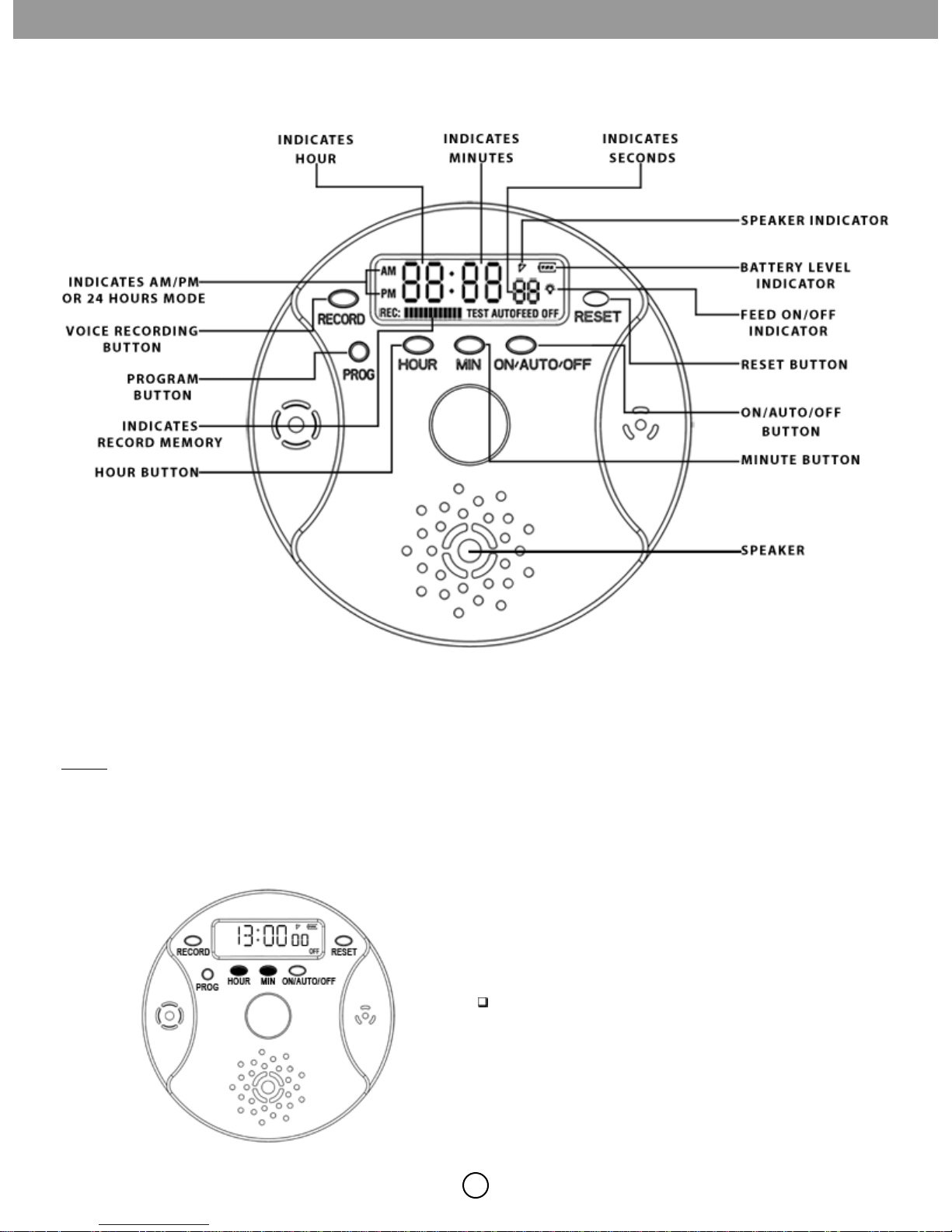

This is the Digital Timer unit for 8 Day Autopet Feeder. The timer works on 3 AA batteries. With this
Digital Controller Module you can record your voice which will be played back every meal time.
Records your voice up to 7 Seconds.

NOTE:

- Remove bowl cover to program the timer.

- Press RESET button prior to programming the timer. Use 3 AA Batteries. Do not mix old and new batteries.

1.0 Setting the time mode : 24 hour (military time) or 12 hour AM/PM MODE

Press the HOUR and MINUTE button simultaneously to
activate 12 hour or 24 hour program mode. The display will
begin to flash.

Fig 1

7

Press the HOUR and MINUTE button simultaneously to
activate the setting mode.

Press the PROGRAM button to switch from the present
mode to the next mode
i,e. from 24 hour to AM/PM or AM/PM to 24 hour mode.

Fig 2

Fig 3

1.1 Setting the Current Time

Press the HOUR button to set the HOUR.

Fig 4

8

Press the MINUTE button to set the MINUTE.

Press ON/AUTO/OFF button to go back to clock mode.

Fig 5

Fig 6

NOTE: The seconds setting cannot be altered.

1.2 Understanding the Timer

The autopetfeeder is capable of feeding your pet up to 8 times per day. You can set the time for the feeder up to 8 times
per day. This will give you control over the amount of food you feed your pet and also the time your pet is fed. By pressing
the PROGRAM button you will enter the programming mode. The display will now show 1. At this time the feeder will turn
ON and after the cover rotates 45 degrees, the feeder will turn off.

The pet feeder is capable of feeding both dry and canned food and pet meds.

9

Press ON/AUTO/OFF button to toggle between TEST,
AUTO and OFF mode. The display will show the mode in
which the timer is set

Fig 7

1.3 ON/AUTO/OFF

In TEST mode the bowl cover rotates 45 degree and enters
the next feed compartment.

Fig 8

Now let us understand the different modes of operation in the timer.

In AUTO mode the feeder works as per the programmed
schedule.

Fig 9

10

In OFF mode the feeder does not work.

Fig 10

Press the PROGRAM button to enter into program mode.
The display will show 1 which means that we are setting the
1st schedule.

Fig 11

Press the HOUR button till the display shows 7 AM

Fig 12

1.4 Setting the Program Mode

1.5 Timer Programming Examples:-

Let us set a schedule for 7.10 am.

11

Press the MINUTE button till the display shows 10.

Fig 13

Press the PROGRAM button again and the display will show
2 which means that we are setting the second feed time.

Fig 14

PROGRAM TO FEED CHART

12

Press the PROGRAM button again to exit from the program
mode to CLOCK mode.

Fig 15

NOTE:

To exit out of program mode press PROGRAM button until you see the CLOCK mode appear.

Press the RECORD button to record your voice, a record
time bar will appear on the display which indicates the
memory level.. You can record up to 7 seconds.

Fig 16

1.6 Recording Voice

Press the ON/AUTO/OFF button until the timer display
shows TEST, to play back the recorded voice in the TEST
mode. This is used to test the voice recording &
demonstrates the function of the timer.

Fig 17

13

Press the ON/AUTO/OFF button until the display shows
AUTO, to set the feeder in AUTO mode.

Fig 18

1.7 Setting Feeder in Auto Mode

Now your 8 Day Autopetfeeder is ready to feed your Pet 8 Times a Day

or as per the program / feed chart.

8. I find only a 24 hour clock on my timer. How do I program in AM/PM?

To change the clock mode, perform the following steps.

Press the HOUR and MIN buttons together to go into clock programming mode.

The digits on the display will start flashing ON and OFF. Now press the PROG button once to switch over to AM/PM mode.

The same procedure is applicable to switching back to 24 hour mode.

-

-

14

FAQ

1. Can I feed cats and dogs?

Yes! You can feed cats, dogs and any other pet which will eat from a bowl.

-

2. What kind of food can I put in the feeder?

Unlike the AutoPetFeeder, you can use both dry and wet canned food in the 8 Day Feeder.

-

3. Is the timer easy to program?

The 8 Day Feeder comes with a digital timer that can be easily programmed in a few minutes. The timer also features a
manual TEST button that can be used to test the feeder. The manual override button can also shut off the timer, enabling
you to take your pet with you out of town for a few days. The timer will remember the programs till you get back and acti­vate the auto mode.

-

4. How do I know when to change batteries?

The display on the timer has a battery status indicator which shows how much battery power is left. If the battery level
shown by the indicator is low, the batteries need to be changed.

If the timer starts beeping replace the batteries.

If the rotation of the bowl cover slows or stops, replace the battery.

If there is no display on the timer even after doing a master reset, replace the battery.

-

5. How does the feeder work?

The feeder consists of a Digital Control Module, Bowl cover and bowl cover handle. The control module rotates the bowl
cover handle. The handle is locked to the bowl cover and so the bowl cover also rotates, thus opening the next food tray.

-

6. How much food can I put into the 8 day feeder?

You can put 12 ounces of food in each compartment of the 8 Day Feeder.

-

7. The motor is making a loud noise when it rotates. What is the problem?

Check the battery level and replace if low. If problem continues please call 1-888-ERGOSYS.

-

-

-

9. Why does the recording of my voice sound too feeble?

This can happen if the Control Module is too far away from you when you record. Please make sure that you are holding
the control module close to you while recording your voice.

-

-

Corporate Office

Ergo Systems Inc.,
1105 S. WestWood Ave,
Addison,
IL 60101.

Toll-Free Phone. US only

1-888-ERGOSYS
(1-888-374-6797)

International Phone

1-630-543-7686

Fax

1-630-839-3321

E-Mail

[email protected]

Website

http://www.autopetfeeder.com

Warranty Registration

http://www.autopetfeeder.com/warranty.asp
