STANDING DESK ELECTRIC
SINGLE MOTOR - MEMORY
ELSTD1MTMBA, ELSTD1MTMWA
Safety & Warnings 3
Components 4
Overview 6
Assembly 8
Operation 16
Cleaning & Care 17
Troubleshooting 17
Specifications 19
Frame Dimensions 19
2
SAFETY & WARNINGS
Ensure to read all instructions and warnings in this user guide prior to assembly and use.
Retain this user guide for future reference.
• This appliance can be used by children aged 8 years and above and by persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning the use of the desk in a
safe way and understand the hazards involved.
• This desk is not a toy. Do not allow children to play with the desk or be around it
without constant adult supervision.
• Dispose of the plastic packaging materials as they may pose a choking hazard to
children.
• The operating environment of this desk is 0–40°C.
• The maximum load capacity of this desk is 70kg. Do not overload the desk.
• Ensure the power cord is unplugged before cleaning.
• Be familiarised with all functions and program settings of the desk before first use.
• Slight noise caused by the belt or braking system is normal and will not have any
effect on the use of the desk.
• Do not clean the desk with corrosive or abrasive materials.
• If the power cable is damaged, stop use immediately and contact help.Kogan.com
for assistance.
• Ensure there are no hazards in the operating environment.
• Do not leave tools around the environment.
• Keep the original packaging if necessary in case of future use in transportation.
This marking indicates that this desk should not be disposed of with other
household wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.
3

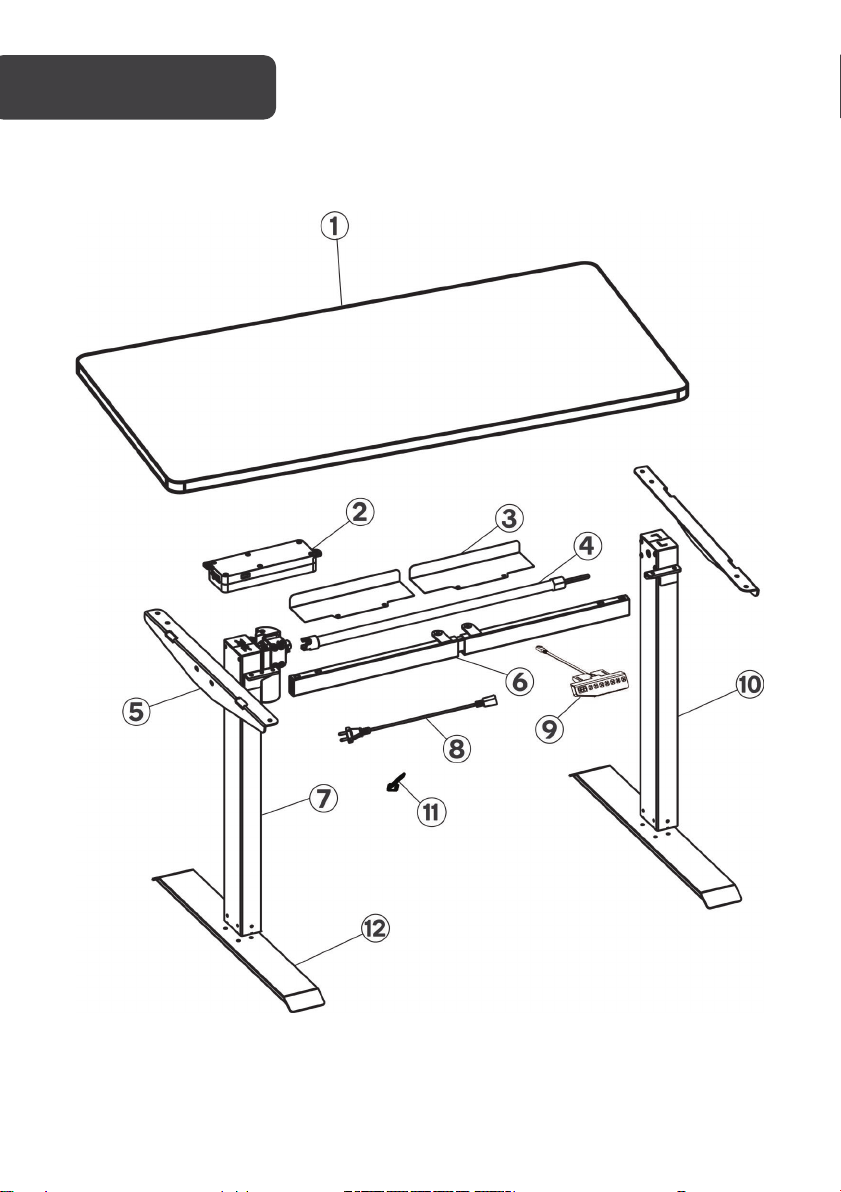

COMPONENTS

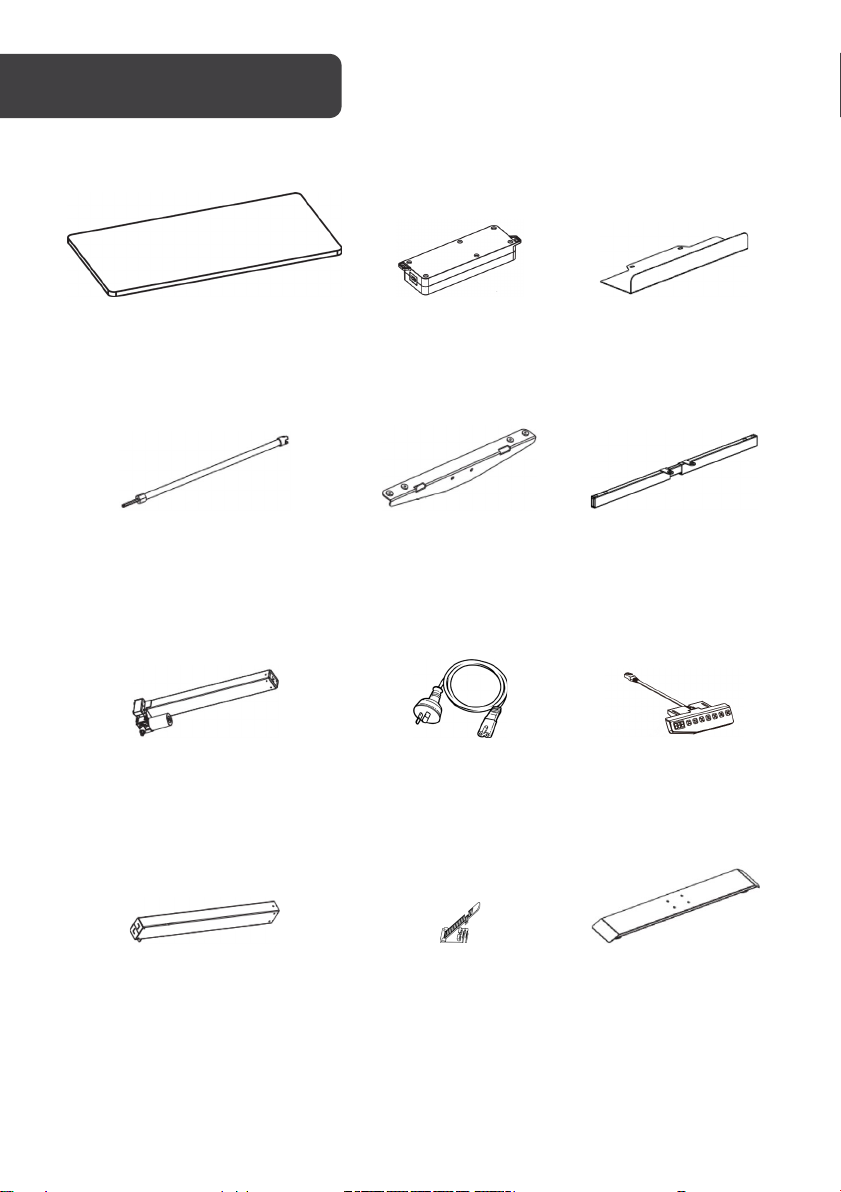

1 Tabletop (x1) 2 Control box (x1) 3 Baffle (x1)
4 Transmission rod (x1) 5 Supporting plate (x2) 6 Supporting beam (x1)
7 Right column (x1) 8 Power cable (x1) 9 Control panel (x1)
10 Left column (x1) 11 Cable tie (x4) 12 Pedestal (x2)
4

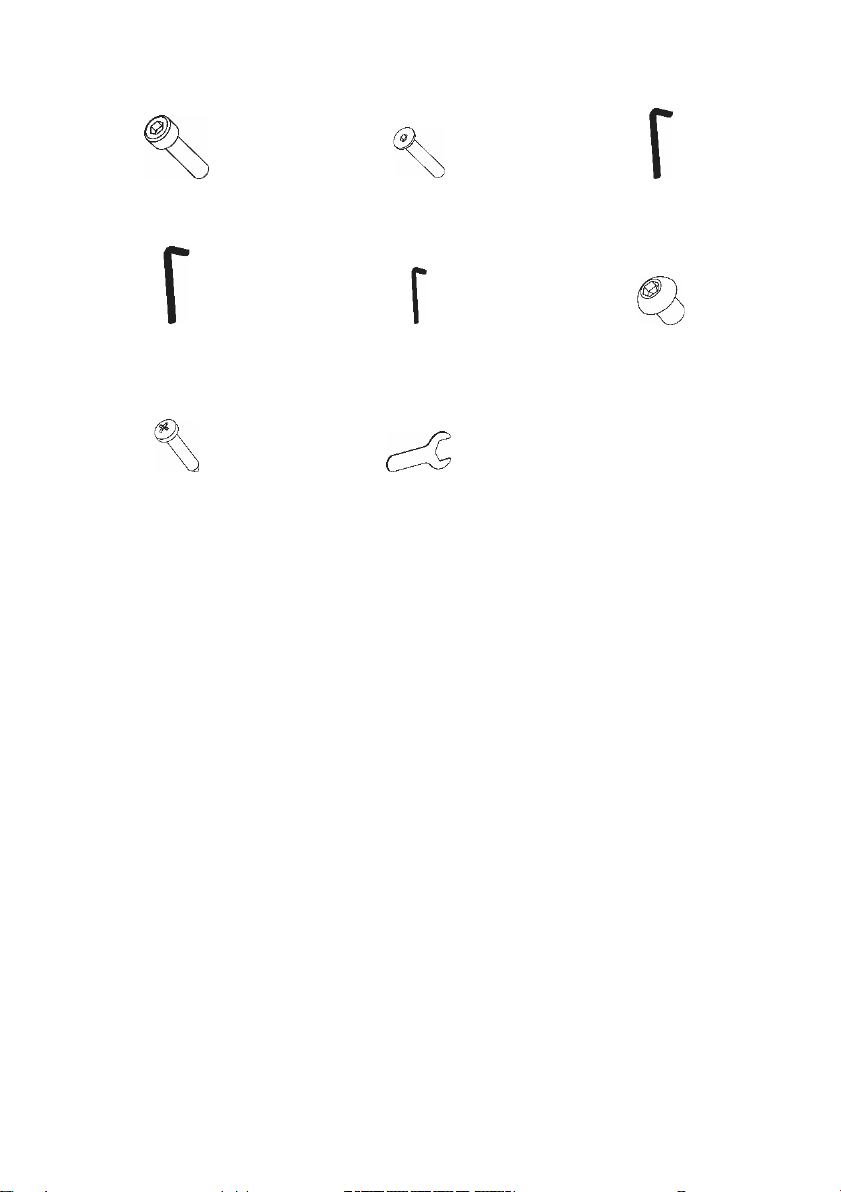

Hardware
A M6 screw (x12) B M8 screw (x4) C1 4mm Allen key (x1)
C2 5mm Allen key (x1) D 2.5mm Allen key (x1) E M4 screw (x4)
F ST4.2 screw (x15) G Wrench (x1)
5
OVERVIEW
6
13
Control box
Notes:
14
15
16
17
18
19
20

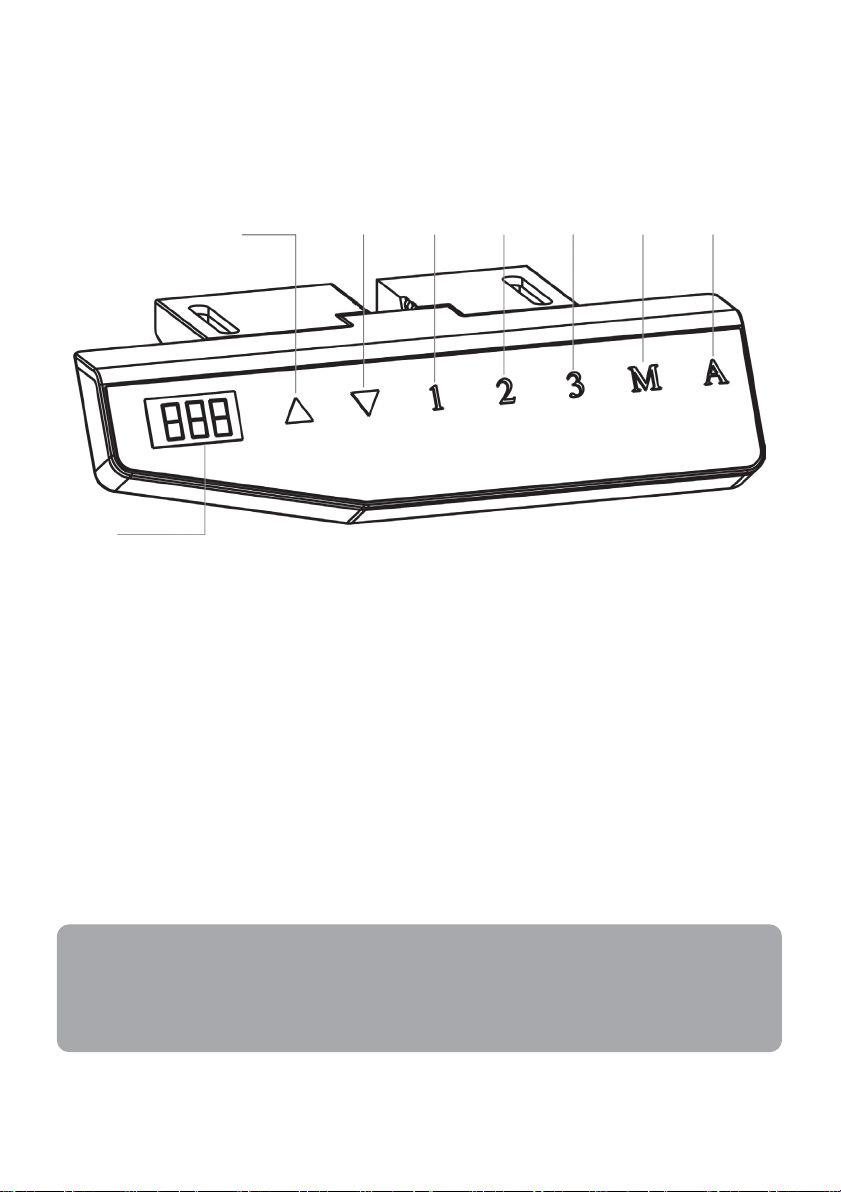

13 LED display
14 Up button
• Images are used as reference only.
• If any components are missing, or if you have difficulty with assembling the desk,
contact help.Kogan.com for assistance.
15 Down button
16 Position 1 button
17 Position 2 button
18 Position 3 button
19 Height memory button
20 Posture timer button
7
ASSEMBLY
C2
A
12
10
7

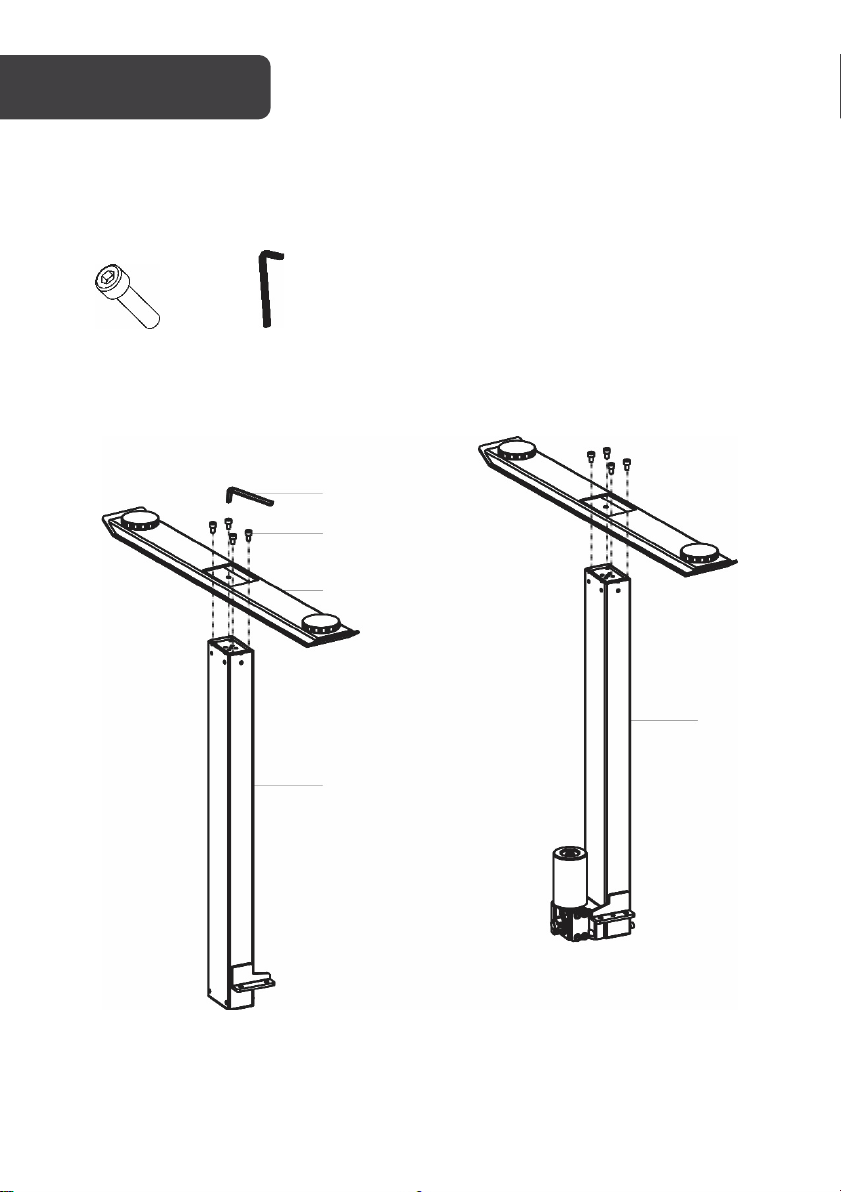

Step 1: Installing the pedestals
Using the 5x5mm Allen key (C2), secure the pedestals (12) to the left and right columns
(10, 7) with eight M6 screws (A). These create left and right column assemblies.
A (x8) C2 (x1)
8

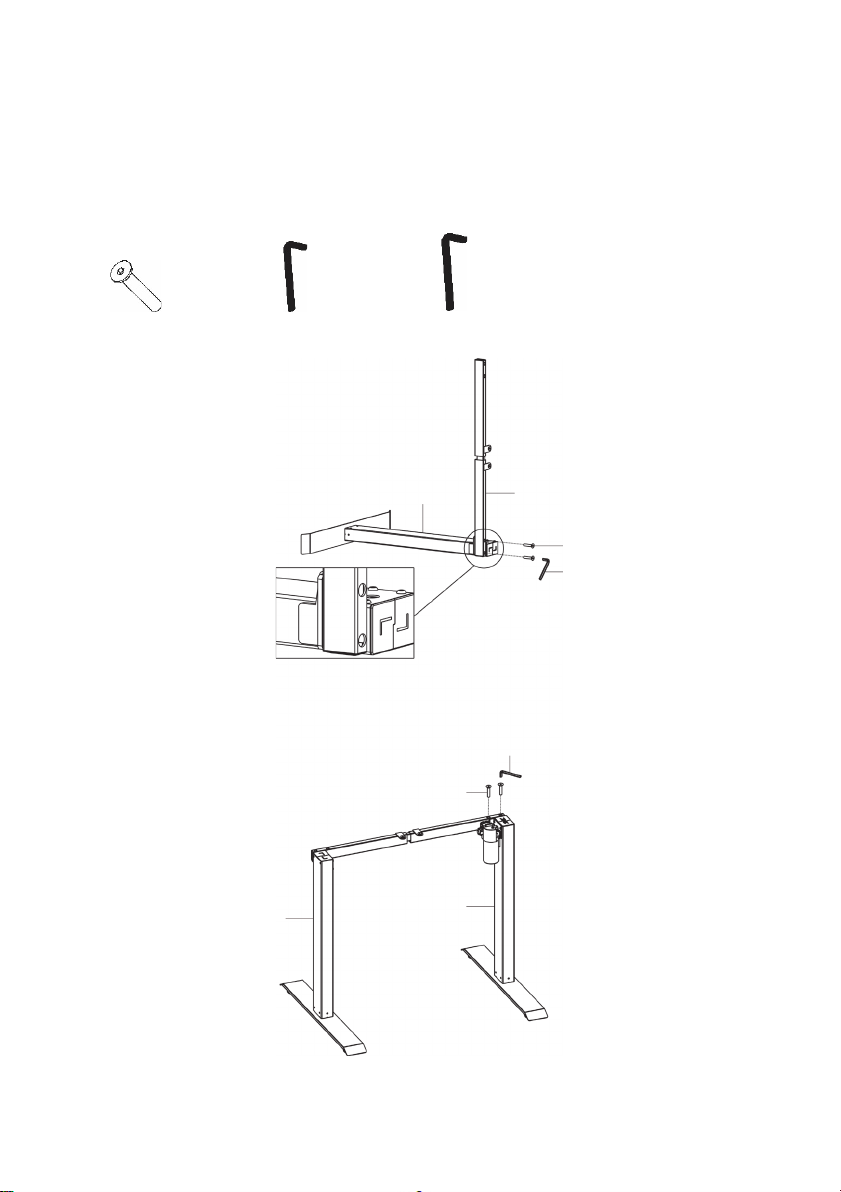

Step 2: Installing the supporting beam
6
10 B C2
C2
B
10
7
Lay the left column assembly horizontal, then align the supporting beam (6) with the left
column (10). Using the 5mm Allen key (C2), secure the supporting beam with two M8 screws
(B).
Using the 5mm Allen key (C2), secure the other end of the supporting beam to the right
column (7) with two M8 screws (B).
B (x4) C1 (x1) C2 (x1)
9

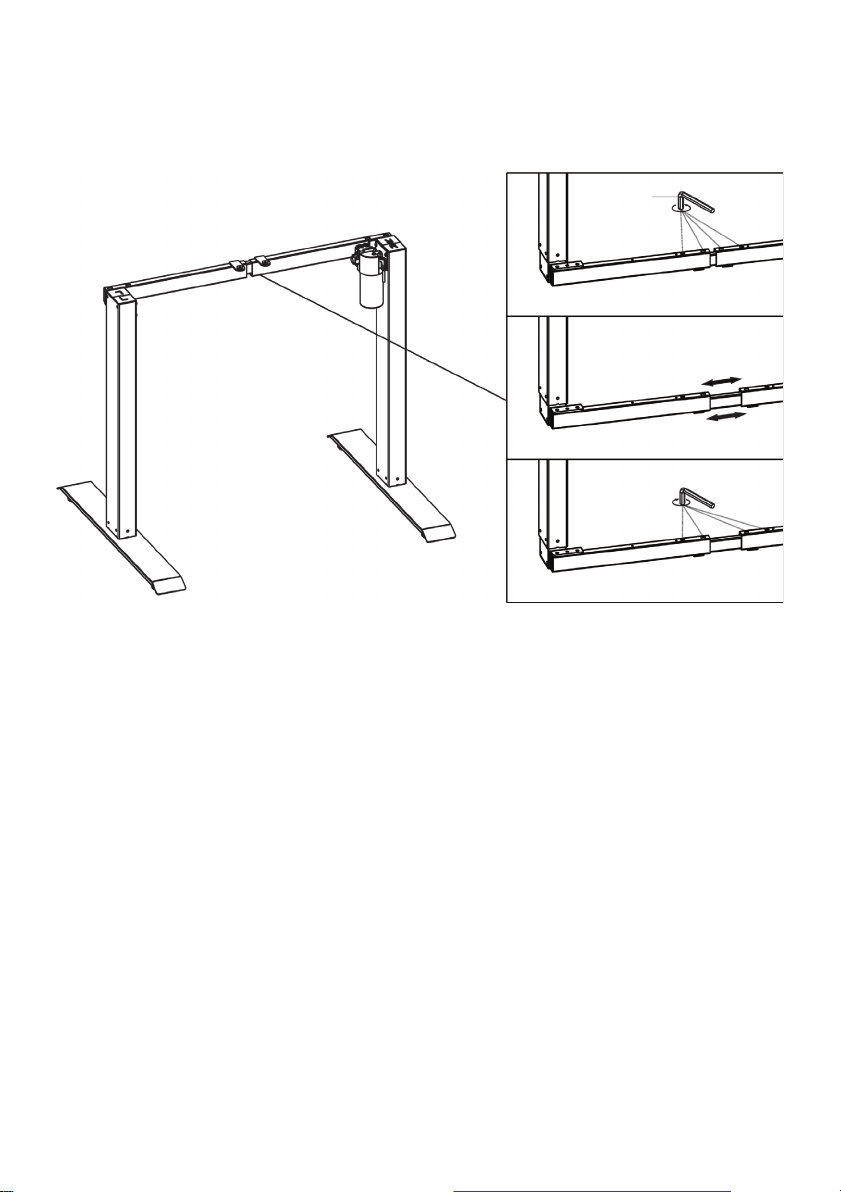

If the length of the supporting beam needs to be adjusted, use the 4mm Allen key (C1) to
Loosen
Stretch
Tighten
C1
loosen the screws in the middle of the supporting beam.
Stretch the supporting beam to the desired length, then tighten the screws.
10

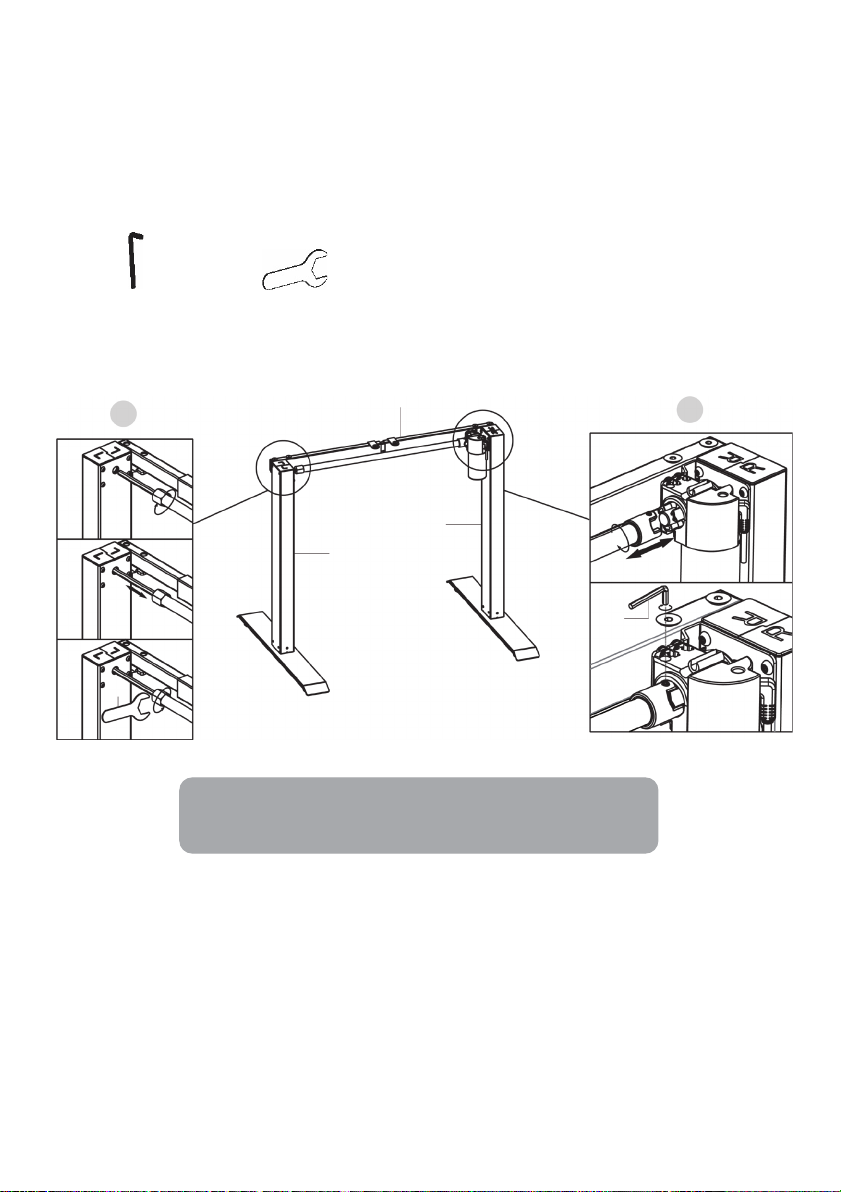

Step 3: Installing the transmission rod
Note:
1
2
Loosen
Insert
Tighten
Insert
Rotate
D
Tighten
4
10
7
G
Loosen, align, and insert one end of the transmission rod (4) into the left column (10). Using
the wrench (G), tighten the transmission rod.
Slightly rotate the transmission rod and insert it into the right column (7). Using the 2.5mm
Allen key (D), tighten the transmission rod until secure.
D (x1) G (x1)
Do not rotate the transmission rod by more than 120°.
11

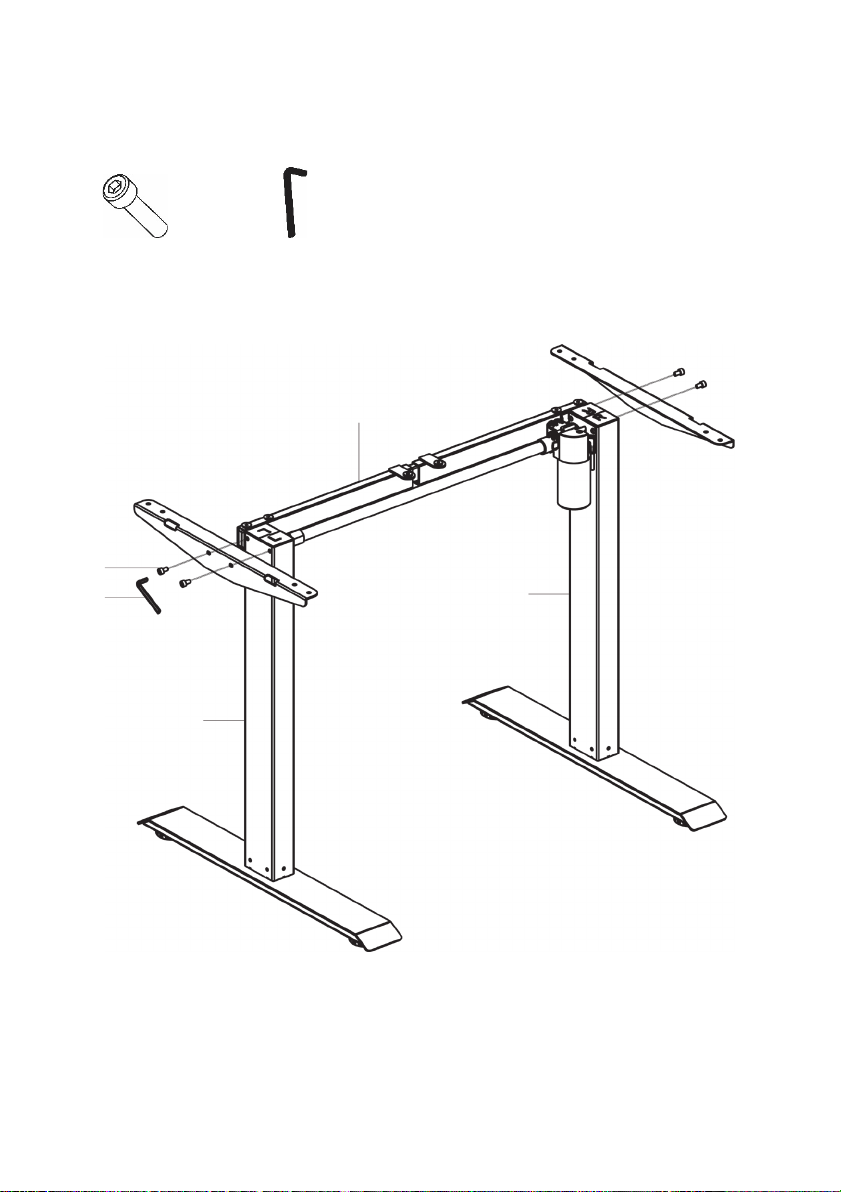

Step 4: Installing the supporting plates
A
C2
10 7 5
Using the 5mm Allen key (C2), secure the supporting plates (5) to the left and right columns
(10, 7) with four M6 screws (A). This creates the base assembly.
A (x4) C2 (x1)
12

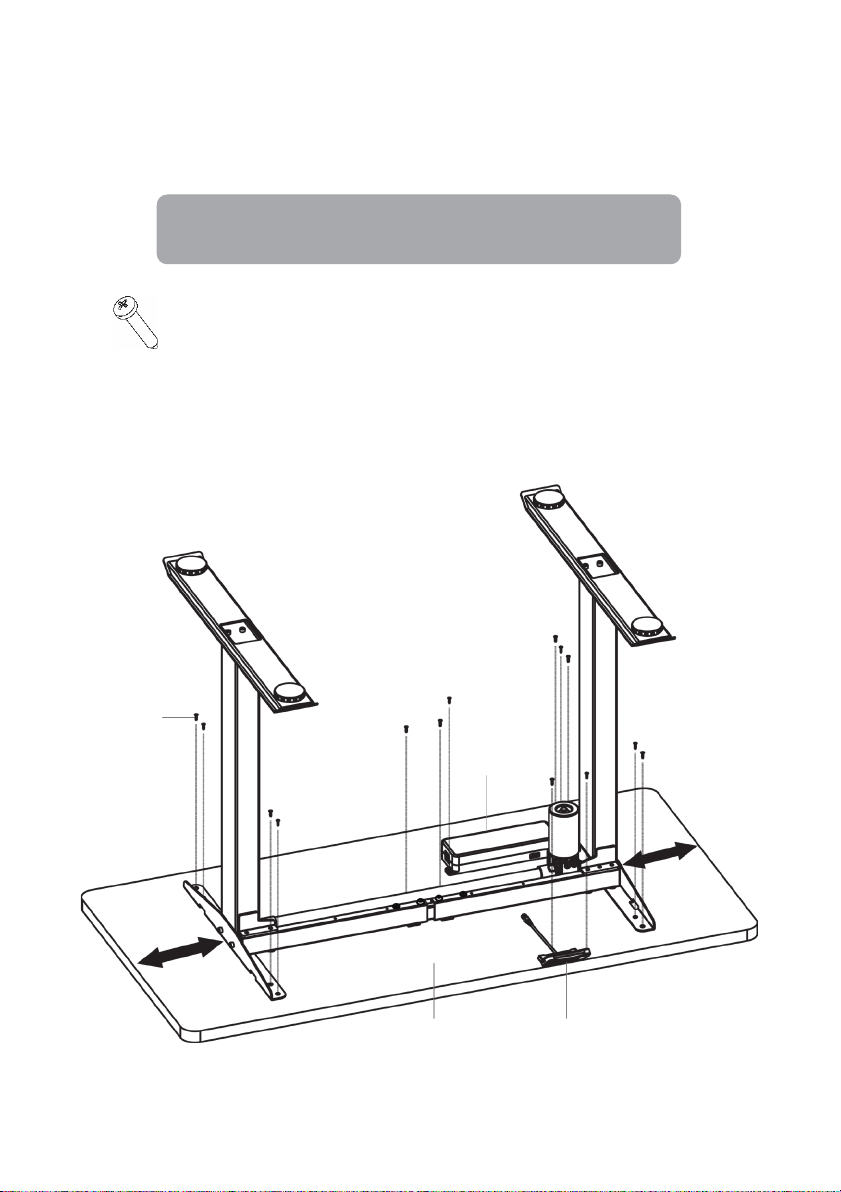

Step 5: Installing the tabletop and control box
F 9 2
Note:
The control box (2) will already be attached to the tabletop.
1
Secure the tabletop (1) to the base assembly with twelve ST4.2 screws (F). The distance
between the edges of the tabletop and the supporting plates (5) should be no more than
200mm.
Secure the control panel (9) to the tabletop with two ST4.2 screws (F).
F (x14)
13
Step 6: Installing the baffle

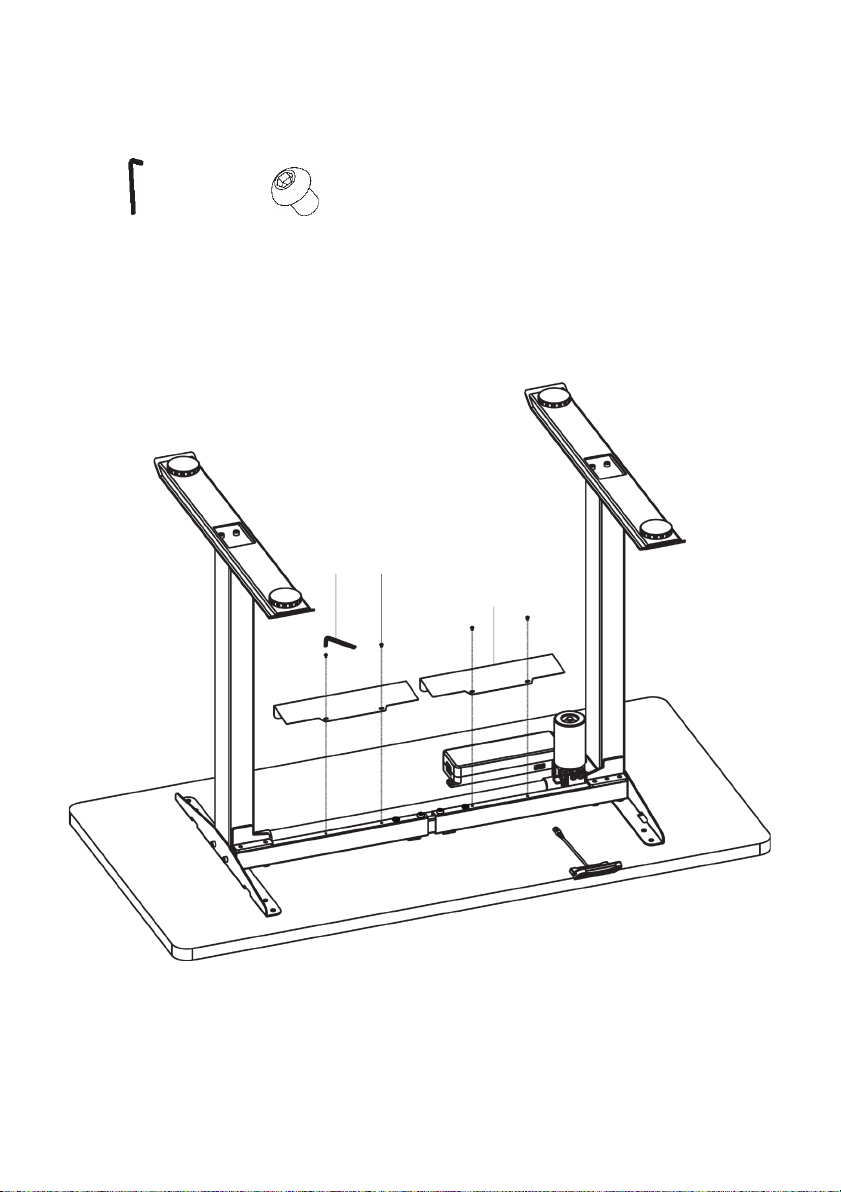

D E 3
Using the 2.5mm Allen key (D), secure the baffle (3) with four M4 screws (E).
D (x1) E (x4)
14

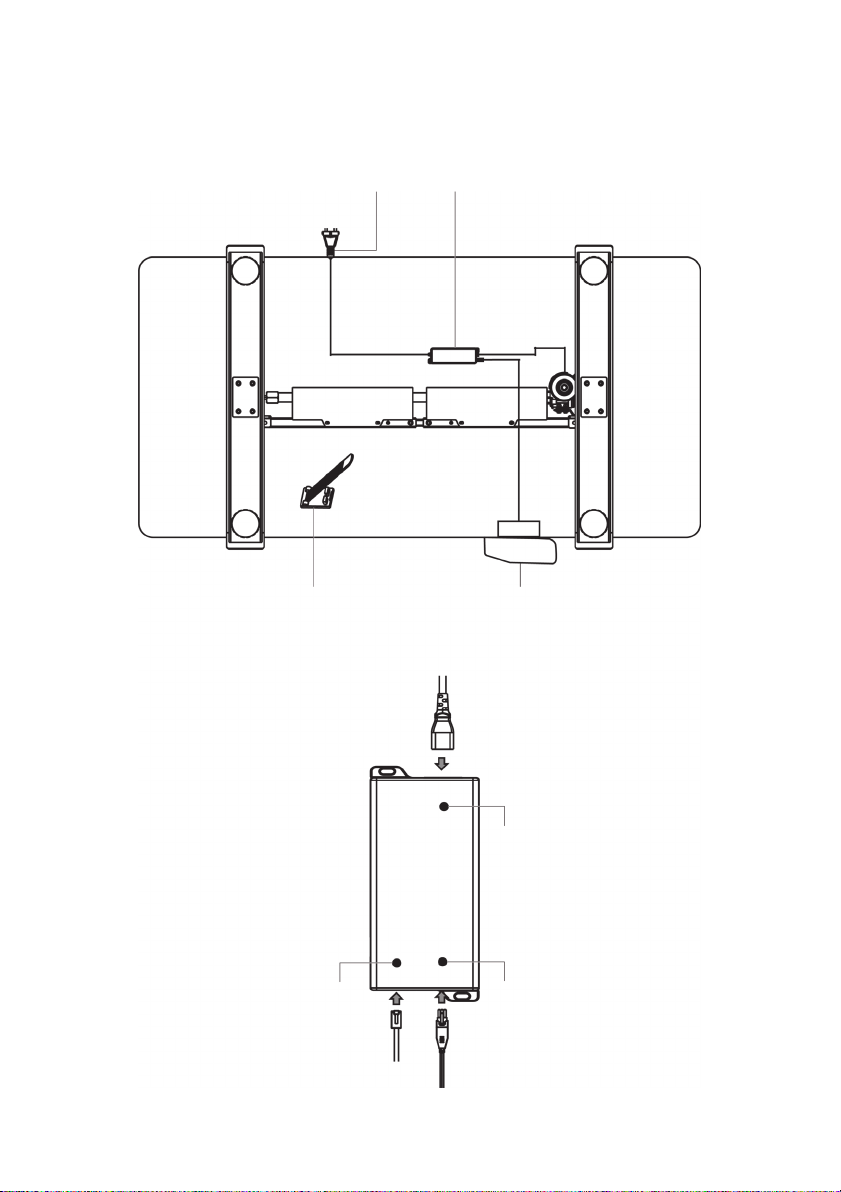

Step 7: Connecting cables
8
9
11
2
Power port for
Port for cable
Port for cable connected to
Connect the control panel (9) and the power cable (8) to the control box (2). Use the cable
ties (11) if necessary.
the control box
power cable
connected to columns
15
OPERATION
Ensure the desk has been assembled correctly before use.
Powering
Connect the power cable to a power outlet and turn the desk on.
Turn the outlet off to turn off the desk.
Adjusting desk height
Press the up or down buttons (▲, ▼) to adjust the height of the desk. The LED display will
show the currently set height.
Height memory function
This desk can save up to three heights, allowing ease of use when adjusting to commonly
used desk heights. To s a ve a height:
1. Press the up or down buttons (▲, ▼) to adjust the desk to the desired height.
2. Press the height memory button (M) to save the height. The LED display will show
‘ ’.
3. Press any of the position buttons (1, 2, or 3) to map the height to the selected button.
In future use, users only need to press the relevant position button to adjust to the
saved height.
Posture timer button
Sitting at a desk for continuous periods may lead to a slouched posture. This desk features
an alarm that can be set to ring after a specified period to remind users to correct their
posture. To set the timer:
1. Press the posture timer button (A) and the LED display will show ‘ ’.
2. Wait for two seconds, then press the up or down buttons (▲, ▼) to adjust the time set
on the timer. The default time is 45 minutes, and this will be shown on the LED
display as ‘45’. Any adjustments made to the time set will be reflected on the LED
display.
3. Once the desired time is selected, either press any button on the control box or wait
for five seconds to save the set time.
• When the timer elapses, the LED display will show ‘00’ and the desk will emit a
beeping tone for ten seconds. Within those ten seconds, press any button on the
control box to reset the timer. Alternatively, press and hold the posture timer button
(A) for three seconds to turn off the timer. The LED display will show ‘ ’.
• If no button is pressed within the ten-second period, the timer will emit another beep
after another five minutes. If no button is pressed when beeping, the timer will turn
off.
16
Problem
Solution
CLEANING & CARE
Notes:
Ensure the desk is turned off and the power cable is unplugged before cleaning.
Wipe the dust on the surface with a damp cloth.
• Do not allow water to drop into the internals or allow it to loosen connections.
• Do not clean the desk with corrosive or abrasive materials.
TROUBLESHOOTING
The desk is not
responding when
pressing the up or
down buttons whilst
powered.
• Ensure all cables are connected well.
• If the problem persists, contact help.Kogan.com for
assistance.
When adjusting, the
desk is rising at a low
speed.
The motor is not
moving as instructed.
The desk can be
adjusted down but
cannot go up.
The desk is moving
upwards/downwards.
The desk has been
overworked.
• Ensure the desk is not loading more than 70kg.
• If the problem persists, contact help.Kogan.com for
Stop use and contact help.Kogan.com for assistance.
• Reposition the desk.
• If the problem persists, stop use and contact help.Kogan.com
• Ensure the desk is not loading more than 70kg.
• If the problem persists, stop use and contact help.Kogan.com
• Turn off the desk and restart after 18 minutes.
• If the problem persists, stop use and contact help.Kogan.com
assistance.
for assistance.
for assistance.
for assistance.
17
The height
adjustment range is
limited.
The LED display is
showing ‘ ’.
• Press and hold the height memory and position 3 buttons
simultaneously for three seconds. After hearing two beeps, the
desk will perform a factory reset.
• If the problem persists, stop use and contact help.Kogan.com
for assistance.
• Press and hold the down button until the desk reaches its
lowest height and performs a factory reset.
• If this does not work, check the cables are well connected,
then disconnect the power cable for at least ten seconds.
Reconnect the power cable and restart the desk.
• If the problem persists, stop use and contact help.Kogan.com
for assistance.
The LED display is
showing ‘E01’ or ‘E02’.
Turn off the desk and wait for 18 minutes before resuming use.
18

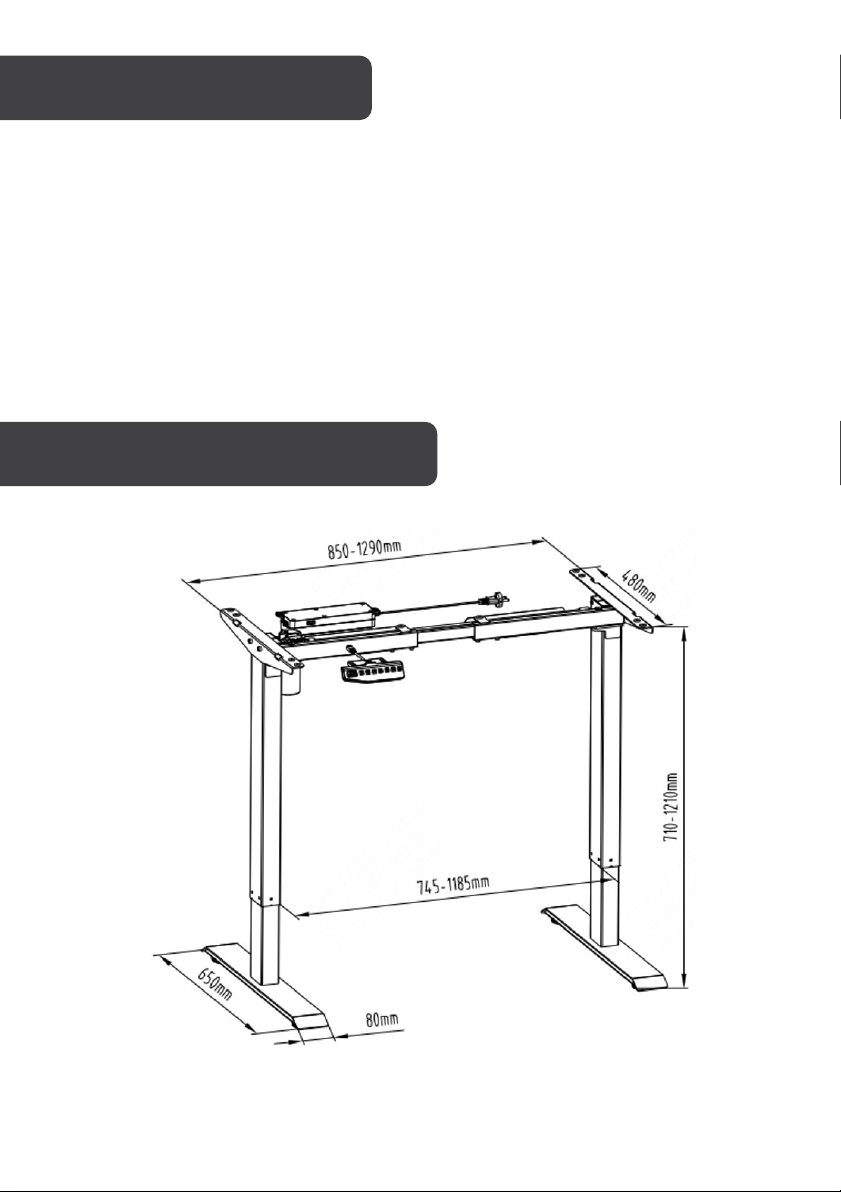

FRAME DIMENSIONS
SPECIFICATIONS
Dimensions 140 x 70 x (71–121cm)
Maximum load capacity 70kg
Operating environment 0–40°C
Maximum speed 25mm/s
Input voltages supported 100–240V
19
