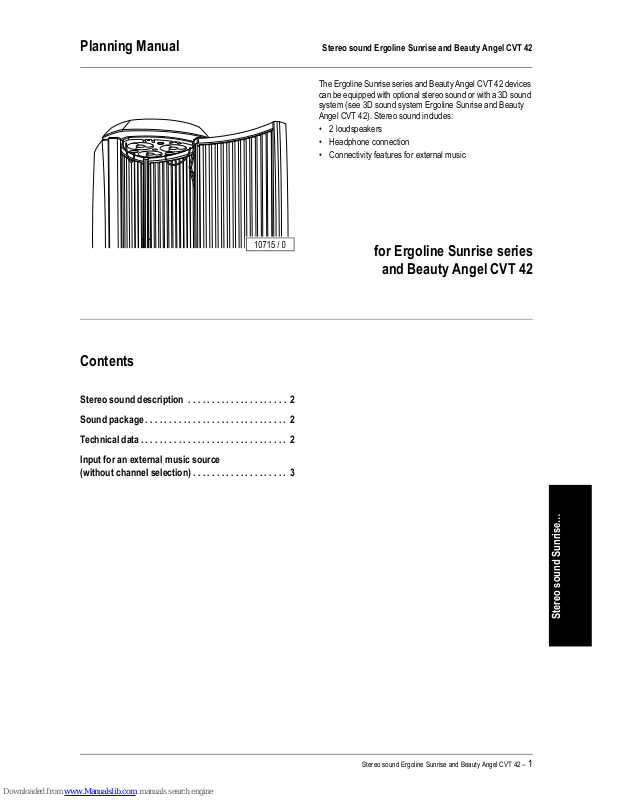

Planning Manual Stereo sound Ergoline Sunrise and Beauty Angel CVT 42
Stereo sound Ergoline Sunrise and Beauty Angel CVT 42 – 1
Stereo sound Sunrise…
The Ergoline Sunrise series and Beauty Angel CVT 42 devices
can be equipped with optional stereo sound or with a 3D sound
system (see 3D sound system Ergoline Sunrise and Beauty
Angel CVT 42). Stereo sound includes:
• 2 loudspeakers
• Headphone connection
• Connectivity features for external music
for Ergoline Sunrise series
and Beauty Angel CVT 42
Contents
Stereo sound description . . . . . . . . . . . . . . . . . . . . . 2
Sound package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Input for an external music source
(without channel selection) . . . . . . . . . . . . . . . . . . . . 3
Stereo sound Ergoline Sunrise and Beauty Angel CVT 42 Planning Manual
2 – Stereo sound Ergoline Sunrise and Beauty Angel CVT 42
Stereo sound Sunrise…
1. Loudspeakers
2. Headphone connection
Stereo sound description
2
11428 / 0
1
Sound package
Package Art. / Part No. Notes
Stereo sound 100001819
Sound system including audio board and connection to an
external music source without channel selection.
Technical data
Power supply: via the device
Max. ambient temperature: 0 to 40 °C
Max. relative humidity: 70 %
Max. storage temperature: 0 to 50 °C
External connections: connectivity features for external music without channel selection
Planning Manual Stereo sound Ergoline Sunrise and Beauty Angel CVT 42
Stereo sound Ergoline Sunrise and Beauty Angel CVT 42 – 3
Stereo sound Sunrise…
The external music source is connected to the top section of
the device.
The connected music source can be switched on or off.
Input for an external music source (without channel selection)
Audio ex ST27
A-L 1
GNDL 2
GNDR 3
A-R 4
