.4GHZ WIRELESS MCE TOUCHPAD

KEYBOARD

USER MANUAL

U S E R M A N UA L

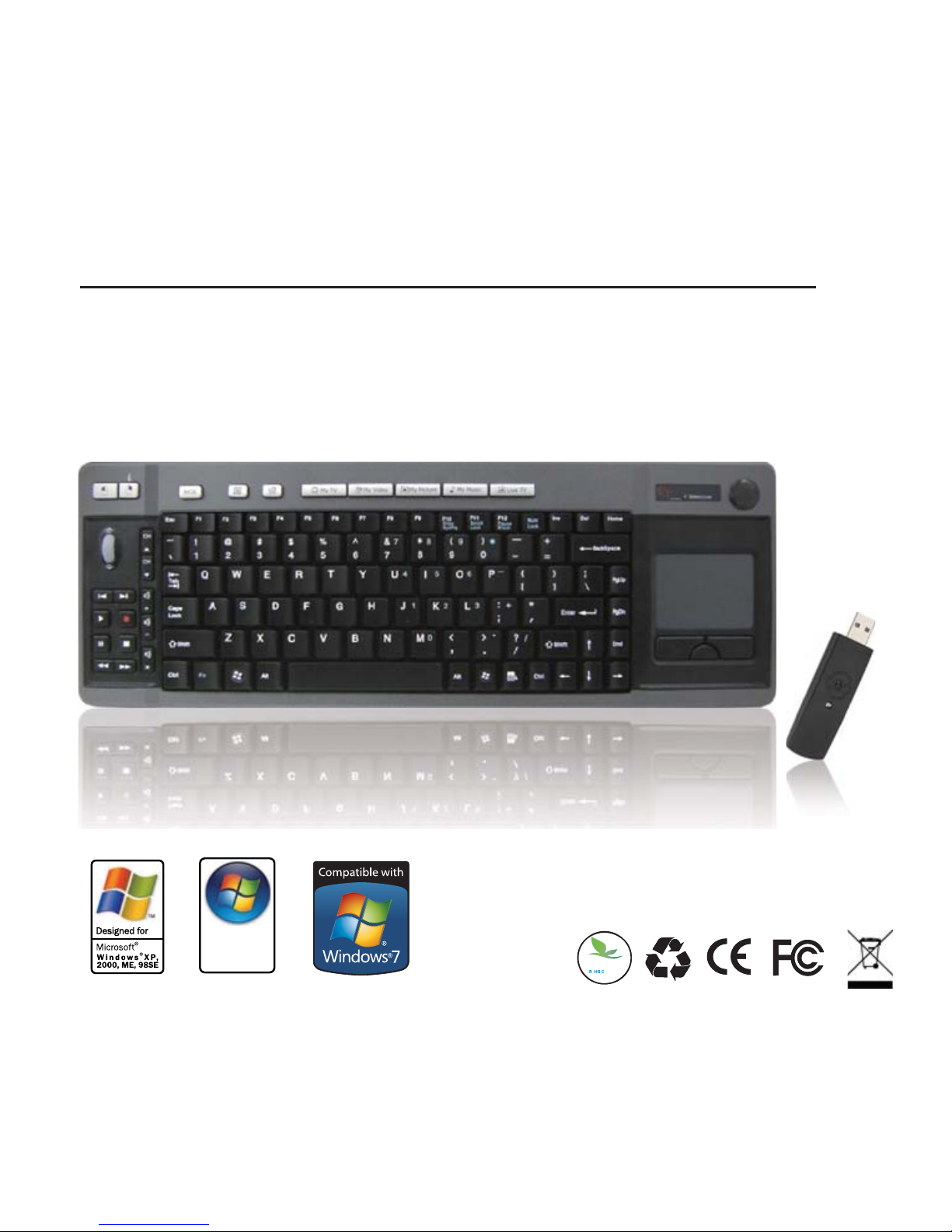

RK-728

2.4GHz wireless MCE Touchpad keyboard

Windows

CERTIFIED FOR

TM

Vista

Compatible with Windows 2000 / Windows XP / Windows Vista / Windows 7

O

ompliant

S

R

o

H

O

ompliant

S

R

o

H

Introduction

2.4GHz RF is the best wireless input device nowadays and RK-728 this model

is designed by this technology. Not only performing as keyboard input device, it

combines TOUCHPAD with the two mouse buttons and scroll wheel. RK-728

this model is ergonomically designed for comfortable use on desktop or laps as

there is no any wire required for connection. Surely, you will obtain high level of

computing enjoyment via this product; now let’s start it!

Specification:

Dimensions:

▓

Keyboard: 425 x 150 x 31.5mm(W/D/H)

▓

USB dongle: 21.5 x 78 x 10mm(W/D/H)

▓

Full box: 435 x 225 x 55mm(W/D/H)

▓

Touchpad area: 61.7 x 45.6mm(W/D)

Keyboard:

▓

2.4GHzradio frequency with 4 channels

▓

USB dongle receiver.

▓

AA size battery x 2 (alkali only).

▓

360° navigation, effective working range upto 10 meters.

▓

Key: 86 standard keys + 21 MCE/Internet/Multimedia keys.

▓

Built-in touchpad + 2 sets of mouse buttons & 1 scroll wheel.

▓

Switch life of keys: over 10 million times.

▓

Compatible with Windows 2000 / Windows XP / Windows VISTA

and Windows 7.

1

2

Installation

1. Open up the cover under the keyboard and insert AA alkaline battery x 2

into the chamber (please equip correctly according to polarity), then close the

cover.

2. Plug the USB receiver into the USB port of your computer.

3. Turn on the computer

4. ID Setting:

a. Press the ID button on the USB receiver (Figure 1), the device is

searching for ID when the LED is blinking.

b. Press the ID button under the keyboard and release (Figure 2); the

setting is successful when the LED on the USB receiver is off.

Figure A

Figure B

LED

ID button

1

3

Notice:

The hot keys of My TV, My Video, My Picture, Live TV, and media hotkeys only can be used after the program of Media Center is activated; it can be simply done by the hotkey of MCE

Key Description

Battery low indicator

Touchpad Size:

61.7 x 45.6 mm

Mechanical Mouse Buttons

Channel up/down

Volume up/down

Scroll Wheel

Replay / Skip

Record

Play

Pause

Mouse keys Close My TV My Pictrue

Live TV

MCE Home

My Video

My Music

Internet Home

Forward/Backward

Stop

Table of Functional Keys:

Fn + Prtsc SysRq = PrtscSysRq Fn + Scroll Lock = Scroll Lock Fn + Pause Break = Pause Break Fn + Num Lock = Num Lock

Mute

4

Notice:

1. The LED on the USB receiver always blinks whenever this keyboard is

being operated.

2. Please replace batteries when the battery low LED is in red blinks.

3. If the default of ‘Num Lock’ in Windows is on; please press the keys of ‘ Fn ‘

+ ‘ Num Lock ‘ if you want to disable it. If this default of ‘ Num Lock ‘ does not

meet your preference exactly, it is recommended to check or change

relevant setting in ‘ Registry Editor ‘ of your computer.

4. Trouble Shooting:

If your keyboard cannot work properly after installation, please check

followings for troubleshooting.

a. Make sure that the USB receiver is correctly plugged into computer’s

USB port.

b. Make sure AA batteries x 4 are equipped correctly, especially polarity

(+), (-).

c. Be sure that the distance between your wireless keyboard and its USB

receiver is within 10 meters and there shall not have interference

against other peripherals.

d. Interference would possibly occur if there are two more units used in

the same place; it is required to reset the ID when interference occurs.

Please refer the paragraph of ‘ID Setting ‘.

Battery Low LED

FCC Information:

The Federal Communication Commission Radio Frequency Interference

Statement includes the following paragraph:

The equipment has been tested and found to comply with the limits for a Class

B Digital Device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction, may cause harmful interference to radio communication. However,

there is no grantee that interference will not occur in a particular installation. If

this equipment dose cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

5

Production Notice:

:

1. The Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

2. Modification could void authority to use this equipment.

3. To comply with the FCC RF exposure compliance requirements, no change

to the antenna or the device is permitted. Any change to the antenna or the

device could result in the device exceeding the RF exposure requirements

and void user’s authority to operate the device.

4. WEEE Directive & Product Disposal:

4.1. At the end of its serviceable life, this product should not be treated as

household or general waste. It should be handed over to the applicable

collection point for the recycling of electrical and electronic equipment,

or returned to the supplier for disposal.

4.2. Internal / Supplied Batteries

This symbol on the battery indicates that the battery is to be

collected separately.

This battery is designed for separate collection at an

appropriate collection point.

♦ All trademarks and registered trademarks are the property of their respective

owners.
