ErgoCentric Saffron R Multi Tilt 2 User Manual

Ratchet Multi Tilt 2

Printed on recycled paper.

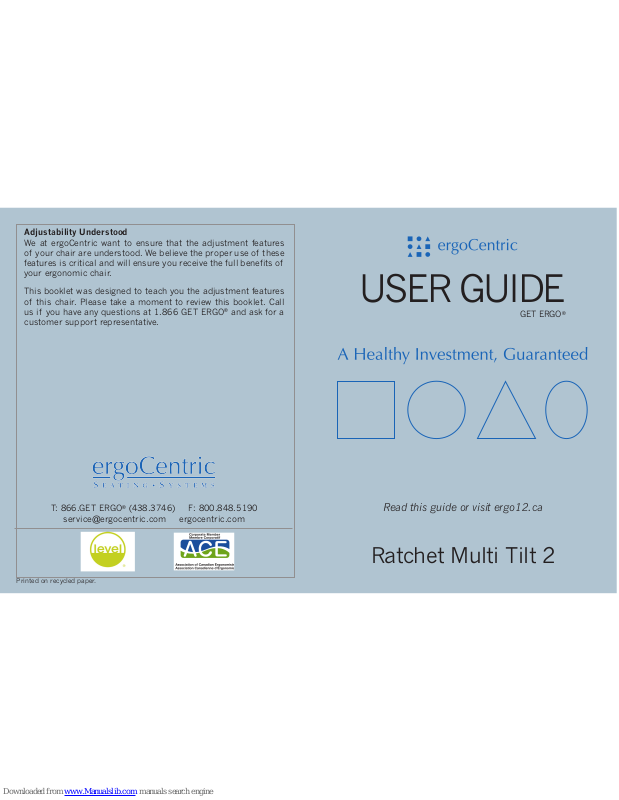

USER GUIDE

Adjustability Understood

We at ergoCentric want to ensure that the adjustment features
of your chair are understood. We believe the proper use of these
features is critical and will ensure you receive the full benefits of
your ergonomic chair.

This booklet was designed to teach you the adjustment features
of this chair. Please take a moment to review this booklet. Call
us if you have any questions at 1.866 GET ERGO® and ask for a
customer support representative.

T: 866.GET ERGO® (438.3746) F: 800.848.5190

[e-mail] ergocentric.com

GET ERGO

®

Read this guide or visit ergo12.ca

Top View

Read this or visit ergo12.ca to view a 90-second video on how to

adjust this chair. Simply click play.

BACK HEIGHT - To adjust the back height, push upwards on the
bottom of the backrest until it reaches its maximum height. This
will disengage the adjustment mechanism. Allow the backrest to
gently drop down to the lowest position to disengage the ratchet
mechanism. Once this is done, lift the back to one of the five desired
positions and listen for a click to ensure it is locked into place.

Backrest

SEAT DEPTH - To adjust the seat depth, pull up
on the bar under the front edge of the seat and
move the seat forward or backward in relation to
the backrest. Release the bar to lock.

SPRING TENSION - To adjust the spring tension,
turn the knob located under the front left corner
of the seat. Turn the knob counter-clockwise to
increase the spring tension and clockwise to
decrease the spring tension.

FORWARD TILT - To adjust the amount of
forward tilt, pull up on the CIRCULAR paddle
then tilt the seat pan slightly backward
and turn this knob clockwise to increase
the forward tilt position of the seat and
counter clockwise to decrease the amount
of forward tilt.

SEAT ANGLE / FREE FLOAT - To adjust the seat
angle, pull up on the CIRCULAR paddle and shift
your weight forward or backward until the seat is at
the desired angle. Push this paddle down to lock.
To free float the chair, pull this paddle all the way up
and leave it in the up position.

SEAT HEIGHT - To raise the seat, pull up on the
SQUARE paddle while raising your weight off the
chair. To lower the seat, pull up on the paddle while
sitting. Release the paddle to lock.

BACK ANGLE - To adjust the back angle, pull up on
the TRIANGULAR paddle and hold it in the up position.
Lean backward or forward until the backrest is at the
desired angle. Release the paddle to lock. When
adjusted correctly the angle between your upper
body and thighs should be greater than 90 degrees.
