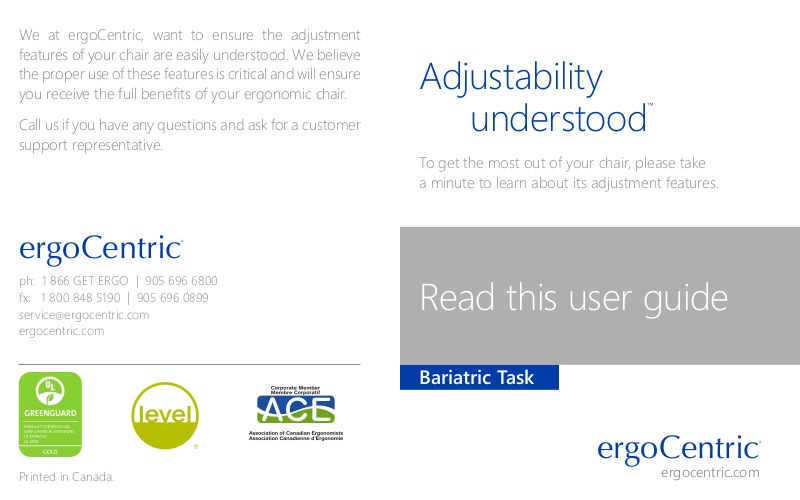

We at ergoCentric, want to ensure the adjustment
features of your chair are easily understood. We believe
the proper use of these features is critical and will ensure
you receive the full benets of your ergonomic chair.
Call us if you have any questions and ask for a customer
support representative.
®
ergoCentric
ph: 1 866 GET ERGO | 905 696 6800
fx: 1 800 848 5190 | 905 696 0899
service@ergocentric.com
ergocentric.com
Printed in Canada.
Adjustability
™
understood
To get the most out of your chair, please take
a minute to learn about its adjustment features.
Read this user guide
Bariatric Task
®
ergoCentric
ergocentric.com
Page 2
Top View
Backrest
SPRING TENSION: To adjust the spring tension,
turn the knob located under the front right corner
of the seat. Turn the knob clockwise to increase
the spring tension and counter-clockwise to
decrease the spring tension.
SEAT ANGLE / FREE FLOAT: To adjust the seat
angle, pull up on the CIRCUL AR paddle and shift
your weight forward or backward until the seat
is at the desired angle. Push this paddle down to
lock. To free oat the chair, pull this paddle all the
way up and leave it in the up position.
SE AT HEIGHT: To raise the seat, pull up on the
SQUARE paddle while raising your weight o the
chair. To lower the seat, pull up on the paddle
while sitting. Release the paddle to lock.
BACK ANGLE: To adjust the back angle, pull
up on the TRIANGULAR paddle and hold it in
the up position. Lean backward or forward until
the backrest is at the desired angle. Release the
paddle to lock. When adjusted correctly the angle
between your upper body and thighs should be
greater than 90º.
