Page 1
®
your user guide
Page 2
PAGE 3 welcome
PAGE 4 - 5 rstly
PAGE 6 daily use
PAGE 7 safety
PAGE 8 - 9 maintenance
PAGE 10 - 12 controls
PAGE 13 warranty
PAGE 14 - 15 electrics
contents
2
Thank you for choosing the AdaptLift®.
You’re probably keen to get set up, but
before you get settled and start falling in love
with your new chair, please spend ve
minutes reading this guide to help you get
the most out of your new AdaptLift.
This guide covers everything you need to
know about piloting the AdaptLift safely and
easily. Plus general maintenance,
installation and set up, operation and
looking after it, so it will give you years of
faithful service.
It also covers all the technical elements, so
please read this guide and keep it for easy
reference in the drawer with all your other
electric appliance manuals, takeaway menus
and balls of string.
If you need more information, visit us at:
www.ergochair.co.uk
welcome
3
Page 3
rstly
Out of the box
The AdaptLift is supplied to you with
bespoke packaging that offers protection
during transit, whilst having the minimum
negative impact on the environment.
If any items are missing, do not attempt to
use the AdaptLift but contact Ergochair Ltd
immediately.
Damage
In the unlikely event of your AdaptLift being
damaged in transit, do not attempt to use
the chair or repair it yourself, contact
Ergochair Ltd.
Failure to adhere to these conditions may
invalidate the warranty.
4 5
Please check that your delivery consists of:
The AdaptLift chair
The AdaptLift charger
The AdaptLift handset
Additional adaptations or accessories you have specied
Page 4
The AdaptLift is designed for daily use in an
ofce, home or study environment, for up to
eight hours a day, in ambient operating and
storage temperatures of not less than or
exceeding: -40° to 70°
Maximum user weight is 150kg, however,
any movement whilst seated in the AdaptLift
will affect the stability of the chair. Any
extension of the chair will
amplify those movements and could affect
the chair’s centre of gravity.
If you have movement issues and need help
with locating your chair on delivery, inform
your sales contact.
Never stand on the AdaptLift.
Never attempt to transport the AdaptLift
when someone is sitting in it.
When seated, utilise the movement lock
whenever possible.
6 7
daily use
As you’d expect the AdaptLift
carries the CE mark and of
course it complies with all current
EU regulations.
The AdaptLift is a sophisticated piece of
equipment and we know you’ll treat it with
love and care.
There are somethings that we know are
probably obvious, but we’ll say them
anyway;
• The AdaptLift is for indoor use only.
• The AdaptLift is electrical so keep it away
from water and other liquids.
• The AdaptLift isn’t a toy. Children should
not be permitted to ‘play’ on the AdaptLift.
Any unauthorised tampering with the
AdaptLift deemed outside normal
maintenance could invalidate the warranty.
safety
Page 5
98
Servicing
The AdaptLift is designed and constructed
to the highest standards and will give
unrivalled service for years.
To continue to provide this standard, the
AdaptLift should ideally be serviced by an
authorised technician once a year.
Ask for more details at the outlet where you
purchased the chair.
Some removable parts can work loose over
a period of time and with sustained use, so
should be regularly checked and tightened
if needed.
maintenance
Easy maintenance and TLC
Upholstery
Wipe with soft moist cloth (well wrung
out) and warm soapy water, taking care
to keep water from any electrical
components.
The Base
Clean gently with mild soap and luke
warm water using a soft cloth.
The Castors
Check the wheels regularly for
accumulated debris such as uff and
dust.
17mm 13mm 10mm
Pozidriv Screwdriver
5mm 4mm 2.5mm
Hex Bits / Driver
Open Ended Spanner
Page 6

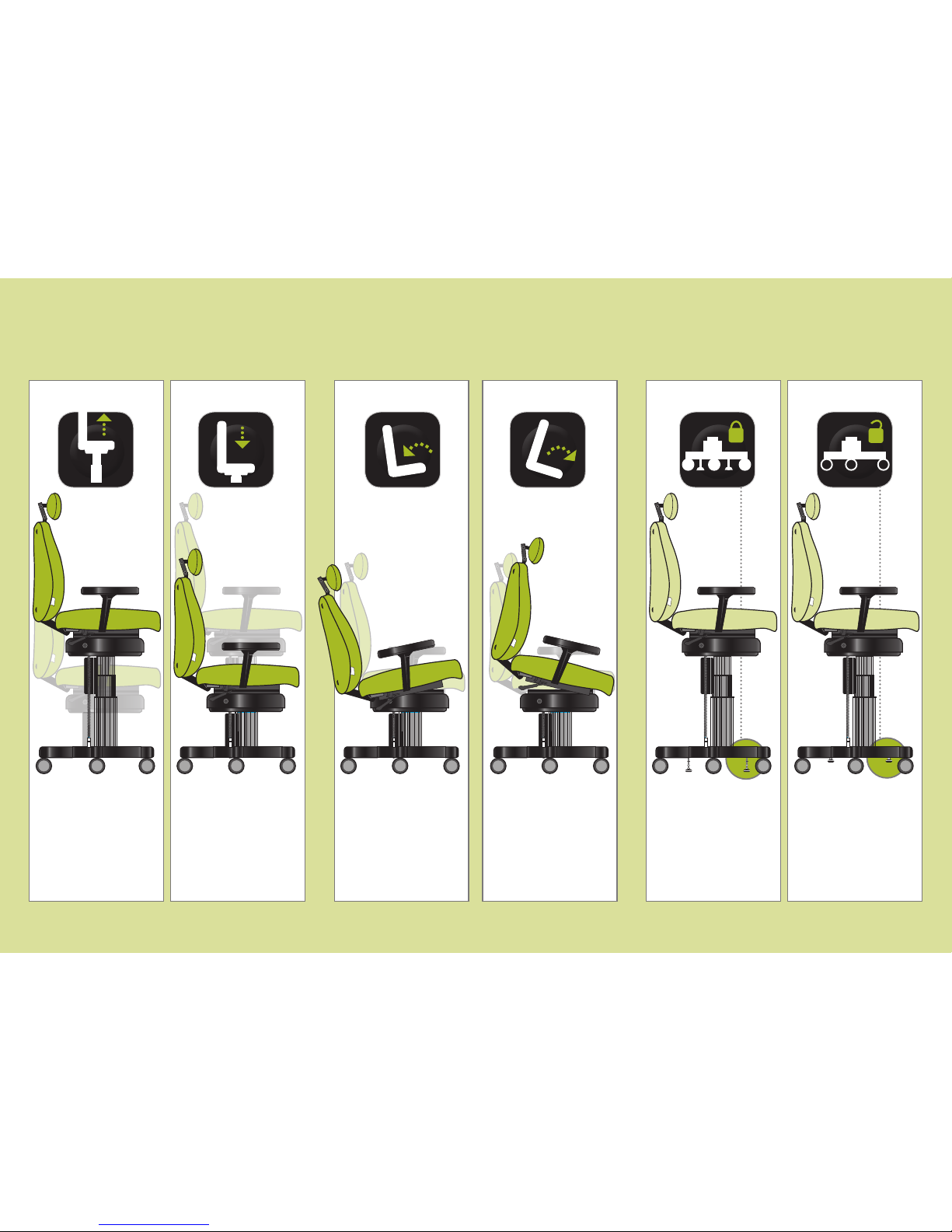

Movement Lock
Locks the AdaptLift in
position, preventing
unwanted movement
Electric Lift
Raises the backrest and
seat in innite increments
up to a maximum seat
height of 900mm
Electric Lift
Lowers the backrest and
seat in innite increments
to a lowest seat height of
XXXmm
Electric
Backward Tilt
Reclines the backrest and
seat in innite
increments to an angle
down to -4°
Electric
Forward Tilt
Inclines the backrest and
seat forward in innite
increments to an angle of
up to a maximum of 20°
Movement Unlock
Unlocks the AdaptLift
movement lock allowing
free movement
controls
10 11
Your touchbutton handset has been designed to be
as simple as possible to use, whilst providing complete
control of your AdaptLift’s sophisticated features and
benets.
Press and hold the soft-touch button and release when the desired level / angle is reached.
Two operations can be executed at the same time, by pressing both buttons at the same time,
provided it is a logical movement, such as - up and forward tilt, or lower and recline.
(Conicting directions such as up and down cannot be peformed at the same time.)
Page 7
In addition to the handset there are some
controls on the chair itself
controls
12
Backrest recline
Manual lever adjusts the
angle of the backrest.
Press down to recline and
pull up to bring the
backrest forward
Backrest height
Pull the backrest up on
the ratchet to desired
height.
Lift to full height and then
release to return to lowest
height
warranty
Ergochair reserve the right to make
changes to the AdaptLIft chair and the
guide as detailed in our Terms of Business.
The AdaptLift is made by Ergochair Limited.
T: 01454 329210
E: [email protected]
AdaptLift® is a registered trademark of
Ergochair Ltd
Warranty
Ergochair’s warranty with regard to the Sale
of Goods act: Only original, approved
Ergochair parts and accessories are to be
used on the AdaptLift.
All maintenance work must be provided by
an authorised servcie technician.
Failure to adhere to these conditions may
invalidate the warranty.
Ergochair accepts no liability for injury
to the user or for damage to the AdaptLift
as a result of:
• Incorrect use
• Ordinary wear and tear
• Any work carried out by an unauthorised person
• The use of non-orignal parts or accessories
• Transport
(excluding the original delivery by an approved carrier)
• Misuse
13
Page 8
15
14
Your AdaptLift is already charged and ready
to use, right out of the box. It is powered
by two state of the art 12V batteries. The
condition of these batteries is automatically
monitored to ensure that the power supply is
always correct.
The batteries can be charged in situ by
connecting the charger cable into the Battery
Box via the jack plug. Ensure the power is
turned on at the wall.
The charger can be unplugged when the
AdaptLift is in use. Do not attempt to use the
chair whilst it is charging. Store the power
cable safely.
Safety features have been incorporated into
the design to ensure safe and easy operation.
Even when the batteries are discharged the
following operations will still be possible.
• Lowering of the chair
• Operation of the Movement Lock
All other electrical operations are not
possible with discharged batteries.
The electric motor will stop if any of the
following occur:
• The button is released
• There is a fault with the motor driver
• The accumulated running time of that
operation exceeds 1 minute
• The batteries are discharged
(excluding the movements noted above)
If the limit of any directional movement is
reached, movement will cease but the motor
will continue running.
the electrics
Movement Lock
The Movement Lock will stop when:
• The button is released
• Pressure is sufcient in the air cell
• The Movement Lock is fully engaged
• Ination time exceeds 30 seconds
Concern
Movement Lock low pressure
Movement Lock fully engaged
Batteries are discharged
Motor Driver fault
Motor overload
Motor hot
Audible caution
1 burst of 5 slow beeps
1 burst of 5 rapid beeps
10 bursts of 2 beeps
4 bursts of 4 beeps
4 bursts of 2 beeps
4 bursts of 3 beeps
• • • • •
•••••
•• •• •• •• •• •• •• •• •• ••
•••• •••• •••• ••••
•• •• •• ••
••• ••• ••• •••
Page 9
®
AdaptLift
®
For more information, just visit us at:
www.ergochair.co.uk
The AdaptLift is made by Ergochair Limited.
T: 01454 329210 E: [email protected]
Many of the AdaptLift parts are recyclable.
Ask at your local recycling centre.
