EMZ190B Interface

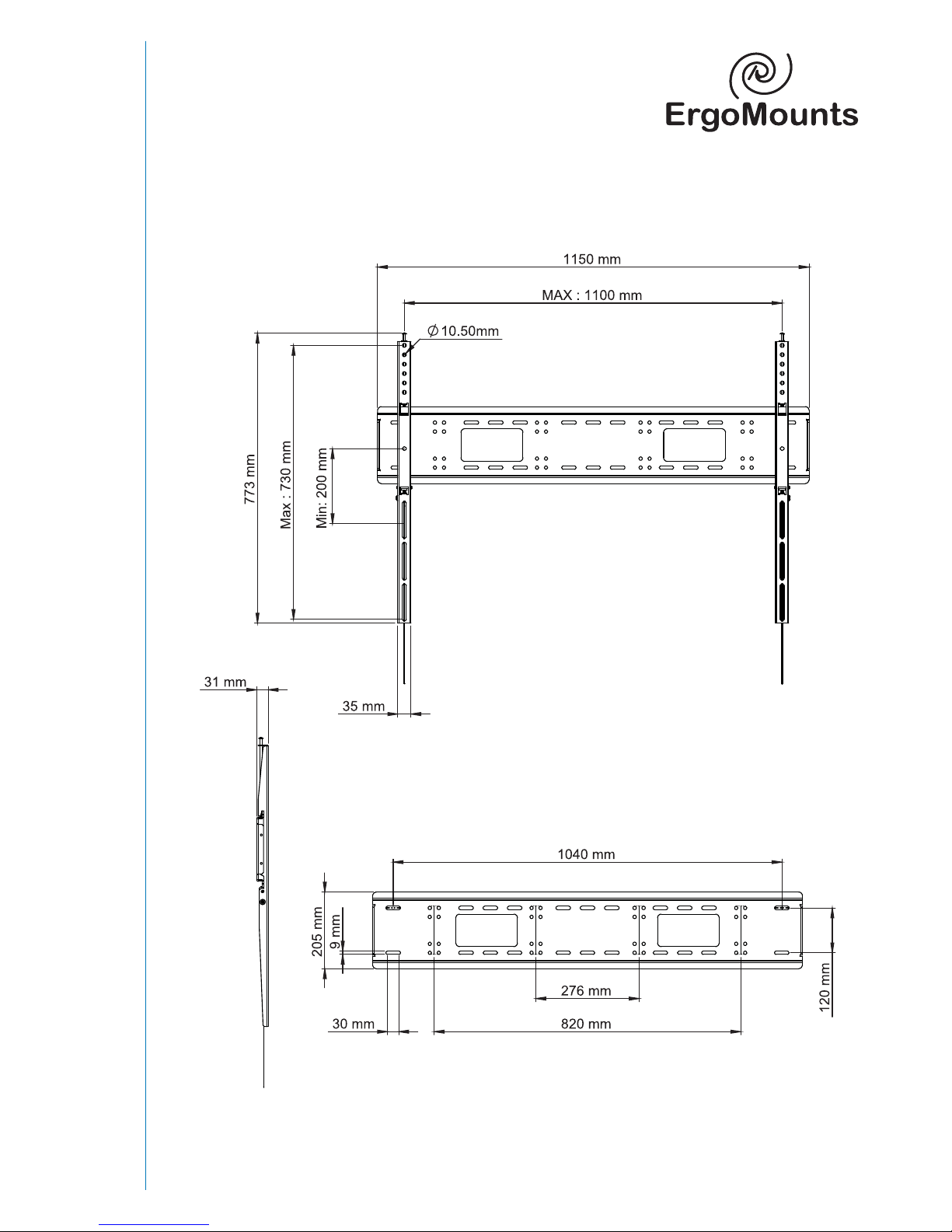

Page 2
2
Page 3
Congratulations on purchasing the
EMZ190B interface. This is shipped with
all proper installation hardware and
components. Please verify that none of
these parts are missing and/or damaged
before assembly. If any parts are missing/
damaged please stop assembly and
contact ErgoMounts 01252 333326
Parts List
Wall Plate (Qty 1)
Interface Arm (Qty 2)
M6 x 210mm Screw (Qty 2)
M8 x 6mm Screw (Qty 2)
5mm Allen Key (Qty 1)
M5 x 16mm Screw (Qty 4)
M5 x 25mm Screw (Qty 4)
M6 x 16mm Screw (Qty 4)
M6 x 25mm Screw (Qty 4)
M8 x 16mm Screw (Qty 4)
M8 x 25mm Screw (Qty 4)
M8 x 35mm Screw (Qty 4)
M10 x 16mm Screw (Qty 4)
M10 x 25mm Screw (Qty 4)
M10 x 35mm Spacer (Qty 4)
Multi Washer(Qty 4)
Plastic Spacer (Qty 4)
M10 Metal Washer (Qty 4)
M8 x 70mm Coach Screw (Qty 8)
M8 Metal Washer (Qty 8)
No 10 Wall Plug (Qty 8)
1
2
3
4
5
A
B
C
D
E
F
G
H
I
J
K
L
M
A1
A2
3
4
2
5
3
1
4
2
A3
ABCD
EFGH
IJKL
M
Flat Screen Interface Kit
(for attaching mount to back of fl at screen)
A1
A2 A3
Fixing Kit
(for fi xing mount to wall)
3
Page 4
Installation
i) Concrete / brick wall
A3
A2
A1
1
iI) Stud wall
Fix wall plate (Part 1) to wall.
A2
A1
masonary drill bit
10mm (7/16”)
6mm (1/4”)
wood drill bit
4
Page 5
Installation
K
2
Rear of screen
Use of spacers on
recess at screens and
extra space for cables
L or M
After arms are attached to screen,
install both M6 x 210mm (Part 3)
screws into top of left and right
interface arms (Part 2).
3
2
Rear of screen
Attach inteface arms (Part 2) to rear of
screen using interface kit provided.
5
Page 6
Installation
2
1
Flat Screen
Release string
(for screen removal)
Wall
Hook the screen onto the wall plate (Part 1).
6
Page 7
Installation
7
Page 8
ErgoMounts Limited
Unit 10
Pegasus Court
North Lane
Aldershot
Hampshire
GU12 4QP
T +44 (0)1252 333326
F +44 (0)1252 330006
www.ergomounts.co.uk
© ErgoMounts v1 032015
