ERGO EBDSK4 Users guide

Monitor Desk Mount

Instruction Manual

V2.0

Model: EBDSK4

Thank you for choosing this product! We strive to provide you with the
best quality products and services in the industry. Should you have any
issues, please don't hesitate to contact at [e-mail] (US/CA)

TENSION ADJUSTMENT SHOULD BE DONE ONLY
AFTER MOUNT INSTALLATION

Do not adjust tension without monitor.

1. Ensure monitor has been attached to the mount.

2. Read your monitor box or manual to find out monitor net weight.

3. Ensure the net weight of monitor (including accessories) is within

17.6 Ibs (8 kg).

Adjustment Sign

Clockwise to reduce

tension(carry less weight)

Warning!

Counter-clockwise to increase

tension(carry more weight)

IMPORTANT SAFETY INFORMATION

• Please read through these instructions completely before attempting
installation. If you do not understand the instructions or have any concerns or
questions, please contact customer service at [e-mail].

• Check package contents against Supplied Parts and Hardware List to assure
that all components were received undamaged. Do not use damaged or defective
parts. If you require replacement parts, contact customer service at
[e-mail].

• Not all parts and hardware included will be used.

• This product contains a high pressure gas spring, fire and percussion

prohibited. Also it is strictly prohibited to dismantle without professionals. Please
return to the manufacturer or hand over to professional agencies if the product is
abandoned.

• Do not use this product for any purpose or in any configuration not explicitly
specified in this instruction. We hereby disclaim any liability for injury or damage

arising from incorrect assembly, incorrect mounting, or incorrect use of this
product.

Check the VESA Pattern of Monitor Before the Installation

MAX: 100mm/4in.

75 mm ≈ 3 in.
100 mm ≈ 4 in.

MAX: 100mm/4in.

Minimum VESA Pattern: 3 in./75mm(W) x 3 in./75mm(H)

If your monitor VESA is greater than 100 x 100 mm/4 x 4 in. or less
than VESA 75 x 75 mm/ 3 x 3 in., this mount is NOT compatible.

If this mount is NOT compatible, please contact customer service at
[e-mail] to find a compatible mount.

01

Product Features

270°

C-Clamp Mounting

Grommet Mounting

02

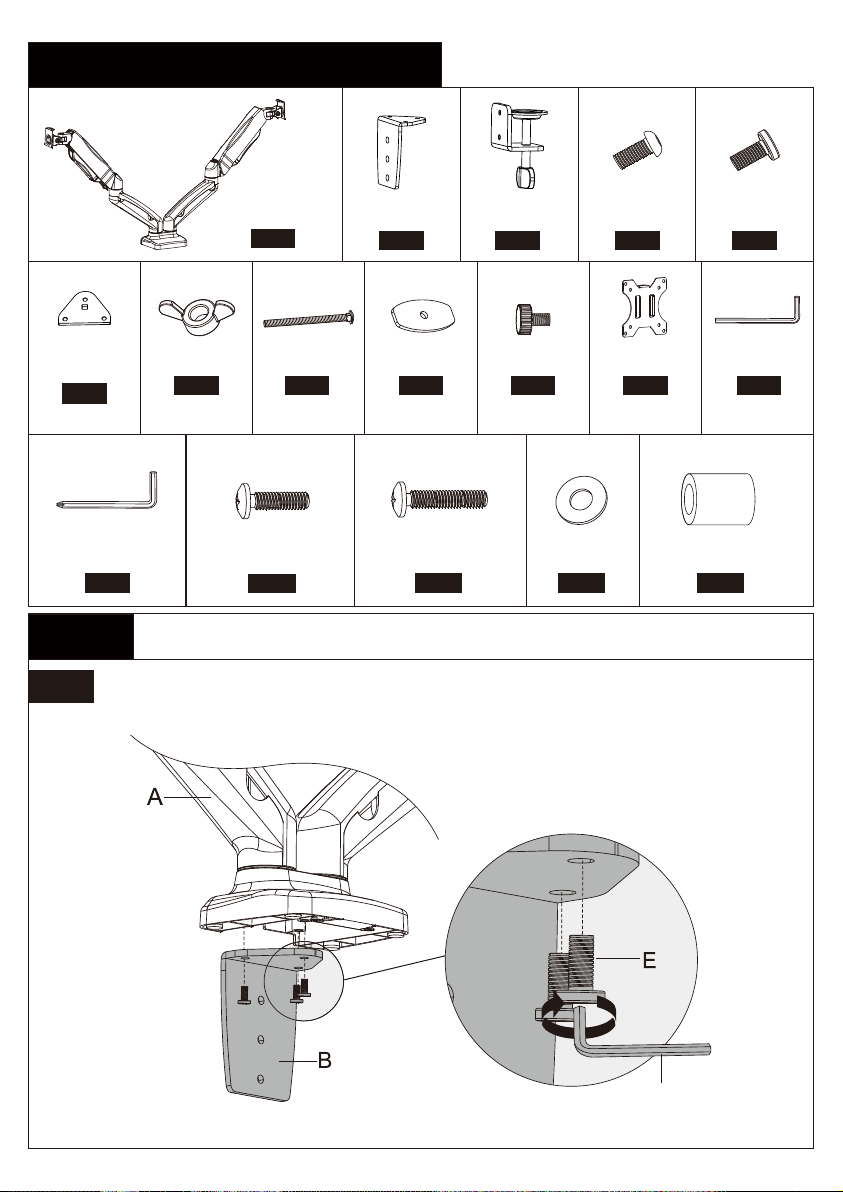

Supplied Parts and Hardware List

Arm Assembly

Ax1

Bottom

Plate

Fx1

13/64in.(5mm)

Allen Key

Mx1

Butterfly Nut

Gx1

M4x12mm (x8)

Bolt

Hx1

Bolt

M-A

Step 1A For Clamp Mounting

1A-1

Connect Connecting Plate [B] to Arm Assembly [A]

Connecting

Plate

Bx1

Grommet

Plate

Ix1

Bolt

M4x30mm (x8)

M-B

Desk Clamp

Cx1

Bolt

Jx2

M6x10mm

Monitor Plate

Washer

D4 (x8)

M-C

Bolt

Dx2

Kx2

Bolt

M6x12mm

Ex3

5/32in.(4mm)

Allen Key

Lx1

Spacer

L13mm (x8)

M-D

03

L

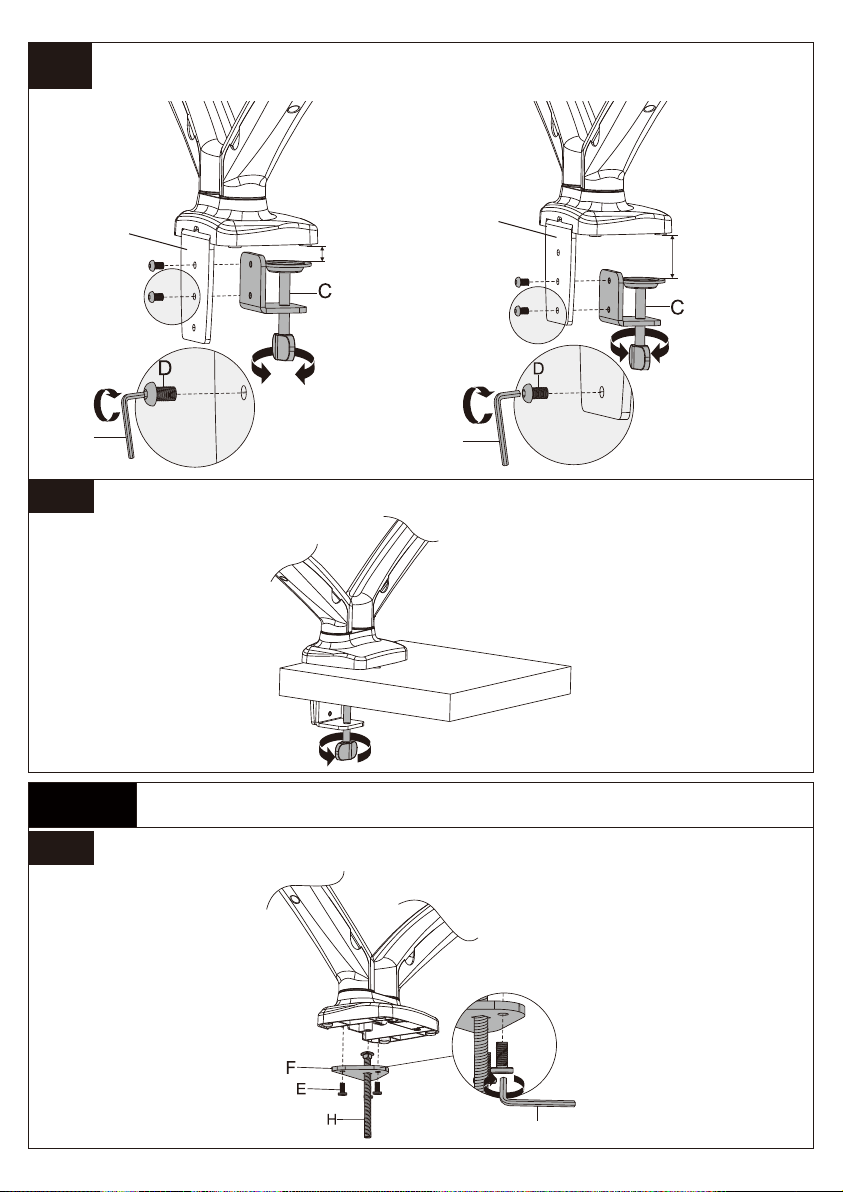

1A-2

Secure Desk Clamp [C] to Connecting Plate [B] According to the
Thickness of the Desktop

1A-3

B

L

Secure the Mount to Desktop

10-50mm

(0.4in.-2in.)

or

B

50-83mm

(2in.-3.3in.)

L

Step 1B For Grommet Mounting

1B-1

Secure Bottom Plate [F] and Bolt [H] to Arm Assembly [A]

L

04

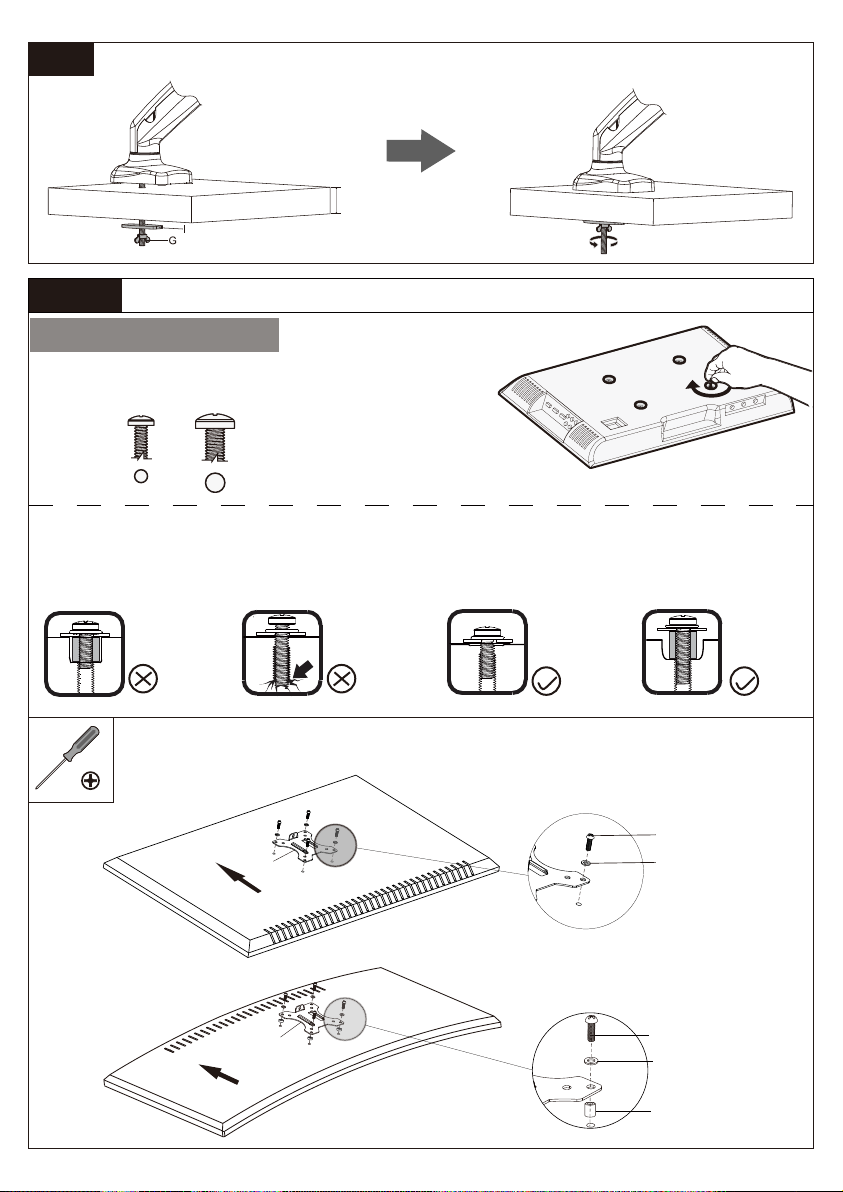

1B-2

Secure the Mount Assembly to the Desktop

0.4-3.3 in.
(10-83 mm)

Step 2

Attach the Monitor Plate [K] to the Monitor

Select Monitor Bolts

Only one bolt size fits your monitor.

M6M4

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We
recommend thread engagement by at least 5 turns.

-Too short will not hold the monitor.

-Too long will damage the monitor.

Too Short Too Long Correct

FLAT BACK MONITOR
(UNIVERSAL MONITOR PLATE)

M-A

K

M-C

Correct

ROUND BACK MONITOR
(UNIVERSAL MONITOR PLATE)

K

M-B

M-C

M-D

05

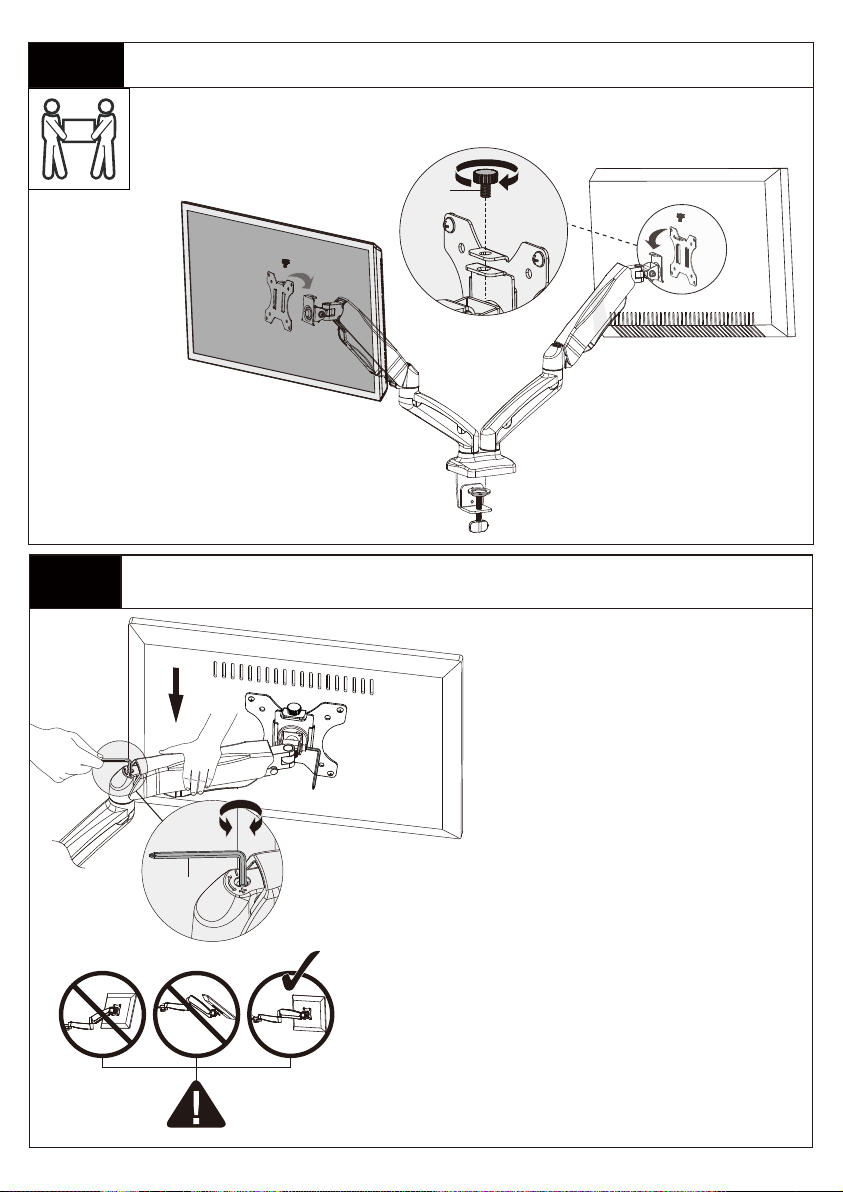

Step 3 Secure the Monitors to Arm Assembly

J

The tension is preset at 4-5kg.

After hanging the monitor to the
mount, please release the monitor
slowly to prevent it from falling
suddenly

Step 4 Adjust the Gas Spring Tension

M

Be sure to keep the arm in
horizontal position during
adjustment. Or else, it would be

difficult to adjust the mount or

damage the mount.

1. If the monitor can stay at the desired height by
itself, no adjustment needed.

2. If the monitor rises up, press the arm to keep it in
horizontal position and then use the
Alley key [M] to turn the bolt clockwise(“-” direction)
to reduce tension of the arm only until the monitor
can stay at the desired height by itself.

3. If the monitor falls down, lift the arm to keep it in
horizontal position and then use the
Alley key [M] to turn the bolt counter-clockwise(“+”
direction) to increase tension of the arm only until the
monitor can stay at the desired height by itself.

06

13/64in.(5mm)

13/64in.(5mm)

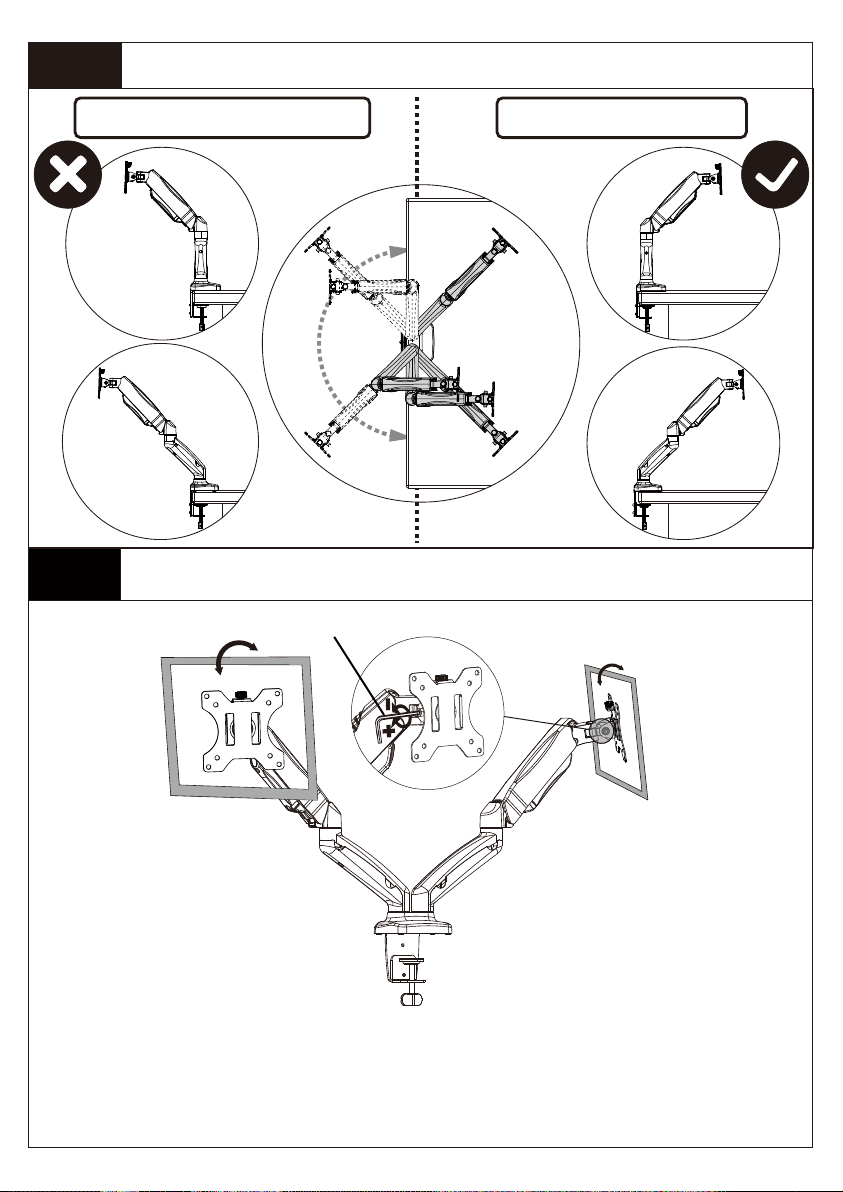

Step 5 Rotation Restriction

Non-proper usage directions Proper usage directions

Step 6 Adjustments

Tilt Adjustment L

“+” Clockwise: Tighten
“-” Counter-clockwise: Loosen

Situation 1: If the monitor can stay at the desired tilt angle by itself,
no adjustment needed.

Situation 2: If the monitor can not stay at the desired tilt angle by
itself, turn the bolt clockwise or counter-clockwise as shown until
the monitor can stay at the desired tilt angle by itself.

07

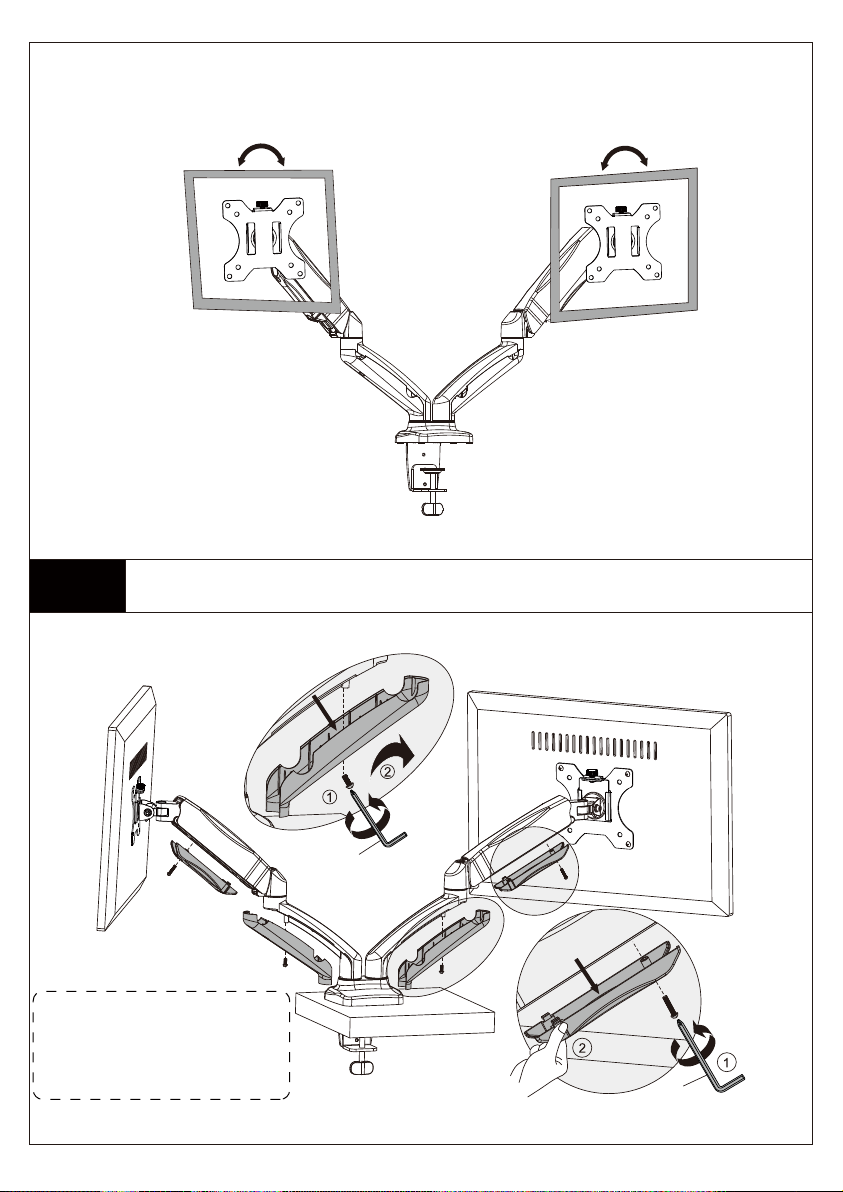

Level and Rotation Adjustments

If needed, the TV can be
levelled and rotated 360
degree

Step 7 Route the Cables Along the Arm Assembly [A]

Step 7-1 Detach the cable covers from the arm assembly [A]

Note: Loosen the preassembled
bolts from the covers, then pinch
the both sides of the bottom end
of the cable covers to make
them detach from the arm

M

M

08

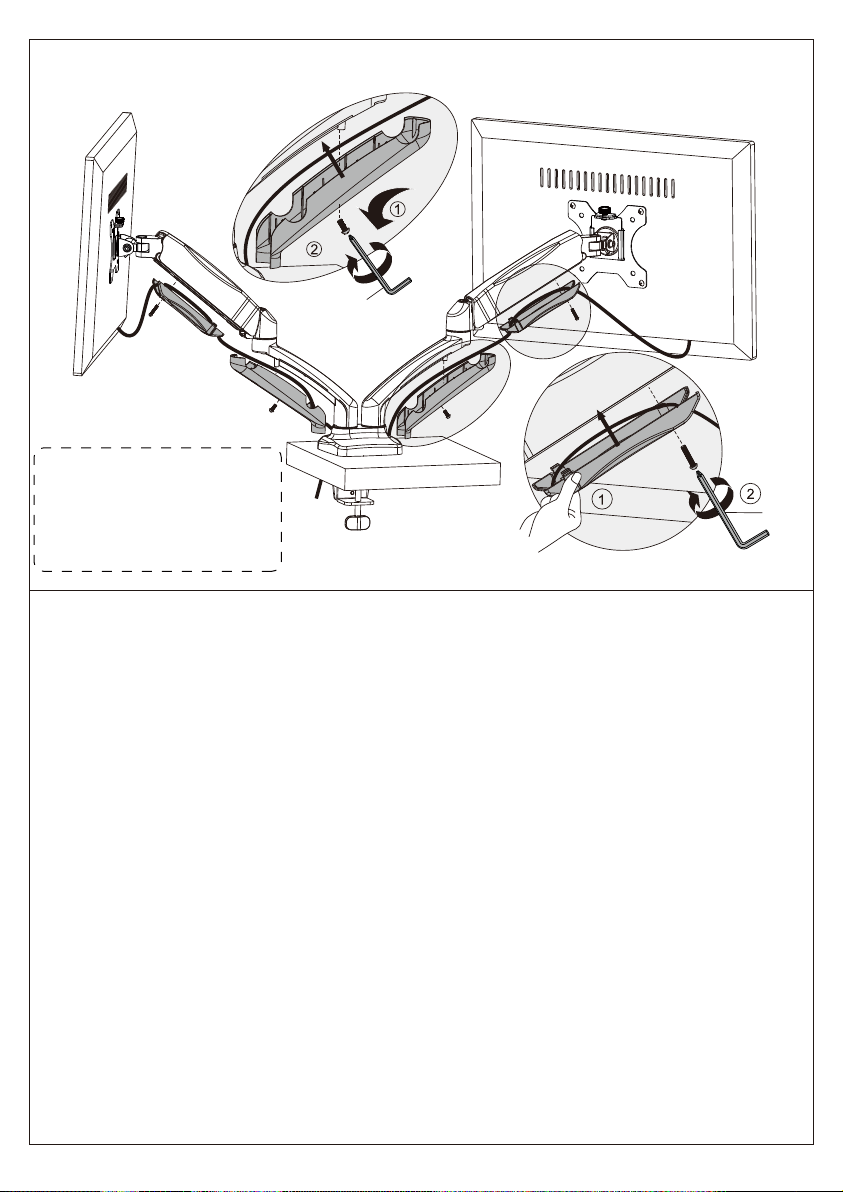

Step 7-2 Route the cables along the arm assembly and secure the cable covers
to the arm assembly [A]

M

Note: Pinch the both side of
the bottom end of the cable
covers to make them attach to
the arm, then fasten the bolts
to secure the covers to the
arm.

M

M
