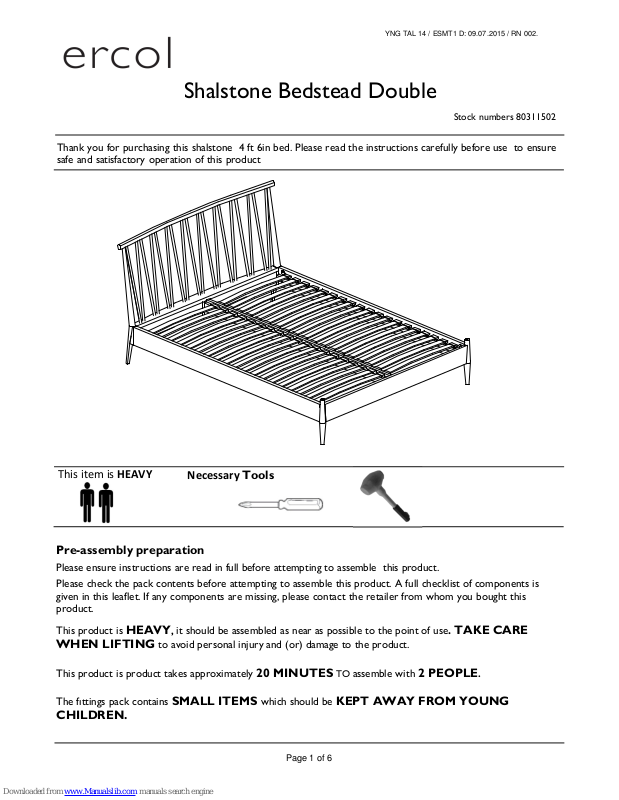

YNG TAL 14 / ESMT1 D: 09.07.2015 / RN 002.
Thank you for purchasing this shalstone 4 ft 6in bed. Please read the instructions carefully before use to ensure
safe and satisfactory operation of this product
The fıttings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the retailer from whom you bought this
product.
Pre
-
assembly preparation
Please ensure instructions are read in full before attempting to assemble this product.
This item is
HEAVY
Shalstone Bedstead Double
Stock numbers 80311502
Necessary
Tools
This product is product takes approximately 20 MINUTES TO assemble with 2 PEOPLE.
Page 1 of 6
Centre Rail x 1
Bed Slats x 36
2
3
4
5
6
1 Headboard x 1
Footboard x 1
L/H Side Rail x 1
R/H Side Rail x 1
A
B
C
D
E
Firm Fix Assembly Nut x 8
Threads (M8*67) x 8
Spanner (M13) x 1
Ends for slats x 72
Wooden Dowels (10*35 mm)x 8
1
2
3
4
5
6
6
Fittings and parts checklist
Page 2 of 6
3. Locate the LH / RH side rails onto threaded rods protrudıng from the headboard as shown.
B
1
1. Threaded rods to be screwed by hand to headboard and footboard before moving to step 2
1
3
4
2
B
B
B
B
B
B
B
2. 4x wooden dowels to be attached to the each side rail by using a rubber mallet as shown.
3 -4
E
E
E
E
Step by step assembly instructions
Page 3 of 6
5. Locate the centre cross rail into the brackets
5
A
1
2
3
4
4. In order to assist in easily winding the nut on to the bolt, please put the nut in place - see sketch - and lightly press it
against the bolt using one of your fingers as shown in the sketch.
With your other, free hand start turning the nut clockwise, using the spanner supplied with the fittings.
As soon as the nut is fully wound on to the bolt, remove your finger but continue winding the nut with the spanner until
it is tight.
Repeat same assembly operation for footboard.
Page 4 of 6
D
D
6. Push fit two plastic caps onto either end of the slat. Push fit the slat into the pre-drilled pilot holes. Please
note that it may require a light tap with a rubber mallet to secure the plastic end caps into the holes. Repeat
this step with the other 35 slats.
7. The assembly is now complete
6
6
Page 5 of 6
Care and Maintenance
Wood Furniture
Wood displays different grain patterns depending on which way it is cut
-
for example, the 'medullary ray'
which can appear on oak furniture is a mark of good quality timber - these are just characteristics of the
natural beauty of wood. Some furniture is also deliberately aged and rustic.
All timber surfaces will change colour and mellow over time. New furniture will initially vary in shade from
items that have been previously purchased.
How to care for your wood furniture
Furniture with a hard lacquer, wax polish or painted surface should be dusted with a dry cloth. When using the
surface for serving food and drinks it is best to use protective mats and coasters. Spillages should be wiped up
as soon as possible.
Spray polishes are best avoided as they contain silicones which may spoil the furniture's surface by building up
over time. Use of cleaning materials containing abrasive compounds, acidic or caustic reagents and any bleaches
containing oxidising reagents should be avoided as prolonged use may damage the lacquer surface. Wipe up
spills immediately. If sticky marks occur on the surface they can be removed with a dilute solution of warm
soapy water. The offending area should be rubbed lightly and then completely dried immediately afterwards,
before replacing any mats etc.
Our furniture will endure most temperatures in the home but it is best to avoid placing furniture next to heat
sources such as radiators or fires. Be particularly careful with solid wood as the lack of humidity caused by
central heating can cause damage such as warping.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Never drag furniture when moving it, always lift it. Please take care when handling or moving the furniture as
careless handling may cause damage or injury. No liability will be acepted for damage or injury caused by
incorrectly installed furniture.
Safety Instructions
Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com
Page 6 of 6
