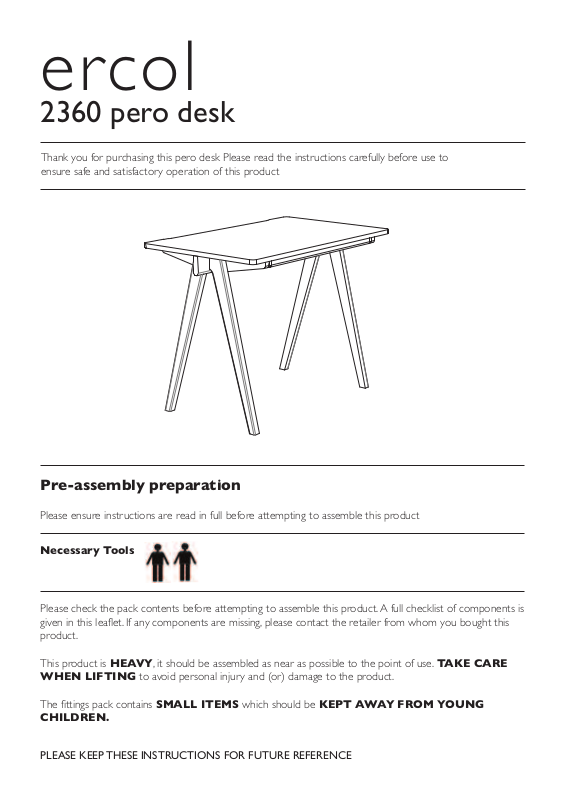

Page 1
ercol
2360 pero desk
Thank you for purchasing this pero desk Please read the instructions carefully before use to
ensure safe and satisfactory operation of this product
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Necessary Tools
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the retailer from whom you bought this
product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Page 2
Fittings and parts checklist
A
B
12 x M6 35mm bolts
1 x allen key
Step by step assembly instructions
1. Lay the top of the desk on the floor. See diagram below. Pull the drawer out a little so you can see
the bolt holes.
2. Use the allen key provided to screw 3 of the bolts into each of the legs at both ends FINGER
TIGHT ONLY. When all 12 are in place tighten fully. Push the drawer back in. T
urn the desk upright.
Drawer
PLEASE REFER TO THE ERCOL CARE CARD ENCLOSED WITH YOUR FURNITURE.
Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Bucks. HP27 9PX www.ercol.com
